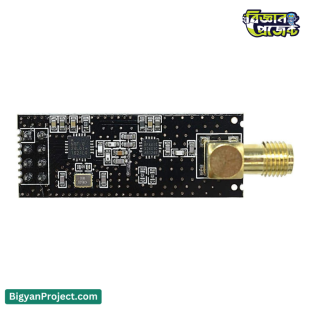

NRF24L01+PA+LNA Wireless Module with SMA Antenna

NRF24L01+PA+LNA Wireless Transceiver with Long Range SMA Antenna

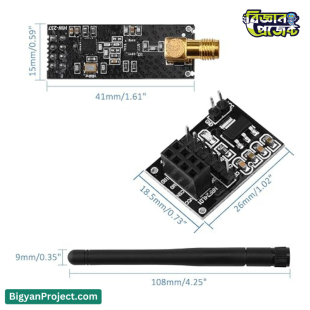

The NRF24L01+PA+LNA 2.4GHz wireless transceiver module is a reliable solution for long-distance communication in wireless projects. It comes with a power amplifier (PA) and low-noise amplifier (LNA) that significantly extend communication distance while maintaining strong signal stability. Combined with a detachable SMA antenna and breakout adapter with built-in 3.3V regulator, this module is easy to integrate into a wide range of applications including IoT devices, DIY electronics, smart home systems, and RC projects. At Bigyan Project (বিজ্ঞান প্রজেক্ট), we provide this high-quality module to support students, hobbyists, and professionals in developing innovative projects.

Product Specifications

Features

• High-performance 2.4GHz transceiver module with long range capability
• Built-in PA and LNA for stable signal strength
• Supports auto-acknowledge and auto-retransmit
• Up to six simultaneous data reception channels
• SPI interface for easy integration with microcontrollers
• Breakout adapter with 3.3V regulator for safe 5V input
• Compact design suitable for DIY electronics and robotics

Applications / Use Cases

• RC cars, drones, and planes requiring stable wireless communication
• IoT devices for home automation and smart monitoring
• Wireless audio and voice transmission such as VoIP
• Student science and engineering projects
• Wireless sensor networks and robotics projects
• RFID and NFC-based research projects

User Guide / How to Use

• Connect the module to your microcontroller using SPI interface
• Provide 3.3V regulated power (or use the breakout adapter for 5V input)
• Attach the SMA antenna securely to maximize range and stability
• Configure the transceiver registers through SPI to select channel, data rate, and power level
• Use Arduino or Raspberry Pi libraries such as RF24 for faster development
• Test communication with simple send/receive programs before full project integration

Frequently Asked Questions (FAQs)

• Q: Can I use NRF24L01+PA+LNA with Arduino?
  A: Yes, it works with Arduino through the SPI interface using popular libraries.
• Q: What is the maximum range of this module?
  A: In open space, it can reach over 800 meters with the SMA antenna.
• Q: Does it require an external power supply?
  A: The breakout adapter includes a 3.3V regulator, so you can safely use 5V input.
• Q: Can it communicate with a regular NRF24L01 module?
  A: Yes, it is fully compatible with standard NRF24L01 modules.
• Q: How many devices can communicate at the same time?
  A: Up to six devices can be connected simultaneously.

Challenges and Considerations

• Requires careful power supply management to avoid unstable performance
• High current consumption during transmission (up to 115mA)
• Performance may be reduced indoors due to interference and obstacles
• Needs proper antenna placement for maximum range

Compatibility

• Arduino boards including Uno, Mega, Nano
• Raspberry Pi models with SPI interface
• ESP32, ESP8266 and other Wi-Fi based microcontrollers
• Compatible with standard NRF24L01 modules
• Works with various DIY electronics platforms

Future Enhancement Options

• Integration with IoT cloud platforms for real-time monitoring
• Advanced encryption for secure communication
• Optimized firmware for ultra-low power operation
• Expansion with mesh networking for larger coverage
• Support for AI-powered automation projects

Benefits

• Affordable long-range wireless communication solution
• Stable and reliable data transfer in DIY and professional projects
• Supports multiple data rates for flexibility
• Easy integration with open-source libraries
• Available at Bigyan Project (বিজ্ঞান প্রজেক্ট) for students and innovators

Conclusion

The NRF24L01+PA+LNA wireless transceiver module with SMA antenna is a versatile and cost-effective solution for long-range wireless communication. It is suitable for hobby projects, academic research, and professional IoT applications. With easy integration, strong signal stability, and compatibility with popular development boards, this module is a reliable choice for anyone looking to build wireless systems. At Bigyan Project (বিজ্ঞান প্রজেক্ট), we bring this module to help makers, engineers, and students achieve their innovation goals.
