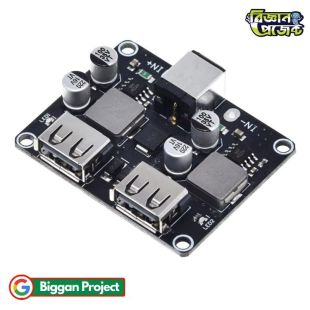

2-Channel USB QC3.0 QC2.0 DC-DC Buck Converter Module

24W 2-Channel USB QC3.0 QC2.0 DC-DC Fast Charging Buck Converter Module

The 24W 2-Channel USB QC3.0 QC2.0 DC-DC Buck Converter Module is a compact, high-efficiency DC voltage step-down module designed to convert a wide DC input voltage of 6V to 32V into intelligent USB fast charging outputs. The module automatically negotiates the required charging voltage with compatible devices, allowing outputs between 3V and 12V depending on the supported fast charging protocol.

This module features dual USB output ports, making it suitable for charging two USB-powered devices simultaneously. It supports a wide range of modern fast charging protocols including Qualcomm QC2.0/QC3.0, Huawei FCP/SCP, Samsung AFC, MTK PE1.1/PE2.0, Apple, BC1.2, DCP, and more. With built-in protection against overvoltage, undervoltage, overcurrent, short circuits, and overheating, it provides reliable performance for DIY electronics and embedded charging systems.

Whether you are building a custom power supply, upgrading a vehicle USB charger, creating a solar-powered charging station, or working on a Biggan Project, this converter module offers dependable performance with conversion efficiency up to 97%. It is an excellent choice for hobbyists, engineers, students, makers, and electronics enthusiasts in Bangladesh, especially for educational projects, DIY developments, and commercial embedded applications. The module is also widely used in BD electronics laboratories, robotics projects, and Biggan Project exhibitions due to its versatility and wide compatibility.

Product Specifications

Features

• Wide DC input voltage range from 6V to 32V.
• Dual USB output ports for charging two devices.
• Supports intelligent automatic fast charging voltage negotiation.
• Compatible with most major USB fast charging protocols.
• High conversion efficiency up to 97%.
• Stable and reliable power output.
• Built-in multiple electronic protection systems.
• Compact PCB suitable for embedded installations.
• Ideal for DIY electronics and educational projects.
• Low heat generation and efficient operation.

Applications / Use Cases

• Solar powered mobile charging systems.
• Car USB fast charging upgrades.
• Motorcycle USB charging ports.
• DIY bench power supplies.
• Embedded industrial control systems.
• Robotics and automation projects.
• Dash camera power systems.
• Portable battery charging stations.
• Smart home electronics.
• Biggan Project and engineering demonstrations in Bangladesh.

User Guide / How to Use

• Connect a DC input between 6V and 32V to the input terminals.
• Ensure the power source polarity is correct.
• Connect USB-powered devices to either USB output.
• The module automatically detects supported fast charging protocols.
• Use an adequate DC power source capable of supplying required current.
• Mount the module in a ventilated enclosure for continuous high-power use.
• Avoid exceeding the specified input voltage.

Frequently Asked Questions (FAQs)

• Q: Can this module charge two devices simultaneously?
  A: Yes, it features two USB output ports.
• Q: Does it support Qualcomm QC3.0?
  A: Yes, it supports both QC2.0 and QC3.0.
• Q: Can I power it from a 12V battery?
  A: Yes, any DC input between 6V and 32V is supported.
• Q: Is it suitable for solar panels?
  A: Yes, provided the solar output voltage remains within the supported input range.
• Q: Does it include protection against short circuits?
  A: Yes, it includes built-in short circuit and overcurrent protection.
• Q: Can it be used in DIY electronics projects?
  A: Absolutely. It is widely used in DIY, educational, and embedded electronics projects.

Challenges and Considerations

• Use a stable DC input source for optimal performance.
• Ensure sufficient input current capacity.
• Provide airflow during continuous high-power operation.
• Do not exceed the specified voltage limits.
• Use quality USB cables to achieve maximum charging speed.

Compatibility

• Android smartphones with QC2.0/QC3.0 support.
• Huawei fast charging devices.
• Samsung AFC compatible devices.
• Apple iPhone and iPad devices.
• MTK fast charging smartphones.
• USB-powered cameras.
• Dash cameras.
• Power banks.
• USB development boards.
• Various DIY electronic systems.

Future Enhancement Options

• Add an enclosure for outdoor applications.
• Integrate with lithium battery backup systems.
• Combine with solar charge controllers.
• Install cooling fans for continuous heavy loads.
• Use with custom embedded charging stations.
• Build portable emergency charging kits.

Benefits

• Supports numerous fast charging standards.
• Reduces charging time for compatible devices.
• High energy conversion efficiency.
• Compact size for easy installation.
• Reliable protection features.
• Suitable for educational and professional electronics.
• Excellent for Biggan Project demonstrations.
• Widely applicable in Bangladesh electronics projects.
• Easy integration into custom power systems.
• Cost-effective fast charging solution.

Conclusion

The 24W 2-Channel USB QC3.0 QC2.0 DC-DC Buck Converter Module is a versatile and efficient fast charging solution for modern USB-powered devices. Its wide input voltage range, dual USB outputs, comprehensive protection features, and broad fast charging compatibility make it an excellent choice for DIY electronics, automotive applications, solar charging systems, embedded devices, and Biggan Project developments in Bangladesh and beyond.
