12V 4-Gear Fan Motor Speed Controller Module

12V Boost Board USB Rechargeable Fan Speed Controller Circuit Module

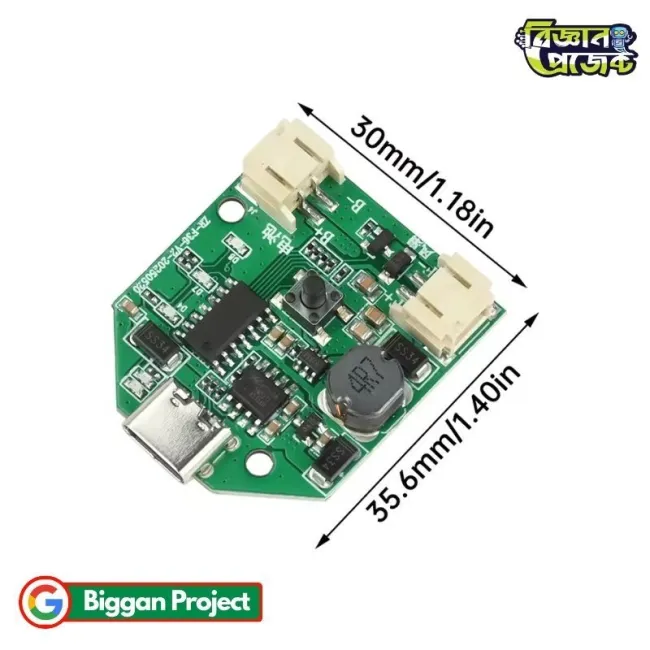

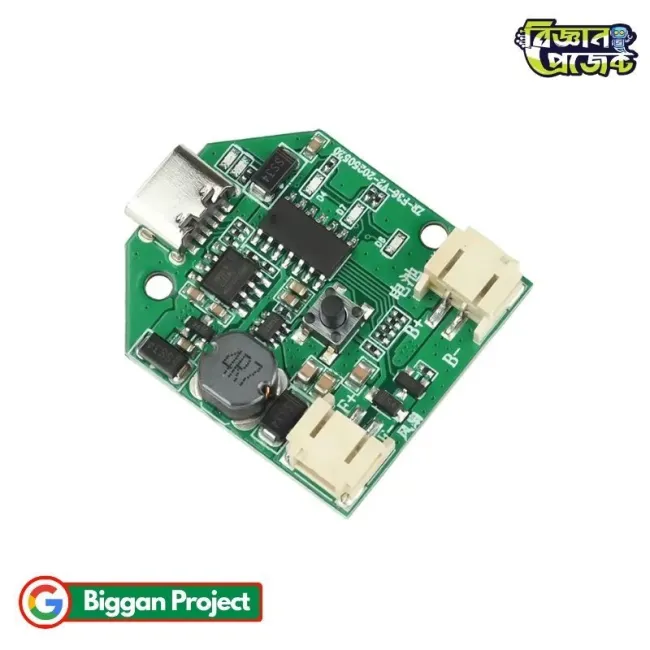

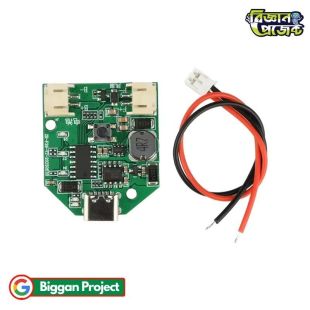

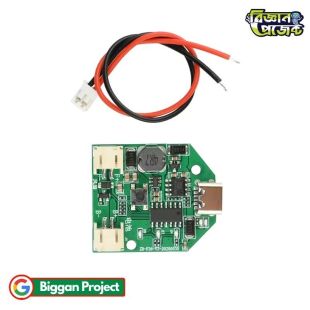

The 12V Boost Board Fan Speed Controller Module is an essential component designed for modern, portable, and rechargeable DIY electronics. Powered by a standard 3.7V or 4.2V lithium-ion/polymer battery, this module steps up input voltage up to 12V, allowing precise 4-gear speed control for small DC brushless fan motors. Built with a Type-C USB charging port, integrated battery management, and reverse polarity protection, it simplifies the creation of custom handheld and desktop cooling devices. Hobbyists and students building custom electronics in BD will find this circuit board ideal for DIY science projects and prototype builds. As a complete hardware solution available at Biggan Project, this module provides efficient power conversion with extremely low standby power consumption, ensuring maximum battery life and reliable motor performance in localized DIY setups across Bangladesh.

Features

• Integrated boost converter steps up 3.7V lithium battery output to 12V.
• Convenient Type-C USB input supporting simultaneous charging and discharging operation.
• Four adjustable gear speed settings (5V, 7V, 9V, and 12V) via an onboard push button.
• Reverse polarity protection built into both the battery terminal and fan output terminals.
• Ultra-low standby current consumption (10uA) to preserve battery power when idle.
• Automatic charge cut-off with LED status lights for safe power management.

Applications / Use Cases

• Custom handheld rechargeable fan assembly and repairs.
• Portable mini cooling systems for science project setups and DIY electronics in BD.
• Brushless DC motor speed adjustment in student robotics and electronics prototypes.
• Upgrading non-rechargeable mini fans to Type-C USB rechargeable models.
• Compact desktop cooling solutions powered by 18650 lithium cells.

User Guide / How to Use

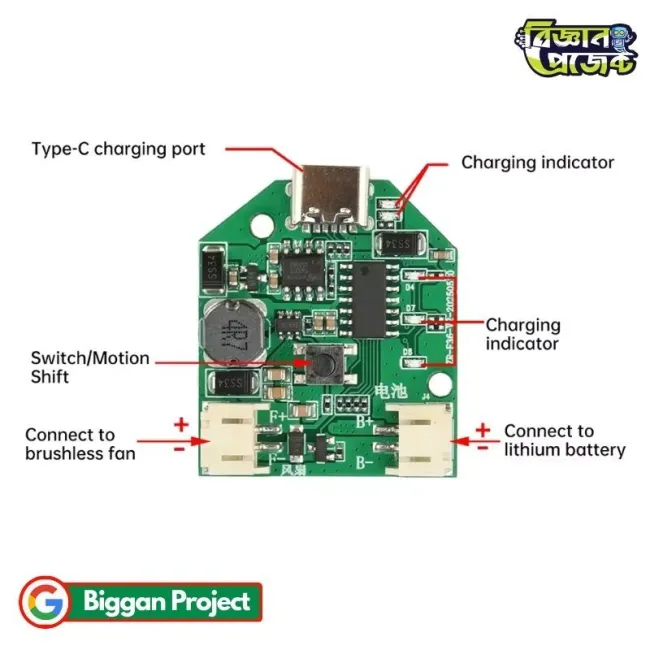

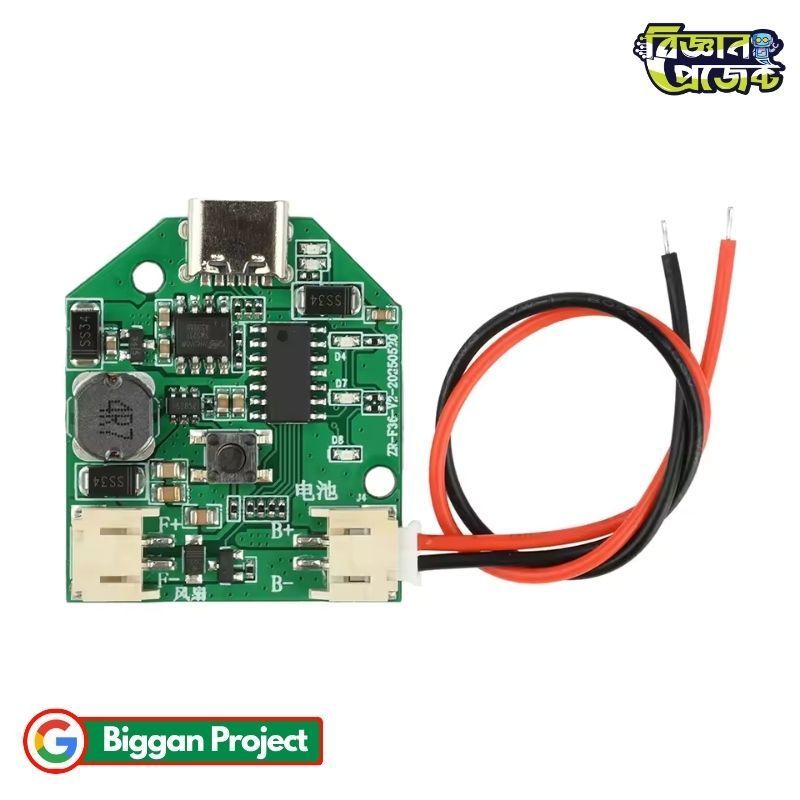

• Connect a 3.7V or 4.2V lithium battery to the PH2.0 battery terminal observing polarity.
• Plug a compatible 5-8 inch brushless fan motor into the PH2.0 fan output connector.
• Connect a standard Type-C cable to charge the onboard lithium battery.
• Press the tactile button once to power on at 1st gear (5V).
• Press consecutively to cycle through 2nd gear (7V), 3rd gear (9V), 4th gear (12V), and turn off the device.

Frequently Asked Questions (FAQs)

• Q: Can I run the module directly without connecting a battery?
  A: Yes, but when powered only via USB without a connected battery, the board may only operate at the lowest gear setting.
• Q: What power source should I use for simultaneous charging and discharging?
  A: It is recommended to use a 5V 3A power adapter or power supply to support simultaneous charging and high-gear discharging.
• Q: Is this board compatible with all types of fan motors?
  A: It is specifically designed for 5 to 8 inch DC brushless fan motors with matching current ratings under 800mA.
• Q: What happens if the battery wires are connected backward?
  A: The board features reverse protection, but forcing charging on a reverse-connected battery can cause permanent damage.

Challenges and Considerations

• Ensure the attached brushless fan motor does not exceed the maximum 800mA current capacity at 12V.
• Pay attention to wire color conventions when connecting custom motors to the PH2.0 female sockets.
• In simultaneous charge/discharge mode, high load operation requires a robust 5V 3A USB power supply to prevent under-voltage resets.

Compatibility

• 3.7V and 4.2V Li-ion batteries (18650, 21700, LiPo cells).
• 5-inch to 8-inch DC brushless fan motors.
• Standard Type-C USB charging cables and 5V USB wall adapters.

Future Enhancement Options

• Integrating an external digital display to show real-time output voltage or battery percentage.
• Adding speed control extension wires to locate the push button externally on custom enclosures.
• Paralleling multiple 18650 battery cells to significantly increase total runtime.

Benefits

• Combines step-up conversion, charging circuitry, and motor speed control into one small footprint.
• Simplifies hardware assembly for students, makers, and repair technicians.
• Provides stable multi-voltage output levels to customize air speed performance efficiently.

Conclusion

This 12V Boost Board Fan Speed Controller Module is a practical, highly efficient all-in-one circuit module for building or repairing rechargeable fans. By unifying charging control, step-up voltage boost, and multi-gear motor speed regulation on a single compact board, it offers great value for makers, DIY enthusiasts, and students working on complete electronics and science projects across Bangladesh.
