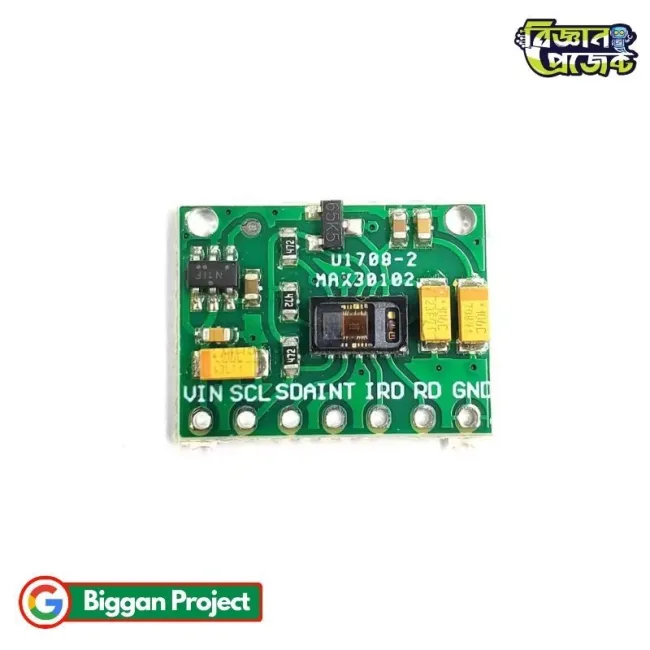

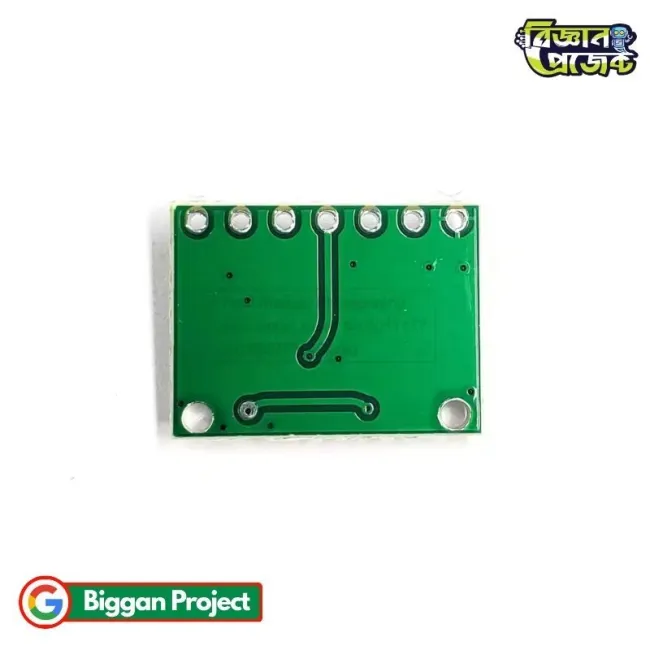

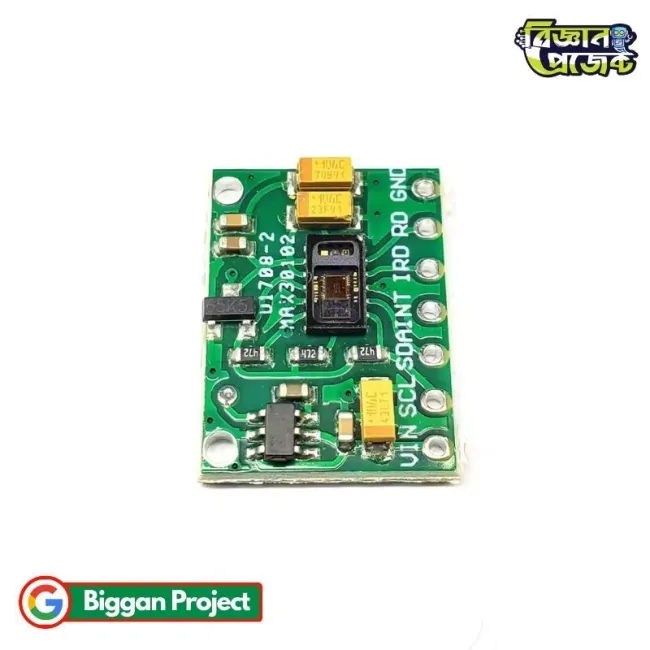

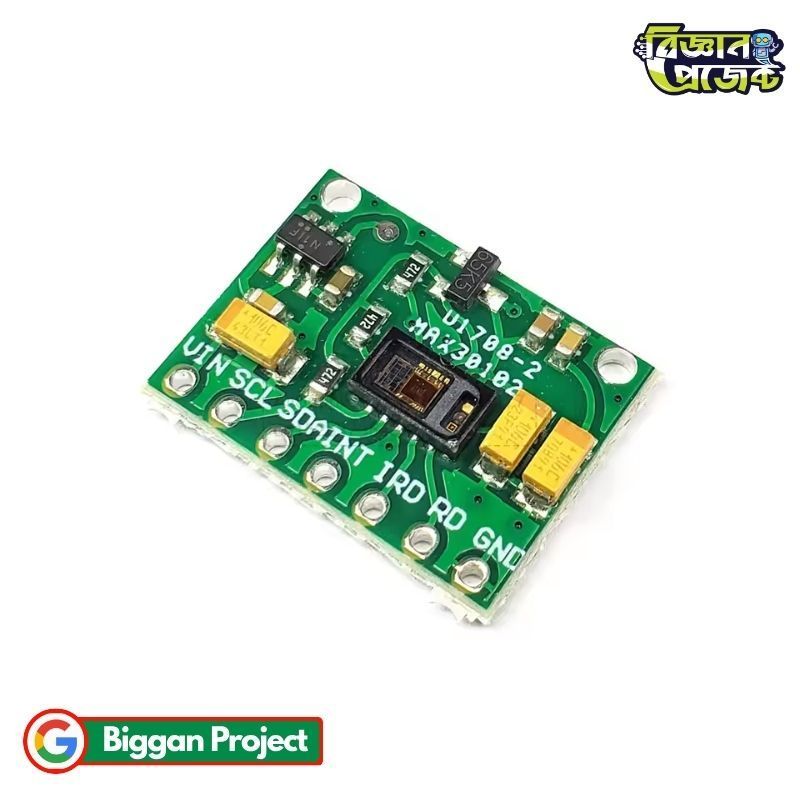

MAX30102 Heart Rate and Blood Oxygen Sensor Module

MAX30102 Pulse Oximetry and Heart Rate Detection Module

The MAX30102 is an integrated pulse oximetry and heart rate monitor module designed for high-performance health tracking applications. Combining dual LEDs, a photodetector, optimized optics, and low-noise analog signal processing, this optical sensor accurately measures heart rate (BPM) and blood oxygen saturation (SpO2). It acts as a direct, upgraded replacement for the older MAX30100 sensor, offering improved ambient light rejection and better signal stability. In Bangladesh, students, robotics enthusiasts, and DIY makers rely on the MAX30102 for building reliable biomedical devices and smart wearable prototypes. Available through Biggan Project, this compact board connects seamlessly with Arduino, ESP32, and STM32 platforms, making advanced health monitoring accessible for all types of electronics projects in BD.

Product Specifications

Features

• Integrated optical heart rate and SpO2 sensor solution in a tiny footprint
• Upgraded replacement for MAX30100 with improved optical performance
• Dual internal LEDs (Red and Infrared) for precise photoplethysmography (PPG)
• Integrated cover glass for physical protection and stable optical performance
• Low power consumption suitable for battery-operated smart wearables
• Standard I2C bus interface for straightforward digital output
• High ambient light suppression to minimize measurement interference

Applications / Use Cases

• Smart fitness bands and wearable health trackers
• Pulse oximeter handheld devices for personal monitoring
• Arduino-based medical and biomedical student projects
• Patient monitoring system prototypes with IoT cloud logging
• Wearable sports diagnostic equipment

User Guide / How to Use

• Connect the module VCC pin to 3.3V or 5V depending on your development board logic, and wire GND to ground.
• Connect the SDA and SCL pins to the corresponding I2C data and clock lines on your microcontroller (e.g., A4/A5 on Arduino Uno).
• Install a standard MAX30102 library (such as the SparkFun MAX3010x library) in the Arduino IDE.
• Upload an example sketch to start reading real-time PPG data, heart rate, and SpO2 calculations over the Serial Monitor.
• Gently place a fingertip or place the sensor flush against skin without applying excessive pressure, which can alter blood flow readings.

Frequently Asked Questions (FAQs)

• Q: Is the MAX30102 a direct replacement for the MAX30100?
  A: Yes, it is an upgraded optical sensor that serves as a direct functional replacement with better accuracy and ambient light filtering.
• Q: Can I use this sensor with a 5V Arduino board?
  A: Yes, most breakout modules feature on-board voltage regulation allowing VCC to connect to 5V, while I2C logic operates reliably.
• Q: Why are my SpO2 or BPM readings fluctuating?
  A: Excessive finger pressure or movement can distort optical readings. Keep the finger still and steady over the sensor during measurement.
• Q: Does this module require extra external LEDs?
  A: No, both the Red and IR LEDs are integrated directly into the MAX30102 IC package.

Challenges and Considerations

• Motion artifacts caused by sudden movements can cause noise in the optical PPG waveform.
• Varying ambient light conditions may require proper shielding or firmware filtering for consistent accuracy.
• Correct pressure placement on skin is essential; pressing too hard restricts local blood flow and alters readings.
• Calculating accurate SpO2 values requires reliable calibration algorithms within software libraries.

Compatibility

• Arduino boards (Uno, Nano, Mega, Pro Mini)
• ESP8266 and ESP32 microcontrollers
• Raspberry Pi and Raspberry Pi Pico
• STM32 microcontrollers
• Any system supporting standard I2C communication

Future Enhancement Options

• Integration with an OLED display (e.g., SSD1306) for real-time visual readings
• Adding Bluetooth or Wi-Fi connectivity (ESP32) for remote patient monitoring via mobile apps
• Incorporating buzzer or LED alarms triggered by abnormal pulse rates
• Combining with temperature sensors (like MLX90614 or DS18B20) for complete vital sign monitoring units

Benefits

• Compact all-in-one design saves board space in compact wearable designs
• Easy implementation thanks to widely available open-source libraries
• Cost-effective entry point for learning biomedical engineering and sensor integration
• Reliable digital signal output over I2C eliminates complex analog signal processing by the host MCU

Conclusion

The MAX30102 Pulse Oximeter and Heart Rate Sensor Module offers an accurate, compact, and affordable solution for personal biomedical tracking. Whether building a custom fitness tracker or developing a medical project for university, this sensor provides reliable pulse and SpO2 readings with simple microcontroller integration.
