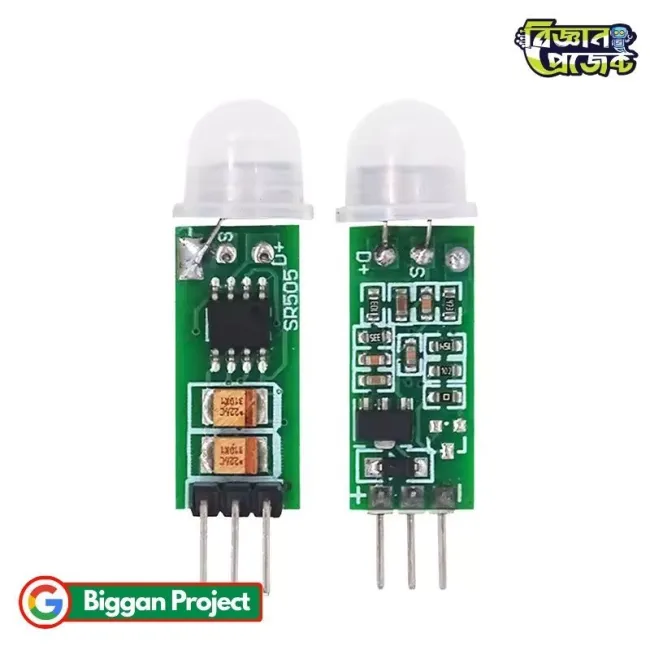

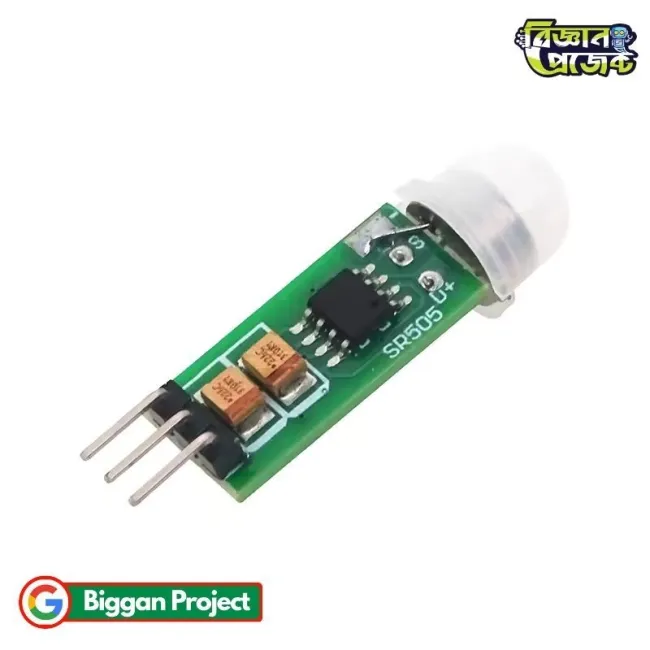

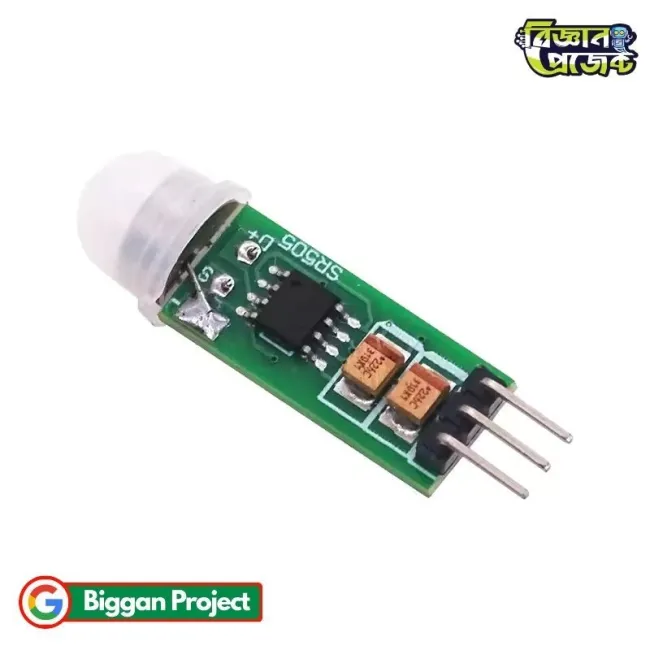

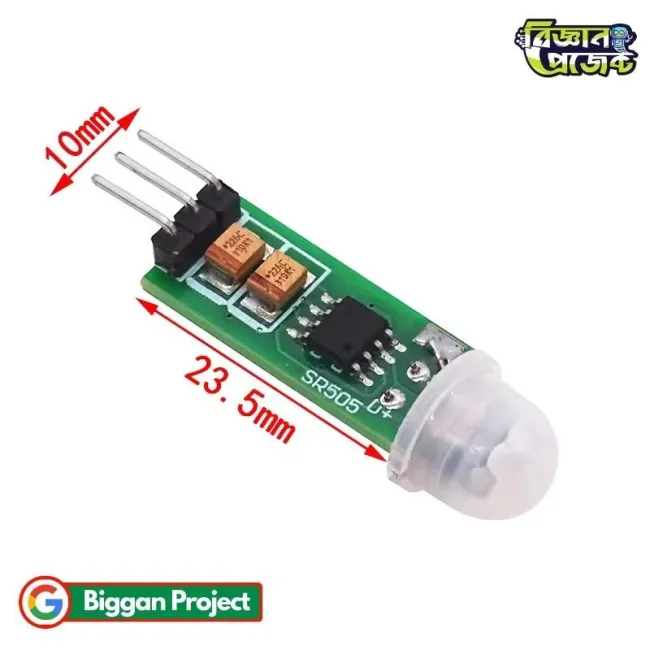

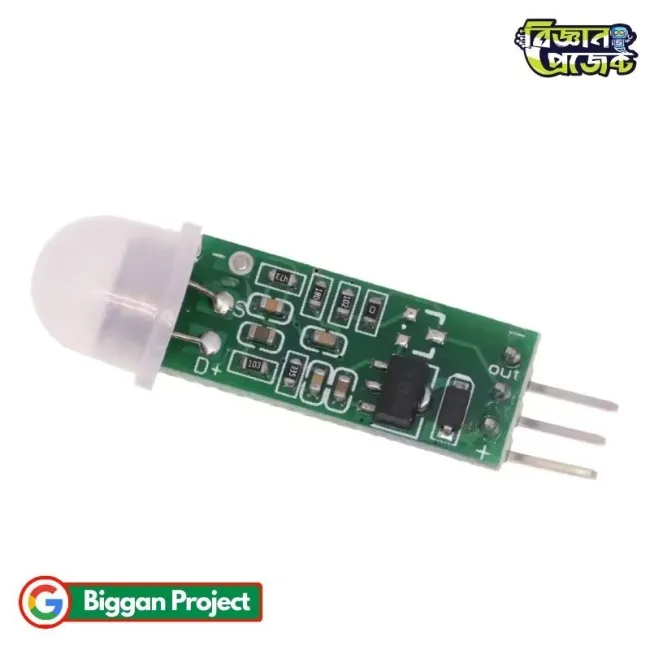

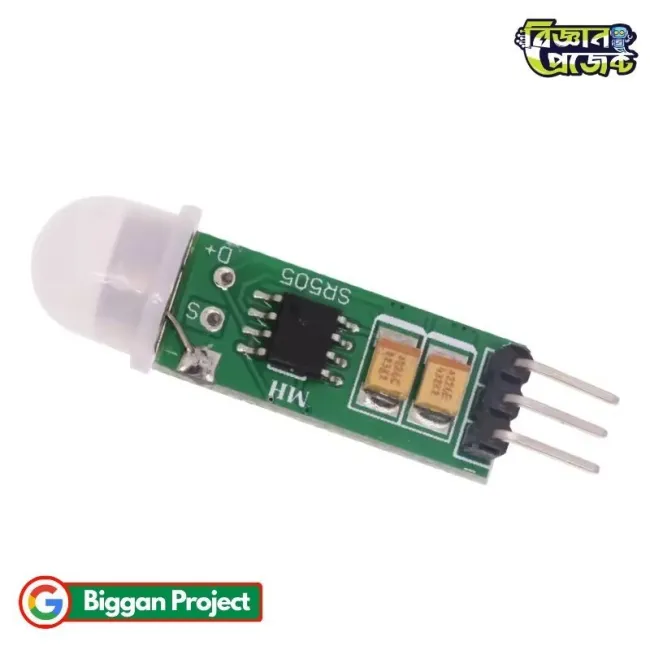

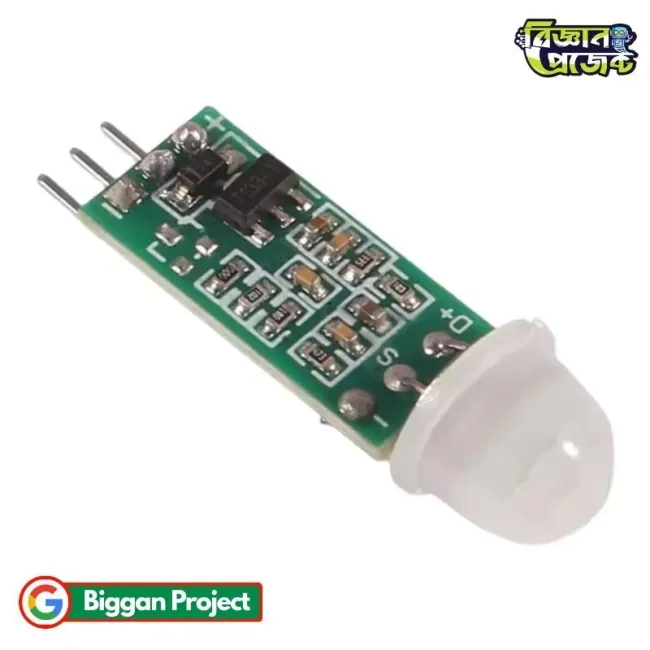

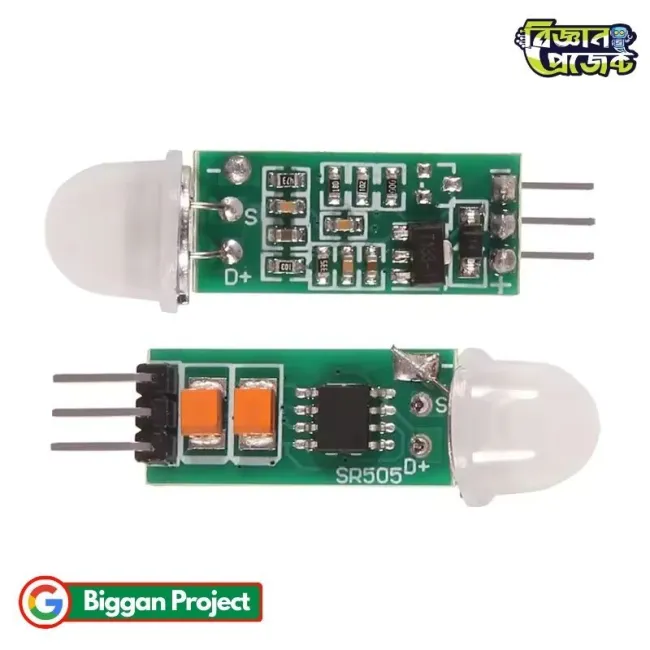

HC-SR505 Mini PIR Motion Sensor Module for Arduino

HC-SR505 Mini Infrared PIR Motion Detection Sensor Module

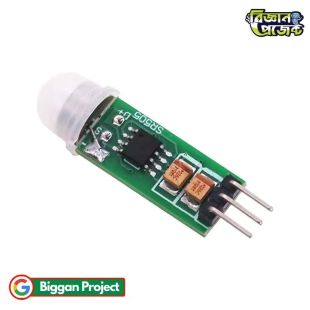

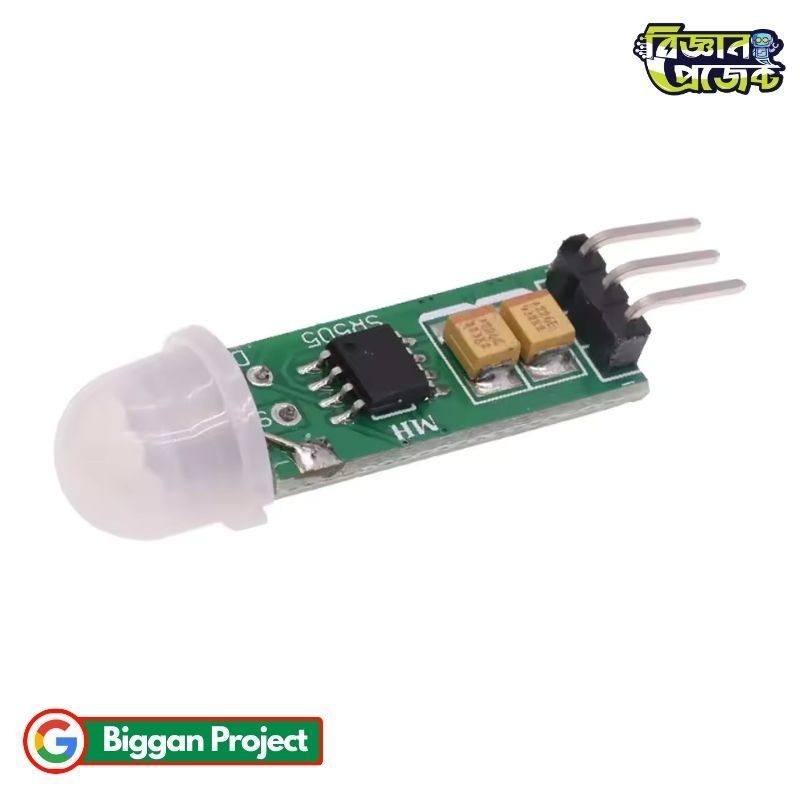

The HC-SR505 Mini PIR Motion Sensor Module is a compact and energy-efficient infrared motion detection module designed for Arduino, ESP32, Raspberry Pi, automation systems, robotics, and smart electronic projects. This sensor can detect human body movement by sensing changes in infrared radiation within its detection range. Due to its small size and low power consumption, the HC-SR505 is widely used in battery-powered devices, security systems, automatic lighting systems, and DIY electronics projects.

In Bangladesh and BD electronics markets, the HC-SR505 PIR sensor is highly popular among students, robotics enthusiasts, and makers working on automation and smart sensing projects. It is commonly used in science fair projects, IoT systems, motion-activated alarms, and automatic switching applications. At Biggan Project, this sensor module is considered an essential component for learning motion detection and embedded system design.

The module uses passive infrared sensing technology to detect nearby movement without physical contact. When a person or object enters the detection area, the sensor outputs a HIGH signal. After the preset delay time, the output automatically returns LOW if no further movement is detected. Its repeatable trigger mode ensures stable operation in continuous sensing environments.

Product Specifications

Features

• Compact mini-sized PIR motion sensor module
• Low power consumption suitable for battery-powered projects
• Reliable infrared human body motion detection
• Repeatable trigger output mode for stable sensing
• Wide operating voltage range for flexible integration
• Simple interface for Arduino and microcontroller projects
• Fast response to nearby movement detection
• Suitable for smart automation and DIY electronics
• Lightweight design for embedded systems
• Easy installation in compact enclosures

Applications / Use Cases

• Automatic lighting systems
• Motion-activated security alarms
• Arduino and ESP32 projects
• DIY robotics and automation systems
• Smart home motion detection
• Battery-powered sensing devices
• Science fair and educational projects
• Human presence detection systems
• Automatic fan or appliance control
• IoT motion sensing applications

User Guide / How to Use

• Connect the VCC pin to a compatible DC power source
• Connect the GND pin to system ground
• Connect the OUT pin to a digital input pin of Arduino or microcontroller
• Upload a simple motion detection program to the controller
• Place the sensor facing the monitoring area
• Allow a few seconds for sensor stabilization after power-on
• Read HIGH signal when motion is detected
• Use the output signal to trigger lights, alarms, or automation devices

Frequently Asked Questions (FAQs)

• Q: What does the HC-SR505 sensor detect?
  A: It detects human body movement using passive infrared sensing technology.
• Q: Can this sensor work with Arduino UNO?
  A: Yes, the HC-SR505 is fully compatible with Arduino UNO, Nano, Mega, and other microcontrollers.
• Q: Is the sensor suitable for battery-powered devices?
  A: Yes, its ultra-low power consumption makes it ideal for battery-operated projects.
• Q: What is the sensing range of the module?
  A: The module can detect movement up to approximately 3 meters.
• Q: Does the sensor continuously output HIGH during movement?
  A: Yes, the repeatable trigger mode keeps the output HIGH while motion continues.

Challenges and Considerations

• Direct sunlight may affect sensing performance
• Detection range may vary depending on environmental conditions
• Not suitable for precise distance measurement
• Requires proper positioning for accurate motion detection
• Small movements at long distances may not trigger detection

Compatibility

• Arduino UNO
• Arduino Nano
• Arduino Mega
• ESP32 Development Boards
• ESP8266 Modules
• Raspberry Pi GPIO Systems
• STM32 Development Boards
• DIY Automation Circuits
• Smart Home Systems
• Embedded Electronics Projects

Future Enhancement Options

• Integrate with IoT cloud monitoring systems
• Add relay modules for automatic appliance control
• Use with wireless communication modules
• Combine with camera systems for smart surveillance
• Integrate with voice assistant automation systems
• Develop advanced occupancy detection systems

Benefits

• Easy to use in beginner and advanced projects
• Low power consumption improves battery life
• Compact design saves installation space
• Reliable human motion sensing performance
• Affordable solution for automation systems
• Suitable for educational and professional applications
• Widely available in Bangladesh electronics markets
• Excellent choice for Biggan Project automation experiments

Conclusion

The HC-SR505 Mini PIR Motion Sensor Module is a practical and efficient solution for motion detection and smart automation projects. Its compact size, reliable sensing capability, and low power operation make it suitable for Arduino, IoT, robotics, and security applications. Whether you are building a science project, automation system, or smart device in Bangladesh or BD electronics environments, this sensor module provides dependable performance for a wide range of electronic applications.
