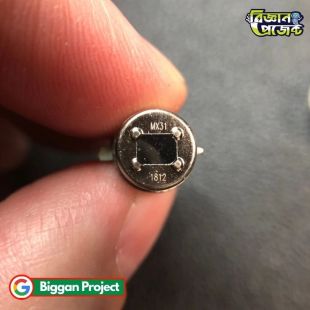

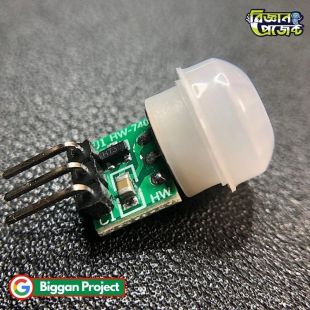

AM312 Mini PIR Motion Sensor Module 2.7V-12V

AM312 Mini PIR Human Motion Detection Sensor Module 2.7V-12V

The AM312 Mini PIR Motion Sensor is a compact and low-power passive infrared (PIR) sensor module designed to detect human movement efficiently in a wide range of electronic applications. Using digital infrared sensing technology, the module can identify motion within a distance of approximately 3 to 5 meters while maintaining extremely low power consumption. Its miniature PCB size of only 10mm × 8mm makes it suitable for projects where space is limited.

This sensor is widely used in smart home automation systems, security devices, automatic lighting solutions, energy-saving electronics, and DIY projects. The AM312 PIR sensor features repeatable triggering, allowing it to continuously detect movement without requiring a manual reset. Because it operates from 2.7V to 12V DC, it can easily interface with popular microcontrollers such as Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and many other development platforms.

For students, makers, engineers, and robotics enthusiasts in Bangladesh, the AM312 Mini PIR Motion Sensor is an excellent choice for creating intelligent motion-aware devices. Whether you are developing an IoT solution, a smart security project, or an automation system, this sensor provides reliable performance in a compact form factor. It is commonly used in educational and practical electronics projects available through Biggan Project and other electronics communities in BD.

Product Specifications

Features

• Ultra-compact 10mm × 8mm PCB design.
• Wide operating voltage range from 2.7V to 12V DC.
• Very low standby power consumption.
• Reliable human motion detection up to 5 meters.
• Wide sensing angle of up to 100 degrees.
• Repeatable trigger operation for continuous detection.
• Suitable for battery-powered and low-power devices.
• Easy integration with microcontrollers and embedded systems.
• Stable performance across a broad temperature range.
• Ideal for smart automation and IoT applications.

Applications / Use Cases

• Automatic lighting control systems.
• Smart home automation projects.
• Motion-activated alarms and security systems.
• IoT-based occupancy detection solutions.
• Automatic door and appliance control systems.
• Energy-saving electronic devices.
• Educational electronics experiments.
• Arduino and ESP32 motion sensing projects.
• Robotics and automation systems.
• Portable battery-powered smart devices.

User Guide / How to Use

• Connect the VCC pin to a DC power source between 2.7V and 12V.
• Connect the GND pin to the system ground.
• Connect the OUT pin to a digital input pin of your microcontroller.
• Power the module and allow it to stabilize.
• Monitor the output signal for motion detection events.
• Use software logic to trigger lights, alarms, relays, or notifications.
• Install the sensor facing the area where motion detection is required.

Frequently Asked Questions (FAQs)

• Q: What is the maximum detection distance?
  A: The sensor can typically detect motion within approximately 3 to 5 meters.
• Q: Can the AM312 work with Arduino?
  A: Yes, it can be directly connected to Arduino and other microcontroller platforms.
• Q: Is the sensor suitable for battery-powered projects?
  A: Yes, its very low power consumption makes it ideal for battery-operated devices.
• Q: Does the sensor detect objects or only motion?
  A: It detects changes in infrared radiation caused primarily by moving people or animals.
• Q: Can it be used with ESP8266 and ESP32 boards?
  A: Yes, it is fully compatible with ESP8266, ESP32, and similar development boards.

Challenges and Considerations

• Detection accuracy may vary depending on environmental conditions.
• Direct exposure to heat sources can affect sensing performance.
• The detection distance depends on installation position and lens characteristics.
• Outdoor use may require additional weather protection.
• Rapid temperature fluctuations can influence detection sensitivity.

Compatibility

• Arduino Uno, Nano, Mega, and compatible boards.
• ESP8266 development boards.
• ESP32 development boards.
• Raspberry Pi GPIO systems.
• STM32 microcontroller platforms.
• PIC microcontrollers.
• AVR-based development boards.
• Custom embedded electronics projects.

Future Enhancement Options

• Integrate with Wi-Fi-enabled IoT platforms.
• Add cloud-based motion monitoring.
• Combine with camera modules for smart surveillance.
• Create occupancy-based energy management systems.
• Develop smart notification and alert systems.
• Integrate with home automation ecosystems.

Benefits

• Compact size enables installation in small spaces.
• Low power consumption improves battery life.
• Simple digital output simplifies programming.
• Wide voltage support increases flexibility.
• Reliable motion detection for automation projects.
• Cost-effective solution for security and sensing applications.
• Suitable for educational, hobbyist, and professional projects.
• Popular among makers and developers in Bangladesh and BD electronics communities.

Conclusion

The AM312 Mini PIR Motion Sensor is a compact, efficient, and versatile motion detection module suitable for smart home automation, IoT systems, security devices, robotics, and educational electronics projects. With low power consumption, reliable detection performance, and broad compatibility with popular development platforms, it is an excellent choice for makers, students, and engineers working on innovative projects through Biggan Project and throughout Bangladesh.
