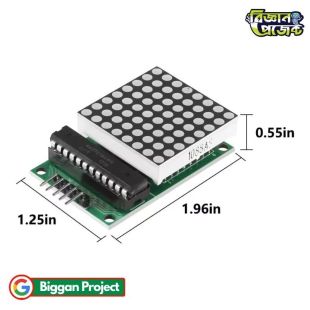

MAX7219 8x8 LED Dot Matrix Display Module 5V

MAX7219 8x8 LED Dot Matrix Display Module for Arduino 5V Serial Driver

The MAX7219 8x8 LED Dot Matrix Module is a highly efficient and compact display solution widely used in microcontroller-based projects. Designed around the powerful MAX7219 driver IC, this module allows you to control a full 64-LED matrix using only three control pins (DIN, CS, CLK). This significantly reduces wiring complexity and makes it ideal for beginners and professionals alike.

In Bangladesh, especially among students and hobbyists working with Arduino and robotics, this module is very popular due to its simplicity and flexibility. At Biggan Project, this module is frequently used in educational kits and DIY electronics projects. Whether you are building a scrolling text display, digital notice board, or interactive LED animation, this module provides stable, flicker-free output.

Another key advantage is its cascading capability. Multiple MAX7219 modules can be connected together to create larger displays, making it suitable for advanced applications in BD such as LED signage, information boards, and IoT-based display systems.

Product Specifications

Features

• Controls 64 LEDs using only 3 microcontroller pins
• Built-in MAX7219 driver for stable and efficient performance
• Flicker-free display output
• Supports cascading for extended displays
• Adjustable brightness via software control
• Compact size suitable for embedded projects
• Simple serial communication interface

Applications / Use Cases

• Scrolling text display systems
• Digital clocks and counters
• Arduino and robotics projects
• LED notice boards and signage
• IoT-based display systems
• Educational electronics experiments in Bangladesh

User Guide / How to Use

• Connect VCC to 5V and GND to ground
• Connect DIN, CS, and CLK to microcontroller digital pins
• Use Arduino libraries like LedControl or MD_MAX72XX
• Upload code to display characters, numbers, or animations
• For multiple modules, connect output of one module to input of next

Frequently Asked Questions (FAQs)

• Q: How many pins are required to control this module?
  A: Only 3 control pins (DIN, CS, CLK) are required.
• Q: Can I connect multiple modules together?
  A: Yes, it supports cascading to create larger displays.
• Q: Is it compatible with Arduino?
  A: Yes, it works perfectly with Arduino and other microcontrollers.
• Q: Does it support brightness control?
  A: Yes, brightness can be adjusted through software.

Challenges and Considerations

• Requires proper library setup for beginners
• 5V power supply must be stable for consistent brightness
• Large cascaded setups may need external power support

Compatibility

• Arduino Uno, Nano, Mega
• ESP32 and ESP8266
• Raspberry Pi (with SPI interface)
• 8051 and other microcontrollers

Future Enhancement Options

• Combine multiple modules for large LED panels
• Integrate with IoT platforms for remote display control
• Use with sensors to create dynamic display systems
• Build smart notice boards or message displays

Benefits

• Reduces wiring complexity significantly
• Ideal for both beginners and advanced users
• Cost-effective display solution in Bangladesh
• Reliable and widely supported module
• Flexible for various creative electronics projects

Conclusion

The MAX7219 8x8 LED Dot Matrix Module is a versatile and essential component for anyone working with microcontrollers and display systems. Its ease of use, expandability, and efficient control make it a top choice for projects in Bangladesh. Available at Biggan Project, this module offers excellent value for both learning and professional applications.
