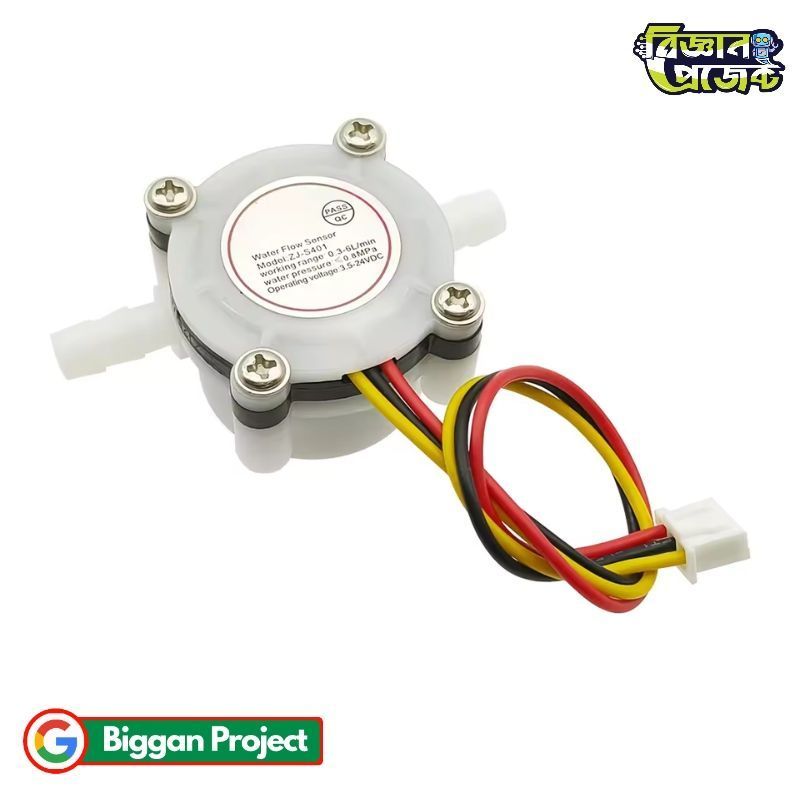

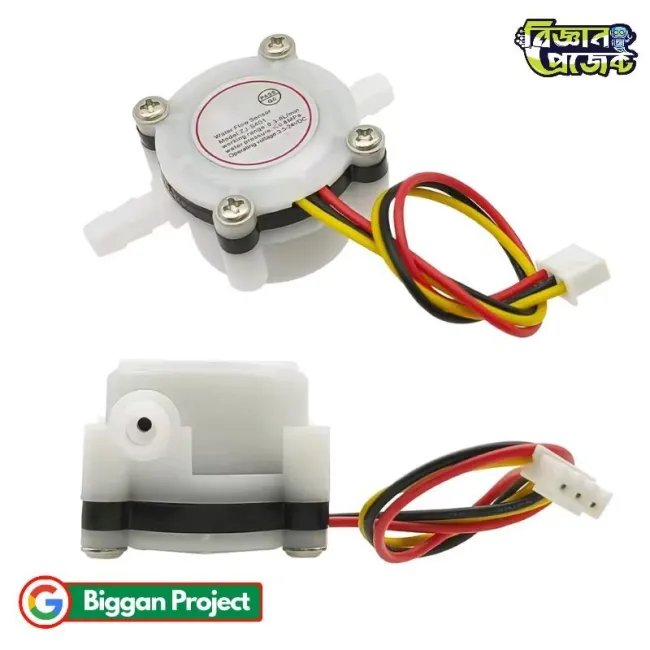

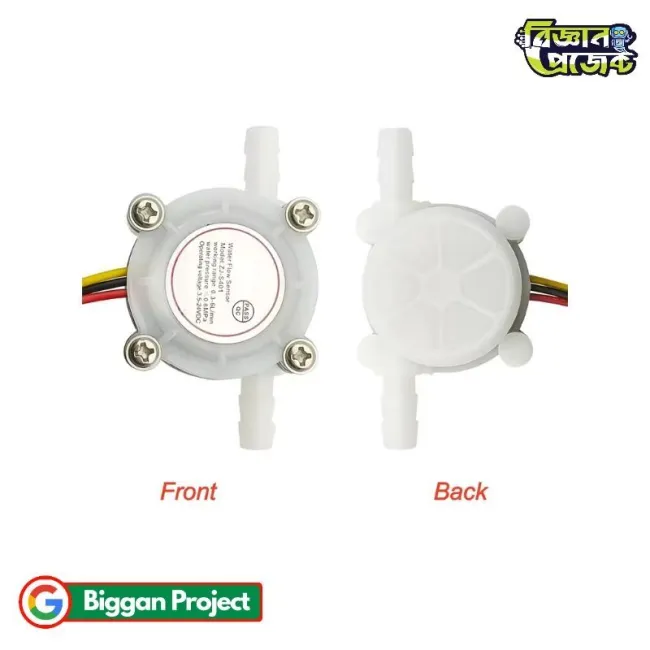

YF-S401 1/4" Hall Effect Water Flow Sensor

YF-S401 1/4 Inch Hall Effect Liquid Water Flow Sensor Meter

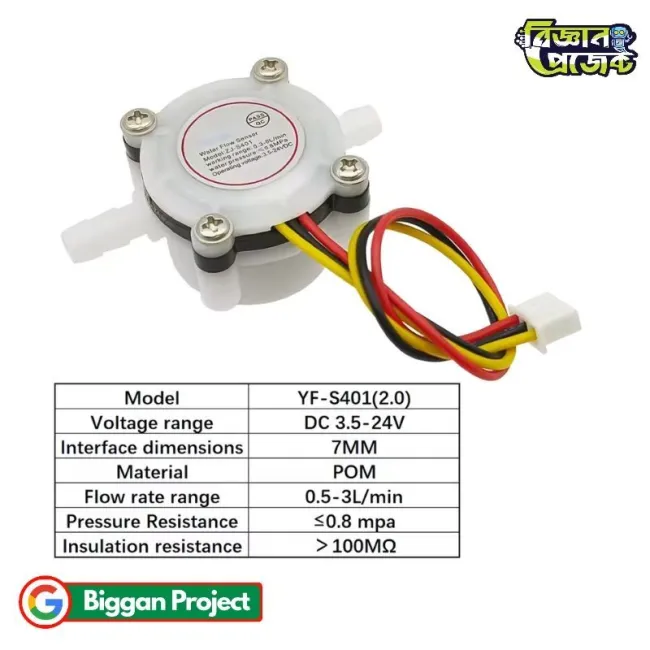

The YF-S401 is a highly reliable 1/4 inch quick-connect Hall effect water flow sensor engineered to accurately measure liquid inflow rates ranging from 0.3 to 3 liters per minute. Widely utilized in modern water coolers, espresso machines, and advanced water purification systems, this compact sensor is a favorite among hobbyists, automation engineers, and students in Bangladesh working on smart home appliances and IoT water monitoring systems. Whether you are prototyping a smart dispensing device for a local engineering project in BD or developing an industrial liquid management prototype, this flow meter delivers precise pulse-based data output with robust durability.

Features

• Compact and lightweight structural design for easy integration into tight spaces
• Integrated Hall effect sensor that generates clean square wave pulses proportional to flow velocity
• Embedded stainless steel shaft running through the impeller top and bottom to eliminate concentrated stress points
• Superior wear resistance ensuring long operational lifespan under continuous fluid flow
• Fully encapsulated potting glue construction offering excellent water ingress and leakage protection

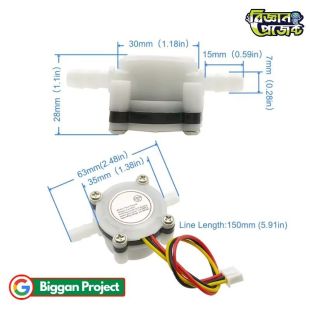

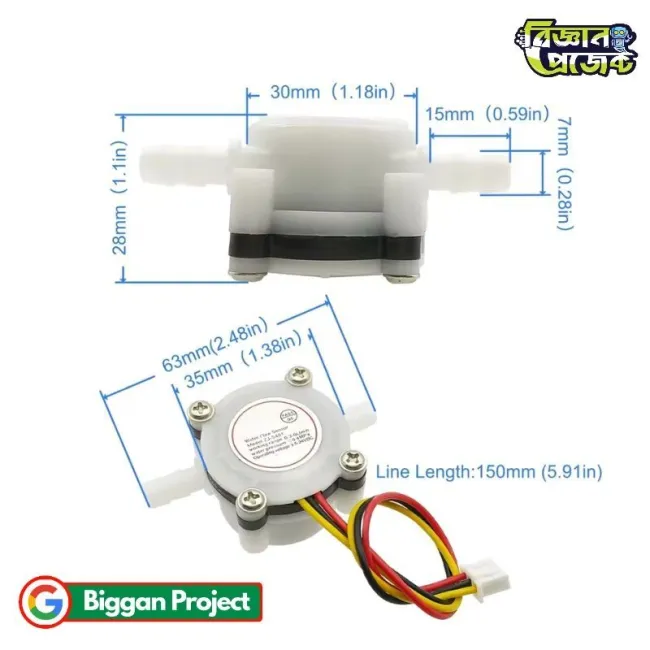

• Quick-connect interface specifically engineered to fit standard 6 mm soft tubing securely
• Broad operating voltage range compatible with standard microcontrollers and embedded development boards

Applications / Use Cases

• Water dispensers and commercial water coolers
• Automatic coffee machines and beverage dispensing equipment
• Domestic and commercial water purifiers and RO filtration systems
• Smart agricultural irrigation test rigs and automated plant watering systems
• DIY liquid metering and educational electronics experiments across academic institutions in BD
• IoT-based remote water consumption tracking and leakage detection prototypes

User Guide / How to Use

• Mount the sensor inline with your fluid pathway, ensuring the water flow direction matches the indicator arrow on the housing.
• Connect the 6 mm soft tubing securely to the quick-connect inlet and outlet ports, making sure there are no kinks or loose joints.
• Connect the red wire to a stable DC power supply (DC 3.5V to 24V, typically 5V for microcontroller compatibility).
• Connect the black wire to the system ground (GND).
• Connect the yellow signal wire to a digital input pin on your microcontroller, Arduino, or ESP32 board configured with an interrupt routine.
• Calibrate your software using the formula f = (90 × Q) to convert input pulse frequencies into accurate volumetric flow rates.

Frequently Asked Questions (FAQs)

• Q: Can this sensor measure hot water?
  A: Yes, the maximum fluid temperature supported is 120 degrees Celsius, but prolonged exposure to extreme temperatures may affect plastic longevity.
• Q: What microcontroller can I use to read this sensor?
  A: You can easily interface it with Arduino, ESP8266, ESP32, Raspberry Pi, or any standard MCU that supports digital pulse counting or external interrupts.
• Q: Is it safe for drinking water applications?
  A: Yes, it is constructed from food-grade POM materials commonly utilized in water purifiers and coffee makers.
• Q: Does it require external pull-up resistors?
  A: Most microcontroller digital pins with internal pull-ups work fine, but an external pull-up resistor may be added depending on cable length and noise levels.

Challenges and Considerations

• Ensure that fluid passing through the sensor is free from large debris or sediment that could jam or damage the internal impeller.
• Avoid exposing the sensor to severe mechanical impacts, drops, or aggressive chemical solvents that can corrode the POM body.
• Maintain proper alignment of soft tubing to prevent side-load stress on the quick-connect interfaces.

Compatibility

• Compatible with standard 6 mm soft silicone, PVC, or PU tubing commonly available in local markets
• Fully compatible with Arduino, Raspberry Pi, STM32, and PIC microcontroller development kits
• Ideal for integration with standard relay modules, solenoid valves, and LCD display modules for complete flow control systems

Future Enhancement Options

• Integrate with a solenoid valve and automated microcontroller setup to create a prepaid or pre-measured water dispensing machine
• Pair with an ESP32 or Wi-Fi module to transmit real-time water usage statistics to cloud dashboards for remote monitoring
• Combine with an OLED screen and buzzer to build an audible threshold alert system for overflow prevention

Benefits

• Provides highly accurate real-time volume calculation for precision dosing and monitoring
• Extremely reliable mechanical design minimizes wear and tear over extended operating cycles
• Lightweight and versatile profile simplifies retrofitting into existing fluid appliances
• Cost-effective metering solution for commercial devices and custom electronics projects
