S40-LT 40mm Ultra Thin Resistive Pressure Sensor

S40-LT 40mm Flexible Thin Film Pressure Sensor Module for DIY Projects

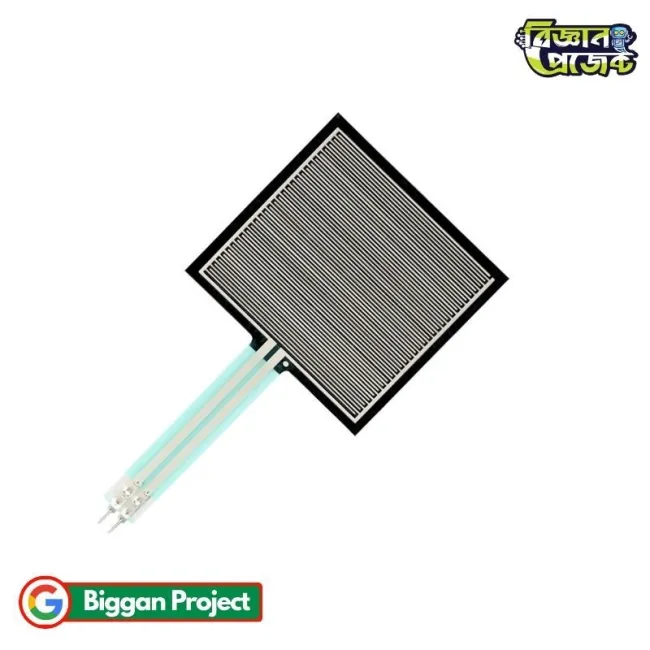

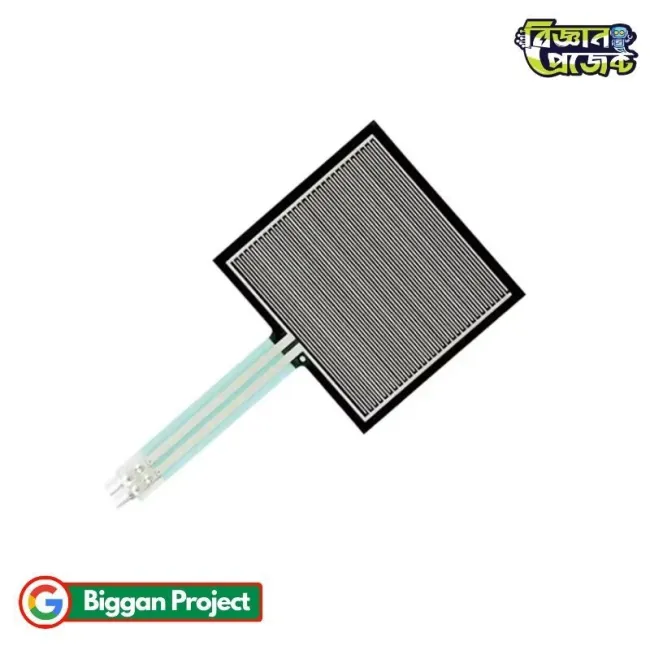

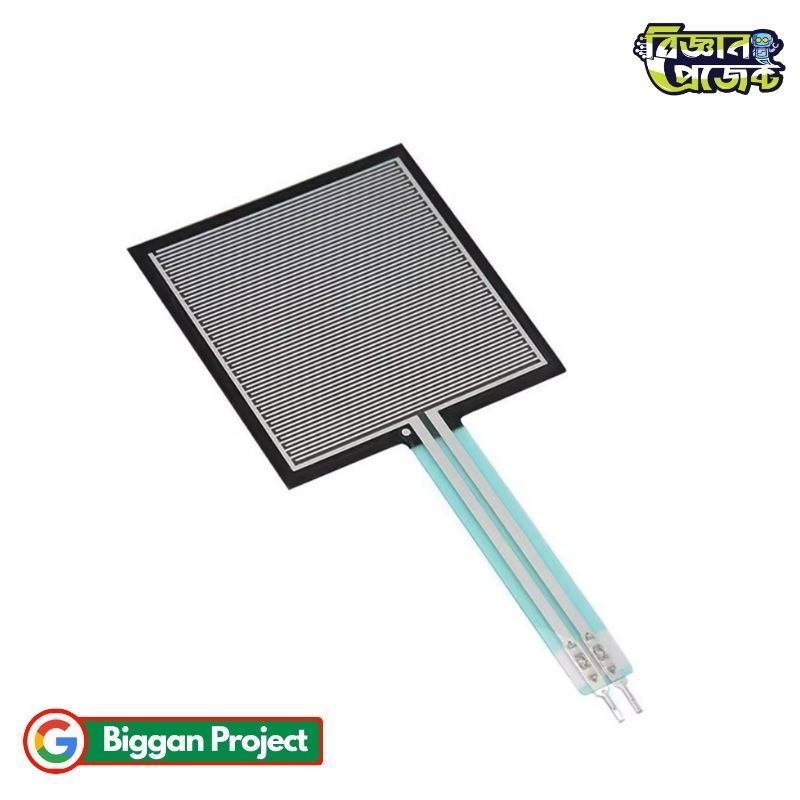

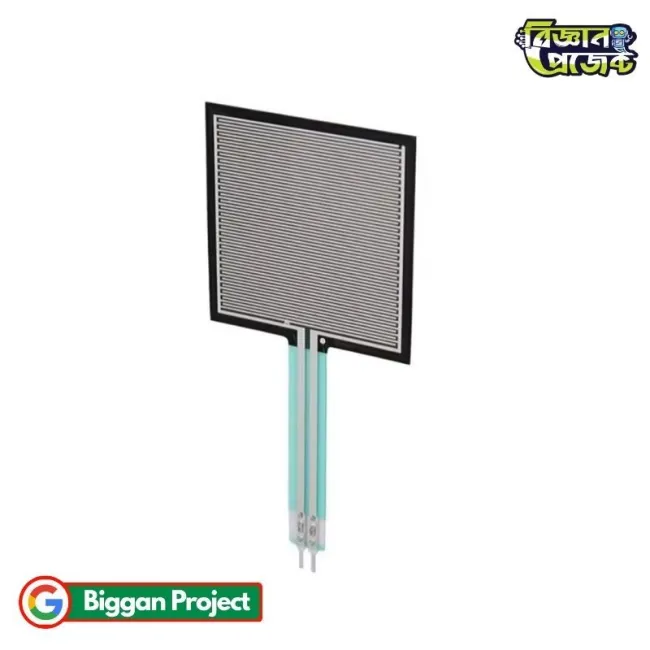

The S40-LT 40mm Thin Film Pressure Sensor is a high-precision, piezoresistive force sensitive resistor designed for accurate force detection and load measurement in embedded systems. Featuring an ultra-thin profile of just 0.375mm and a 40mm active sensing area, this flexible sensor changes its electrical resistance proportionally to the applied mechanical force across a broad 3g to 50kg detection range. Built on a durable PET film substrate with advanced nanometer pressure-sensitive materials, the S40-LT delivers extremely rapid response times, high stability, and ultra-low power consumption. Whether you are building smart seating, medical monitoring setups, robotic touch systems, or interactive electronics, this versatile force sensor module is widely available across Bangladesh (BD) at Biggan Project for engineering students, makers, and DIY developers.

Product Specifications

Features

• Wide dynamic sensing range capable of detecting light touch inputs from 3g up to heavy loads of 50kg.
• Ultra-thin 0.375mm design allows seamless integration into tight, space-constrained electronic housings.
• Flexible, bendable PET construction adapts to curved surfaces without sacrificing structural integrity.
• Piezoresistive behavior provides smooth, inverse resistance scaling for effortless analog voltage readout.
• Microsecond-level response time enables real-time force tracking and high-speed data acquisition.
• Minimal power draw makes it suitable for battery-operated wearable devices and IoT applications in BD.

Applications / Use Cases

• Smart seat occupant detection systems for automotive, office furniture, or wheelchair monitoring.
• Bed occupancy and patient positioning equipment in healthcare and medical electronics.
• Robotic grippers and tactile feedback sensors for automated force adjustments.
• Smart footwear and running shoes for step detection, posture analysis, and foot pressure mapping.
• Interactive touch control panels, counters, and misoperation prevention switches.
• University research and student robotics projects built across Bangladesh.

User Guide / How to Use

• Connect the two terminals of the sensor into a simple voltage divider circuit using a fixed pull-down resistor (e.g., 10kΩ).
• Feed the junction point between the sensor and resistor into an analog-to-digital converter (ADC) pin on a microcontroller (e.g., Arduino, ESP32, STM32).
• Ensure force is applied evenly across the 40mm active sensing zone using a smooth, resilient rubber overlay or actuator to avoid concentrated sharp points.
• Read the varying analog voltage signal as external force changes the sensor's resistance.
• Map the analog voltage values in your software code to calibrate relative force levels or trigger dynamic events.

Frequently Asked Questions (FAQs)

• Q: How does the S40-LT sensor measure force?
  A: It uses piezoresistive technology where the resistance across its leads decreases as applied mechanical pressure on the 40mm active region increases.
• Q: Can I use this sensor directly with an Arduino or ESP32 board?
  A: Yes, by setting up a basic voltage divider circuit, you can read the analog output directly using any microcontroller ADC pin.
• Q: Is the sensor waterproof or washable?
  A: The flexible PET surface protects internal elements, but the tail connection leads must be protected from water immersion and severe humidity.
• Q: Can this sensor function as a precision digital weighing scale?
  A: FSR sensors excel at qualitative force detection, touch sensitivity, and relative weight monitoring rather than scientific laboratory-grade weighing accuracy.

Challenges and Considerations

• Avoid applying concentrated point loads with sharp metallic objects that could puncture the 0.375mm thin film layer.
• Avoid soldering directly to the flexible tail contacts unless using appropriate crimp connectors or soft soldering techniques to prevent melt damage.
• System calibration is recommended, as resistance-to-force curves in FSR sensors are non-linear.

Compatibility

• Fully compatible with Arduino development boards (Uno, Nano, Mega).
• Supports ESP32, ESP8266, and Raspberry Pi Pico via built-in or external ADC modules.
• Works with standard Operational Amplifier (Op-Amp) signal conditioning circuits for amplified threshold detection.

Future Enhancement Options

• Integrate an operational amplifier circuit (LM358) to convert resistance shifts into clean 0-5V digital or linear analog control signals.
• Pair with Bluetooth or Wi-Fi microcontrollers to broadcast load telemetry to mobile apps or cloud dashboards.
• Combine multiple S40-LT sensors in a grid layout for full structural pressure heat mapping.

Benefits

• Enables simple, low-cost physical interaction monitoring in custom electronic designs.
• Extremely lightweight and non-intrusive, ideal for thin wearables and portable equipment.
• Offers versatile force range coverage from soft finger taps to heavy weight detection.
• Easy to source and integrate for maker communities and engineering labs in BD via Biggan Project.

Conclusion

The S40-LT 40mm Thin Film Pressure Sensor offers an effective balance of sensitivity, range, and physical flexibility. Capable of sensing loads from 3g up to 50kg, it provides reliable force detection in a slim, power-efficient package suitable for robotics, smart furniture, healthcare devices, and custom DIY micro-controller projects.
