XL4015 5A Step Down Adjustable Power Module

XL4015 5A DC-DC Adjustable Buck Regulator Module with Heat Sink

The XL4015 5A DC-DC Step Down Adjustable Power Supply Module is an essential component for hardware developers and electronics creators building custom power circuits. Operating as a step-down buck converter, it efficiently reduces a higher input DC voltage down to a stable, lower output DC voltage. This versatile regulator handles heavy loads up to 5A, outperforming standard lower-current buck converters. Available online from Bigyan Project, this module provides the dependable power handling required by the local maker community in Bangladesh. Whether running sensitive microcontrollers or driving high-brightness arrays, it balances efficiency with fine-tuned precision across diverse setups in BD.

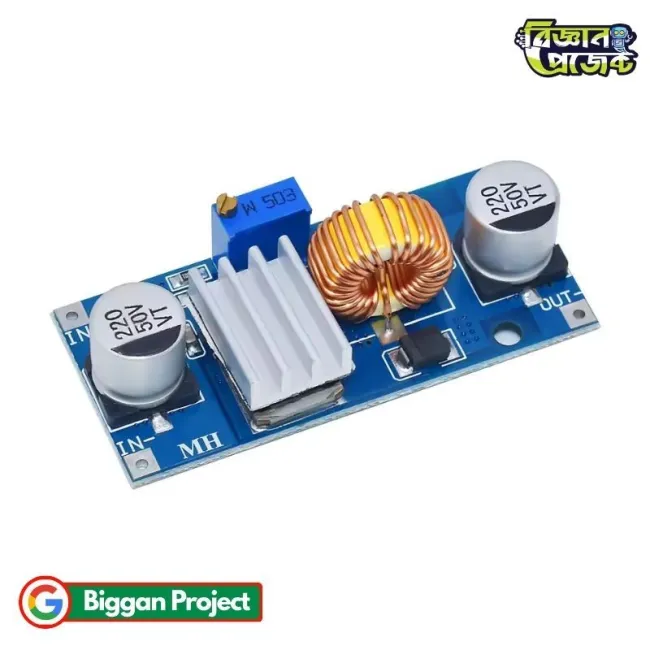

Equipped with an integrated aluminum heat sink, the module effectively disperses heat generated during high-current operations. This prevents thermal throttling and maintains safe operating temperatures even under continuous workloads. The onboard multi-turn potentiometer allows developers to dial in exact voltage settings for lithium battery packs, specialized sensors, and small robotics platforms. For anyone sourcing reliable power hardware in Bangladesh, this module from বিজ্ঞান প্রজেক্ট delivers industrial-grade buck regulation in a highly compact form factor.

Features

• High Current Delivery: Supplies up to 5A of continuous current to satisfy power-hungry electronics.

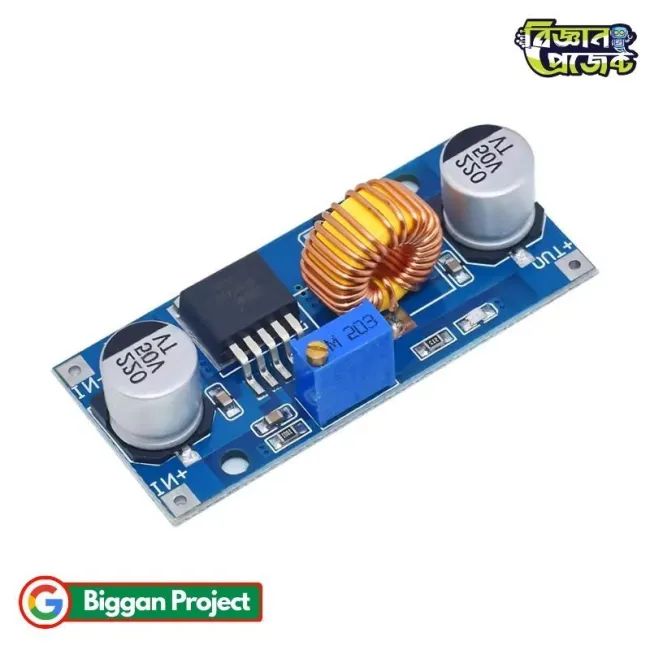

• Precise Voltage Adjustability: Features a high-precision multi-turn trimmer potentiometer for exact output tuning.
• Excellent Thermal Dissipation: Includes a dedicated paste-on heat sink to prevent overheating under heavy loads.
• High Efficiency Conversion: Reaches up to 96% energy conversion efficiency, reducing power loss and waste heat.
• Wide Environmental Compliance: Engineered to run reliably across a broad industrial temperature spectrum.

Applications / Use Cases

• Lithium Battery Charging: Acts as a reliable step-down charging controller for custom Li-ion, LiPo, or LifePO4 battery configurations.
• Microcontroller Bench Power: Converts bulk 12V or 24V power adapter outputs into stable 5V or 3.3V rails for Arduino and ESP32 projects.
• LED Current Regulation: Drops raw DC voltage sources safely down to match the exact forward voltage of high-power LED strings.
• Robotics Power Distribution: Regulates battery voltage down to safe operational limits for servos, standard DC motors, and sensory arrays.

User Guide / How to Use

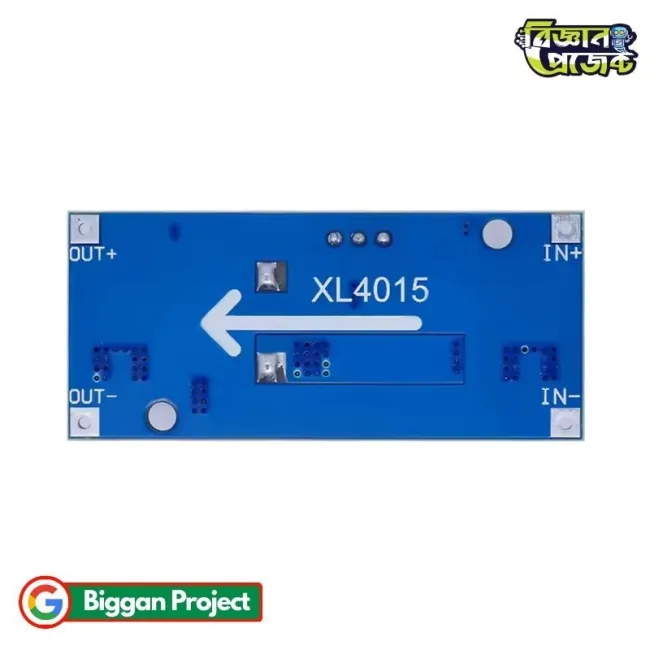

• Connect the primary DC input source to the IN+ and IN- terminals, ensuring the input voltage remains between 4V and 38V.
• Use a standard digital multimeter to measure the voltage across the OUT+ and OUT- terminals before connecting your load.
• Turn the small screw on the brass multi-turn potentiometer counter-clockwise to lower the output voltage or clockwise to raise it.
• Adjust until the multimeter reads your desired operational voltage (e.g., 5.0V for microcontrollers or 4.2V for a single lithium cell).

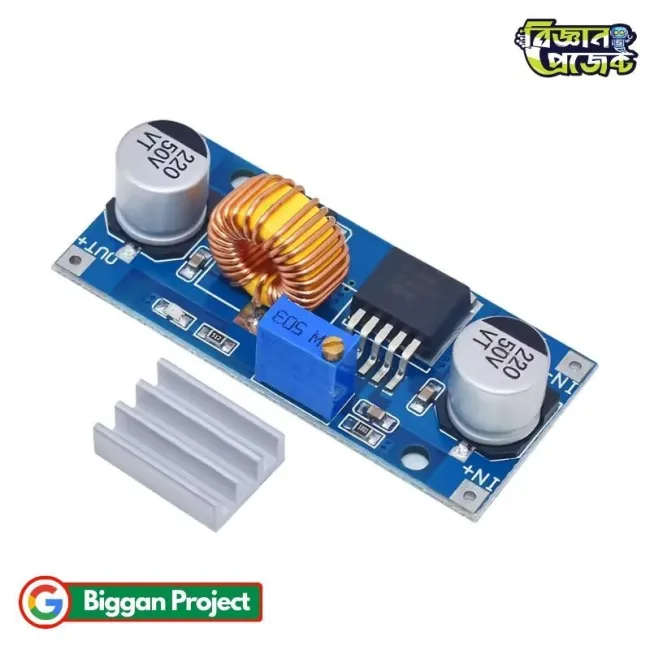

• Disconnect the power, safely solder your output load wires to the OUT terminals, and secure the included heat sink onto the main XL4015 IC chip.

Frequently Asked Questions (FAQs)

• Q: Can this module step up voltage if the input drops below the target setting?
  A: No, this is strictly a step-down buck converter. The input voltage must always remain higher than your desired output voltage.
• Q: Do I always need to install the provided heat sink?
  A: It is highly recommended to attach the heat sink if the continuous output current exceeds 2.5A or if the power dissipation is high.
• Q: Why does the output voltage not change when I turn the potentiometer screw for the first time?
  A: New multi-turn potentiometers often require 10 to 20 full counter-clockwise turns before the voltage begins to drop noticeably.

Challenges and Considerations

• Voltage Differential Requirement: Requires a minimum headroom gap between input and output voltage to maintain stable regulation.
• Short Circuit Safeguards: Ensure input polarities are correct during installation, as reverse polarity connection can damage internal circuitry.
• Manual Current Balancing: When running at maximum 5A current capacity, ensure adequate ventilation or active airflow across the heat sink.

Compatibility

• DC Power Sources: Fully compatible with 12V car batteries, 24V industrial adapters, solar panels, and standard DC power bricks.
• Development Boards: Safely powers standard microcontrollers, embedded single-board computers, and sensor breakout boards.
• Battery Chemistry Types: Works well with standard lithium-ion, lithium polymer, lead-acid, and nickel-cadmium batteries.

Future Enhancement Options

• External Digital Panel Meters: Integrate inline digital voltmeters and ammeters to monitor operational values in real-time.
• Enclosure Shells: Mount inside 3D-printed project boxes with integrated cooling fans for portable, heavy-use applications.
• Toggle Switches: Install inline high-current switches on the input rails to easily isolate the module without pulling wires.

Benefits

• Cost-Effective Powering: Eliminates the need for expensive dedicated power supplies by repurposing bulk industrial adapters.
• Compact Form Factor: Fits smoothly into tight spaces inside robotic chassis and compact electronic enclosures.
• Robust Build Quality: High-grade components ensure stable voltage conversion across long-term product lifecycles.

Conclusion

The XL4015 5A DC-DC Step Down Adjustable Power Supply Module provides an ideal mix of performance, durability, and value for complex electronic projects. Its high current handling capacity and dedicated thermal management make it a reliable tool for power regulation challenges. For engineering students, makers, and product developers across Bangladesh, this buck module from Bigyan Project delivers stable voltage control for high-power applications.
