LM2596 DC-DC Buck Converter Module with Display

LM2596 DC-DC Adjustable Buck Converter Power Module with LED Display

The LM2596 DC-DC Buck Converter Module with Display is a high-performance step-down voltage regulator that converts higher DC voltage into a stable lower voltage. Designed for flexibility and efficiency, this module is ideal for electronics hobbyists, engineers, and students from Bigyan Project who need a reliable and adjustable power supply for DIY, robotics, and embedded applications. The onboard LED voltmeter displays both input and output voltage in real-time, ensuring accurate monitoring and easy calibration for precision-based electronic projects. With its high conversion efficiency and strong heat dissipation capability, the LM2596 buck module is a must-have tool in your electronics toolkit.

Product Overview

The LM2596 is a widely used DC-DC step-down converter that allows users to adjust voltage levels easily between 1.25V and 37V from a 4V–40V input range. It features a built-in LED display for voltage readings and supports input/output switching and calibration with simple touch buttons. Ideal for powering microcontrollers, battery chargers, LED lighting systems, and automation devices, this module offers stable performance in both industrial and educational environments. Bigyan Project provides this versatile module for those who value efficiency, adjustability, and long-term reliability in their electronic setups.

Product Specifications

Features

• Adjustable output voltage range from 1.25V to 37V
• Wide input voltage range from 4V to 40V for flexible applications
• Built-in LED display showing both input and output voltage
• High conversion efficiency up to 88%
• Touch buttons for voltage calibration and display switching
• Reverse polarity protection for safe operation
• Compact, lightweight, and easy to integrate in any project
• Ideal for educational electronics, robotics, and automation use
• Available exclusively at Bigyan Project for students and DIY enthusiasts

Applications / Use Cases

• DIY adjustable power supply systems
• Robotics and automation circuits
• Microcontroller and Arduino projects
• Battery charging modules
• LED lighting control circuits
• Solar power conversion setups
• Car and automotive voltage regulation
• Laboratory test equipment

User Guide / How to Use

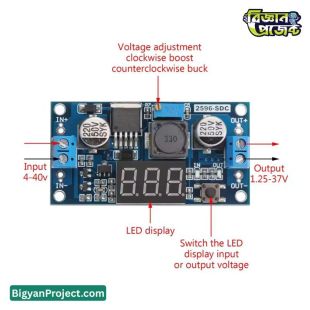

• Connect the input voltage (4V–40V DC) ensuring polarity is correct.
• Turn the onboard potentiometer clockwise or counterclockwise to adjust the output voltage.
• Press the right button to toggle between input (IN) and output (OUT) voltage display.
• Hold the right button for 2 seconds to enter calibration mode, then adjust as needed.
• Always ensure the input voltage is at least 1.5V higher than the desired output voltage.
• Use a heatsink or proper ventilation when using above 2A load or beyond 15W.
• For accurate readings, operate above 4.5V input for voltmeter stability.

Frequently Asked Questions (FAQs)

• Q: Can I use this module to power my Arduino or ESP32?
  A: Yes, the LM2596 module provides stable voltage suitable for microcontrollers like Arduino, ESP32, and Raspberry Pi.
• Q: Does it show both input and output voltages?
  A: Yes, you can toggle between IN and OUT readings using the onboard button.
• Q: What if the output voltage doesn’t change?
  A: Rotate the potentiometer counterclockwise about 20 turns and check connections.
• Q: Can it work with a solar panel?
  A: Yes, it can step down voltage from solar panels efficiently.
• Q: Is it safe for continuous use?
  A: Yes, when used below 2A continuous load and proper cooling is provided.

Challenges and Considerations

• Requires input voltage at least 1.5V higher than output for stable operation
• Without heatsink, it may overheat above 2A current
• Calibration is necessary for accurate voltage display
• May not work properly under fluctuating power input
• Ensure proper polarity to avoid connection issues

Compatibility

• Compatible with Arduino, ESP8266, ESP32, and Raspberry Pi boards
• Works with 12V, 24V, and 36V DC power sources
• Can drive sensors, LEDs, fans, and servo motors
• Supports integration in DIY and educational electronics kits from Bigyan Project

Future Enhancement Options

• Integration with OLED or TFT screen for detailed monitoring
• Adding current meter display for dual readout
• Smart digital control using microcontroller feedback
• Wireless monitoring using IoT (Wi-Fi/Bluetooth) modules
• Improved heat sink design for better power handling

Benefits

• Compact and user-friendly power converter design
• Accurate LED display for instant voltage monitoring
• High efficiency for energy-saving operation
• Perfect for educational, lab, and DIY electronics projects
• Reliable performance for consistent power delivery
• Available through trusted supplier Bigyan Project

Conclusion

The LM2596 DC-DC Buck Converter Module with Display is one of the most reliable and versatile power regulators for electronics. Whether you’re building a DIY robot, powering a microcontroller, or testing circuits in your lab, this module ensures precision, safety, and efficiency. With support from Bigyan Project, you can easily incorporate this step-down converter into your projects for professional-grade results. Its adjustable voltage range, display accuracy, and durable design make it a top-rated choice among electronics enthusiasts, students, and engineers.
