Step Up Down Auto DC Converter XL6009 LM2596

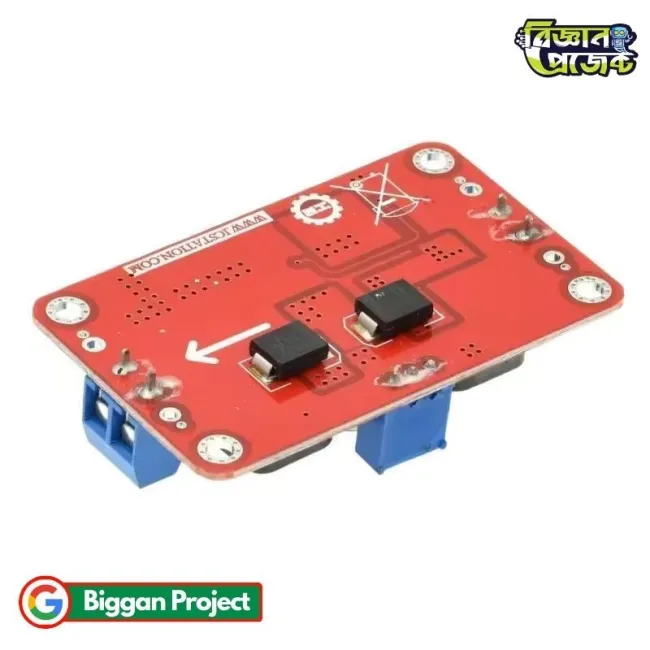

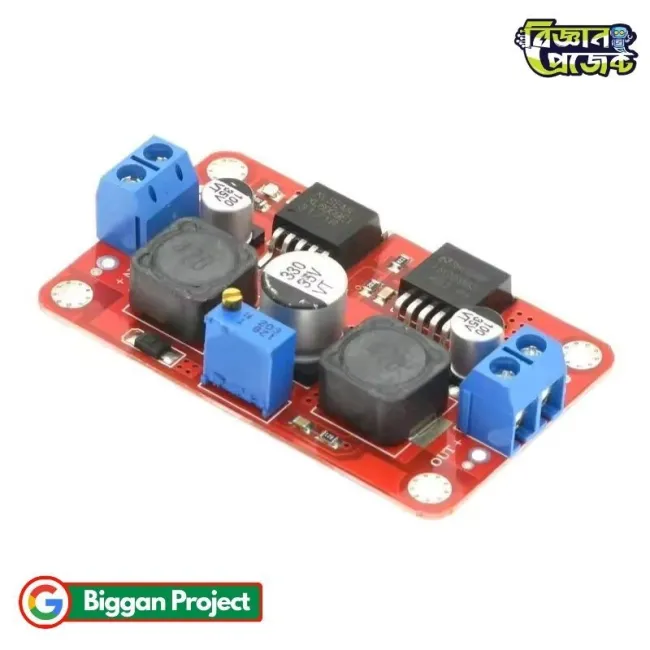

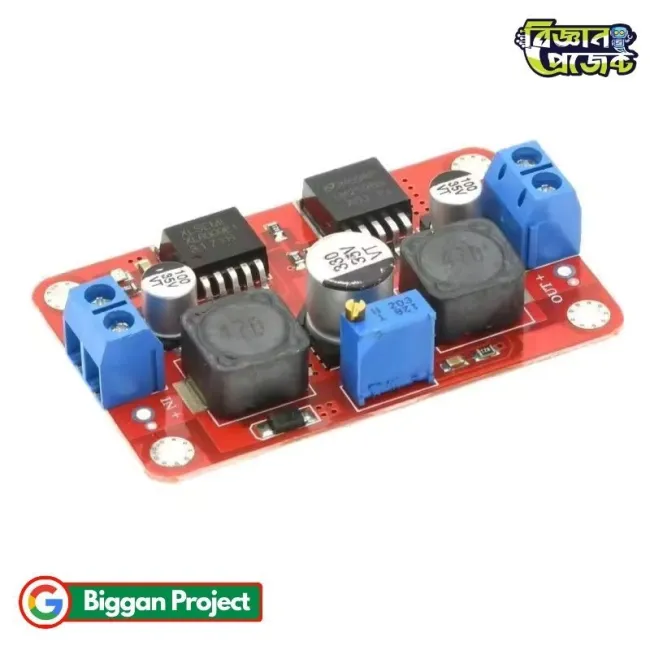

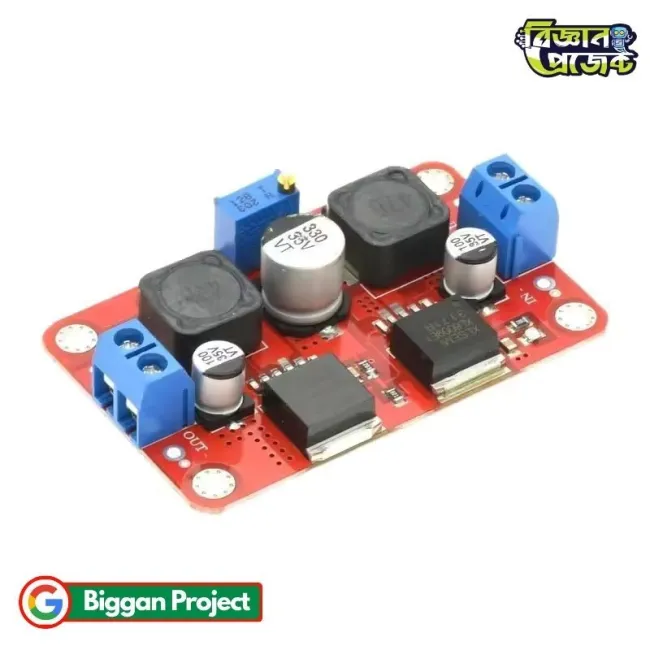

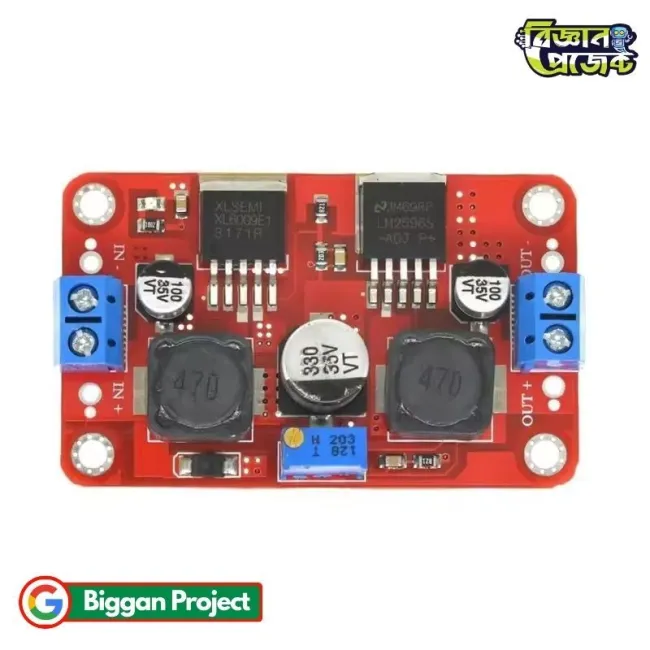

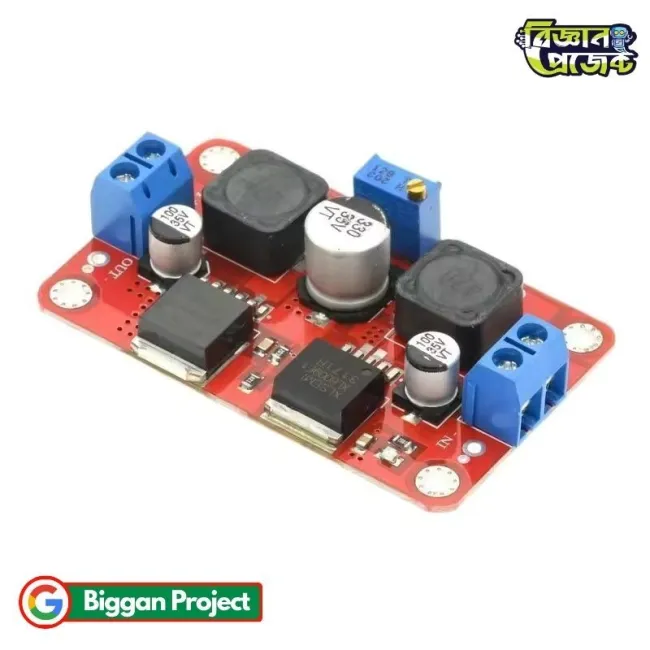

Step Up Down XL6009 LM2596 DC-DC Buck Boost Automatic Converter Module 3A

The XL6009 LM2596 DC-DC step up down converter is a versatile automatic buck-boost power module designed to deliver stable output voltage regardless of fluctuating input levels. Built with dual-chip technology combining the XL6009 boost chip and the LM2596S buck chip, this circuit automatically steps up or steps down the voltage to match your desired setup. Whether your power supply drops below or rises above your set output target, the module maintains steady output regulation. This automatic adjustment makes it exceptionally useful for DIY robotics, solar panel power systems, battery-operated equipment, and vehicle electronic setups across BD. Ideal for students, makers, and electronics enthusiasts looking for high-quality components from Biggan Project in Bangladesh, this board ensures reliable power delivery for variable-input applications.

Specifications

Features

• Automatic step-up and step-down capability maintains steady output voltage regardless of input supply variations.
• Dual-chip design utilizes dedicated ICs for high-efficiency boost and buck conversion operations.
• Wide input voltage handling from 3.5V up to 28V DC makes it adaptable to varied power sources.
• Precision onboard potentiometer allows easy fine-tuning of output voltage from 1.25V to 26V.
• Compact 60mm x 37mm form factor integrates seamlessly into small electronics project enclosures.
• Robust PCB layout designed for DIY electronics, solar regulation, and school science projects.

Applications / Use Cases

• Solar power generation systems where solar panel output fluctuates throughout the day.
• Vehicle power setups requiring steady voltage output despite automotive battery voltage shifts.
• Battery-powered mobile robotics and microcontroller circuits created by makers in Bangladesh.
• DIY science projects requiring customized voltage levels from standard lithium-ion or lead-acid batteries.
• Laboratory power supply setups for testing electronic components at varying voltages.

User Guide / How to Use

• Connect the input power source (3.5V to 28V DC) to the designated IN+ and IN- pads, observing strict polarity.
• Use a multimeter across the OUT+ and OUT- terminals to measure the current output voltage prior to connecting any load.
• Rotate the brass screw on the blue trimmer potentiometer to set your precise required output voltage (between 1.25V and 26V).
• Connect your load circuit or microcontroller board to the OUT+ and OUT- terminals.
• For continuous operation exceeding 1A, ensure proper airflow or add heat sinks to prevent thermal stress on the ICs.

Frequently Asked Questions (FAQs)

• Q: Can the output voltage be higher than the input voltage?
  A: Yes, because it is an automatic buck-boost module, the output can be set higher or lower than the input voltage.
• Q: What happens if my solar panel voltage drops below my target output?
  A: The XL6009 boost section automatically steps up the voltage to keep the output stable at your set value.
• Q: Why does the inductor make a high-frequency sound during heavy loads?
  A: High input current causes switching vibrations in the inductor core, which is normal for this switching frequency and does not affect operation.
• Q: Is this module suitable for continuous 3A operation?
  A: Peak current is 3A, but for prolonged continuous use, keeping current around 1A is recommended unless external heat sinking is provided.

Challenges and Considerations

• Reversing input polarity can permanently damage the onboard integrated circuits; always verify connections before powering up.
• High current draw at low input voltages increases thermal load on the boost stage, requiring adequate ventilation.
• Switching frequency characteristics can produce high-frequency audible noise from the inductor under heavy current demand.
• Ensure the input supply voltage remains within the safe operating threshold of 3.5V to 28V to avoid logic instability.

Compatibility

• Compatible with 3.7V, 7.4V, 11.1V, and 14.8V Lithium-ion and LiPo battery packs.
• Fully compatible with 6V, 12V, and 24V solar panels and automotive electrical systems.
• Works reliably alongside Arduino, ESP32, Raspberry Pi, and standard microcontroller development boards when supplying regulated power.
• Suitable for small DC motors, LED strips, and sensor networks commonly used in robotics projects.

Future Enhancement Options

• Adding aluminium mini heat sinks to the XL6009 and LM2596 ICs for improved thermal management during high-current tasks.
• Integrating a digital LED mini voltmeter panel at the output terminals for real-time voltage monitoring.
• Adding an input reverse-polarity protection diode or MOSFET circuit to guard against accidental miswiring.
• Installing an inline fuse on the input line to protect the module against extreme power surges.

Benefits

• Eliminates the need for separate step-up and step-down modules in variable-power applications.
• Provides stable voltage regulation for delicate electronics powered by unregulated renewable sources like solar energy.
• Saves project space and wiring complexity by utilizing a unified dual-chip circuit board.
• Cost-effective power supply solution for STEM students and DIY hardware developers in BD.

The XL6009 LM2596 DC-DC step up down buck boost converter module provides a reliable, adaptable, and efficient power regulation solution for electronics projects across Bangladesh. Its ability to maintain a constant output voltage regardless of fluctuating input voltage makes it an indispensable tool for solar setups, mobile robotics, and custom power supplies. Built to deliver versatile performance, this board serves as a practical asset for students, hobbyists, and professional makers working on custom electronic systems.
