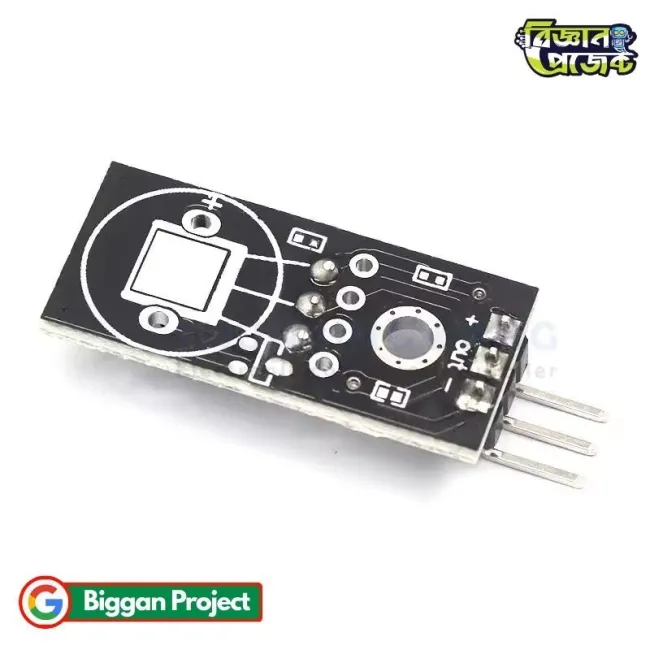

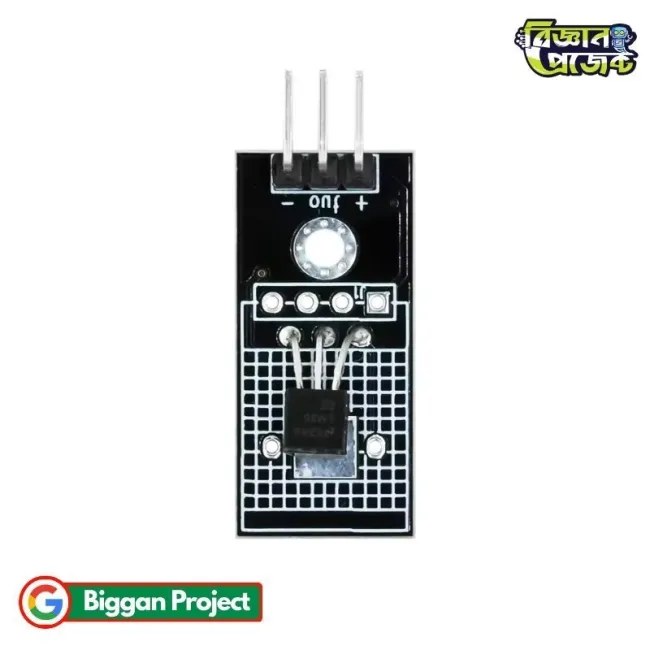

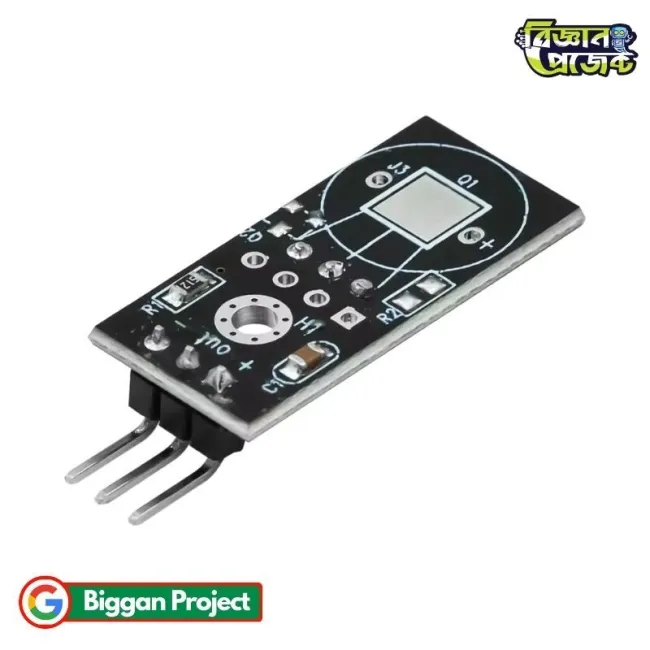

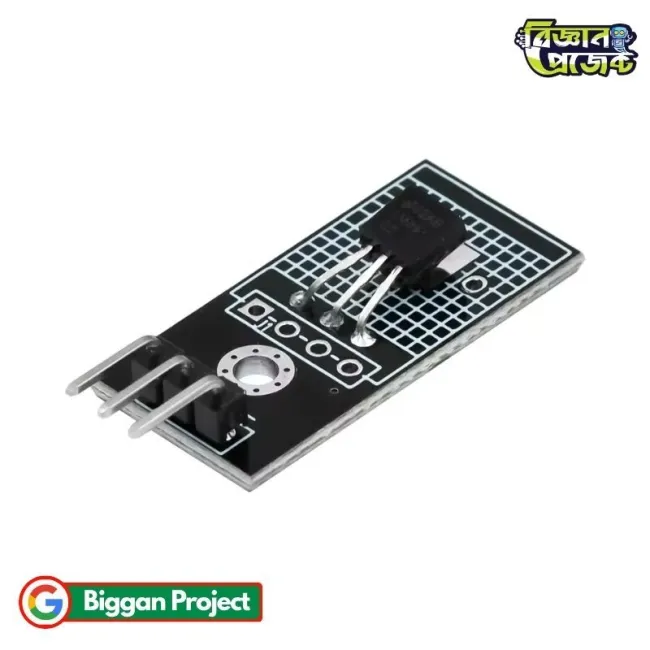

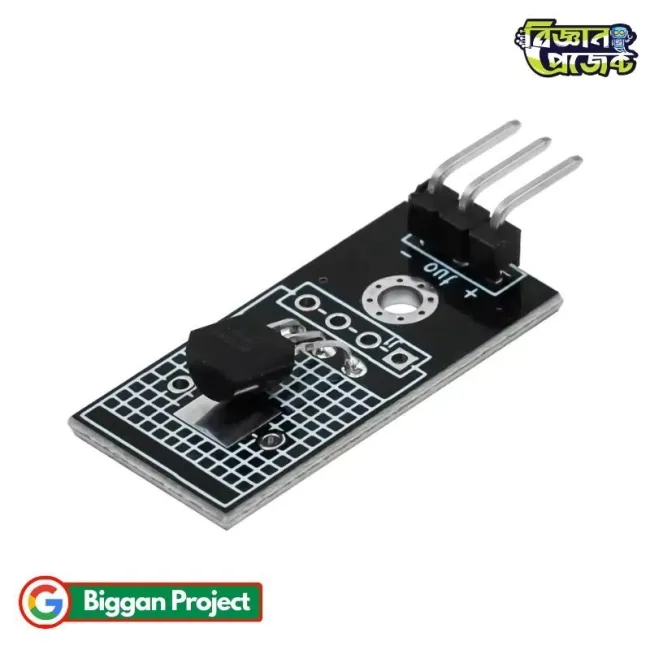

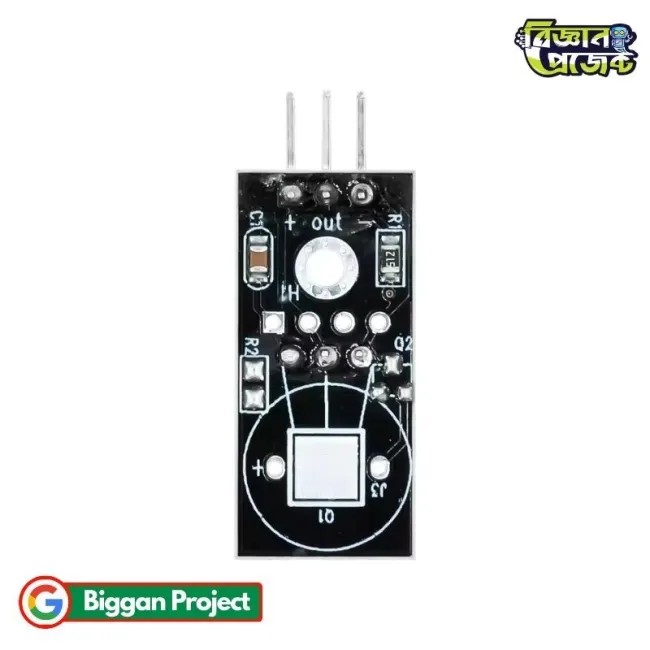

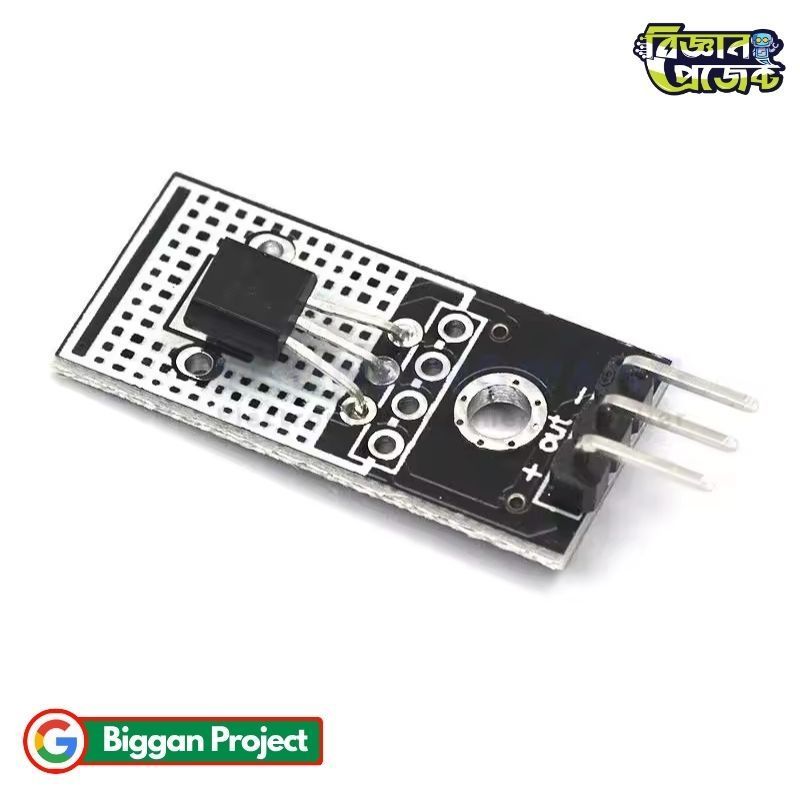

LM35 Linear Analog Temperature Sensor Module DC 4V-30V

LM35 Precision Analog Temperature Sensor Module for Arduino Projects

The LM35 Precision Analog Temperature Sensor Module is a reliable, high-accuracy component designed for real-time thermal monitoring in microcontrollers and automated electronic systems. Unlike digital temperature sensors that require complex communication protocols, the LM35 operates as a linear analog sensor, producing an output voltage directly proportional to the Celsius temperature at a precise rate of 10mV per degree Celsius. Operating across a wide voltage range of DC 4V to 30V, this versatile sensor module integrates seamlessly into robotics, environmental monitoring setups, and automated control devices. Engineers, hobbyists, and DIY creators across Bangladesh rely on the LM35DZ for its straightforward interface and low power consumption, making it a staple for smart cars and science projects built through platforms like Biggan Project.

Specifications

Features

• Direct Celsius Scaling: Delivers calibrated linear output in degrees Celsius without requiring external scale conversion factor mathematical complex code.
• Wide Voltage Compatibility: Runs smoothly on power sources ranging from DC 4V up to 30V without requiring external voltage regulation stages.
• Ultra-Low Self-Heating: Draws under 60 µA of current, minimizing self-heating errors to ensure accurate ambient measurement.

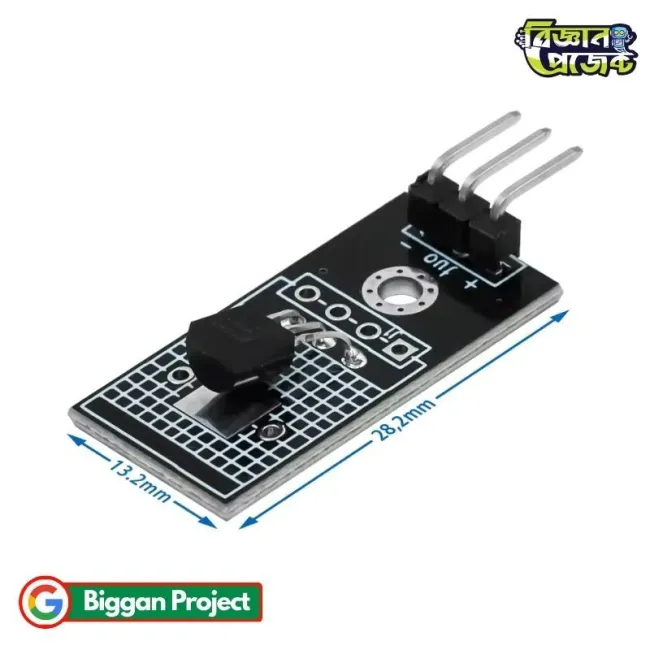

• Compact PCB Footprint: Small dimensions allow simple mounting inside tight project enclosures and small robot chassis.
• Three-Pin Interface: Simplified wiring with clearly labeled headers for power, ground, and analog signal output lines.

Applications / Use Cases

• Smart Car Environmental Sensing: Monitor ambient or motor housing temperature in autonomous mobile robot chassis in BD electronics projects.
• Incubator & Greenhouse Automation: Provide continuous temperature monitoring for climate control systems in agricultural science setups.
• Overheat Protection Systems: Signal microcontrollers to trip cooling fans or relays when system components exceed safety thresholds.
• DIY Weather Stations: Collect ambient temperature data for local environmental reporting and logger systems.
• STEM Education & Physics Demonstrations: Serve as an entry-level analog sensor for students learning basic ADC calibration and microcontroller inputs.

User Guide / How to Use

• Connect the VCC pin of the module to a stable DC power source between 4V and 30V (5V recommended for standard microcontrollers).
• Connect the GND pin to the common ground of your development board.
• Connect the OUT (Signal) pin to an Analog-to-Digital Converter (ADC) input pin on your microcontroller (e.g., A0 on an Arduino).
• Read the raw analog value via your microcontroller code and convert it to voltage (e.g., Voltage = AnalogRead * Vref / 1023).
• Calculate the temperature in Celsius using the linear formula: Temperature (°C) = Output Voltage (in mV) / 10.

Frequently Asked Questions (FAQs)

• Q: Is the LM35 sensor module analog or digital?
  A: The LM35DZ is a linear analog sensor module that outputs a variable voltage corresponding directly to temperature.
• Q: Does this module require an external pull-up resistor or library?
  A: No, it outputs a direct analog voltage and does not require custom digital libraries or pull-up resistors to communicate.
• Q: Can I power this module using 5V from an Arduino board?
  A: Yes, since the operating range is DC 4V to 30V, a standard 5V supply from an Arduino or STM32 development board is ideal.
• Q: How do I convert the analog signal into temperature in code?
  A: Measure the voltage at the output pin in millivolts and divide by 10 to get the exact temperature in degrees Celsius.

Challenges and Considerations

• Long Cable Resistance: Running long wire leads between the sensor and ADC can cause voltage drops and signal noise; keep connection lines concise.
• ADC Resolution Dependence: Overall measurement precision relies heavily on the quality and reference voltage stability of the host microcontroller's ADC.
• Enclosure Airflow: Placing the sensor inside an airtight container will cause delayed temperature response times to external ambient changes.

Compatibility

• Arduino Ecosystem: Fully compatible with Uno, Mega, Nano, and ESP32 via standard analog input pins.
• STM32 Development Boards: Connects directly to 3.3V/5V compatible ADC pins on STM32 microcontrollers.
• Raspberry Pi: Requires an external Analog-to-Digital Converter (ADC) module such as ADS1115, as Raspberry Pi lacks native analog inputs.
• Standalone Circuits: Works with operational amplifiers, comparators, and analog meters for hardware-only temperature triggers.

Future Enhancement Options

• Op-Amp Signal Conditioning: Add an operational amplifier circuit to scale output voltage for higher ADC resolution across narrow temperature bands.
• Wireless Telemetry: Pair with an ESP8266 or NRF24L01 radio module to send continuous real-time temperature data to cloud dashboards.
• Relay Integration: Connect output thresholds to a transistor driver circuit to automatically toggle 220V cooling fans or heating pads.

Benefits

• Simplicity: Requires no complex library integration, addressing data parsing delays or protocol overhead.
• Cost-Effective: Provides reliable sub-degree accuracy at an affordable price for student and hobbyist budgets.
• Low Power Consumption: Minimal current draw preserves battery life in portable DIY robotics and remote sensing modules.

Conclusion

The LM35DZ Linear Analog Temperature Sensor Module combines pinpoint accuracy, linear output, and wide supply voltage tolerance into a compact PCB layout. Whether building a smart car, setting up automated thermal protection, or learning analog microcontroller interfacing in Bangladesh, this module provides a dependable, budget-friendly sensing solution for all electronic developers.
