Arduino Mega 2560 R3 CH340 Board – Made in China

Arduino Mega 2560 R3 CH340 Microcontroller Board – Budget-Friendly & Powerful

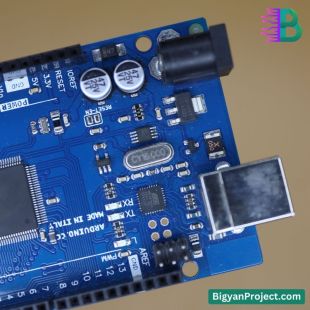

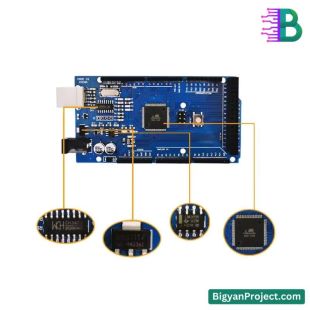

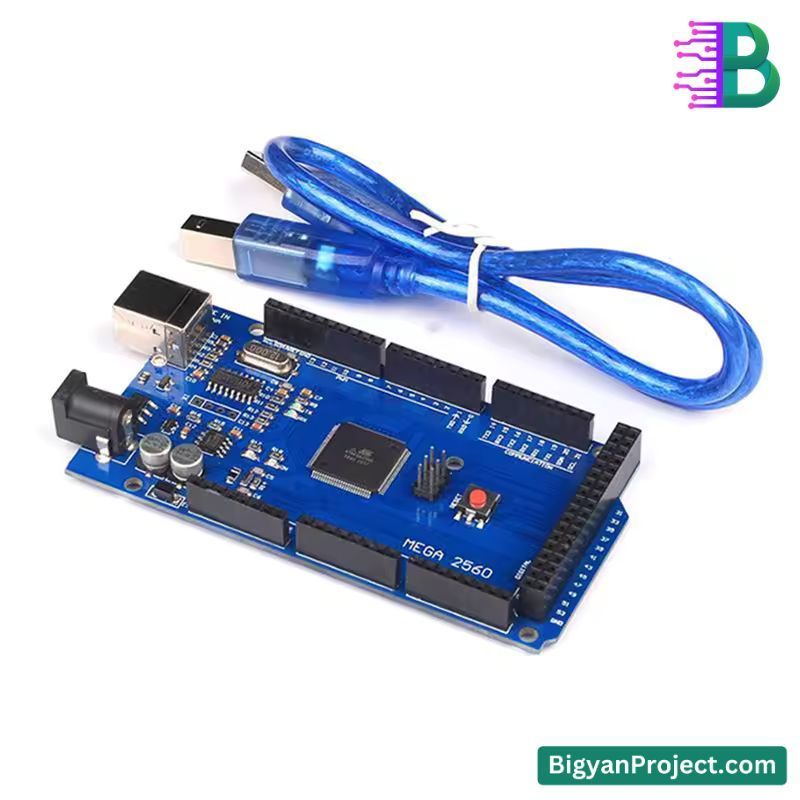

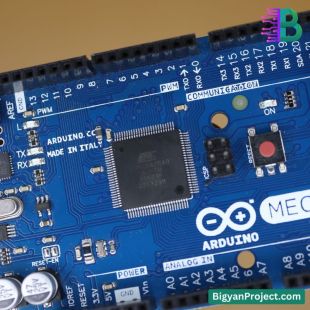

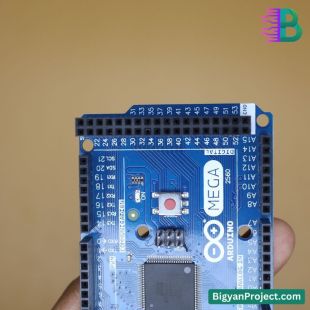

The Arduino Mega 2560 R3 CH340 is a powerful yet cost-effective microcontroller board designed for electronics enthusiasts, students, and engineers. This board is a Chinese version of the original Arduino Mega 2560, offering the same features at a much lower price. It is perfect for large-scale projects that require multiple I/O pins, such as robotics, automation, and IoT applications.

Product Specifications:

Key Features:

• Compatible with Arduino IDE and most Arduino Mega shields.
• Equipped with 54 digital I/O pins and 16 analog input pins.
• Uses the CH340 USB-to-serial chip for connectivity.
• Ideal for complex projects requiring multiple sensors and modules.
• Cost-effective alternative to the original Arduino Mega 2560.

Applications:

• Robotics and automation projects.
• Home automation and IoT systems.
• Industrial control and process automation.
• Large-scale sensor networks.
• Educational and research projects.

User Guide / How to Use:

To start using the Arduino Mega 2560 R3 CH340, follow these steps:

1. Download and install the latest version of Arduino IDE from the official website.
2. Connect the board to your PC using a USB A-to-B cable.
3. Install the CH340 driver if your computer does not recognize the board.
4. Select "Arduino Mega 2560" from the board menu in the Arduino IDE.
5. Write your program or use built-in examples like "Blink".
6. Upload the code and start building your projects!

Frequently Asked Questions (FAQs):

• Q: Is this an original Arduino Mega 2560?
  A: No, this is a budget-friendly Chinese version that offers similar performance at a lower price.
• Q: Do I need to install any special drivers?
  A: Yes, you need to install the CH340 driver for USB connectivity.
• Q: Can I use this board with standard Arduino Mega shields?
  A: Yes, it has the same pinout and dimensions as the original Mega 2560.
• Q: What power supply should I use?
  A: A 7-12V power adapter is recommended for optimal performance.

Challenges and Considerations:

• The CH340 chip may require additional driver installation.
• Build quality may vary compared to the original Arduino Mega.
• May not be supported by all Arduino accessories or shields.

Future Enhancement Options:

• Adding a Wi-Fi or Bluetooth module for IoT applications.
• Integrating with Raspberry Pi for advanced projects.
• Using it in AI and machine learning projects.

Benefits of Using Arduino Mega 2560 R3 CH340:

• Cost-effective alternative to the original Mega 2560.
• Supports large-scale robotics and automation projects.
• More I/O pins compared to Arduino Uno, making it suitable for advanced applications.
• Reliable for both beginners and professionals.

Conclusion:

The Arduino Mega 2560 R3 CH340 is an excellent choice for those looking for an affordable yet powerful microcontroller board. Whether you are a student, hobbyist, or professional, this board can help you build and experiment with various electronics projects. With its large number of I/O pins and strong community support, the Arduino Mega 2560 R3 CH340 is a must-have for any electronics enthusiast.
