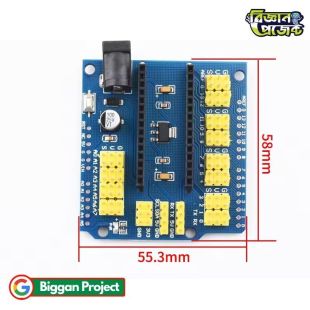

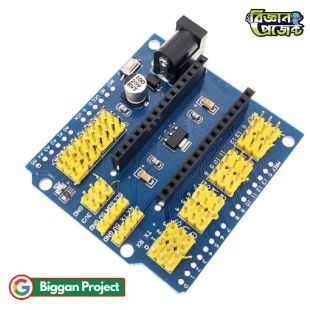

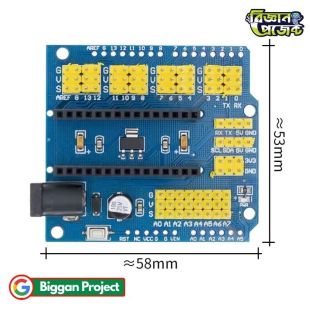

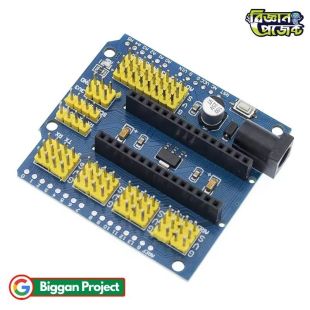

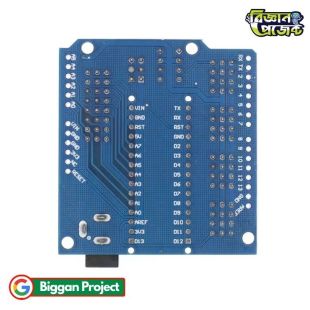

Arduino Nano IO Expansion Shield Blue Color

Arduino Nano Expansion Adapter IO Shield Board Blue

The Arduino Nano IO Expansion Shield Blue Color is a compact and practical expansion board designed to simplify connections between an Arduino Nano and external electronic devices. It converts the small pin layout of the Arduino Nano into organized servo-style connectors, making wiring easier for beginners, students, and professional developers.

This shield is especially useful for robotics, automation systems, sensor projects, and educational applications. By providing dedicated signal, power, and ground pins for each I/O connection, the board reduces wiring errors and allows faster project development. It supports both Arduino Nano V2.x and V3.x boards and offers convenient access to digital, analog, PWM, and I2C interfaces.

In Bangladesh, the Arduino Nano IO Expansion Shield is widely used in STEM education, DIY electronics, and Biggan Project activities. Students and hobbyists working on science fair projects, robotics competitions, and automation systems in BD often use this shield to simplify circuit connections and improve project reliability. The board is also suitable for educational institutions and electronics laboratories throughout Bangladesh.

Whether you are building a robotics platform, a smart home controller, an IoT prototype, or a science project, this expansion shield provides a reliable and organized solution for connecting sensors, servos, relays, and modules.

Product Specifications

Features

• Compatible with Arduino Nano V2.x and V3.x.
• Provides easy access to all digital and analog pins.
• Servo-style connectors with signal, power, and ground.
• Supports external power input.
• Compact and lightweight design.
• Dedicated PWM and I2C connections.
• Simplifies wiring for sensors and modules.
• Suitable for educational and DIY applications.

Applications / Use Cases

• Robotics projects.
• Smart home automation systems.
• IoT development projects.
• Educational laboratory experiments.
• Biggan Project activities in Bangladesh.
• Sensor interfacing projects.
• Servo motor control applications.
• DIY electronics projects.
• STEM education and training.

User Guide / How to Use

• Insert the Arduino Nano board into the shield socket.
• Connect sensors or modules to the required pins.
• Provide external power if necessary.
• Upload the program to the Arduino Nano.
• Verify all wiring connections before powering the system.
• Use PWM and I2C ports according to project requirements.

Frequently Asked Questions (FAQs)

• Q: Is this shield compatible with Arduino Nano V3?
  A: Yes, it supports both Nano V2.x and V3.x boards.
• Q: Can I connect servo motors directly?
  A: Yes, the board provides servo-style connectors for easy servo connections.
• Q: Does the board support external power?
  A: Yes, external power input is supported.
• Q: Is it suitable for educational projects?
  A: Yes, it is widely used in schools, colleges, and Biggan Project activities in BD.
• Q: Can beginners use this board?
  A: Yes, its organized pin layout makes it beginner-friendly.

Challenges and Considerations

• Ensure correct Nano orientation during installation.
• Use appropriate voltage levels for connected devices.
• Avoid excessive current draw from the board.
• Verify external power polarity before connection.
• Check pin assignments before uploading code.

Compatibility

• Arduino Nano V2.x
• Arduino Nano V3.x
• Servo motors
• I2C sensors and modules
• Analog sensors
• Digital sensors
• Relay modules
• PWM-controlled devices

Future Enhancement Options

• Add wireless communication modules.
• Integrate IoT sensors.
• Expand with Bluetooth modules.
• Connect WiFi modules.
• Develop advanced robotics systems.
• Build automation and monitoring projects.

Benefits

• Reduces wiring complexity.
• Saves development time.
• Improves project organization.
• Provides reliable sensor connections.
• Suitable for beginners and professionals.
• Ideal for Biggan Project and educational use in Bangladesh.
• Compact and portable design.

Conclusion

The Arduino Nano IO Expansion Shield Blue Color is a practical and efficient expansion board for Arduino Nano users. Its organized pin layout, multiple connection options, and compatibility with various modules make it an excellent choice for robotics, automation, education, and DIY electronics projects. For students, makers, and developers in Bangladesh and BD, it serves as a valuable tool for learning and building innovative projects.
