180 Degree Ultrasonic Radar Project with TFT LCD

Arduino UNO Ultrasonic Radar Detection Science Project Kit

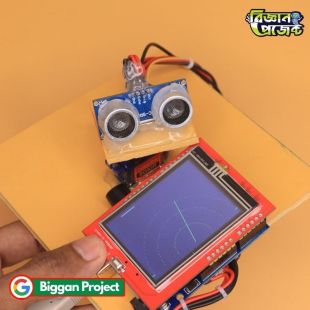

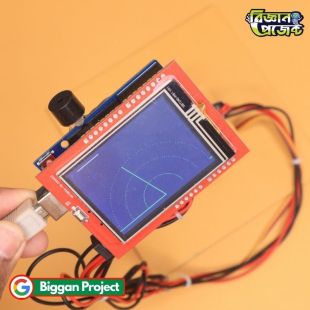

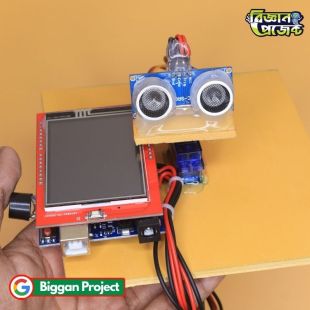

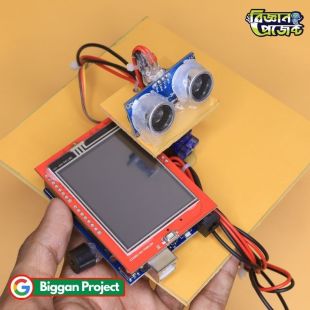

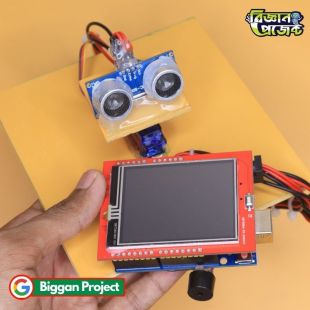

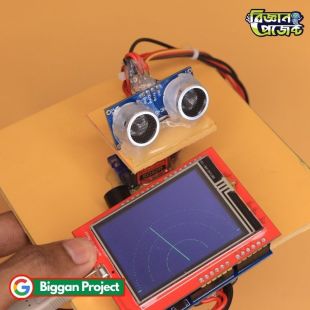

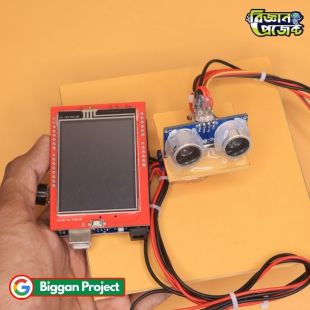

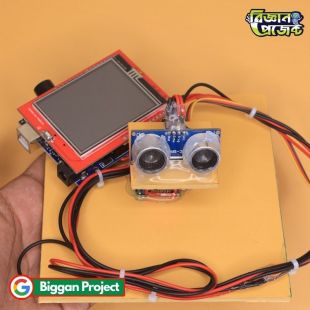

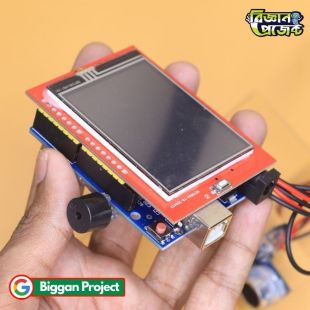

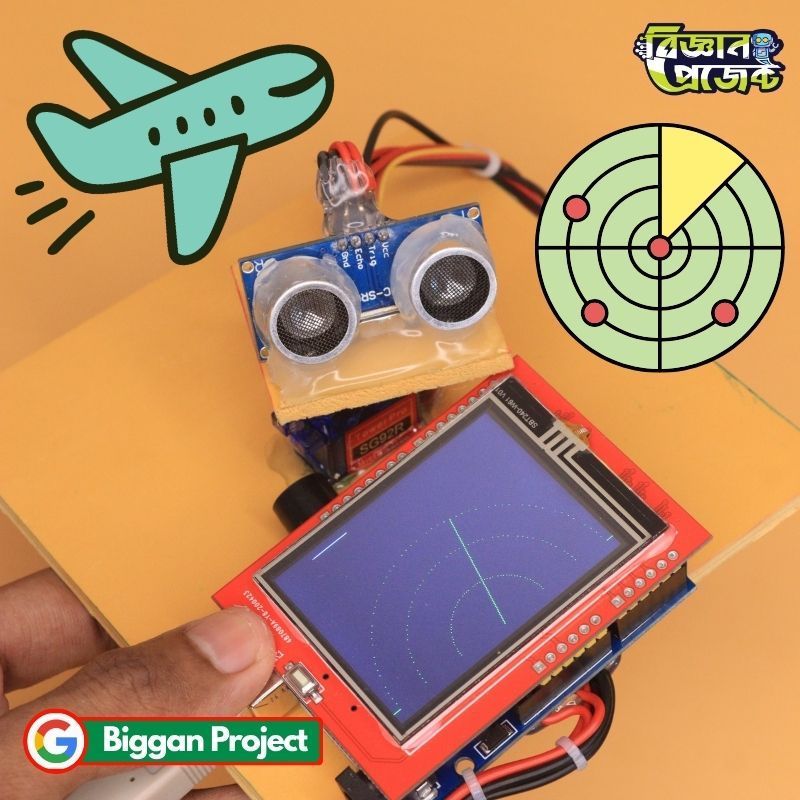

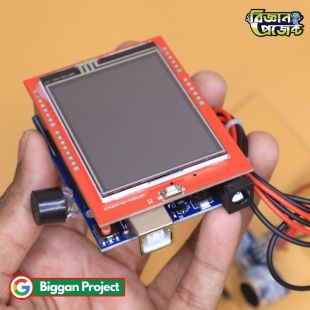

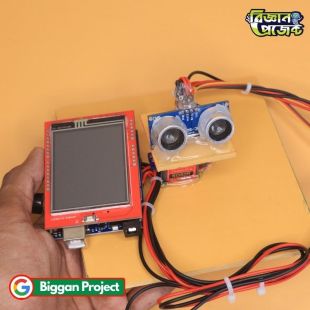

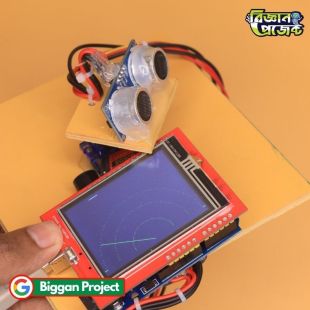

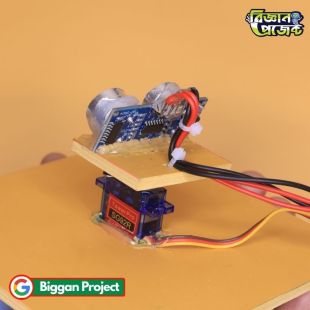

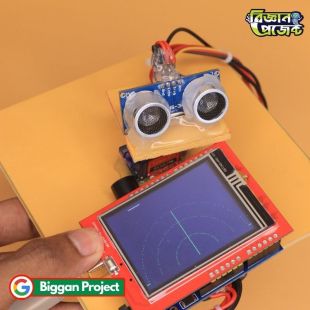

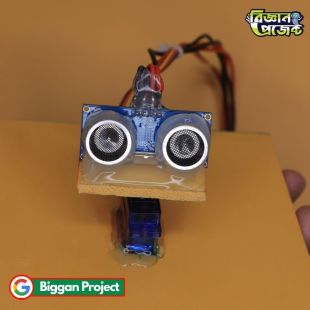

Arduino UNO Ultrasonic Radar Detection Science Project Kit is an advanced DIY electronics and robotics learning project designed for students, STEM learners, and science fair participants in Bangladesh. This smart radar system uses the HC-SR04 Ultrasonic Sensor Module to detect nearby objects and display their direction and distance on a colorful 2.4 Inch TFT LCD Touch Display. The ultrasonic sensor rotates smoothly with the help of the SG92R 9g Micro Servo Motor, creating a real-time 180-degree radar scanning effect similar to modern radar systems.

This educational science project is highly suitable for school, college, and university students who want to learn practical Arduino programming, ultrasonic sensing, servo motor control, and display interfacing. The project also includes a 5V Active Buzzer that generates an alarm sound whenever an object is detected within 20cm distance. This feature makes the project more interactive and realistic for demonstrations and science exhibitions.

At Biggan Project, students in BD can explore modern electronics and robotics concepts through hands-on projects like this Arduino radar system. The project helps improve coding knowledge, circuit design understanding, problem-solving skills, and creativity. It is widely useful for science fairs, robotics workshops, engineering learning, and DIY electronics practice in Bangladesh.

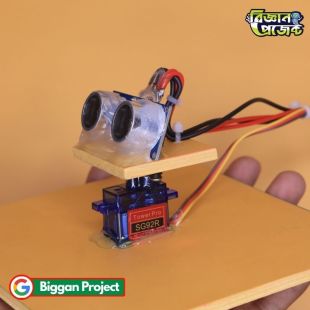

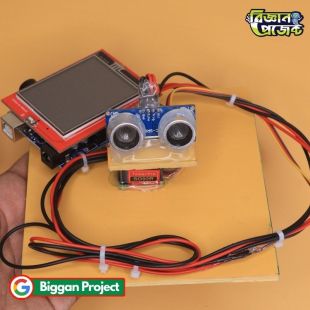

The project body frame is built using durable 5MM PVC Plastic Board and organized with Nylon Cable Zip Ties, Flexible Project Wires, and Hot Glue Stick for a neat and professional appearance. The complete setup demonstrates how ultrasonic waves can measure distance and how radar-style scanning systems work in real life.

Product Specifications

Features

• Real-time 180-degree radar scanning system
• Detects nearby objects using ultrasonic technology
• Displays object direction and distance on TFT LCD
• Automatic alarm sound when object enters 20cm range
• Interactive STEM learning project for students
• Supports Arduino programming and robotics education
• Compact and attractive radar-style design
• Easy to understand for beginners and hobbyists
• Hands-on learning experience for electronics enthusiasts
• Suitable for school and college science exhibitions

Applications / Use Cases

• Science fair and exhibition projects
• Arduino and robotics learning
• STEM education activities
• DIY electronics practice
• Ultrasonic sensor demonstration project
• Engineering workshop training
• School and college project presentations
• Basic radar system learning
• Distance measurement demonstration
• Electronics hobby project development

User Guide / How to Use

• Connect all modules according to the circuit diagram
• Upload the Arduino radar project code to the Arduino Uno board
• Power the Arduino board using USB or external 5V supply
• The servo motor will rotate the ultrasonic sensor automatically
• The TFT LCD display will show object direction and distance
• When an object enters within 20cm range, the buzzer will sound
• Place the project on a stable surface for accurate scanning
• Keep sensor area free from obstacles during calibration

Frequently Asked Questions (FAQs)

• Q: What is the main purpose of this project?
  A: This project demonstrates radar-style object detection using ultrasonic sensing and Arduino programming.
• Q: Is this project suitable for beginners?
  A: Yes, it is suitable for beginners who want to learn Arduino, sensors, and robotics basics.
• Q: What type of sensor is used in this project?
  A: The project uses the HC-SR04 Ultrasonic Sensor Module.
• Q: How does the project detect objects?
  A: The ultrasonic sensor sends sound waves and measures the reflected signal to calculate distance.
• Q: What happens when an object comes close?
  A: The active buzzer creates an alarm sound when an object enters within 20cm distance.
• Q: Can students use this for science fairs in Bangladesh?
  A: Yes, this is an excellent science fair and STEM learning project for students in BD.

Challenges and Considerations

• Ultrasonic sensing accuracy may vary depending on object surface type
• Loose wiring connections can affect display and sensor performance
• Servo motor movement requires stable power supply
• Outdoor noise and obstacles may influence detection results
• Careful assembly is required for smooth radar rotation
• TFT display connections must be properly aligned

Compatibility

• Compatible with Arduino IDE software
• Works with Arduino Uno R3 boards
• Supports standard 5V electronic modules
• Compatible with common STEM and robotics learning platforms
• Suitable for DIY electronics prototyping
• Can be expanded with additional sensors and modules

Future Enhancement Options

• Add Bluetooth or WiFi monitoring system
• Integrate IoT-based object detection alerts
• Add larger TFT or OLED display module
• Use rechargeable battery backup system
• Implement mobile app monitoring feature
• Add multi-sensor scanning capability
• Upgrade to full 360-degree radar rotation
• Add data logging and object tracking functions

Benefits

• Improves practical electronics knowledge
• Enhances Arduino programming skills
• Provides real-world robotics learning experience
• Encourages creativity and innovation
• Helps students understand sensor technology
• Ideal for STEM education in Bangladesh
• Useful for science exhibitions and competitions
• Supports hands-on learning methodology
• Develops problem-solving and engineering thinking
• Fun and interactive educational project

Conclusion

The Arduino UNO Ultrasonic Radar Detection Science Project Kit is an engaging and educational DIY electronics project for students, robotics enthusiasts, and STEM learners in Bangladesh. With real-time radar scanning, ultrasonic object detection, TFT LCD visualization, and alarm functionality, this project offers an excellent opportunity to learn practical electronics, Arduino programming, and robotics concepts through hands-on experience. Biggan Project brings innovative science learning solutions for BD students who want to build modern technology projects with creativity and confidence.
