IoT Gas Leakage Alert System ESP8266 24V Support

ESP8266 IoT Gas & 24V Sensor Safety Alarm System Kit

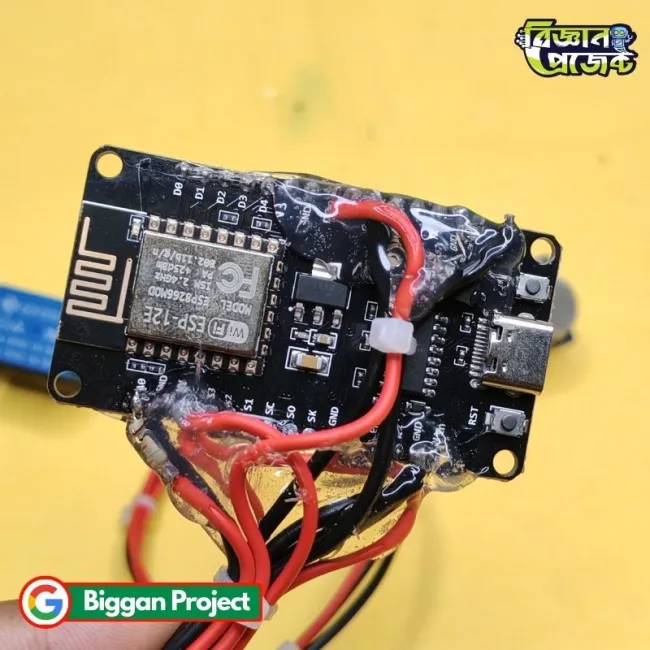

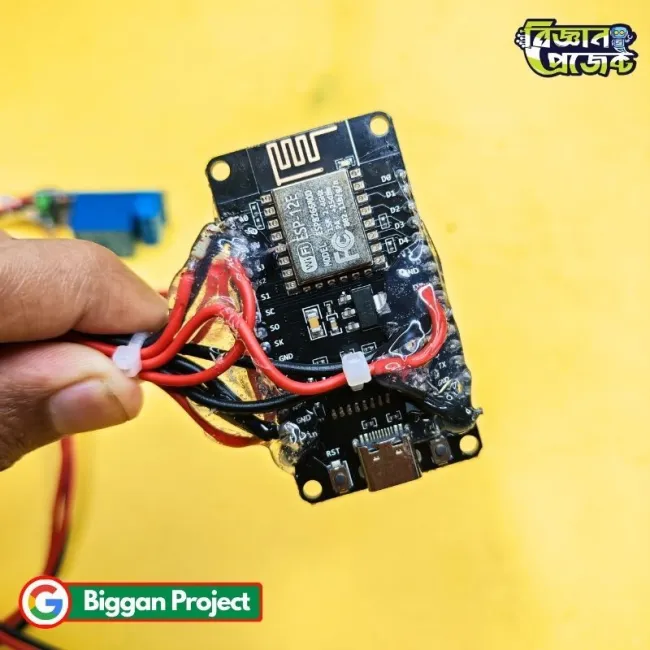

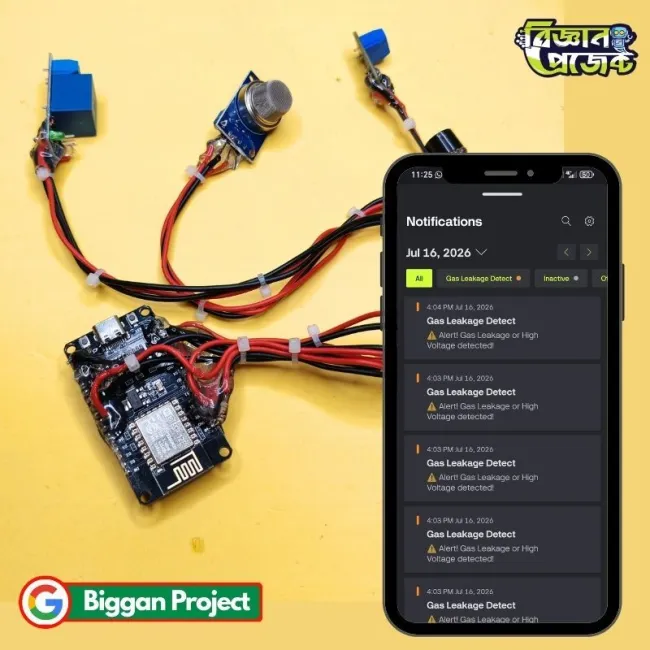

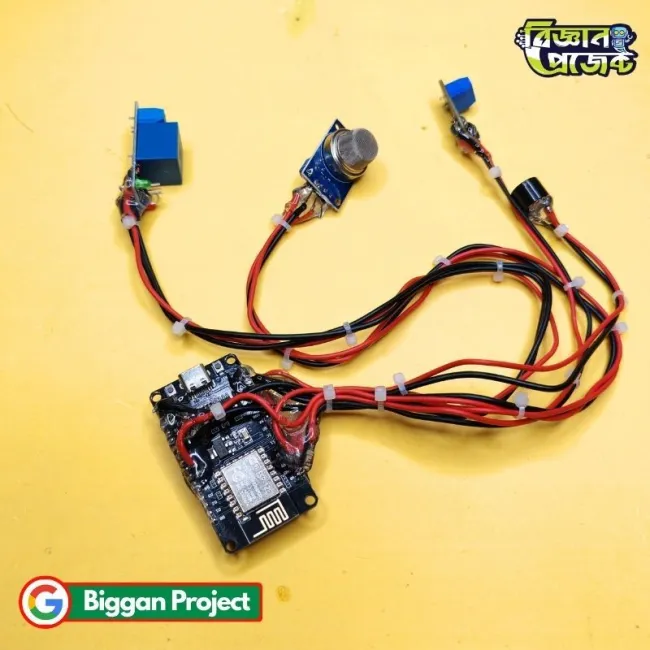

This IoT gas leakage alert system is an advanced microcontroller-based safety project designed using the popular ESP8266 Type-C board. It offers versatile hazard monitoring by supporting dual sensor inputs: a standard MQ2 gas sensor for detecting combustible gases like LPG, propane, and methane, alongside an onboard voltage sensor module engineered to safely interface with high-voltage 24V industrial gas sensors. When gas is detected by the MQ2 sensor or a signal is triggered via the 24V sensor line, the ESP8266 immediately activates a 5V 1-channel relay module and a loud 5V active buzzer. Simultaneously, the system transmits real-time push notifications to a connected mobile app over Wi-Fi or a smartphone hotspot. Constructed using space-efficient slim ribbon cables, this compact setup is widely popular across Bangladesh (BD) as an ideal electronics Biggan Project (বিজ্ঞান প্রজেক্ট) for university students, school science fairs, and practical smart home automation demonstrations.

Product Specifications

Features

• Dual-sensor input support combining standard low-voltage MQ2 and custom 24V logic level sensors.

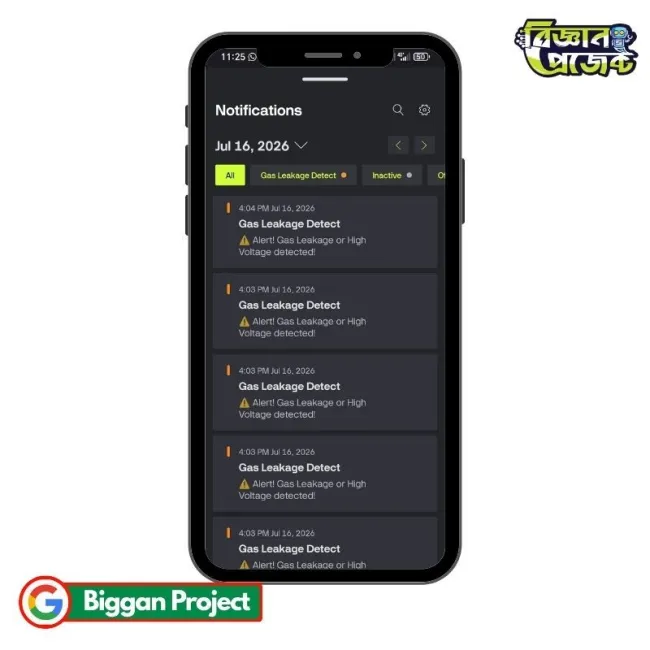

• Instant wireless alerts delivered to your smartphone app via Wi-Fi or mobile hotspot.

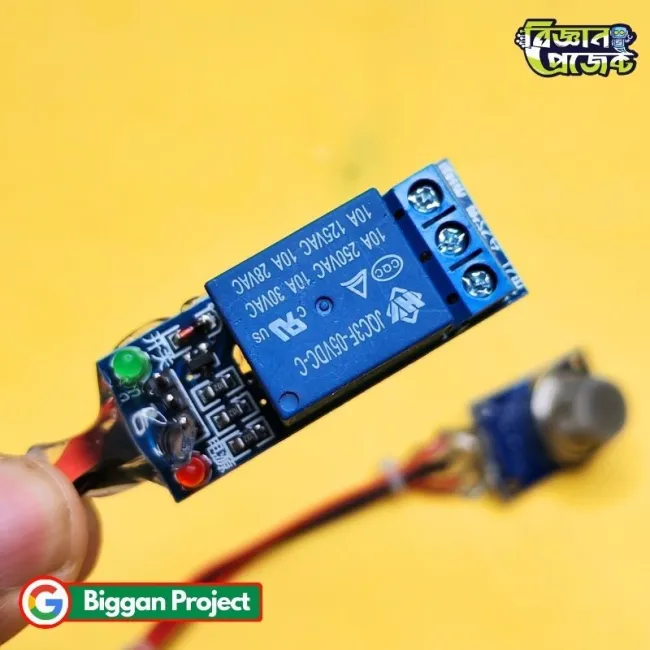

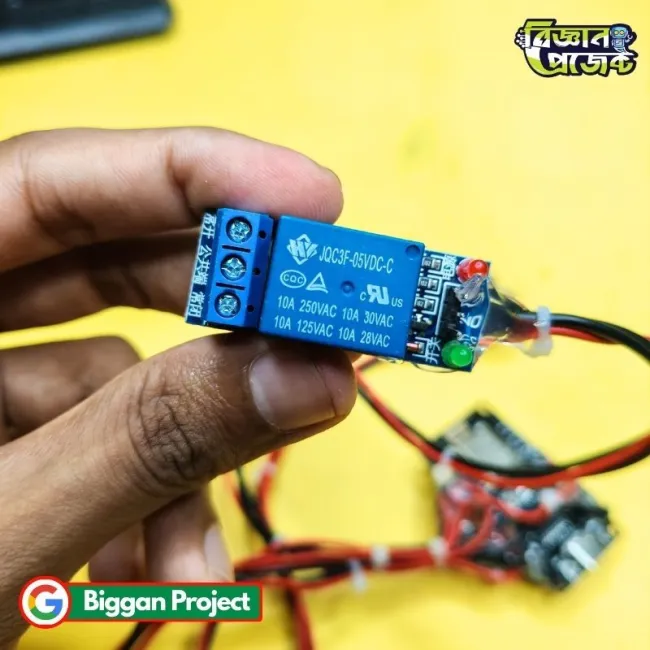

• Integrated 5V 1-channel relay for controlling external devices like exhaust fans or solenoid valves.

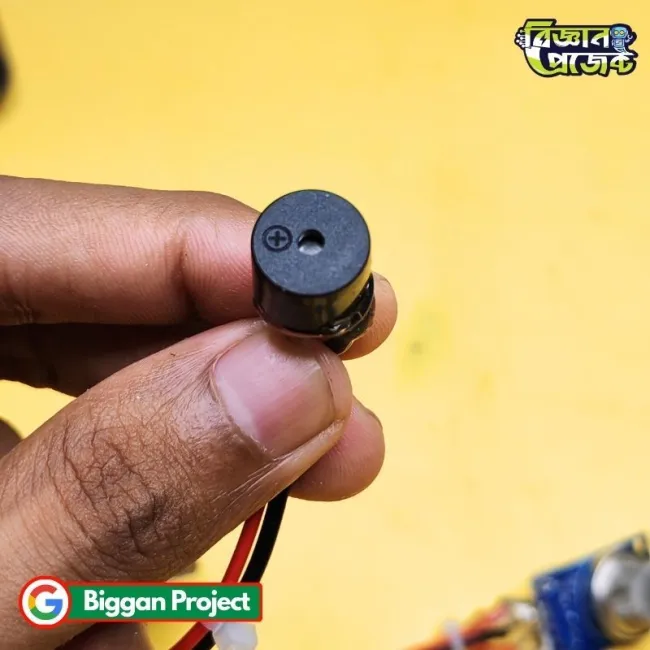

• Loud 5V buzzer providing immediate on-site acoustic warning during gas leaks.
• Modern USB Type-C interface on the ESP8266 for reliable power delivery and programming.

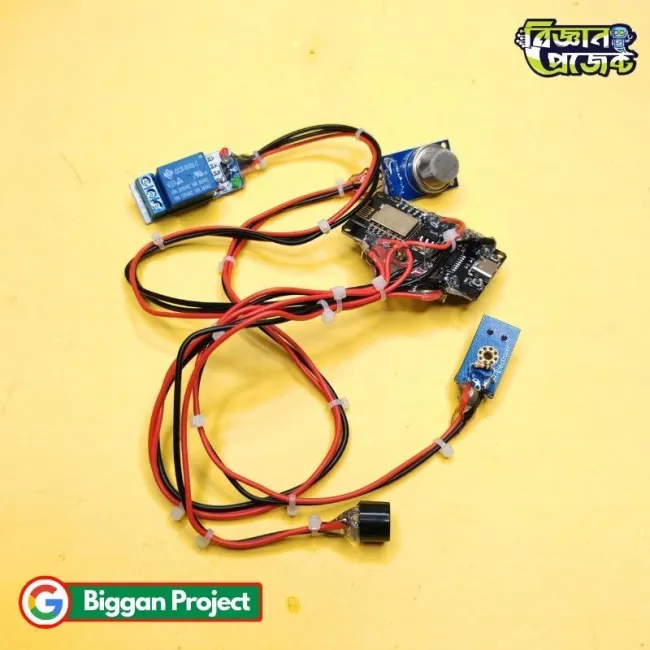

• Compact design organized with slim ribbon cables for clean prototyping and exhibition.

Applications / Use Cases

• Smart home kitchen security for monitoring kitchen LPG cylinder leaks.
• Academic engineering and school Biggan Project exhibitions throughout BD.
• Industrial safety prototypes requiring 24V logic sensor integration with microcontrollers.
• IoT laboratory learning kit for studying wireless sensor networks and mobile app triggers.
• Small workshop gas hazard monitoring and automated exhaust fan triggering setups.

User Guide / How to Use

• Connect the ESP8266 board to a 5V power supply using a standard USB Type-C cable.
• Ensure the system is connected to an active 2.4GHz Wi-Fi network or a personal mobile hotspot.
• Place the MQ2 sensor near potential gas leakage sources like kitchen stoves or gas regulators.
• If using a 24V industrial gas sensor, connect its signal line to the voltage sensor module input pins.
• Open the configured mobile app on your smartphone to monitor connection status.
• Test the system using a gas match or lighter (without flame) near the MQ2 sensor to verify buzzer sound, relay switching, and mobile alert reception.

Frequently Asked Questions (FAQs)

• Q: Can this project work without a broadband Wi-Fi router?
  A: Yes, it can operate using a personal mobile hotspot setup on a smartphone.

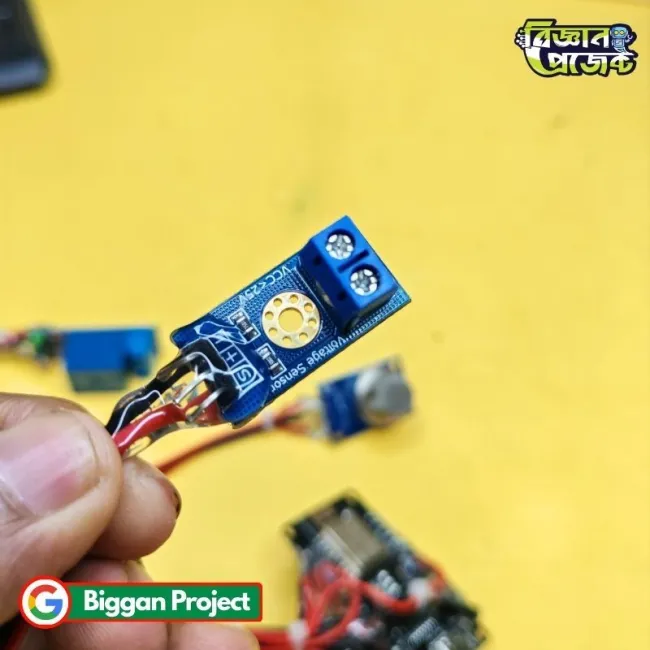

• Q: Why is a voltage sensor used for the 24V gas sensor connection?
  A: The ESP8266 operates on 3.3V logic, so the voltage sensor scales down the 24V signal to a safe voltage level for the microcontroller input pin.
• Q: What can be connected to the 5V relay module?
  A: The relay can be wired to switch on safety equipment like an emergency exhaust fan or a gas cut-off solenoid valve.
• Q: Is the ESP8266 board reusable for other IoT projects?
  A: Yes, the ESP8266 Type-C board can be reprogrammed easily via the Arduino IDE for various IoT applications.

Challenges and Considerations

• MQ2 sensors require a brief warm-up period (30–60 seconds) after powering on to stabilize gas readings.
• Ensure correct polarity when connecting the 24V sensor output to the voltage sensor module to prevent hardware damage.
• Network latency on weak mobile hotspots may cause minor delays in app notification delivery.

Compatibility

• Compatible with standard 2.4GHz Wi-Fi networks and mobile hotspot tethering.
• Supports custom mobile apps configured using IoT platforms like Blynk, Tuya, or MQTT dashboards.
• Fully compatible with Arduino IDE for code modifications and sensor recalibration.

Future Enhancement Options

• Adding an OLED or 16x2 LCD display to view real-time gas concentration values on-site.
• Integrating an automatic gas pipeline solenoid valve triggered by the 5V relay.
• Adding a battery backup module for continuous protection during power outages.
• Incorporating smoke or flame sensors to create a multi-hazard safety dashboard.

Benefits

• Enhances safety through early detection of hazardous gas leaks before critical concentration levels are reached.
• Saves costs by integrating flexible 24V industrial sensor compatibility without needing specialized PLCs.
• Provides flexible remote monitoring capability anywhere with internet access.
• Serves as an educational hardware kit for learning embedded C++ programming and IoT networking in Bangladesh.

Conclusion

The ESP8266 IoT Gas & 24V Sensor Safety Alarm System Kit offers a versatile, reliable solution for detecting gas leaks in both residential and industrial environments. By bridging standard MQ2 sensors and 24V industrial sensor signals into a single cloud-connected platform, it provides instant local alarm triggers and remote app notifications. Whether used as an advanced student Biggan Project in BD or a baseline prototype for smart safety installations, this kit delivers exceptional practical value and hardware flexibility.
