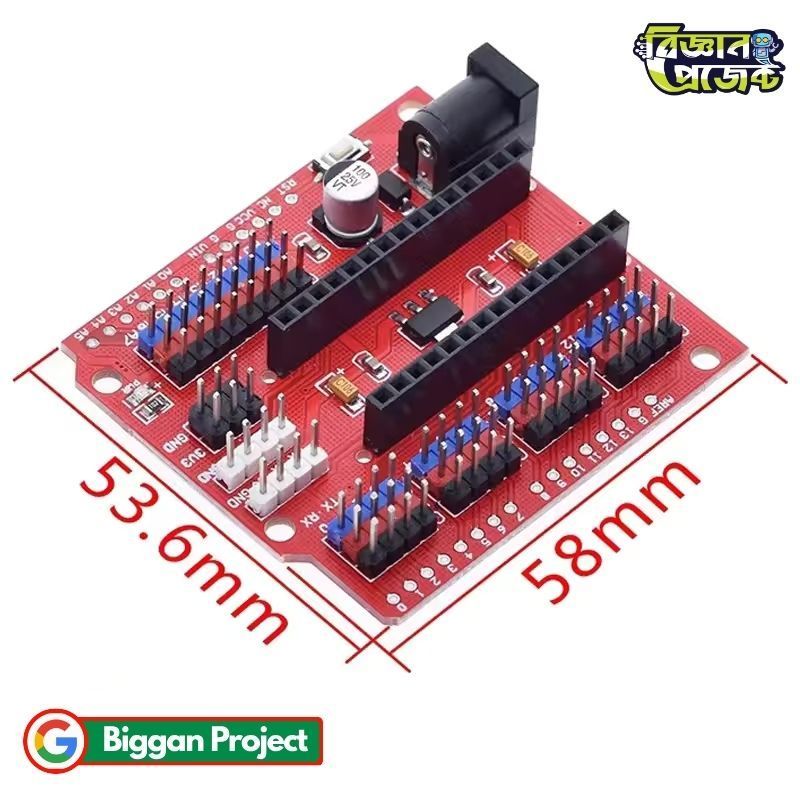

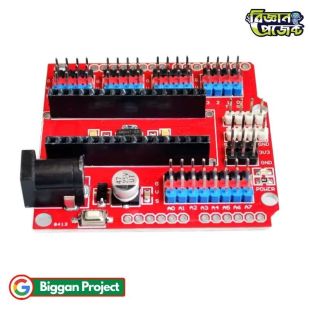

Arduino Nano IO Expansion Shield V3.0 Red Board

Arduino Nano V3.0 IO Expansion Shield Red Sensor Interface Board

The Arduino Nano IO Expansion Shield V3.0 is a compact red expansion board designed to simplify wiring and peripheral connections for Arduino Nano development boards. It provides dedicated headers for digital I/O, analog inputs, PWM outputs, servo connections, and I2C communication, allowing users to build electronic projects quickly and efficiently.

This expansion board acts as an interface between the Arduino Nano and external modules such as sensors, servos, relays, displays, and communication modules. Instead of connecting multiple jumper wires directly to the Nano board, users can easily plug devices into the shield, reducing wiring errors and improving project reliability.

The board is highly suitable for educational laboratories, robotics development, STEM education, Biggan Project activities, and prototype development in Bangladesh. Students working on Biggan Project assignments can easily connect sensors and actuators without complex wiring. The shield is also popular among makers, DIY enthusiasts, and engineering students throughout BD because of its ease of use and compact design.

Its dedicated servo-style connectors provide signal, power, and ground pins together, making it convenient for servo motors and sensor modules. The shield also offers separate I2C expansion headers and PWM outputs for advanced applications including robotics, automation, and embedded systems.

Product Specifications

Features

• Compatible with Arduino Nano V2.x and V3.x.
• Red PCB design with compact dimensions.
• Breaks out all digital and analog pins.
• Provides 14 digital I/O interfaces.
• Includes 8 analog input channels.
• Supports 6 PWM outputs.
• Dedicated I2C expansion connectors.
• Servo-friendly signal, power, and ground arrangement.
• Supports external power supply input.
• Provides 3.3V and AREF outputs.
• Simplifies wiring for electronic projects.

Applications / Use Cases

• Robotics projects.
• Biggan Project experiments.
• STEM education and laboratory work.
• Sensor interfacing projects.
• Servo motor control systems.
• Home automation development.
• Embedded system prototyping.
• Educational electronics training.
• DIY electronics projects.
• Engineering project development in Bangladesh.

User Guide / How to Use

• Insert the Arduino Nano board into the shield socket.
• Connect sensors and modules to the labeled headers.
• Use the PWM pins for servo and motor control applications.
• Connect I2C modules to the dedicated I2C headers.
• Apply suitable external power if required.
• Upload the program to the Arduino Nano through the USB port.
• Test all connected devices before final project installation.

Frequently Asked Questions (FAQs)

• Q: Is this shield compatible with Arduino Nano V3.0?
  A: Yes, it is designed for Arduino Nano V2.x and V3.x boards.
• Q: Can I connect servo motors directly?
  A: Yes, dedicated servo-style headers make servo connections easy.
• Q: Does the shield provide PWM outputs?
  A: Yes, it includes six PWM pins.
• Q: Is this suitable for educational projects?
  A: Yes, it is widely used for Biggan Project and STEM education projects.
• Q: Does the board support external power input?
  A: Yes, external power support is available.

Challenges and Considerations

• The shield does not include an Arduino Nano board.
• Users should verify pin connections before powering the circuit.
• Excessive current loads should use external power sources.
• Care should be taken when connecting 3.3V devices.
• Proper orientation of the Nano board is important during installation.

Compatibility

• Arduino Nano V2.x.
• Arduino Nano V3.x.
• Servo motors.
• I2C modules.
• PWM devices.
• Analog sensors.
• Digital sensors.
• Relay modules.
• Display modules.
• Various Arduino-compatible accessories.

Future Enhancement Options

• Add wireless communication modules.
• Integrate Bluetooth or WiFi modules.
• Expand with additional sensor boards.
• Develop robotics control systems.
• Build IoT projects using compatible modules.
• Create advanced automation systems.

Benefits

• Reduces wiring complexity.
• Speeds up prototype development.
• Improves project organization.
• Provides reliable module connections.
• Suitable for students and professionals.
• Ideal for Bangladesh educational projects.
• Useful for Biggan Project applications.
• Compact and lightweight design.
• Supports multiple sensors and modules.
• Enhances Arduino Nano usability.

Conclusion

The Arduino Nano IO Expansion Shield V3.0 Red Board is a practical solution for simplifying Arduino Nano connections and project development. Whether used for Biggan Project activities, robotics, educational laboratories, or DIY electronics in Bangladesh and BD markets, this expansion shield provides an organized, reliable, and efficient way to connect sensors, servos, and modules while reducing wiring complexity.
