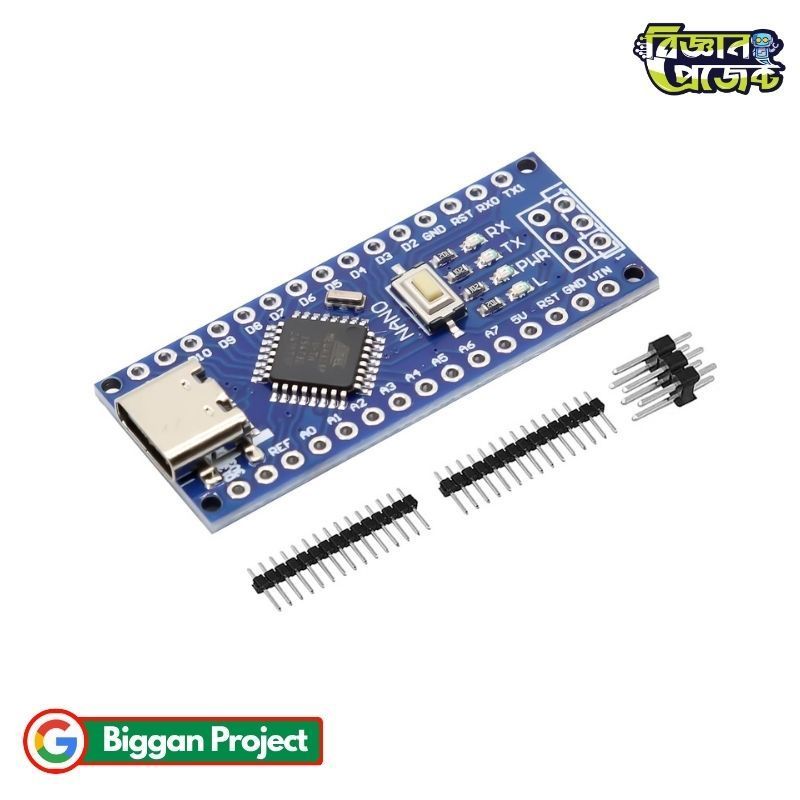

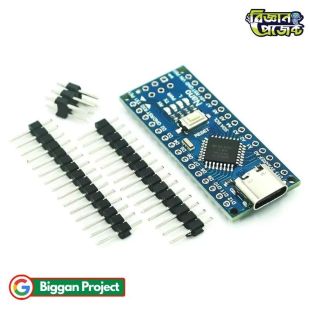

Arduino Nano V3.0 ATmega328P CH340G Type-C with Unsoldered Headers

Arduino Nano V3.0 ATmega328P CH340G Type-C Development Board with Header Pins Included (Unsoldered)

The Arduino Nano V3.0 ATmega328P CH340G Type-C Development Board is a compact, reliable, and versatile microcontroller board designed for students, hobbyists, makers, engineers, and embedded system developers. Built around the popular ATmega328P-AU microcontroller, this board delivers stable performance for a wide range of automation, robotics, IoT, and electronic development projects.

Unlike traditional Nano boards with Mini USB, this version features a modern Type-C USB connector for convenient programming and power supply. The onboard CH340G USB-to-Serial converter enables quick communication between the board and your computer while maintaining compatibility with the Arduino IDE.

This variant includes header pins in the package, but they are not pre-soldered. This gives users greater flexibility to solder the headers according to their project requirements or mount the board directly onto custom PCBs and prototypes. It is an excellent choice for permanent installations where customized header orientation is required.

The board comes with a pre-installed bootloader, allowing users to start programming immediately after installing the CH340 driver. Whether you are building a robot, smart home controller, sensor monitoring system, data logger, or educational prototype, this Nano board provides a compact and dependable solution.

It is widely used by students, universities, makerspaces, robotics clubs, and electronics enthusiasts throughout Bangladesh. It is also a popular choice for Biggan Project, STEM education, embedded system learning, and DIY electronics. If you are searching for a reliable Arduino-compatible Nano board in BD, this model offers excellent compatibility and flexibility for countless electronic applications.

Product Specifications

Features

• Powered by the ATmega328P-AU microcontroller.
• Modern Type-C USB connector for programming and power.
• Integrated CH340G USB-to-Serial converter.
• Compact Nano form factor suitable for space-limited projects.
• 16MHz crystal oscillator for stable operation.
• Pre-installed bootloader for quick setup.
• Eight analog input pins (A0-A7).
• Header pins included separately for flexible assembly.
• Compatible with the Arduino IDE.
• Ideal for beginners and professional developers.

Applications / Use Cases

• Arduino learning and educational projects.
• Biggan Project and STEM education.
• Robotics development.
• IoT device prototyping.
• Home automation systems.
• Wireless sensor networks.
• Environmental monitoring.
• Motor control applications.
• Smart agriculture projects.
• Electronic product prototyping.
• DIY electronic experiments.
• Custom embedded system development.

User Guide / How to Use

• Solder the supplied header pins if required for your application.
• Install the CH340 USB driver on your computer.
• Connect the board using a Type-C USB cable.
• Open the Arduino IDE.
• Select Arduino Nano and the correct processor if required.
• Select the correct COM port.
• Upload your program.
• Connect sensors, modules, and actuators according to your project.
• Power the board through the Type-C USB connection or an appropriate external source.

Frequently Asked Questions (FAQs)

• Q: Are the header pins already soldered?
  A: No. The header pins are included separately and need to be soldered by the user.
• Q: Which microcontroller does this board use?
  A: It uses the ATmega328P-AU microcontroller.
• Q: Which USB connector is used?
  A: The board uses a Type-C USB connector.
• Q: Is it compatible with Arduino IDE?
  A: Yes. It supports programming through the Arduino IDE.
• Q: Do I need a driver?
  A: Yes. Install the CH340 USB driver before programming the board.
• Q: Is this suitable for beginners?
  A: Yes. It is widely used for learning electronics and embedded programming.

Challenges and Considerations

• Header pins must be soldered before standard breadboard use.
• CH340 driver installation may be required on some operating systems.
• Ensure the correct board and processor settings are selected in the Arduino IDE.
• Use proper operating voltage when connecting external devices.
• A quality Type-C USB cable is recommended for stable communication.

Compatibility

• Compatible with Arduino IDE.
• Supports Windows, Linux, and macOS with the appropriate CH340 driver.
• Works with most Arduino Nano compatible shields and modules.
• Compatible with common sensors, displays, motors, relays, and communication modules.
• Suitable for breadboards after soldering the supplied headers.

Future Enhancement Options

• Add Wi-Fi using ESP8266 or ESP-01 modules.
• Add Bluetooth communication using HC-05 or HC-06.
• Connect OLED, LCD, or TFT displays.
• Expand storage using SD card modules.
• Integrate GPS or GSM modules.
• Develop cloud-connected IoT applications.
• Add motor drivers for robotics projects.
• Integrate multiple environmental sensors.

Benefits

• Compact size saves installation space.
• Reliable ATmega328P architecture.
• Convenient Type-C connectivity.
• Flexible header installation for custom projects.
• Excellent for education and prototyping.
• Supports thousands of Arduino libraries.
• Suitable for beginners and professionals.
• Ideal for robotics, automation, IoT, and DIY electronics.
• Popular choice for Biggan Project in Bangladesh and BD educational institutions.

Conclusion

The Arduino Nano V3.0 ATmega328P CH340G Type-C Development Board is an excellent solution for compact embedded projects, educational learning, robotics, automation, and IoT development. With a reliable ATmega328P microcontroller, Type-C connectivity, CH340G interface, and separately included header pins, it provides the flexibility needed for both prototyping and permanent installations. Whether you are building a Biggan Project, developing a commercial prototype, or learning embedded programming in Bangladesh, this board is a dependable and practical choice.
