ESP32 30P DevKitC Expansion Board with GVS Interface

ESP32 DevKitC 30P GPIO Sensor Expansion Board with Dual Power Input

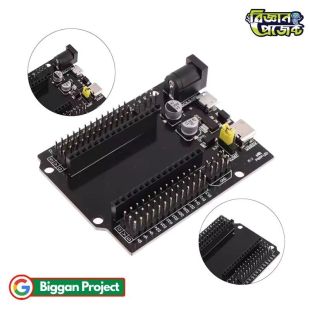

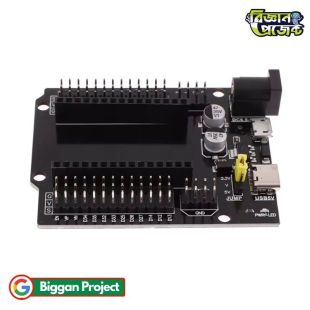

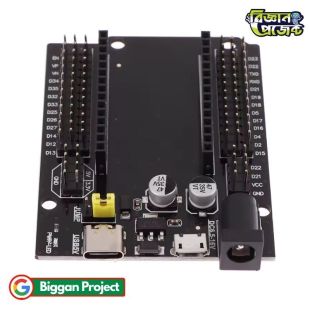

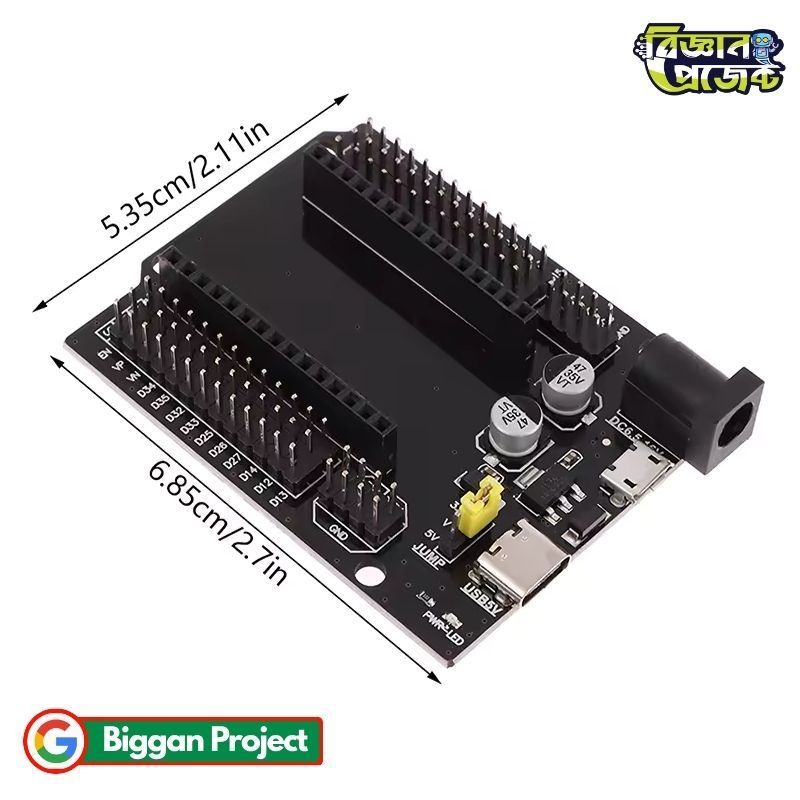

The ESP32 30P Development Expansion Board is a practical expansion module designed specifically for ESP32-DevKitC (30P) development boards. It simplifies circuit building by providing organized access to GPIO pins, power connections, and signal interfaces. This expansion board allows developers, students, makers, and engineers to connect sensors, modules, and peripheral devices without complicated wiring.

Built with an extended GVS interface, the board makes it easy to connect modules using Ground, Voltage, and Signal pins. The integrated JUMP interface provides access to all available GPIO pins, making it suitable for advanced electronics projects. Whether you are developing IoT devices, automation systems, robotics applications, or educational projects, this board helps reduce wiring complexity and improves project organization.

The board supports both USB 5V and DC 6.5V-12V power inputs, offering flexibility for portable and fixed installations. The selectable 3.3V or 5V output allows compatibility with various sensors and electronic modules. This makes it highly suitable for electronics learning, prototype development, and Biggan Project activities in Bangladesh and BD educational institutions.

Students and hobbyists working on science fairs, Biggan Project demonstrations, and STEM education projects in Bangladesh can benefit from the simple plug-and-play connectivity offered by this expansion board. It provides a clean and reliable platform for experimenting with ESP32-based applications.

Product Specifications

Features

• Designed specifically for ESP32-DevKitC 30P boards.
• Dual power supply options using USB or DC input.

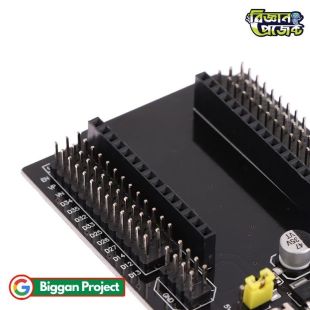

• Extended GVS interface for convenient sensor connections.
• JUMP interface provides access to all GPIO pins.
• Selectable 3.3V or 5V output voltage.
• Reduces wiring complexity during development.
• Suitable for educational and professional projects.
• Compact and lightweight design.
• Supports multiple electronic modules and sensors.
• Reliable power and signal transmission.

Applications / Use Cases

• Internet of Things (IoT) projects.
• Smart home automation systems.
• Robotics and automation projects.
• Wireless sensor networks.
• STEM education and laboratory experiments.
• Biggan Project demonstrations in Bangladesh.
• Prototype development and testing.
• DIY electronics projects.
• Environmental monitoring systems.
• Educational programming and embedded system learning.

User Guide / How to Use

• Insert the ESP32-DevKitC 30P board into the expansion socket.
• Select the appropriate output voltage using the jumper cap.
• Connect sensors or modules to the GVS ports.
• Power the board using USB 5V or DC 6.5V-12V input.
• Upload code to the ESP32 using the Micro USB interface.
• Test connected modules and sensors.
• Expand the project by utilizing additional GPIO pins through the JUMP interface.

Frequently Asked Questions (FAQs)

• Q: Is this board compatible with all ESP32 boards?
  A: It is specifically designed for ESP32-DevKitC 30P series boards.
• Q: Can I use both USB and DC power simultaneously?
  A: It is recommended to use only one power source at a time.
• Q: Does the board support 3.3V sensors?
  A: Yes, the output voltage can be selected between 3.3V and 5V.
• Q: Is soldering required?
  A: Most sensor connections can be made directly through the GVS interface.
• Q: Is it suitable for educational projects?
  A: Yes, it is widely used for STEM education and Biggan Project activities.

Challenges and Considerations

• The expansion board requires a compatible 30-pin ESP32 board.
• Incorrect voltage selection may damage connected modules.
• Users should verify pin alignment before installation.
• Large modules may require additional external power.
• Care should be taken when connecting high-current devices.

Compatibility

• ESP32-DevKitC 30P development boards.
• 3.3V sensor modules.
• 5V sensor modules.
• Relay modules.
• Temperature and humidity sensors.
• Display modules.
• Servo and motor control modules.
• Various IoT communication modules.

Future Enhancement Options

• Add wireless monitoring systems.
• Integrate cloud-based IoT platforms.
• Expand with additional sensors.
• Build smart home automation systems.
• Create robotics control applications.
• Develop remote monitoring solutions.
• Implement industrial automation projects.

Benefits

• Simplifies ESP32 project development.
• Provides organized wiring connections.
• Reduces development time.
• Improves project reliability.
• Suitable for beginners and professionals.
• Supports multiple power options.
• Excellent for educational use in BD and Bangladesh.
• Useful for science projects and embedded system learning.

Conclusion

The ESP32 30P Development Expansion Board offers a convenient and reliable platform for expanding the capabilities of ESP32-DevKitC boards. With flexible power options, easy sensor connectivity, and wide application support, it is an excellent choice for IoT development, education, robotics, DIY projects, and Biggan Project applications in Bangladesh.
