MAX98357A I2S 3W Class D Audio Amplifier Module

MAX98357A 3W I2S DAC Mono Class D Amplifier Board for ESP32

The MAX98357A I2S DAC Class D Mono Amplifier Module is a compact, high-efficiency digital audio solution designed for embedded audio applications, smart speakers, IoT devices, and DIY electronics projects. This module integrates both a high-quality Digital-to-Analog Converter (DAC) and a filter-less Class D amplifier in a single chip, simplifying audio implementation in modern microcontroller-based systems.

Unlike traditional analog audio amplifiers, the MAX98357A accepts I2S digital audio input directly from microcontrollers such as ESP32, Raspberry Pi, Arduino, STM32, and ESP8266, significantly reducing noise and improving audio quality. The onboard DAC converts digital audio streams into high-fidelity sound while the integrated Class D amplifier efficiently drives 4Ω to 8Ω speakers with output power up to 3W.

The module's compact footprint makes it ideal for portable electronics, battery-powered projects, voice assistants, educational robotics, and smart home devices. Whether you are building an AI voice assistant, IoT notification system, portable music player, or educational project, this board offers excellent performance with minimal external components.

At Biggan Project, we provide quality electronic components for students, hobbyists, and engineers across Bangladesh. The MAX98357A amplifier module is widely used in robotics, STEM education, and embedded audio projects throughout BD, making it a popular choice among makers and developers.

Product Specifications

Features

• Integrated DAC and Class D amplifier in a single chip.
• Direct I2S digital audio input support.
• Filter-less design reduces external component requirements.
• Provides up to 3W audio output.
• Compatible with 4Ω and 8Ω speakers.
• Compact PCB suitable for space-constrained designs.
• High efficiency with low heat generation.
• Screw terminal output for secure speaker connection.
• Suitable for battery-powered and portable applications.
• Easy integration with popular microcontrollers.

Applications / Use Cases

• DIY Bluetooth speakers.
• ESP32 smart speaker projects.
• Voice assistant systems.
• IoT devices with voice output.
• Embedded audio systems.
• Educational STEM and robotics projects.
• Portable audio players.
• Home automation voice notification systems.
• Interactive kiosks and display systems.
• Raspberry Pi audio projects.

User Guide / How to Use

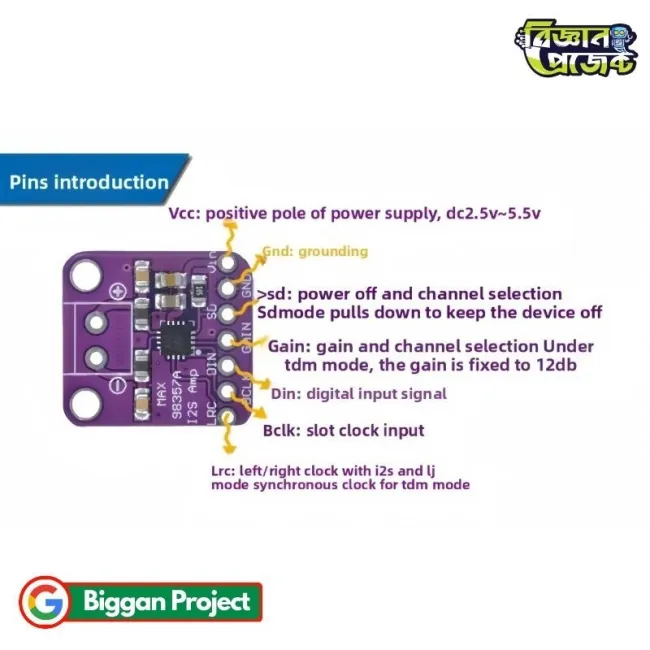

• Connect module VIN and GND to the power supply.
• Connect I2S pins (BCLK, LRC, DIN) to the corresponding microcontroller pins.
• Connect a compatible 4Ω or 8Ω speaker to the screw terminals.
• Configure the microcontroller software to output I2S audio data.
• Upload the appropriate firmware or audio playback sketch.
• Power on the system and verify audio output.
• Adjust audio data and software settings as required.

Frequently Asked Questions (FAQs)

• Q: Can this module work with ESP32?
  A: Yes. The MAX98357A is widely used with ESP32 through the I2S interface.
• Q: Does this module include a DAC?
  A: Yes. The MAX98357A integrates a built-in Digital-to-Analog Converter.
• Q: What speaker impedance is supported?
  A: The module supports 4Ω to 8Ω speakers.
• Q: Is this a stereo amplifier?
  A: No. This board is a mono amplifier module.
• Q: Can it be used with Raspberry Pi?
  A: Yes. Raspberry Pi supports I2S audio output and is compatible with this module.
• Q: Is an external audio filter required?
  A: No. The module features a filter-less Class D design.

Challenges and Considerations

• This module provides mono audio output only.
• Proper I2S configuration is necessary for successful operation.
• Incorrect power supply connections may damage the module.
• Speaker impedance should remain within the recommended range.
• Audio quality depends on software configuration and source quality.
• Long signal wires may introduce interference in noisy environments.

Compatibility

• ESP32 Development Boards
• Raspberry Pi Series
• Arduino boards with I2S capability
• STM32 Microcontrollers
• ESP8266 with external I2S support
• Digital audio systems supporting I2S output
• 4Ω and 8Ω speakers

Future Enhancement Options

• Create stereo audio systems using multiple modules.
• Integrate Bluetooth audio streaming functionality.
• Add microphone modules for voice interaction.
• Combine with WiFi-enabled IoT platforms.
• Develop AI voice assistant applications.
• Implement wireless smart speaker solutions.

Benefits

• High efficiency and low power consumption.
• Excellent audio quality with digital input.
• Compact size simplifies integration.
• Minimal external circuitry required.
• Reliable performance for embedded applications.
• Ideal for educational and professional projects.
• Suitable for portable and battery-powered systems.

Conclusion

The MAX98357A I2S DAC Class D Mono Amplifier Module is an excellent choice for developers, students, and makers seeking an efficient and compact digital audio solution. With direct I2S support, integrated DAC functionality, and compatibility with ESP32 and Raspberry Pi, this module is ideal for a wide range of audio, IoT, robotics, and educational projects available from Biggan Project in Bangladesh.
