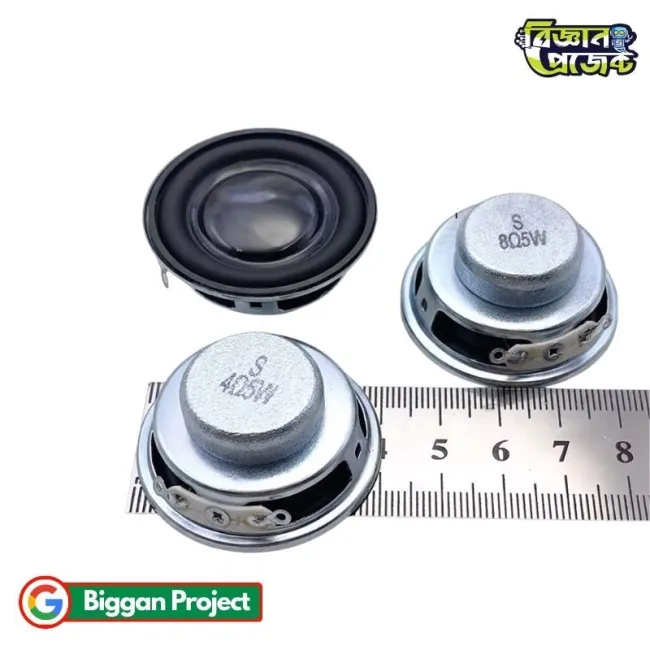

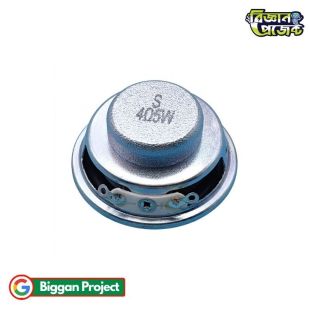

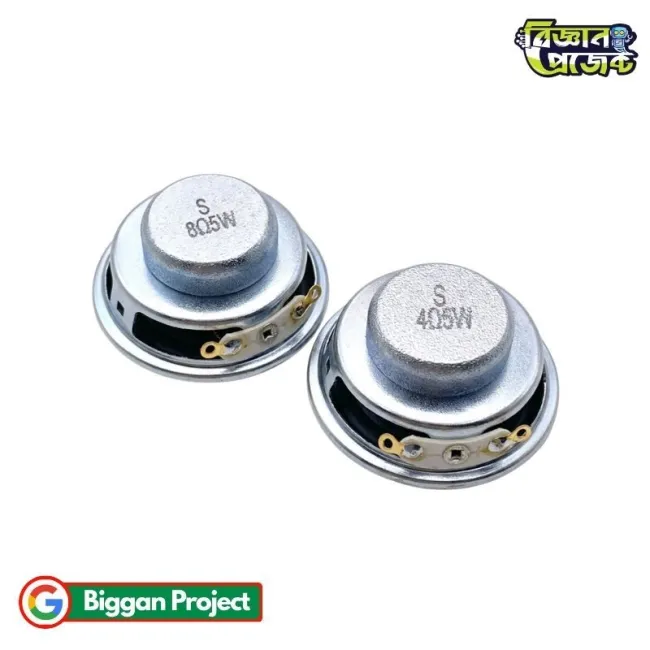

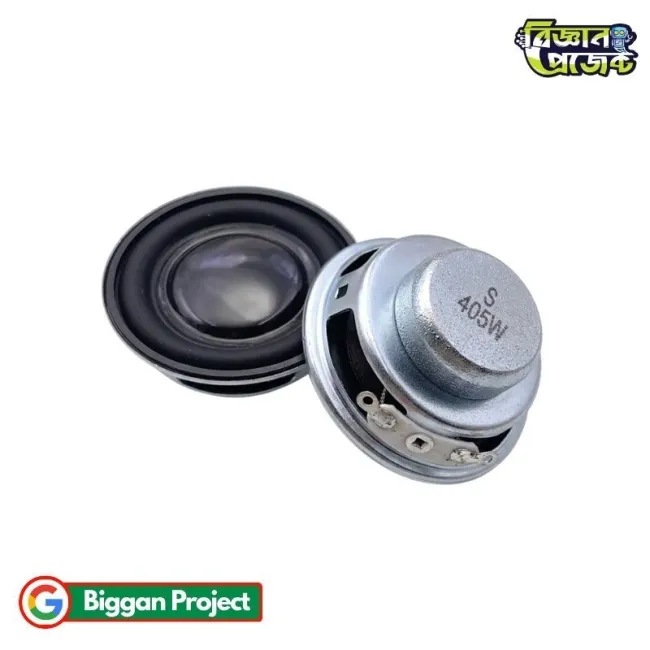

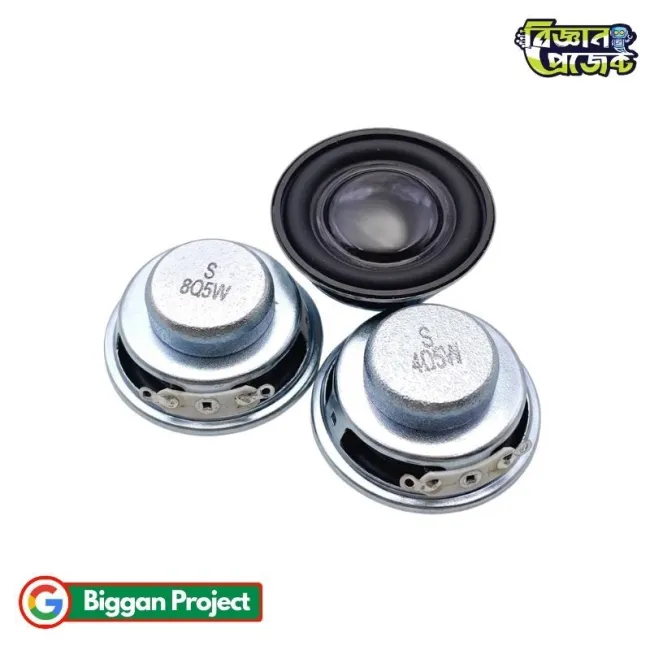

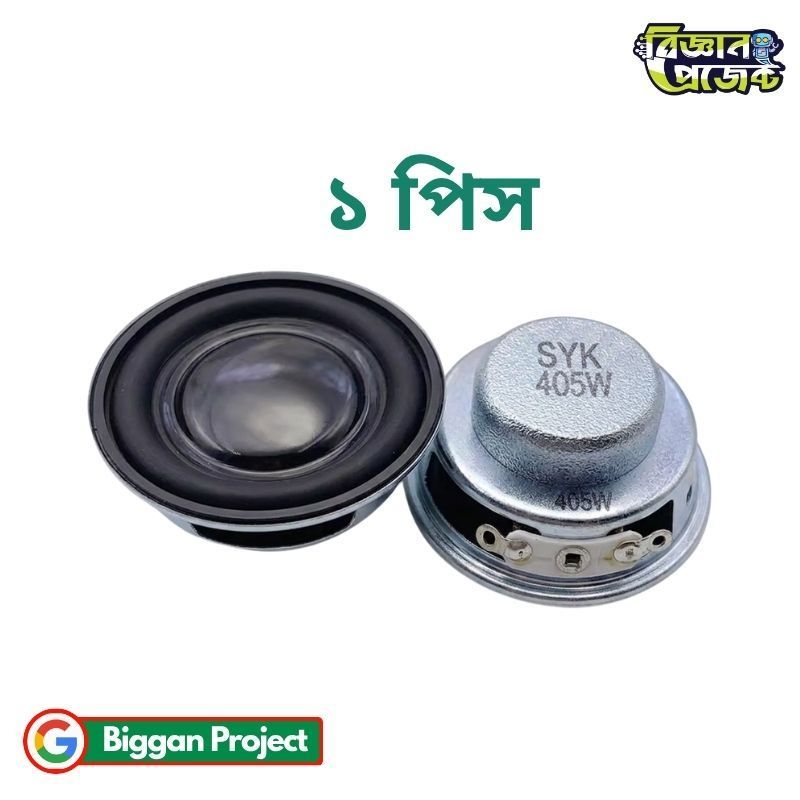

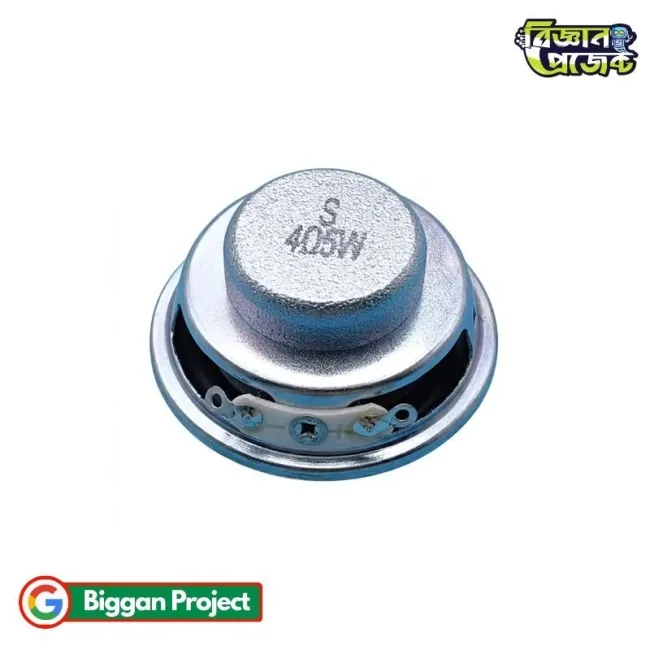

1.5 Inch 40mm 4ohm 5W Mini Portable Speaker

Features

• Compact 40mm Form Factor: Fits effortlessly into tight enclosures and small-scale custom audio builds.
• 5W Power Output: Delivers clear, punchy audio with balanced performance for small setups.
• 4-Ohm Impedance: Matches standard low-voltage class-D digital amplifiers for optimal power transfer.
• Full Frequency Range: Produces clear high notes and clean mids for balanced vocal and musical sound.
• Durable Construction: Built with robust materials for reliable continuous audio playback.

Applications

• DIY Bluetooth Speakers: Ideal as the primary transducer in custom portable audio units.
• Embedded Systems & Robotics: Provides voice prompts, alert tones, or audio feedback in custom electronics.
• Desktop Mini Soundbars: Suitable for compact stereo speaker pairs driven by PAM8403 or similar amplifiers.
• Gaming Consoles & Arcades: Serves as an internal audio speaker for handheld or mini arcade projects.

Technical Specifications

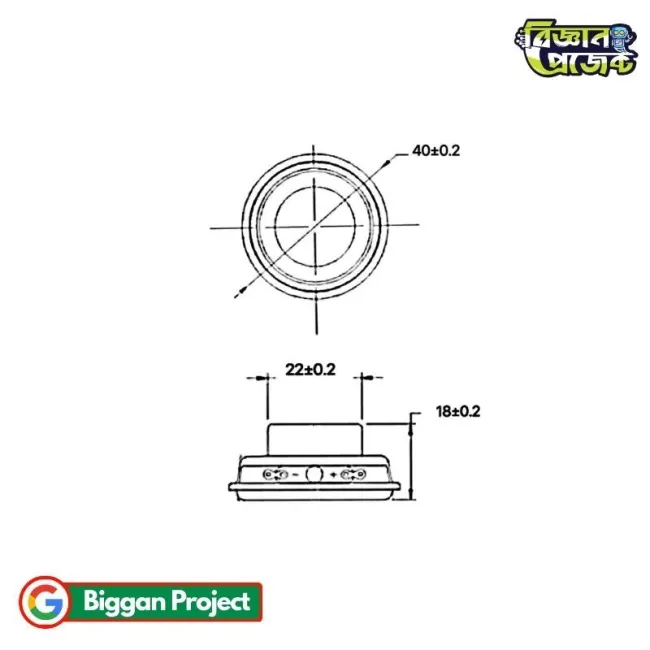

• Speaker Diameter: 1.5 Inch (40mm)
• Power Rating: 5 Watts
• Nominal Impedance: 4 Ohms
• Frequency Response: Full Range / Stereo
• Driver Type: Dynamic Moving Coil
• Shape: Round

User Guide / How to Use

• Amplifier Matching: Connect to a 3W to 5W power amplifier module operating at 4 ohms (such as PAM8403).
• Polarity Wiring: Solder the positive signal wire to the terminal marked (+) and the ground wire to the terminal marked (-).
• Enclosure Design: Mount inside a sealed or bass-reflex box to optimize low-end response and sound projection.

Frequently Asked Questions (FAQs)

• Q: Can I connect this speaker directly to an Arduino or ESP32 pin?
  A: No, microcontroller pins cannot supply enough current. You must use an audio amplifier module like PAM8403 between the microcontroller and the speaker.
• Q: What amplifier power is recommended for this speaker?
  A: A 3W to 5W amplifier powered by 5V DC works best with this 4-ohm driver.
• Q: Is this a passive speaker or an active speaker?
  A: This is a passive speaker driver component and requires an external amplifier board to operate.

Challenges and Considerations

• Baffle Requirement: Operating the speaker in free air without an enclosure reduces bass output significantly.
• Thermal Limits: Exceeding the 5W continuous rating can heat up the voice coil and cause distortion or damage.

Compatibility

• Compatible with PAM8403, PAM8406, and TPA3116 low-power amplifier modules.
• Works with Arduino, ESP32, Raspberry Pi audio DAC add-on boards (via suitable amp module).
• Fits standard 40mm speaker cutouts and 1.5-inch mounting frames.

Future Enhancement Options

• Pair two units together with a stereo PAM8403 amplifier for a complete 2.0 channel portable speaker system.
• Add a passive radiator to the enclosure to extend lower bass frequencies without increasing power draw.

Benefits

• Provides full-frequency stereo sound in an extremely small physical footprint.
• Easy to solder and integrate into custom 3D-printed or acrylic enclosures.
• Low power consumption makes it suitable for battery-powered IoT and DIY projects.

Conclusion

The 1.5-inch 40mm 4-ohm 5W mini speaker driver offers an excellent balance of small size and clear sound output. It is a practical component for makers, students, and audio enthusiasts building portable Bluetooth speakers, embedded robotics projects, or compact media players.
