ANENG A3010 Pen Digital Multimeter Auto Range 4000 Counts

ANENG A3010 2-in-1 Pen-Type Digital Multimeter 4000 Counts True-RMS Auto-Range AC/DC Voltage Tester

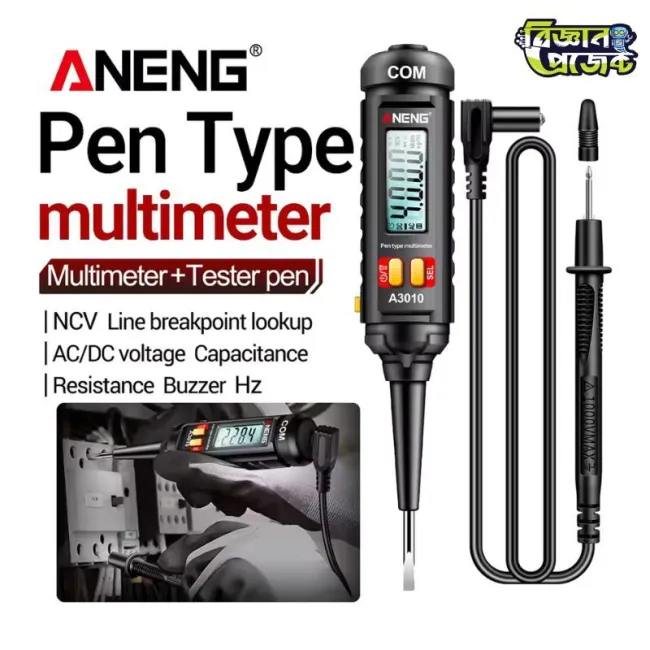

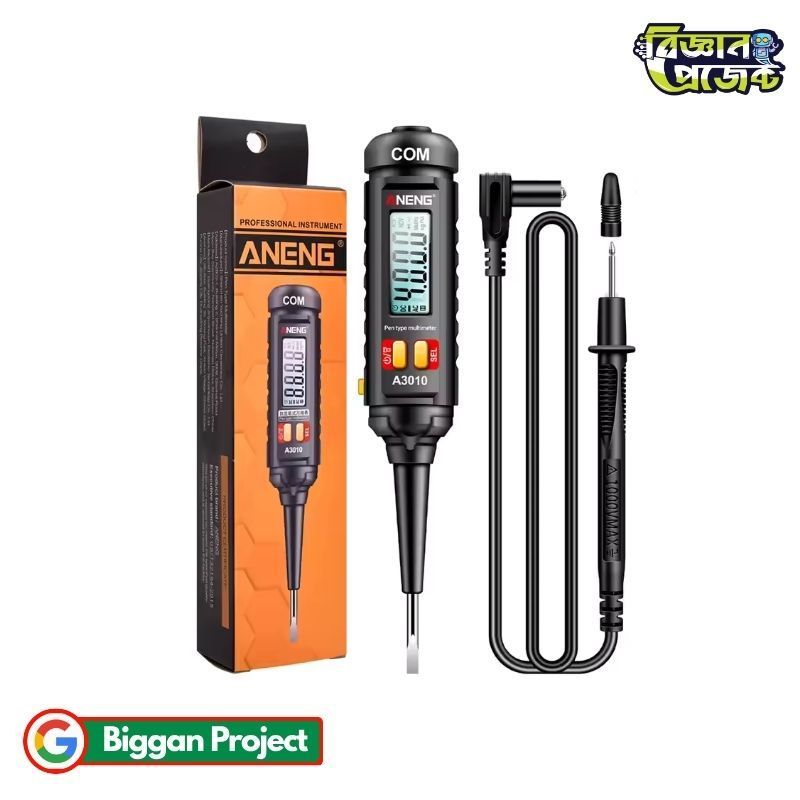

The ANENG A3010 is a highly portable, 2-in-1 pen-type digital multimeter designed for electricians, hobbyists, engineers, and DIY electronics builders across Bangladesh. Combining the functionality of a traditional digital multimeter with the ergonomic form factor of a testing pen, this device provides fast, safe, and precise electrical testing. It operates as a 3 3/4-digit, 4000-count auto-ranging meter that measures AC/DC voltage, resistance, frequency, diodes, and continuity. With built-in Non-Contact Voltage (NCV) sensing, the ANENG A3010 allows users to check live wires quickly without physical contact, making it an essential diagnostic tool for home repair, circuit troubleshooting, and Biggan Project experimentation.

Designed for convenience and field work, the multimeter features a clear backlit LCD screen, integrated data hold, auto power-off, and an LED flashlight tip for working in dark electrical boxes or tight panels. The True-RMS measurement engine ensures accurate readings even on non-sinusoidal AC waveforms. Whether you are assembling science fair projects (বিজ্ঞান প্রজেক্ট), inspecting local household wiring in BD, or debugging micro-controller circuits on a workbench, this pen-style tester delivers reliable performance without taking up space in your tool kit.

Product Specifications

Features

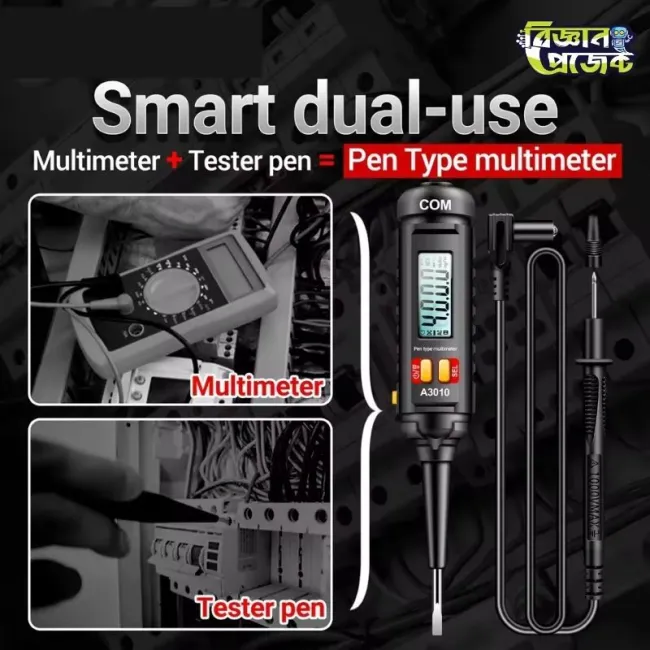

• Compact 2-in-1 pen design combines standard multimeter probe functionality with non-contact voltage sensing.
• True-RMS measurement capability provides accurate readings on modern AC electronic loads.
• 4000-count auto-ranging display automatically selects the optimal measurement range for voltage and resistance.
• Non-Contact Voltage (NCV) detection senses AC voltage behind walls or in cables without stripping wires.

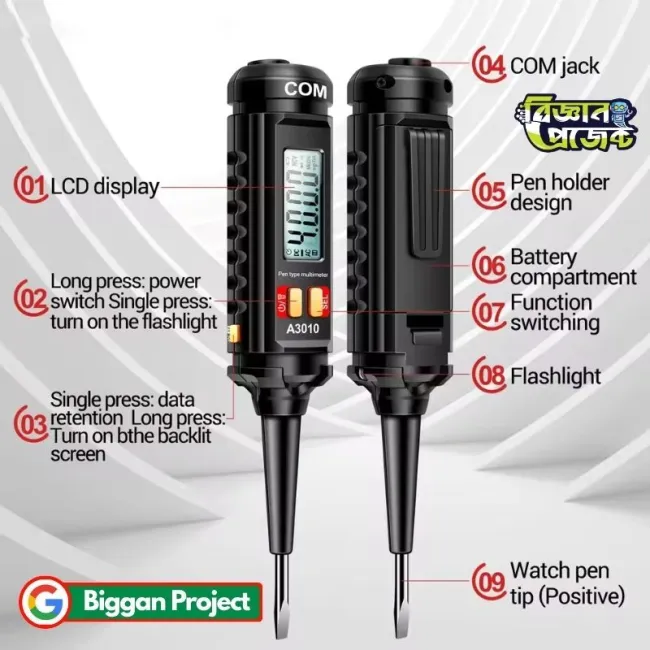

• Integrated probe tip with a built-in LED flashlight allows comfortable single-handed operation in dim spaces.
• Audible continuity buzzer quickly tests circuit connections and trace continuity without looking at the screen.
• Data Hold button freezes displayed readings on screen for easy recording during awkward angle measurements.
• Energy-efficient system includes automatic shutoff to preserve battery life when left idle.

Applications / Use Cases

• Troubleshooting residential and commercial AC power outlets, light switches, and circuit breakers in BD homes.
• Measuring DC voltage in batteries, solar power systems, power supplies, and automotive electronics.
• Testing component-level resistance and continuity on printed circuit boards (PCBs) for STEM and Biggan Project kits.
• Frequency verification on signal generators, small inverter circuits, and electronic clock sources.

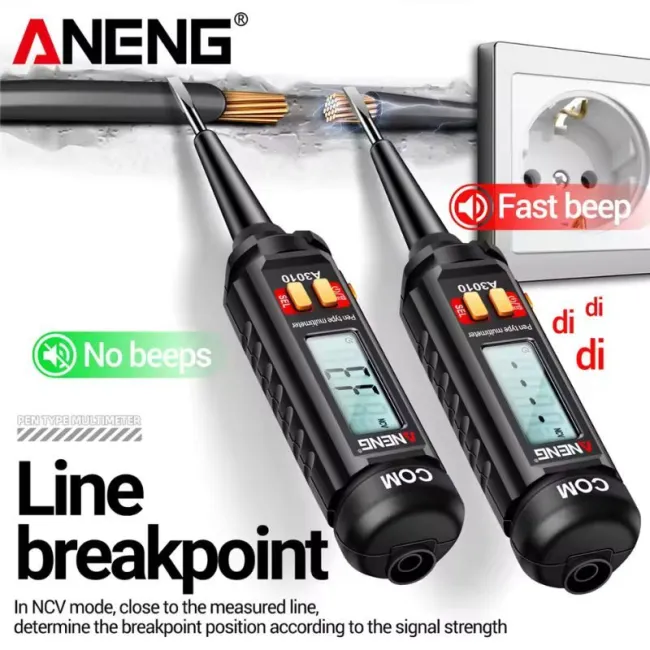

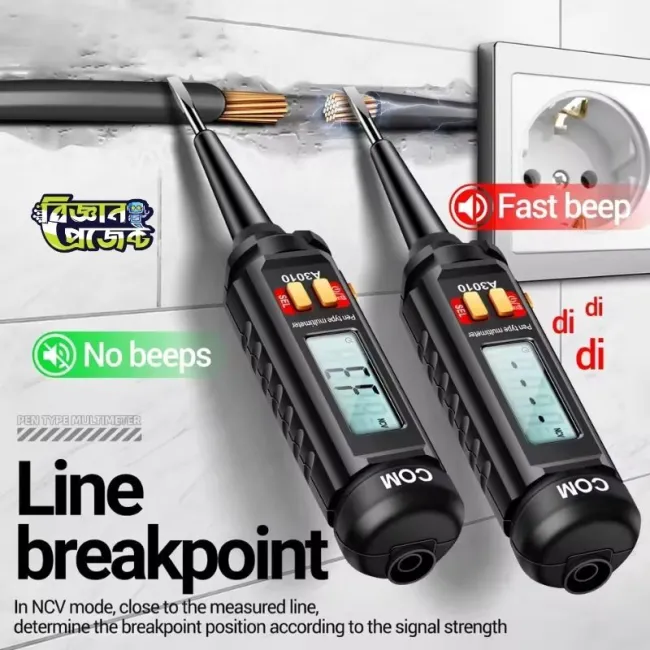

• Locating wire breaks, phase lines, and neutral lines quickly using NCV sensing mode.
• Field service maintenance for HVAC technicians, appliance repair men, and electrical contractors.

User Guide / How to Use

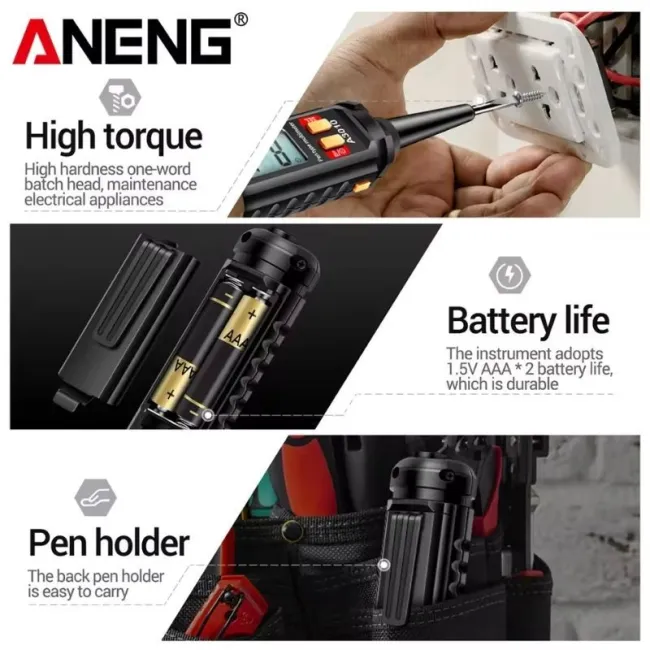

• Insert two 1.5V AAA batteries into the rear battery compartment according to the correct polarity.
• Turn on the meter by pressing the power button and select the desired measurement mode or rely on auto-range mode.

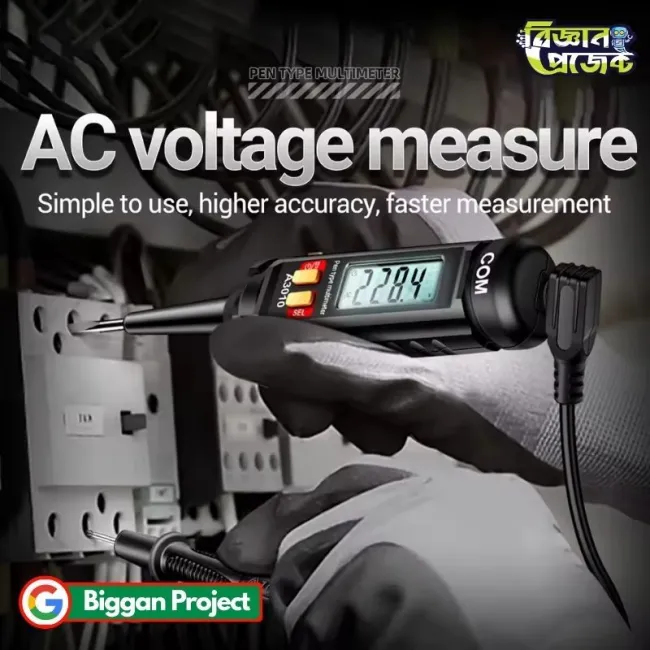

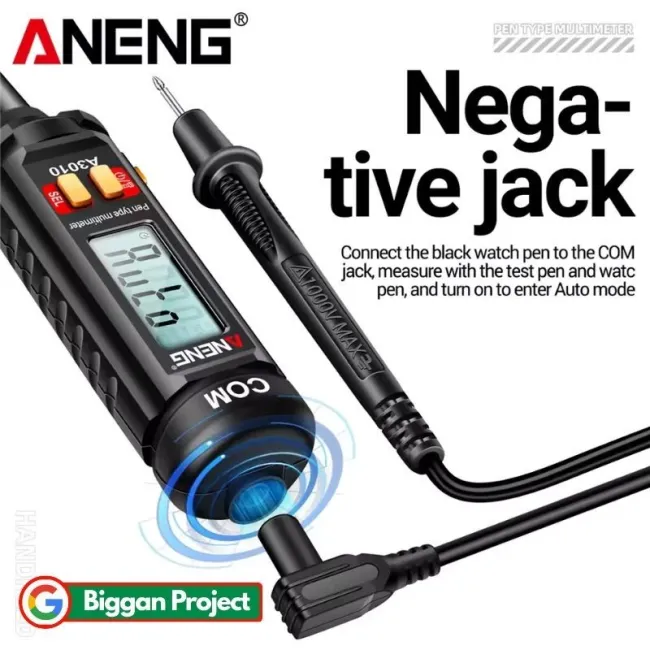

• To measure AC/DC Voltage: Connect the black ground lead to the reference point and place the pen probe tip on the test point. Read the value directly on the LCD screen.
• To measure Resistance or Continuity: Ensure the target circuit is fully powered off, touch the probe across the component, and listen for the continuity buzzer.

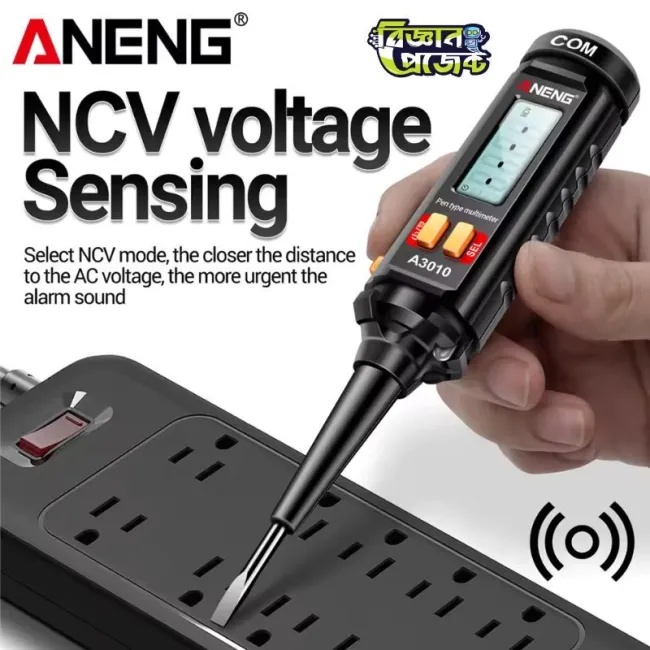

• To use NCV Sensing: Press the NCV mode button and bring the tip of the pen close to the wire or wall socket; the device will beep and indicate voltage intensity.
• Use the Hold button to freeze screen values when working in tight angles where the display is not visible.

Frequently Asked Questions (FAQs)

• Q: Does the ANENG A3010 measure current?
  A: No, the A3010 model focuses specifically on AC/DC voltage, resistance, frequency, continuity, and NCV testing.
• Q: Are batteries included in the package?

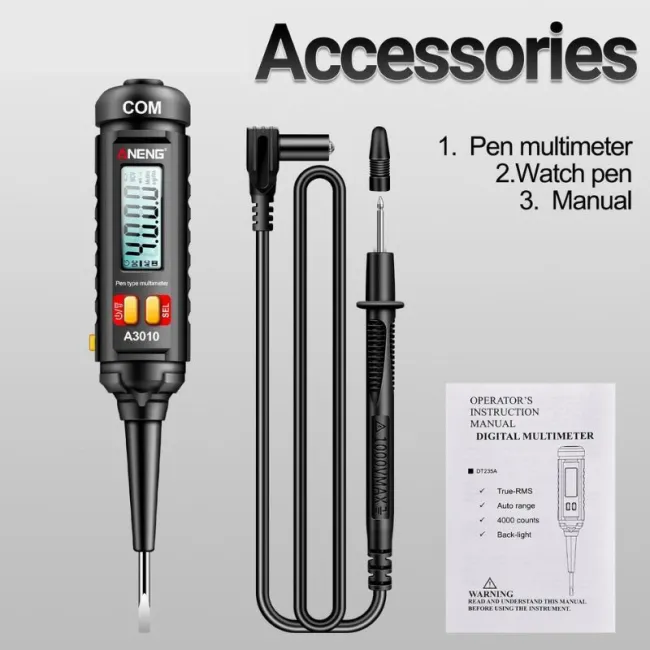

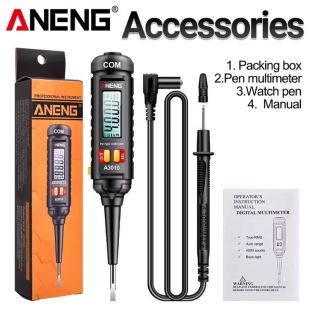

  A: No, the standard package includes the pen multimeter, ground test lead, manual, and box. Batteries (2 x AAA) must be purchased separately.
• Q: Can this pen meter be used for 220V AC household lines in Bangladesh?
  A: Yes, it is rated up to 600V AC/DC, making it safe and suitable for standard household line voltage checks in BD.
• Q: What does True-RMS mean for this meter?
  A: True-RMS ensures accurate voltage measurements regardless of whether the AC waveform is a pure sine wave or distorted by non-linear loads like power adapters.

Challenges and Considerations

• Requires separate power off confirmation before measuring resistance or continuity to prevent internal fuse or sensor damage.
• Operates on AAA batteries; low battery voltage can lead to reduced display brightness or slightly off-calibration readings.
• Care should be taken when testing high-voltage sources to ensure proper insulation safety and probe hand positioning.

Compatibility

• Compatible with standard banana jack ground leads and alligator test clips.
• Suitable for testing standard electronics components, rechargeable batteries, power adapters, and household AC wiring.
• Ideal for integration with breadboards, Arduino boards, and student electronic project kits used in Bangladesh schools and colleges.

Future Enhancement Options

• Pairing with insulated alligator clip adapters for hands-free grounding during continuous testing.
• Upgrading to high-capacity NiMH rechargeable AAA batteries for frequent daily fieldwork.
• Adding a protective silicone carrying pouch to safeguard the pen tip and LCD screen in tool bags.

Benefits

• Extremely lightweight and portable, fitting easily into a shirt pocket or small tool pouch.
• Single-handed operation streamlines line testing compared to dual-probe traditional multimeters.
• Saves time during troubleshooting by combining contact voltage testing with non-contact sensing in one device.
• Delivers reliable, budget-friendly precision for engineers, students, and technicians across Bangladesh.

The ANENG A3010 Pen-Type Digital Multimeter is an efficient, compact solution for everyday electrical measurements and diagnostic tasks. Its combination of 4000-count True-RMS accuracy, auto-ranging capabilities, and integrated NCV sensing makes it a versatile tool for professionals and students alike. Whether managing home repairs or testing electronic circuits for a Biggan Project, the A3010 delivers reliable performance in a convenient, pocket-friendly package.
