2x8cm Double Side Zero PCB Board

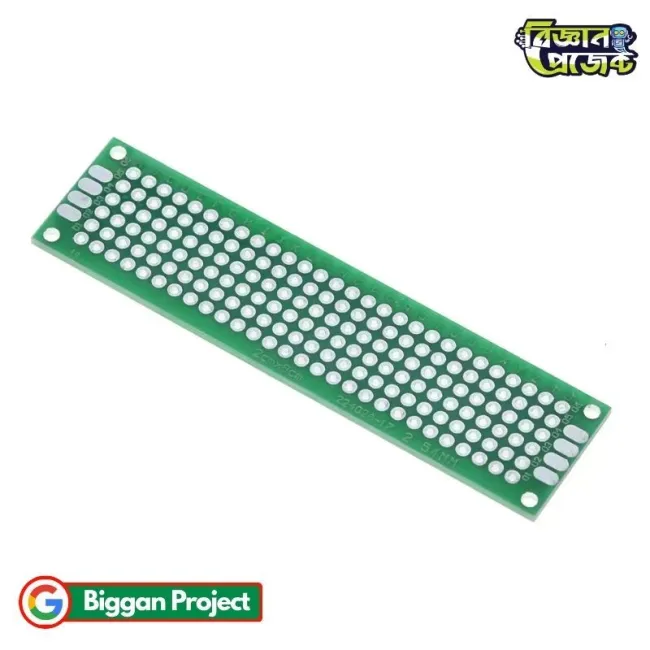

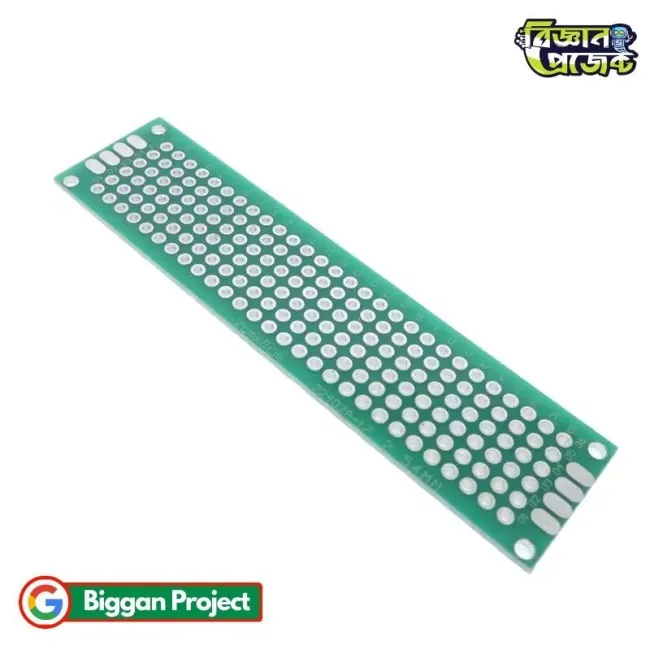

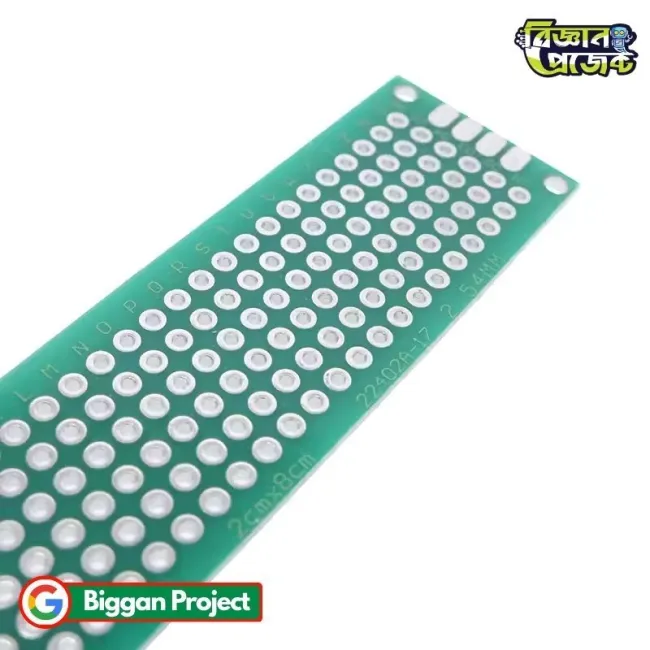

2x8cm Double Side Copper Prototype Universal Zero PCB Board

The 2x8cm Double Side Copper Prototype Universal Zero PCB Board is an essential building block for electronics enthusiasts, robotics students, and engineers across Bangladesh. Designed for temporary prototyping or permanent circuit construction, this high-density fiberglass board provides a reliable, rigid platform for custom electronic setups. Featuring double-sided high-conductivity copper pads and standard 2.54mm hole spacing, it allows seamless integration with microcontrollers, sensor modules, and passive components. Whether you are assembling custom circuit designs for academic science fairs, developing DIY robotics, or sourcing reliable hardware for Biggan Project kits in BD, this universal Zero PCB delivers the mechanical stability and electrical conductivity required for long-lasting performance.

Product Specifications

Features

• Dual-sided plated copper holes ensure strong solder joints and reliable electrical contacts on both surfaces.
• Made from durable FR-4 fiberglass base material offering superior heat resistance and warp prevention.
• Standard 2.54mm grid pitch allows complete compatibility with standard IC pins, header strips, and DIP components.
• Pre-tinned soldering points facilitate quick heat transfer and prevent copper oxidation over time.

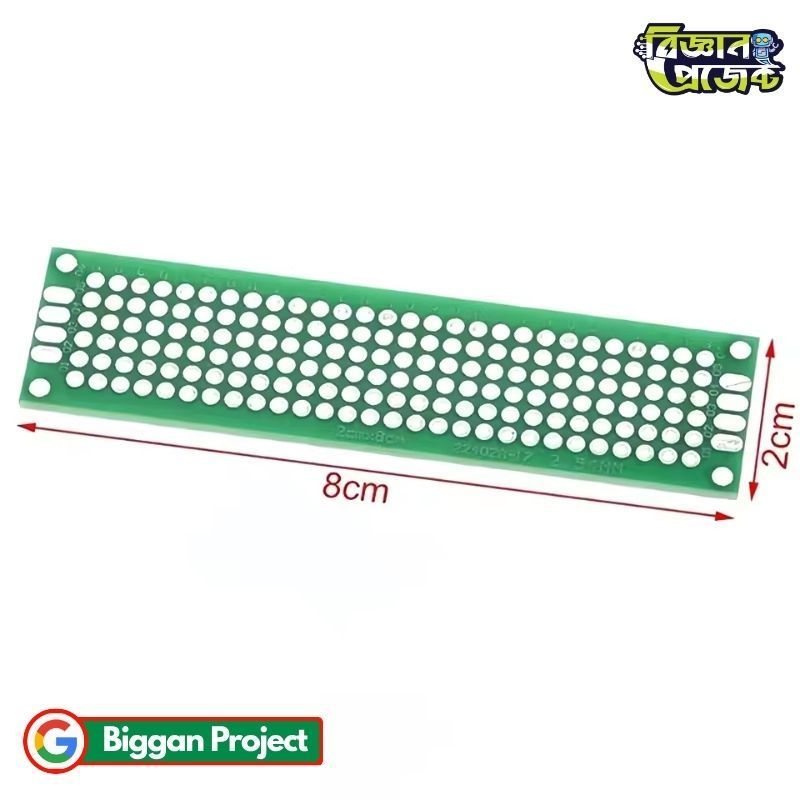

• Compact 2x8cm layout ideal for narrow inline circuits, custom shield extensions, and mini module builds.

Applications / Use Cases

• Prototyping custom microcontroller circuits, shields, and sensor breakouts for Arduino projects in BD.
• Building permanent electronics setups for school, college, and university science projects across Bangladesh.
• Creating power distribution rails or custom wiring buses inside compact project enclosures.
• Designing custom drivers, relay interface boards, and DIY LED controller circuits.
• Repairing or adapting legacy electronic hardware through point-to-point wiring modifications.

User Guide / How to Use

• Plan your circuit layout ahead of time by positioning major ICs, headers, and active components on the board.
• Insert component leads through the pre-drilled 1.0mm holes from either side of the board.
• Apply a clean soldering iron tip heated to standard electronics assembly temperature (approx. 300-350°C).
• Solder components directly to the copper pads using rosin-core flux solder wire for clean connection joints.
• Bridge adjacent copper pads using short jumper wires or bent component leads to create circuit traces.
• Trim excess component leads cleanly using wire flush cutters to prevent accidental short circuits.

Frequently Asked Questions (FAQs)

• Q: Can I cut this 2x8cm Zero PCB into smaller sections?
  A: Yes, FR-4 fiberglass can be trimmed or scored with a sharp rotary tool or fine-tooth saw, though eye protection should be worn during cutting.
• Q: Are the top and bottom copper pads connected through the holes?
  A: Yes, the board features plated-through holes, allowing electrical continuity between top and bottom pads without extra jumper wires through the hole.
• Q: Is this board compatible with standard 2.54mm pin headers?
  A: Yes, the 2.54mm line spacing accepts male, female, and right-angle pin headers perfectly.
• Q: What type of solder works best with this board?
  A: Standard 60/40 leaded solder or lead-free rosin-core solder wires bond smoothly with the pre-tinned copper pads.

Challenges and Considerations

• Point-to-point solder bridging requires moderate soldering skill to prevent unintentional shorts between adjacent 2.54mm pads.
• FR-4 fiberglass dust can be irritating, so cutting or drilling the board should be done in a ventilated area with safety gear.
• High-current circuits above 2-3 Amps require thicker jumper wire traces soldered across multiple pads rather than thin solder bridges.

Compatibility

• Fully compatible with Arduino Uno, Nano, Mega, ESP32, ESP8266, and Raspberry Pi GPIO extension layouts.
• Fits standard 2.54mm pitch male and female pin headers, DIP sockets, tactile switches, and LED arrays.
• Works with standard electronic components including resistors, capacitors, transistors, and sensor modules.

Future Enhancement Options

• Mounting male pin headers along the edges to create modular stackable plug-in boards.
• Adding terminal block connectors at circuit entry points for easy screw-wire connections.
• Applying conformal coating or solder mask over finished trace wiring to protect high-density circuits from moisture oxidation.

Benefits

• Provides a clean, professional alternative to messy breadboard wiring setups for permanent installation.
• Double-sided copper plating provides twice the mechanical strength and flexibility compared to single-sided paper boards.
• Cost-effective universal design enables rapid prototyping without the delays and expense of custom PCB fabrication.

Conclusion

The 2x8cm Double Side Copper Prototype Universal Zero PCB Board offers a versatile and robust platform for turning temporary circuit designs into durable electronic assemblies. With its heat-resistant FR-4 construction, standardized 2.54mm hole grid, and plated-through double copper pads, it delivers reliable connectivity for students, makers, and professional developers in Bangladesh working on science project ideas, robotics applications, and custom embedded systems.
