USB 3.1 Type-C 5Pin Male Solder Connector 20W PCB Adapter

USB 3.1 Type-C 20W 5Pin Male Solder PCB Connector for DIY Projects

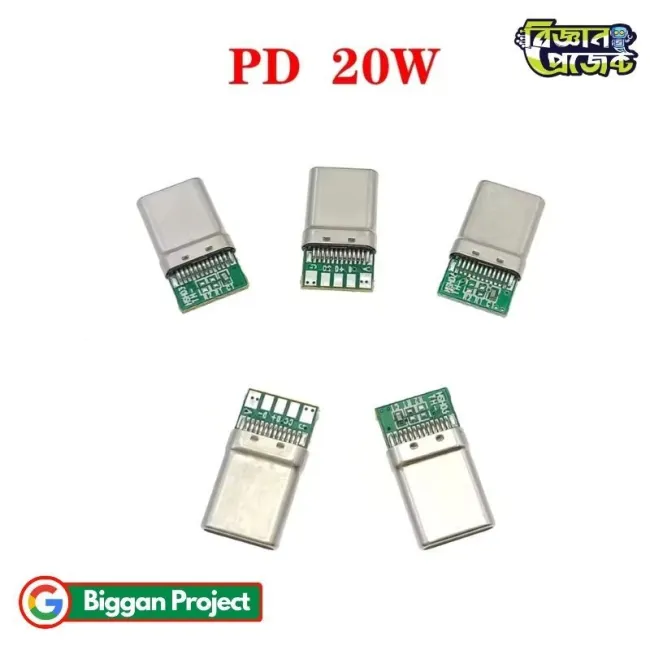

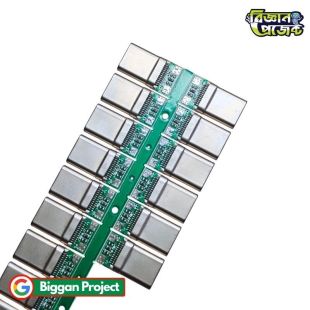

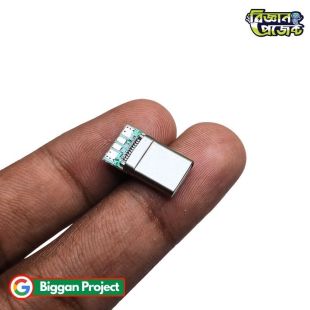

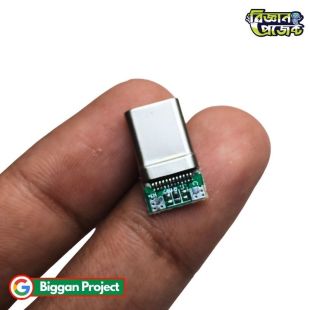

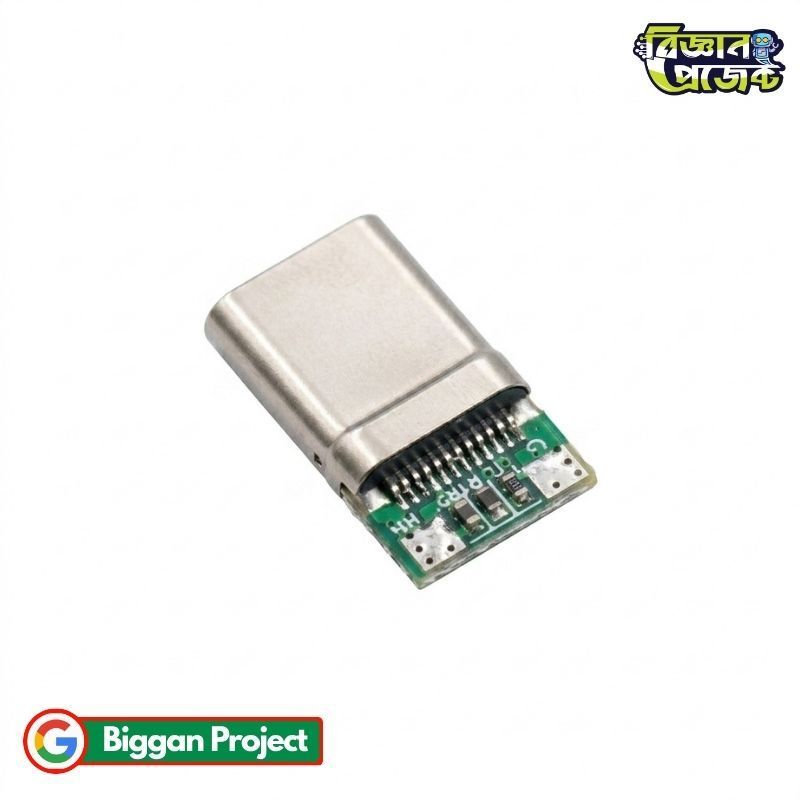

The USB 3.1 Type-C 5Pin Male PCB Connector is a compact and reliable connector designed for PCB mounting, cable soldering, and embedded electronic applications. It supports up to 20W power delivery, making it suitable for low to medium-power USB Type-C projects that require stable power and basic data connectivity.

This connector is widely used in DIY electronics, custom charging solutions, development boards, repair work, robotics, and embedded systems. Its solder-friendly design allows users to securely attach wires or integrate the connector directly onto a PCB, creating a durable and long-lasting connection. Whether you are building a prototype, repairing a damaged USB Type-C port, or developing a custom electronic device, this connector provides a practical solution.

It is an excellent choice for engineers, students, makers, and hobbyists working on Biggan Project, robotics, IoT devices, Arduino projects, and educational electronics across Bangladesh. Many electronics enthusiasts in BD prefer this connector because of its compact size, easy installation, and compatibility with modern USB Type-C devices. It is also suitable for electronics laboratories, repair centers, universities, and technical institutes involved in Biggan Project development.

Product Specifications

Features

• USB 3.1 Type-C male connector with 5Pin configuration.
• Supports up to 20W power transmission.
• Designed for direct PCB mounting.
• Easy wire and cable soldering.
• Compact design for space-saving installations.
• Reliable electrical connection for power and data.
• Suitable for prototype development and production.
• Durable construction for long-term use.
• Compatible with modern USB Type-C systems.
• Ideal for educational and professional electronics projects.

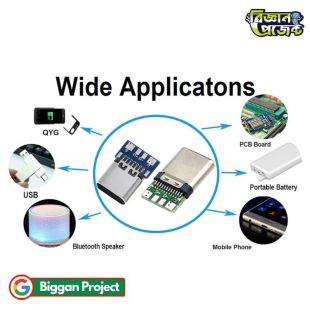

Applications / Use Cases

• DIY electronics projects.
• Arduino and microcontroller development.
• ESP32 and IoT device integration.
• USB Type-C charging circuit design.
• PCB manufacturing and assembly.
• Power supply modules.
• Electronics repair and maintenance.
• Robotics projects.
• Educational laboratory experiments.
• Biggan Project demonstrations in Bangladesh.

User Guide / How to Use

• Verify the connector pin orientation before soldering.
• Mount the connector securely on the PCB.
• Solder wires carefully to the designated pins.
• Inspect solder joints for shorts or weak connections.
• Test continuity before applying power.
• Connect only compatible USB Type-C devices.
• Avoid exceeding the rated power capability.
• Use appropriate soldering tools for best results.

Frequently Asked Questions (FAQs)

• Q: Is this a USB Type-C male connector?
  A: Yes, it is a USB 3.1 Type-C 5Pin male connector.
• Q: Does it support 20W charging?
  A: Yes, it supports power transmission up to 20W.
• Q: Can it be soldered directly to wires?
  A: Yes, it is designed for direct wire and cable soldering.
• Q: Is it suitable for PCB mounting?
  A: Yes, it is specifically designed for PCB integration.
• Q: Can it be used for DIY electronics?
  A: Yes, it is ideal for DIY electronics, robotics, and Biggan Project applications.

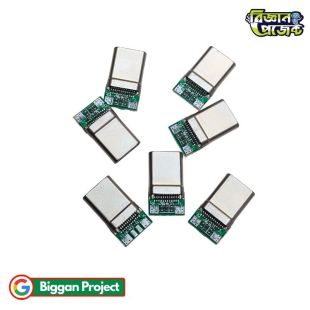

• Q: How many connectors are included?
  A: The package contains 5 connectors.

Challenges and Considerations

• Correct pin identification is essential before soldering.
• Use proper soldering techniques to prevent damage.
• Avoid mechanical stress on the solder joints.
• Ensure PCB layout matches the connector footprint.
• Keep the connector free from dust and contaminants.
• Use quality cables for reliable performance.

Compatibility

• USB Type-C compatible devices.
• Custom PCB designs.
• Embedded electronic systems.
• Arduino development boards.
• ESP32 and ESP8266 projects.
• Power supply circuits.
• Charging modules.
• DIY electronic prototypes.

Future Enhancement Options

• Add protective enclosure for finished products.
• Integrate with custom USB Type-C charging boards.
• Use with advanced PCB designs.
• Combine with power management circuits.
• Integrate into commercial embedded products.
• Upgrade to complete USB Type-C interface modules if required.

Benefits

• Compact and lightweight design.
• Easy PCB integration.
• Reliable power transmission.
• Suitable for repair and prototyping.
• Supports modern USB Type-C connectivity.
• Ideal for students, makers, and professionals.
• Excellent for Biggan Project and educational electronics.
• Useful for electronics enthusiasts across Bangladesh and BD.

Conclusion

The USB 3.1 Type-C 5Pin Male PCB Connector is a dependable solution for electronics development, repair, and custom PCB applications. With support for up to 20W power delivery, straightforward soldering, and broad compatibility, it is an excellent choice for DIY makers, engineers, students, and professionals working on electronics projects, robotics, and Biggan Project applications throughout Bangladesh.
