5.5x2.1mm DC Female Power Cable Connector

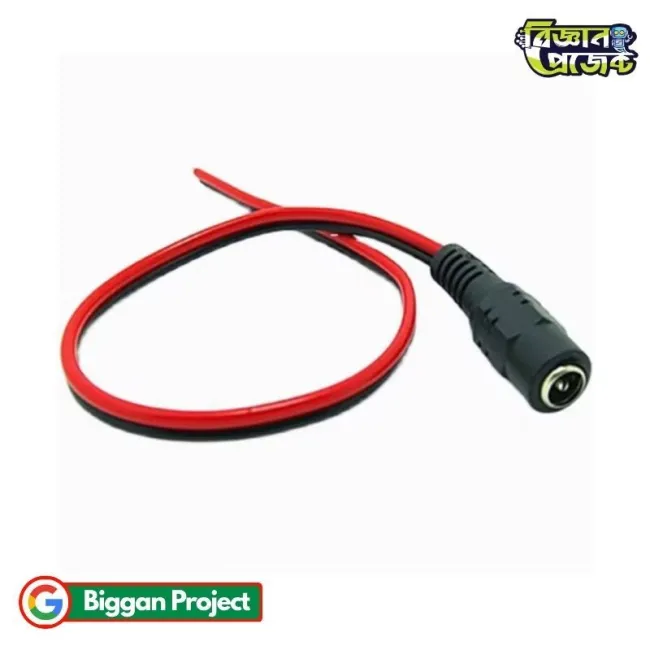

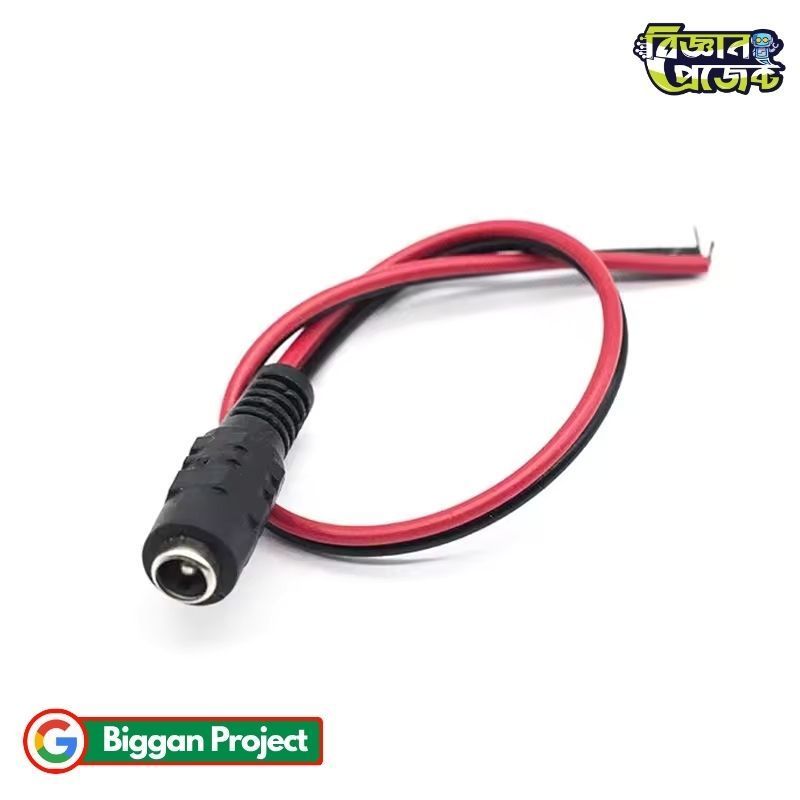

5.5x2.1mm DC Female Power Barrel Jack Connector Cable Wire

The 5.5x2.1mm DC female power barrel jack connector cable wire is a fundamental component designed for seamless DC power supply integration across a wide variety of electronics. Featuring a standard 5.5mm outer diameter and 2.1mm inner pin female barrel jack connected to pre-tinned copper wire pigtails, this cable simplifies wiring for CCTV surveillance systems, LED strip lighting, routers, and DIY electronics projects. Unlike standard fixed-voltage connectors, this cable operates across a flexible DC voltage range from 1V up to 38V DC and handles up to 5A current, making it adaptable for low and medium-power applications. Sourced by Biggan Project (বিজ্ঞান প্রজেক্ট) for students, makers, and technicians in Bangladesh, this connector wire provides a solder-free, reliable power input solution for custom hardware setups in BD.

Product Specifications

Key Features

• Standard 5.5x2.1mm female barrel socket compatible with universal DC power adapters.
• High-conductivity pure copper core ensuring minimal power drop and steady current delivery.
• Pre-stripped and tinned wire ends for quick soldering, terminal block connection, or wire twisting.
• Flexible, heat-resistant PVC insulation casing to prevent electrical short circuits and wear.
• Versatile DC operating range (1V to 38V) suitable for multiple voltage standards.
• Color-coded red and black leads for instant polarity identification during installation.

Applications and Use Cases

• Connecting power distribution cables to CCTV security cameras and DVR units.
• Wiring 5V, 12V, or 24V LED strip lighting to external DC power adapter bricks.
• Powering Arduino, ESP32, and Raspberry Pi DIY robotics and science projects from wall adapters.
• Replacing damaged or broken female power ports on modems, routers, and desktop electronics.
• Creating custom power breakout boards and breadboard power interface cables.

User Guide / How to Use

• Identify the red wire as Positive (+) and the black wire as Negative/Ground (-).
• Connect the bare wire ends securely to your circuit board, screw terminals, or splice connector.
• Apply heat-shrink tubing or electrical tape over bare joints to ensure proper insulation.
• Plug a matching 5.5x2.1mm male DC power adapter plug into the female barrel jack.
• Ensure your input power supply voltage matches your load device specifications before turning on the power.

Frequently Asked Questions (FAQs)

• Q: Is this connector cable restricted to 12V power supplies?
  A: No, it works across a wide DC voltage spectrum from 1V to 38V DC, provided the current draw does not exceed 5A.
• Q: What is the polarity of this female DC jack?
  A: It uses standard center-positive wiring, where the red lead corresponds to the inner center pin and the black lead to the outer sleeve.
• Q: Can I connect this cable to a screw terminal block without soldering?
  A: Yes, the pre-tinned wire ends can be inserted directly into screw terminals or push-in wire connectors easily.

Challenges and Considerations

• Double-check polarity before turning on power to protect sensitive microcontroller boards from reverse polarity damage.
• Do not exceed the maximum ratings of 5A current or 60W power to prevent wire overheating.
• Ensure your power supply plug has an exact 2.1mm inner pin diameter rather than a 2.5mm pin to maintain a tight connection.

Device Compatibility

• Compatible with standard 5.5mm x 2.1mm male DC barrel power supply adapters.
• Compatible with 5V, 9V, 12V, 24V, and 36V DC power adapter supplies.
• Compatible with screw terminal blocks, breadboard power modules, and custom PCB solder pads.

Future Enhancement Options

• Solder an inline rocker switch along the cable line for quick ON/OFF power control without unplugging.
• Mount the female jack onto a custom 3D-printed project enclosure using panel grommets or strain relief boots.
• Add an inline fuse holder on the positive lead for added overcurrent safety in prototype circuits.

Benefits

• Saves time by providing a pre-wired female connector ready for quick circuit attachment.
• Durable copper construction ensures reliable power delivery without signal or voltage drops.
• Provides a clean, professional DC power input interface for custom hardware projects.
• Cost-effective and essential hardware for electronic repairs and DIY engineering builds across BD.

Conclusion

The 5.5x2.1mm DC female power barrel jack connector cable is a reliable and versatile wiring solution for anyone working with DC-powered electronics. Whether you are setting up CCTV security cameras, assembling custom LED lighting, or building robotics projects at Biggan Project (বিজ্ঞান প্রজেক্ট), this pigtail connector wire offers durable, safe, and efficient power connectivity across Bangladesh.
