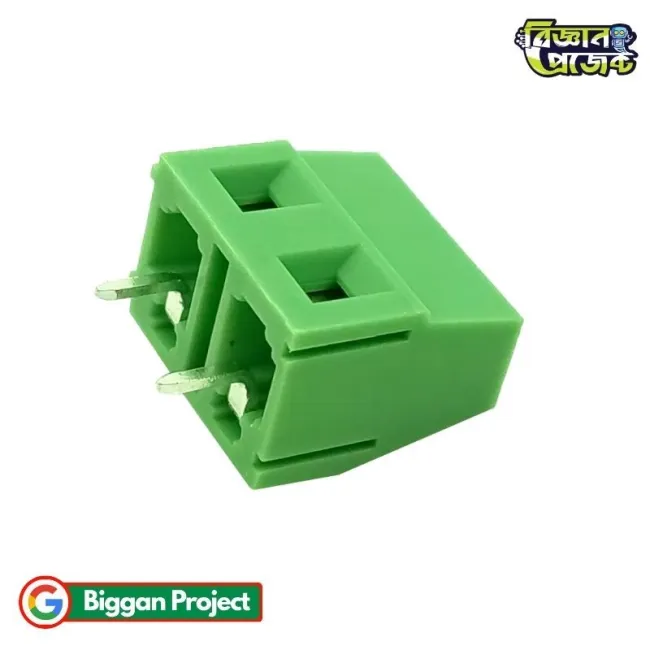

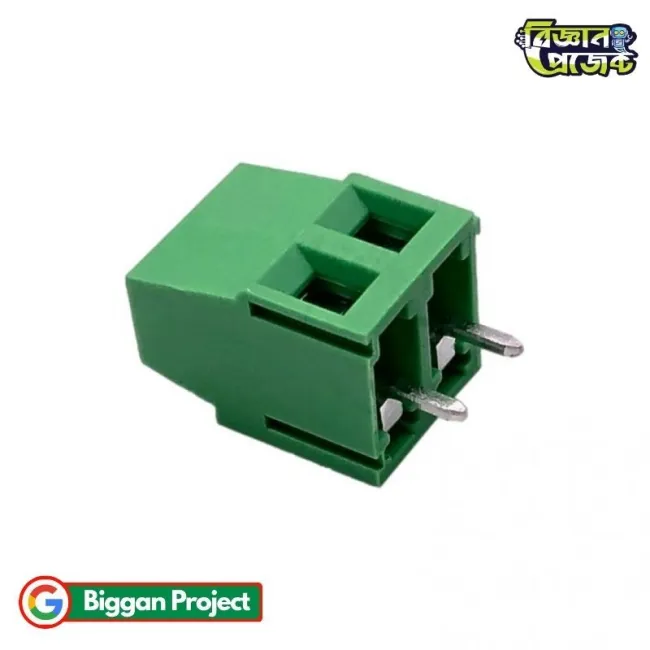

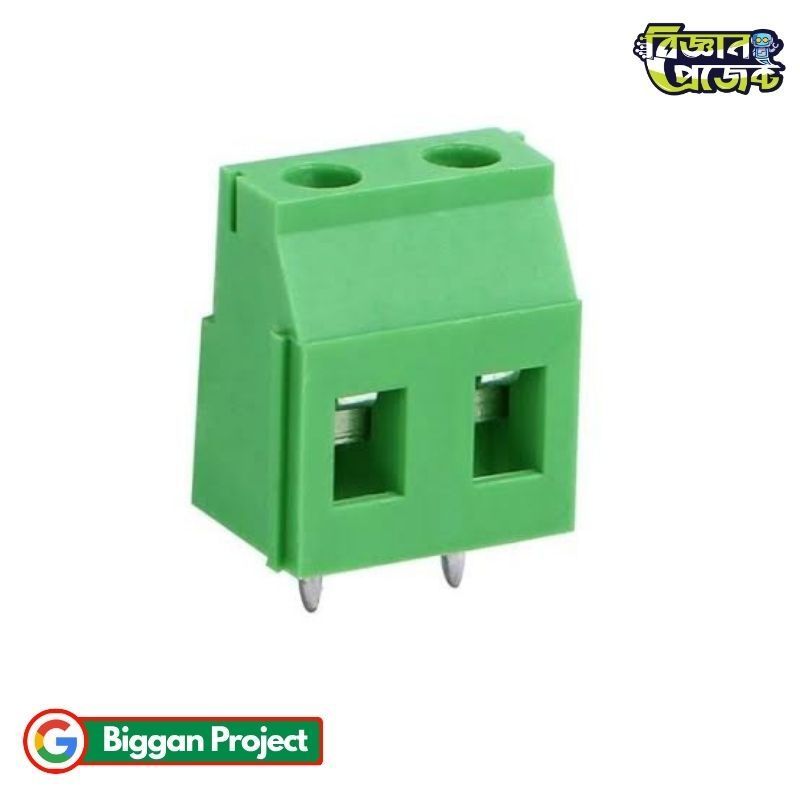

2 Pin 5.08mm Pitch Screw PCB Terminal Block

2 Pin 5.08mm Pitch Straight PCB Mount Screw Terminal Connector

The 2 Pin 5.08mm Pitch Straight PCB Mount Screw Terminal Connector is an essential component designed for creating secure, removable wire-to-board connections in modern electronics. With its industry-standard 5.08mm pin spacing, this through-hole connector mounts directly onto printed circuit boards, allowing makers, students, and engineers across BD to wire power supplies, sensors, and actuators without soldering wires permanently. The built-in screw clamping mechanism secures stranded or solid copper wires tightly against nickel-plated brass contacts, ensuring high conductivity and minimal signal resistance. Housed in durable, flame-retardant PBT plastic, this connector provides solid insulation and mechanical stability for custom circuits built in robotics labs and science projects throughout Bangladesh. Whether you are assembling a custom DIY electronics kit or sourcing reliable components from Biggan Project for industrial prototyping, this PCB terminal block ensures efficient power distribution and easy maintenance.

Product Specifications

Key Features

• Standard 5.08mm pitch spacing compatible with common grid prototype boards and custom PCBs.
• Robust screw clamp system for easy wire insertion, adjustments, and re-usability.
• Flame-retardant PBT body meeting UL94V-0 standards for maximum heat resistance and safety.
• Tin-plated brass pins for seamless soldering and strong corrosion protection.
• Nickel-plated brass internal contacts for minimal electrical contact resistance.
• Compact through-hole design suitable for space-constrained electronic layouts.

Applications & Use Cases

• Power input and output terminals on custom Arduino and microcontroller development boards.
• Connecting motor drivers, relays, and heavy-duty actuators in robotics projects across Bangladesh.
• Wiring terminal hubs for sensor modules and power supply distribution units.
• Educational electronics kits and STEM science projects developed at Biggan Project.
• Industrial control panels, automated power cutoff circuits, and IoT hardware modules.

User Guide & Assembly Steps

• Insert the terminal block pins into the designated through-holes on your printed circuit board.
• Solder both pins firmly from the underside of the PCB using standard leaded or lead-free solder.
• Strip approximately 5mm to 7mm of insulation from your electrical wire (24 to 16 AWG).
• Loosen the top screw using a small flat-head or Phillips screwdriver.
• Insert the bare wire end into the side entry slot and tighten the screw until the wire is securely clamped.

Frequently Asked Questions (FAQs)

• Q: What is the difference between 5.0mm and 5.08mm pitch terminal blocks?
  A: A 5.08mm pitch corresponds exactly to 0.2 inches, making it compatible with standard imperial grid layouts, whereas 5.0mm uses metric spacing. Always verify your PCB pad layout before soldering.
• Q: Can this terminal block carry household mains voltage safely?
  A: Yes, it is rated for up to 220V AC and 10A current under standard operating temperature conditions.
• Q: What size wire can be used with this connector?
  A: It supports wire gauges ranging from 24 AWG (thinner signal wire) up to 16 AWG (thicker power wire).
• Q: Is soldering required to connect the wires to this block?
  A: No, wires are clamped using the integrated top screws. Only the bottom pins require soldering to the circuit board.

Challenges & Considerations

• Avoid over-tightening the clamping screws, as excessive torque can strip the internal threads or damage thin copper wires.
• Ensure wires are stripped to the proper length so that no exposed conductor protrudes outside the plastic housing.
• When routing high currents (near 10A), ensure the PCB trace width matches the current demands to prevent circuit overheating.

Board & Wire Compatibility

• Compatible with double-sided and single-sided PCBs designed with 5.08mm (0.2 inch) pad spacing.
• Fits standard solid copper wires, stranded core cables, and pre-crimped bootlace ferrules.
• Integrates seamlessly with motor driver boards, relay units, and power regulators used in science projects in BD.

Future Enhancement Options

• Adding bootlace ferrules to stranded wire ends to prevent fraying and ensure optimum contact area.

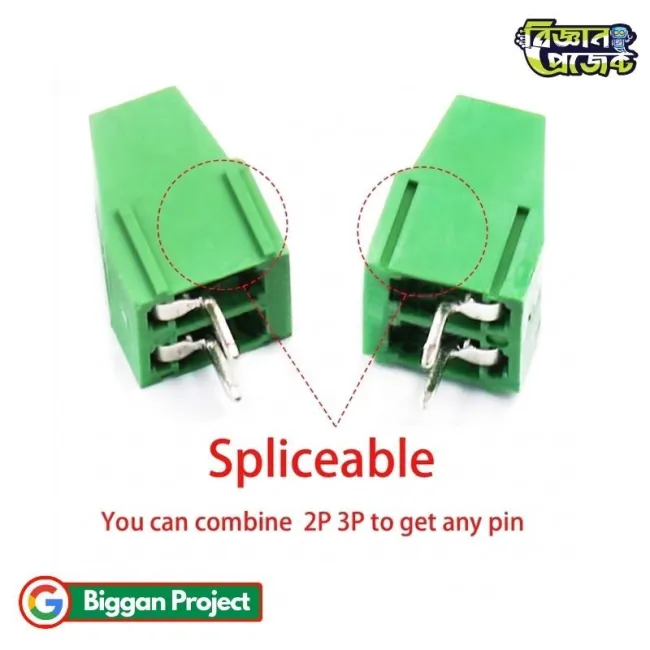

• Using interlocking terminal block modules to expand connection channels (e.g., combining 2-pin blocks into 4-pin or 6-pin rails).
• Upgrading to pluggable terminal block designs where frequent connection and disconnection are required.

Benefits

• Eliminates the need to solder external power wires directly to circuit boards, simplifying repairs and upgrades.
• Provides high electrical safety through heat-resistant, fire-retardant housing materials.
• Enables fast field maintenance and rapid swapping of power sources or load devices.
• Delivers clean, organized, and professional wire management for all DIY electronics.

Conclusion

The 2 Pin 5.08mm Pitch PCB Screw Terminal Block Connector is a reliable and essential hardware solution for modern electronic design. Combining sturdy metal construction with flame-retardant insulation, it guarantees secure power and signal transmission across various DIY, educational, and industrial applications. Designed for easy installation and long-term durability, it remains a go-to choice for hobbyists and engineers assembling high-quality circuit boards in Bangladesh.
