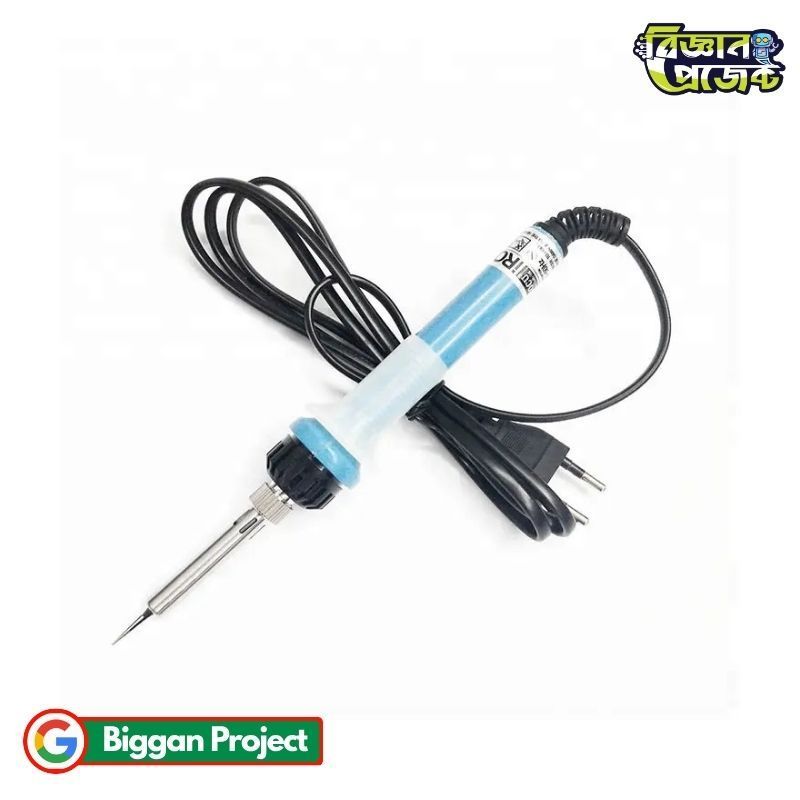

KOOCU V501 Constant Temperature Soldering Iron

KOOCU V501 Temperature Controlled Micro Soldering Station Iron

The KOOCU V501 Constant Temperature Electric Soldering Iron is a precision-engineered micro-soldering instrument designed for dense electronic circuit reworks, PCB prototyping, and delicate component assembly across electronics labs in BD. Powered by a dual-line industrial ceramic heating core combined with integrated Positive Temperature Coefficient (PTC) materials, this tool achieves rapid thermal generation and continuous heat retention. Engineers working on a Biggan Project in Bangladesh can easily dial in operating temperatures between 200°C and 500°C via the onboard rotational calibration wheel, eliminating thermal overshoot and preventing heat damage on multi-layered board assemblies.

Built with electrostatic discharge safety as a core priority, the KOOCU V501 features a continuous 3-core grounded power cable layout with tip-to-ground resistance under 2Ω and a leakage potential below 2mV. This low-impedance path redirects stray static current directly to the earth ground, safeguarding sensitive CMOS ICs, microcontrollers, and logic arrays during fine-pitch soldering tasks. The lightweight nylon handle with its soft rubber structural dampening pad offers comfortable, slip-free control during extended assembly sessions, while an integrated high-brightness blue LED light gives real-time visual confirmation when the ceramic core reaches thermal equilibrium.

Specifications

Features

• Integrated rotational dial allows step-less temperature selection from 200°C up to 500°C.
• Advanced ceramic element with internal PTC material delivers fast heat recovery and steady thermal delivery.
• Continuous three-core grounded configuration safely redirects static charges away from sensitive integrated circuits.
• Pre-installed 3.55mm nickel-copper plated tip offers high thermal conductivity and resists pitting corrosion.
• Ergonomic, lightweight nylon handle with a soft rubber grip reduces operator hand fatigue.
• High-visibility blue status LED turns solid upon achieving temperature stability.

Applications / Use Cases

• Precision surface mount technology (SMT) assembly and fine-pitch IC pin repairs.
• Soldering multi-rotor drone wiring harnesses, battery leads, and high-power DC connectors.
• University engineering labs, vocational training institutes, and DIY electronics benches across BD.
• Educational science experiments and custom electronics hardware development for any school or college বিজ্ঞান প্রজেক্ট.
• General PCB repair, sensor module pin soldering, and prototyping development boards.

User Guide / How to Use

• Inspect the 3.55mm tip to confirm it is seated tightly before plugging the iron into a grounded 220V AC wall outlet.
• Rotate the temperature dial on the handle to set your desired operating heat between 200°C and 500°C based on your solder alloy type.
• Wait for the blue LED indicator light to stabilize, indicating that the ceramic core has reached the set thermal equilibrium.
• Clean and tin the nickel-copper tip with a small amount of fresh solder wire prior to making joint connections.
• Apply the hot tip simultaneously to the component lead and PCB pad, feed solder wire into the joint, and remove the tip smoothly once melted.
• Unplug the power line and allow the iron barrel to cool down fully on an insulated metallic stand after completing your task.

Frequently Asked Questions (FAQs)

• Q: How do I know when the KOOCU V501 iron has reached the target temperature?
  A: The integrated high-brightness blue status LED illuminates steadily once the ceramic element reaches thermal equilibrium at the selected temperature dial setting.
• Q: Is the KOOCU V501 safe for soldering sensitive CMOS integrated circuits?
  A: Yes, its continuous 3-core grounded layout keeps tip-to-ground resistance below 2Ω and leakage potential under 2mV, making it ESD safe for delicate ICs.
• Q: Can this soldering iron melt lead-free solder alloys effectively?
  A: Yes, the ceramic PTC core rapidly reaches up to 500°C, providing the thermal saturation required for lead-free solder wires.
• Q: Why should I avoid knocking the iron tip against metal cleaning sponges?
  A: The internal heating element relies on dense, brittle ceramic layers that can crack if subjected to strong mechanical impacts.

Challenges and Considerations

• Internal ceramic heating rods are sensitive to strong mechanical impacts; avoid knocking the hot barrel against hard surfaces.
• Operating the iron at its maximum limit of 500°C near flammable workbench materials presents immediate burn and fire risks.
• Requires a properly wired 3-pin earthed terminal block to enable the full electrostatic discharge (ESD) protection system.

Compatibility

• Compatible with standard 220V AC 50Hz mains power outlets across BD workshops and laboratories.
• Works seamlessly with both standard leaded (60/40) solder wire and high-temperature lead-free solder alloys.
• Fits standard 3.55mm barrel replacement soldering tips and bits.

Future Enhancement Options

• Upgrading to specialized conical, chisel, or bevel solder tip geometries for intricate fine-pitch SMD work.
• Pairing with a heavy-duty cast-iron soldering stand equipped with a brass wire tip cleaner and cleaning sponge.
• Adding an external ESD grounding wrist strap and anti-static workbench mat for full static protection.

Benefits

• Protects sensitive components from thermal damage by providing continuous, dial-controlled heat regulation.
• Eliminates stray static discharge hazards through low-impedance tip grounding to prevent logic board failure.
• Heats up significantly faster than traditional metal-element irons thanks to internal ceramic PTC technology.
• Lightweight ergonomic grip provides steady control during complex micro-soldering tasks.

The KOOCU V501 Constant Temperature Electric Soldering Iron combines precision thermoregulation with heavy-duty ESD protection in a lightweight, user-friendly design. Perfect for engineering students, hardware developers, and electronics technicians in Bangladesh, it offers consistent thermal output and long-term durability for all custom circuitry and prototyping work.
