3x7cm Double Side Veroboard PCB 1.5mm Pitch

Double Side FR4 Veroboard 3x7cm 1.5mm Prototype PCB Board

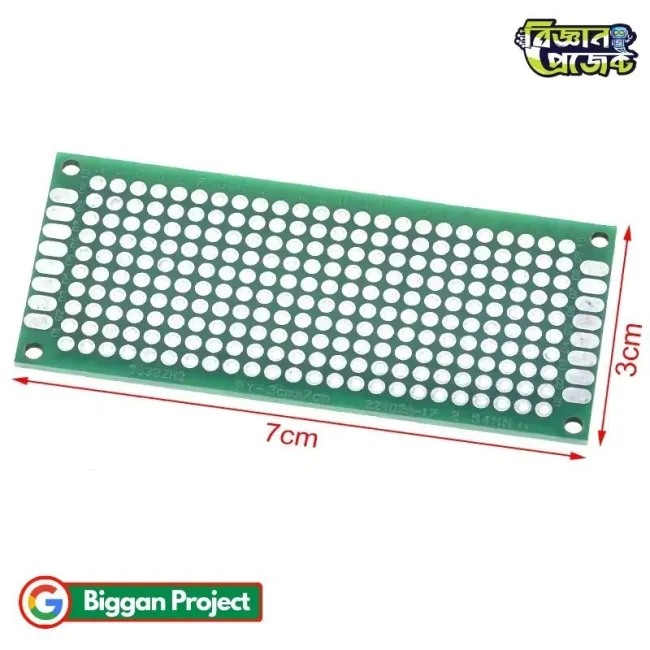

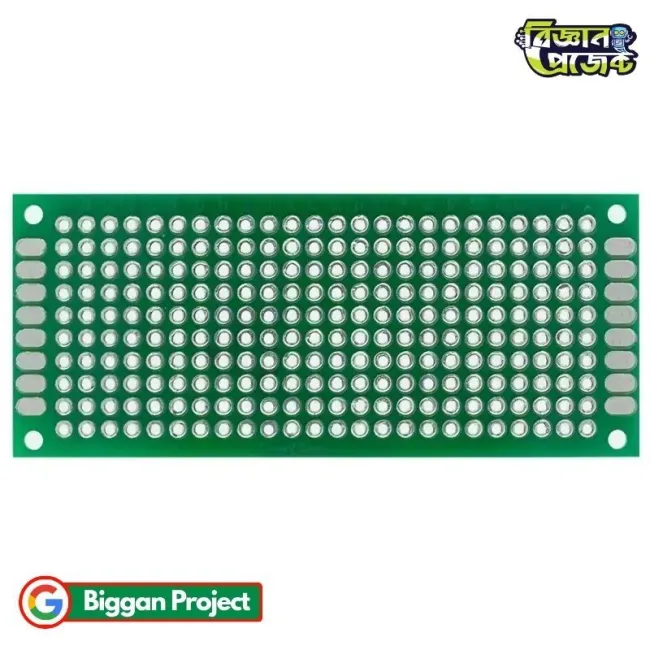

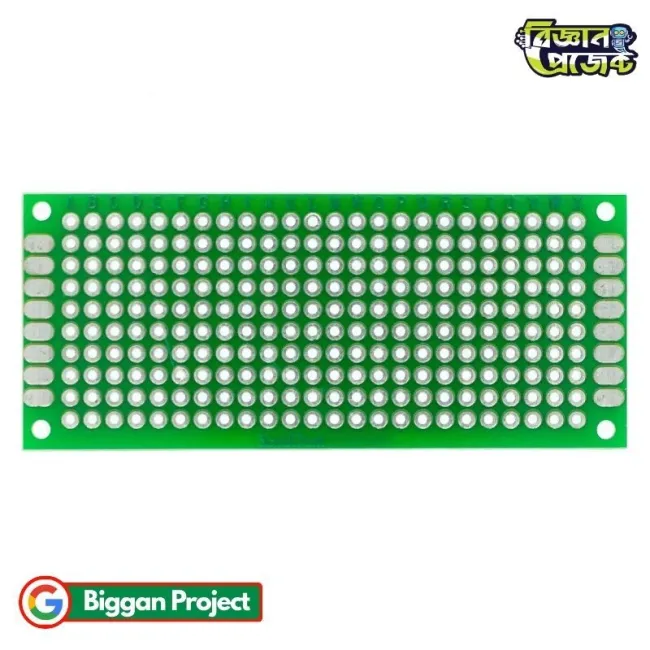

The double side FR4 veroboard (3x7cm) is a compact and highly reliable prototype PCB board designed for electronics development, testing, and DIY circuit building. Built with durable FR4 glass fiber material, this board offers excellent mechanical strength and heat resistance, making it suitable for long-term usage in various electronics projects. At Biggan Project, we provide quality prototyping solutions for students, hobbyists, and engineers across Bangladesh who need dependable hardware for Arduino, sensor modules, and custom circuit design.

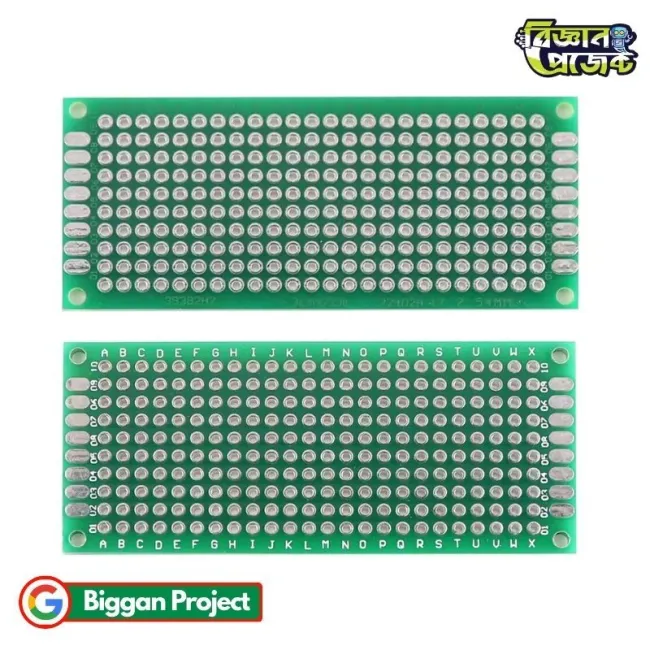

This board features a standard 2.54mm (0.1") grid spacing, allowing seamless compatibility with most electronic components such as resistors, ICs, capacitors, and header pins. The plated through holes ensure strong solder joints and reliable electrical connections on both sides of the board. Since both sides are identical, users can design flexible layouts, making it ideal for DIY electronics and rapid prototyping in BD.

Product Specifications

Features

• Double-sided design for flexible circuit layout
• Durable FR4 glass fiber construction
• Standard 2.54mm pitch compatible with common components
• Plated through holes for strong and reliable soldering
• Compact 3x7cm size ideal for small to medium projects
• Smooth and clean hole finishing for easy component insertion
• Suitable for repeated prototyping and testing

Applications / Use Cases

• Arduino and microcontroller prototyping
• DIY electronics and robotics projects
• Sensor module testing and integration
• Educational science projects for students in Bangladesh
• Custom circuit development and experimentation
• Small embedded system design

User Guide / How to Use

• Place electronic components according to your circuit design
• Insert leads into the plated holes following the grid layout
• Solder the components securely on one or both sides
• Use jumper wires or solder bridges to create connections
• Trim excess leads after soldering for a clean finish
• Test the circuit using a power source before final use

Frequently Asked Questions (FAQs)

• Q: Is this board suitable for beginners?
  A: Yes, it is ideal for beginners and students learning electronics.
• Q: Can I use it with Arduino projects?
  A: Yes, the standard 2.54mm grid makes it fully compatible with Arduino components.
• Q: Are both sides usable for soldering?
  A: Yes, both sides are identical and can be used for connections.
• Q: Does it support IC mounting?
  A: Yes, DIP ICs fit perfectly due to the standard pitch.

Challenges and Considerations

• No pre-defined circuit traces, so manual wiring is required
• Not suitable for very high-frequency or complex PCB designs
• Requires basic soldering skills for best results
• Care must be taken to avoid short circuits

Compatibility

• Arduino UNO, Nano, and other microcontrollers
• Standard DIP ICs and electronic components
• Sensors, modules, and header pins
• Resistors, capacitors, diodes, and transistors

Future Enhancement Options

• Add pin headers for modular connectivity
• Integrate power rails for organized layouts
• Use connectors for removable modules
• Combine multiple boards for larger circuits

Benefits

• Cost-effective solution for prototyping in BD market
• Reusable and durable board material
• Easy to modify and experiment with circuits
• Widely used in education and hobby electronics
• Supports fast development and testing

Conclusion

The double side 3x7cm FR4 veroboard is a practical and essential tool for anyone working with electronics in Bangladesh. Whether you are a student, hobbyist, or professional, this board from Biggan Project offers reliability, flexibility, and ease of use for building and testing circuits efficiently.
