On Off Big Round Red SPST Push Switch Latching

On Off Red Round Push Button Switch Big Size Latching

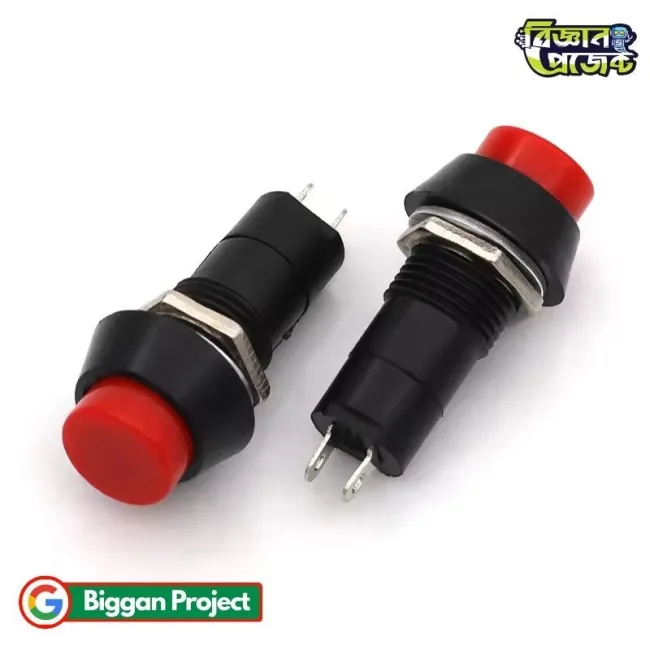

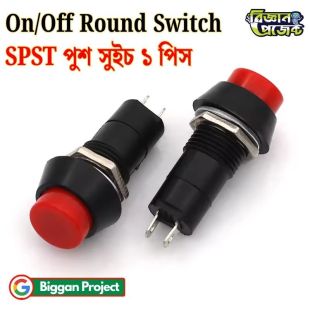

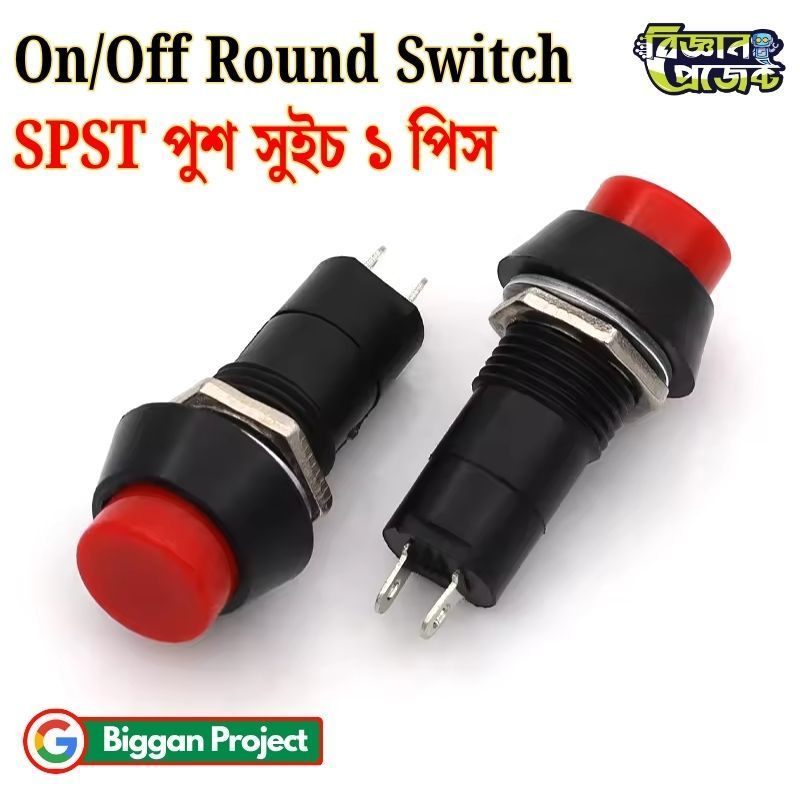

The latching SPST push button switch is a rugged, reliable component designed for modern electronics control and system automation. Featuring a prominent red round button, this large-sized switch operates on a maintained contact mechanism, meaning it toggles between locked ON and locked OFF states with consecutive presses. Unlike momentary switches that require constant pressure, this latching switch remains in its designated position until manually pressed again. Equipped with heavy-duty screw terminals and a secure lock-nut panel mount configuration, it is highly sought after across Bangladesh for building durable control panels, automation machinery, and custom electronics setups. Whether you are an industrial builder looking for robust control elements or an engineering student sourcing high-quality modules from the Biggan Project catalog, this switch provides the stability and operational longevity required for demanding circuits across BD.

Features

• SPST Configuration: Standard Single Pole Single Throw contact system provides clean, straightforward control over a single circuit line.
• Latching Action: Offers convenient press-to-lock ON and press-to-release OFF functionality, keeping current flowing without continuous physical force.
• Threaded Panel Mount: Built-in outer threads and an included lock-nut ensure a secure, flush fit onto enclosures and distribution box panels.
• Screw Clamp Terminals: Simplifies wiring setups by allowing direct wire attachment without requiring dedicated soldering tools.
• High Visibility Design: The bold red round cap allows operators to easily locate and operate the switch in complex control environments.

Applications / Use Cases

• Robotics and Autonomous Systems: Serves as a master power toggle button for mobile robots, robotic arms, and stationary automation rigs.
• Control Panels: Integrated into electrical distributions boards, industrial machinery consoles, and desktop power hubs.
• DIY Science and Electronics Projects: Popular among students and hobbyists building smart home models, emergency alarms, and customized workstation equipment.
• Power Supply Hubs: Acts as the main primary mains or secondary rail isolated switch for benchtop laboratory power supplies.
• Automotive and Marine Modding: Installed in vehicle dashboards or marine switch boards for auxiliary lighting and accessory control.

User Guide / How to Use

• Panel Preparation: Drill or punch a clean hole matching the 12.3mm mounting diameter on your enclosure panel or project box.
• Mounting the Assembly: Unscrew the lock-nut, insert the threaded switch body from the front side of the panel, and tighten the lock-nut from behind until secure.
• Circuit Connection: Strip the insulation off your connection wires, wrap the exposed copper cores around the screw terminals, and tighten the integrated clamps firmly using a small screwdriver.
• Testing Behavior: Press the red button down until it clicks and locks into place to complete the circuit path; press it a second time to unlock the contact and break the circuit connection.

Frequently Asked Questions (FAQs)

• Q: Can this switch be used for DC voltages instead of AC?
  A: Yes, though rated for AC 250V 3A, it can safely handle low-voltage DC applications common in microcontrollers and robotics projects, typically up to DC 30V at similar or slightly lower currents.
• Q: Does this switch stay down when pressed or return to its original position?
  A: It has a latching mechanism, so it clicks and mechanically locks into a distinct state with each press rather than springing instantly back up like a momentary switch.
• Q: Do I need a soldering iron to install this switch?
  A: No, soldering is not mandatory because it features robust screw terminals that allow wires to be clamped down directly.
• Q: Is this push button waterproof?
  A: This model is built from standard electrical plastic and is not rated waterproof; it should be used in dry enclosures or indoor environments.

Challenges and Considerations

• Current Constraints: Exceeding the rated 3A load limit can cause internal arcing, premature wear, or complete fusion of the electrical contacts.
• Panel Thickness Limits: The total length of the threaded barrel dictates the maximum thickness of the panel sheet it can be safely mounted onto.
• Terminal Over-tightening: Excessive force when tightening the terminal screws can strip the plastic housing or damage the internal metal thread columns.

Compatibility

• Enclosures: Fully compatible with standard plastic project boxes, aluminum enclosures, and 3D-printed custom cases with 12.5mm hole clearance.
• Circuit Logic: Integrates smoothly with mains AC power paths, relays, transistors, Arduino inputs, and Raspberry Pi GPIO configuration pins.
• Wiring: Accommodates solid core and stranded hook-up wires ranging from 22 AWG up to 16 AWG thick.

Future Enhancement Options

• Status Indicators: An external LED indicator lamp can be wired in parallel to visually display whether the circuit is active.
• Weatherproofing Caps: Fitting a flexible rubber boot over the button assembly can shield the unit from moisture and fine dust intrusion.
• Relay Integration: Interfacing the switch with high-capacity electromagnetic or solid-state relays allows it to indirectly control loads far exceeding 3A.

Benefits

• No-Solder Convenience: Speeds up prototyping and final assembly times thanks to user-friendly screw terminals.
• Stable Mechanical Control: Eliminates the need for complex microcontrollers or latching logic circuits to keep a device turned on.
• Durable Infrastructure: High-grade plastic casing withstands heavy repeated pressing cycles without loose components or structural failure.
• Local Project Availability: Readily available for immediate shipping inside Bangladesh, minimizing wait times for school science exhibitions and commercial rollouts.

Conclusion

The latching SPST red round push button switch offers an exceptional blend of ease of installation, tactile durability, and unambiguous functional control. By eliminating the necessity for soldering and providing a highly visible, mechanically sound locking mechanism, it stands out as an indispensable element for reliable power regulation. From standard control dashboards to complex automation systems built by students and innovators across Bangladesh, this large push switch is a cornerstone asset for clean electrical execution.
