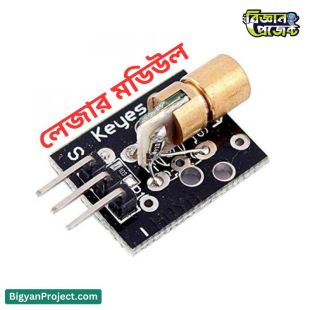

KY-008 5V Red Laser Dot Diode Module for Arduino DIY Projects

KY-008 5V 650nm Red Dot Laser Diode Module for Arduino and DIY Electronics

Unlock a world of interactive and innovative projects with the KY-008 Red Dot Laser Module, now available at Bigyan Project. This compact and highly efficient module is an essential component for any electronics enthusiast, student, or hobbyist looking to add a visual targeting, signaling, or detection system to their creations. The KY-008 emits a bright, clear 650nm red laser dot, making it perfect for a wide range of applications. Designed for simplicity, it operates on a standard 5V supply, making it directly compatible with popular microcontrollers like Arduino without the need for complex circuitry. Its durable copper head ensures longevity and reliable performance, while the built-in mounting hole simplifies installation into your project housing. Whether you're building a security system or an educational tool, this laser module provides the performance you need.

Product Specifications

Features

• Plug-and-Play Operation: Designed to work directly with a 5V power source from microcontrollers like Arduino.
• Bright & Focused Beam: The 650nm wavelength produces a highly visible red dot suitable for indoor applications.
• Low Power Consumption: With an operating current of less than 40mA, it's ideal for battery-powered projects.
• Easy Installation: Features a fixed bolt hole for secure and stable mounting on any surface.
• Compact Design: Its small footprint allows for easy integration into projects with limited space.
• Durable Build: The copper head construction aids in heat dissipation and ensures a long operational life.

Applications / Use Cases

• DIY Laser Security Systems and Tripwires
• Object Detection and Counting Systems (with a receiver)
• Robotics for Targeting and Alignment
• Controllable Laser Pointers for Presentations
• Educational Demonstrations on Optics and Light
• Interactive Art Installations
• Theft Detection Alarms for personal projects
• Spirit Levels and Measurement Tools

User Guide / How to Use

Connecting the KY-008 module to your Arduino or microcontroller is incredibly simple. The module features three pins:

• S (Signal): Connect this to any digital I/O pin on your Arduino.
• VCC (Middle Pin): Connect this to the 5V pin on your Arduino.
• GND (-): Connect this to the GND (Ground) pin on your Arduino.

To activate the laser, simply set the connected digital pin to HIGH in your code (e.g., digitalWrite(laserPin, HIGH);). To turn it off, set the pin to LOW. Safety Warning: Although this is a low-power 5mW laser, you should NEVER look directly into the laser beam or point it at anyone's eyes, as it can cause serious damage.

Frequently Asked Questions (FAQs)

• Q: Do I need to use a current-limiting resistor with this module?
  A: No, the module has on-board components to regulate current. You can connect it directly to a 5V source.
• Q: What is the effective range of this laser?
  A: In a dimly lit or dark environment, the dot is visible from several meters away. Its effectiveness for sensor applications depends on the sensitivity of the receiver.
• Q: Can I power this with a 3.3V supply?
  A: It is designed for 5V. Using a 3.3V supply may result in a very dim dot or cause the module not to function at all.
• Q: Is this module a sensor or a transmitter?
  A: The KY-008 is a laser transmitter. It emits light. To detect the beam, you will need a separate laser receiver module or a photoresistor.

Challenges and Considerations

• Safety First: Always prioritize eye safety when working with any laser module, regardless of its power rating.
• Receiver Required for Detection: This module only emits a laser beam. For any project involving detection (like a tripwire), a compatible laser sensor/receiver is necessary.
• Ambient Light Interference: When used with a receiver, performance can be affected by strong ambient light like direct sunlight. It works best in controlled lighting or dark environments.

Compatibility

• Fully compatible with Arduino boards (UNO, Nano, Mega).
• Works with Raspberry Pi (ensure you connect to a 5V pin for power).
• Compatible with ESP32, ESP8266, and other 5V tolerant microcontrollers.
• Can be integrated with various logic circuits that operate on a 5V level.

Future Enhancement Options

• Automated Targeting System: Mount the module on a pan-tilt bracket controlled by two servo motors for a movable laser turret.
• Data Transmission: Use Pulse Width Modulation (PWM) to rapidly turn the laser on and off to transmit simple data signals.
• Advanced Security Grid: Combine multiple laser modules and receivers to create a laser grid for enhanced area security.

Benefits

• Affordable: A cost-effective way to add advanced functionality to your electronics projects.
• Versatile: Suitable for a wide variety of hobbyist, educational, and practical applications.
• Beginner-Friendly: Its simple 3-pin interface and 5V operation make it easy for beginners to get started.
• Reliable Performance: Offers a stable and consistent laser output for dependable project operation.

Conclusion

The KY-008 Red Laser Module is a must-have component for anyone passionate about electronics. Its combination of simplicity, reliability, and affordability makes it an unbeatable choice for countless projects. By providing a clear and stable laser source, it serves as the perfect foundation for building everything from a simple pointer to a sophisticated security system. Get your KY-008 laser module from বিজ্ঞান প্রজেক্ট (Bigyan Project) today and bring your innovative ideas to life!
