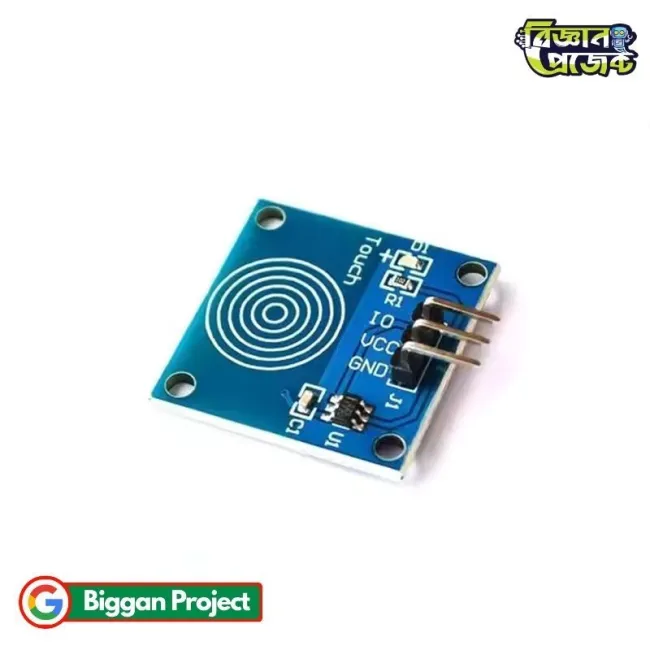

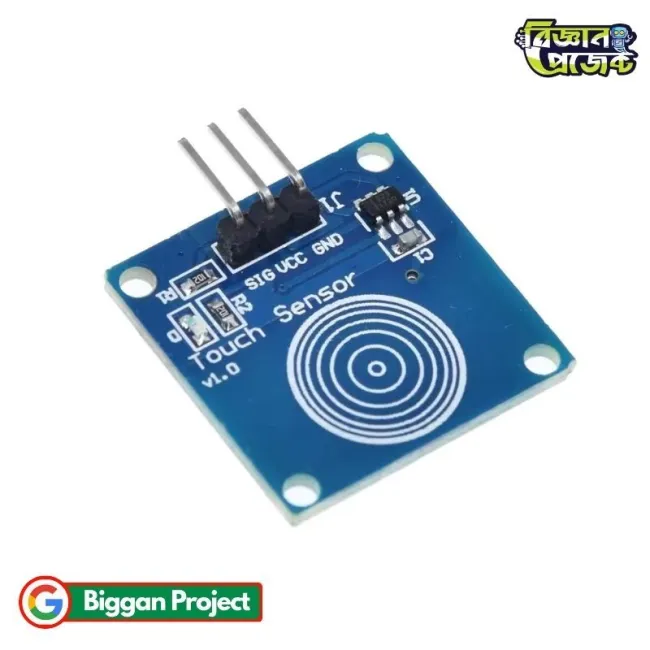

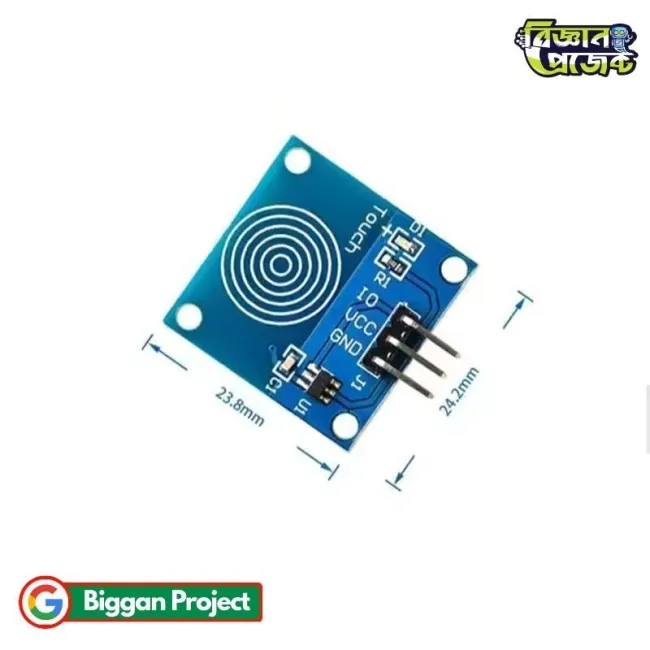

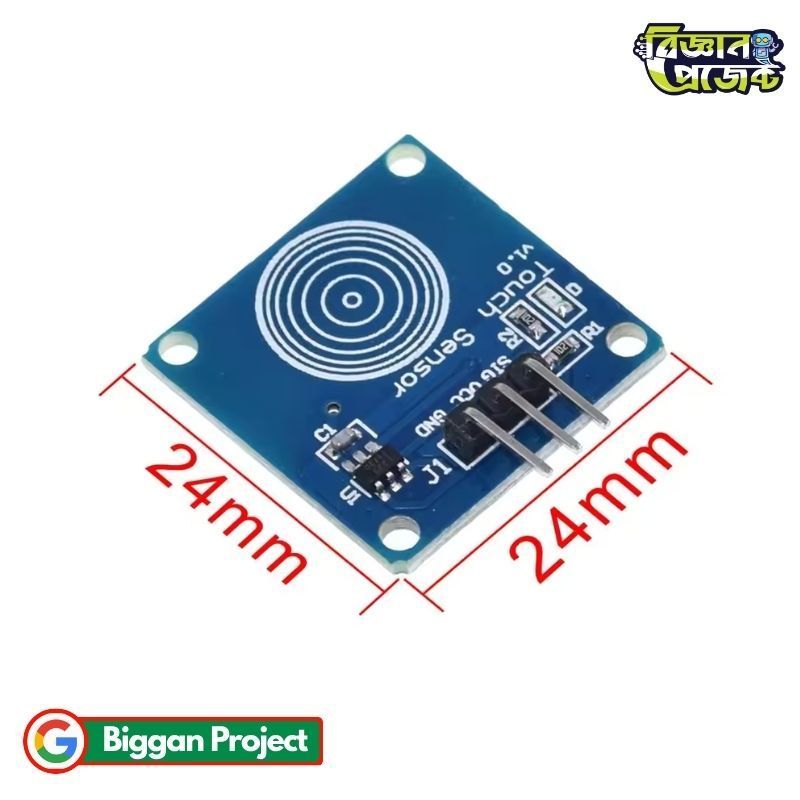

TTP223B Capacitive Touch Sensor Module

TTP223B Capacitive Touch Switch Sensor Module for Electronics Projects

The TTP223B Capacitive Touch Sensor Module is a versatile, low-power digital switch designed to replace traditional mechanical push buttons in modern electronic applications. Built around the reliable TTP223B touch detector IC, this module acts as a proximity-based capacitive switch capable of detecting human touch through various non-metallic surfaces like glass, plastic, and wood. Whether you are building DIY robotics, custom smart home automation, or school science prototypes, this module ensures smooth and responsive digital interaction. It is widely available for students, hobbyists, and makers across Bangladesh (BD) looking to build innovative electronics through Biggan Project.

Features

• Capacitive proximity sensing provides smooth, wear-free touch control.
• Wide working voltage range from 2.0V to 5.5V DC makes it compatible with 3.3V and 5V microcontrollers.
• Low energy footprint featuring automatic energy-saving mode when idle.
• Convenient 3-pin interface layout for seamless hookup with development boards.
• Onboard green power status LED for immediate visual feedback.
• Integrated M2 mounting holes for sturdy attachment inside project enclosures.
• Able to sense finger contact through non-conductive barriers like acrylic and glass.

Applications / Use Cases

• DIY electronics projects and interactive science fair displays in BD.
• Hidden capacitive wall switches and desk-mounted touch interfaces.
• Mechanical button replacement in consumer electronics and custom control panels.
• Waterproof or dustproof sealed enclosure controls.
• Smart home automation inputs and microcontroller-based touch triggers.
• Robotics user control panels designed by students and makers at Biggan Project.

User Guide / How to Use

• Connect the VCC pin to a stable 2.0V-5.5V DC power source.
• Connect the GND pin to the ground rail of your circuit or microcontroller.
• Connect the SIG (Signal) pin to any digital input pin on your control board.
• Observe the green LED light up to verify correct power input.
• Gently place a finger over the fingerprint icon area to trigger a digital High signal.
• Release touch to allow the SIG output to return to its default Low state.

Frequently Asked Questions (FAQs)

• Q: Can this sensor detect touch through plastic or acrylic sheets?
  A: Yes, it can detect human touch through non-metallic insulating materials such as plastic, acrylic, glass, and wood.
• Q: What is the default output state when not touched?
  A: By default, the digital SIG output remains at a Low logic state until touched, at which point it switches to High.
• Q: Is this sensor compatible with 3.3V microcontrollers?
  A: Yes, it operates reliably within the 2.0V to 5.5V DC range, making it fully compatible with both 3.3V and 5V logic systems.
• Q: What are the pin descriptions for this module?
  A: The module uses three pins: VCC for power, GND for ground, and SIG for digital signal output.

Challenges and Considerations

• Thick or metallic enclosure surfaces can attenuate capacitive sensing sensitivity.
• Rapid noise fluctuations on the input power supply may cause false touch triggers.
• Sensing reliability decreases if exposed to moisture, water drops, or extreme humidity directly on the PCB.
• Non-touch recovery takes approximately 12 seconds to return to the ultra-low power standby mode.

Compatibility

• Arduino Uno, Nano, Mega, and compatible microcontrollers.
• ESP32 and ESP8266 Wi-Fi modules (3.3V logic).
• Raspberry Pi GPIO digital input pins (3.3V power and logic).
• 8051, PIC, and STM32 ARM microcontroller platforms.
• Standard 5V and 3.3V relay modules for direct driving circuits.

Future Enhancement Options

• Integration with a relay module to control AC home appliances via touch.
• Combining multiple modules to build custom touch keypads or numeric input panels.
• Solder pad configuration adjustments on the board to toggle between latching and momentary switch outputs.
• Enclosing the sensor behind back-lit custom acrylic panels for high-end user interface designs.

Benefits

• Eliminates mechanical wear and tear associated with traditional physical buttons.
• Enhances aesthetic design by permitting sleek, flat-surface controls.
• Saves overall battery life through intelligent low-power standby modes.
• Simplifies hardware hookups with a standardized 3-pin connection interface.

The TTP223B Capacitive Touch Sensor Module is a durable and highly efficient switch solution for modern electronic interfaces. Its fast reaction time, broad voltage support, and barrier-penetrating touch capability make it an essential component for DIY enthusiasts, student projects, and local innovators working on custom hardware across Bangladesh with Biggan Project.
