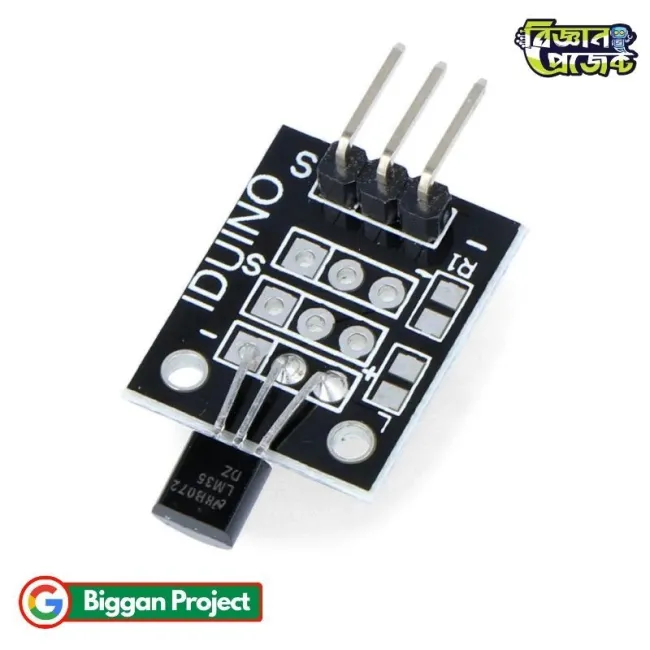

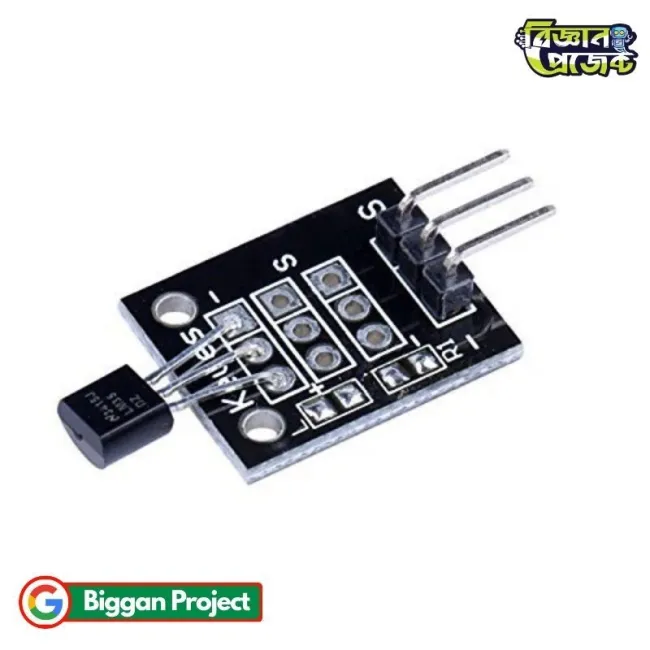

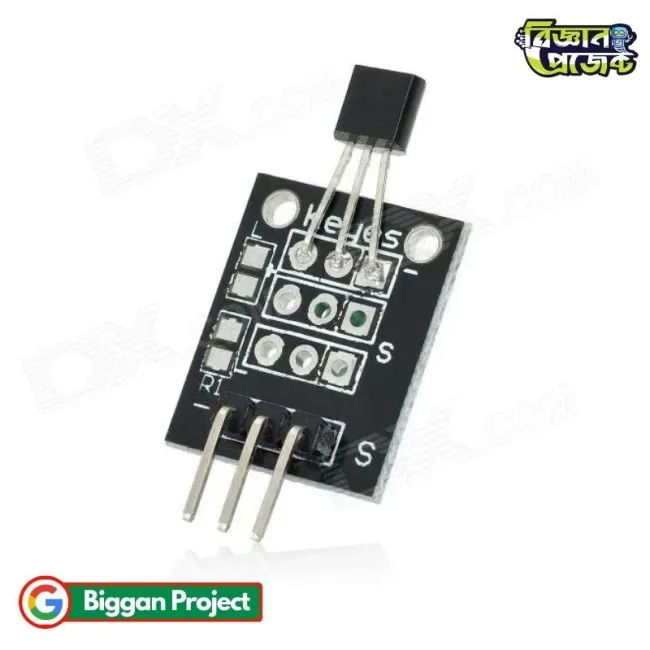

LM35DZ High Accuracy Temperature Sensor

LM35DZ Linear Analog Temperature Sensor for Arduino

The LM35DZ Temperature Sensor Module is a precision analog temperature sensing component widely used in electronics, automation systems, robotics, weather monitoring, and embedded development projects. This sensor provides a linear analog voltage output directly proportional to the temperature in Celsius, making it extremely easy to interface with Arduino, ESP32, Raspberry Pi, AVR, PIC, STM32, and other microcontrollers.

The LM35DZ is popular among students, hobbyists, engineers, and DIY developers in Bangladesh because of its simple design, stable performance, and high accuracy. It eliminates the need for complex calibration and delivers reliable temperature readings for various real-world applications. Whether you are building a smart automation project, temperature alarm system, digital thermometer, greenhouse controller, or industrial monitoring device, this sensor provides a dependable and low-cost solution.

At Biggan Project, the LM35DZ Temperature Sensor Module is highly demanded for robotics and educational electronics projects in BD. The sensor is designed with low power consumption and excellent linearity, making it suitable for both portable and continuous monitoring systems. Electronics learners and makers in Bangladesh often use this module for Arduino temperature monitoring experiments and IoT-based smart systems.

The sensor output changes at a scale of 10mV per degree Celsius. For example, at 25°C the output voltage becomes 250mV, making temperature calculation simple and accurate. Due to its compact size and reliable operation, the LM35DZ is an excellent choice for remote sensing and compact electronic devices.

Product Specifications

Features

• High accuracy analog temperature sensing
• Linear voltage output for easy interfacing
• No external calibration required
• Wide temperature measurement range
• Low power consumption for portable devices
• Compact size suitable for embedded systems
• Easy integration with Arduino and microcontrollers
• Stable and reliable temperature monitoring
• Suitable for educational and industrial projects
• Simple three-pin connection design

Applications / Use Cases

• Arduino temperature monitoring projects
• ESP32 and IoT temperature sensing systems
• Digital thermometer development
• Smart home automation systems
• Industrial temperature monitoring
• Weather station projects
• Robotics and automation applications
• Greenhouse environmental monitoring
• Battery temperature monitoring systems
• DIY electronics learning projects in Bangladesh

User Guide / How to Use

• Connect the VCC pin to a 5V or suitable power source
• Connect the GND pin to system ground
• Connect the VOUT pin to the analog input pin of the microcontroller
• Read the analog voltage using ADC from the controller
• Convert the voltage value to Celsius using 10mV per °C scale
• Use with Arduino IDE or other embedded programming environments
• Install the sensor away from excessive electrical noise for stable readings

Frequently Asked Questions (FAQs)

• Q: Is the LM35DZ sensor digital or analog?
  A: The LM35DZ is an analog temperature sensor.
• Q: Can I use the LM35DZ with Arduino?
  A: Yes, the sensor works perfectly with Arduino boards.
• Q: What is the temperature range of this sensor?
  A: The sensor can measure temperatures from -55°C to +150°C.
• Q: Does the LM35DZ require calibration?
  A: No, it does not require external calibration.
• Q: What is the output scale of the LM35DZ?
  A: The output changes by 10mV for every 1°C temperature change.
• Q: Can this sensor be used in IoT projects?
  A: Yes, it is commonly used with ESP32 and IoT monitoring systems.

Challenges and Considerations

• Analog output may require ADC calibration for maximum accuracy
• Long wire connections can introduce signal noise
• External heat sources may affect reading precision
• Not waterproof unless additional protection is used
• Requires proper voltage regulation for stable performance

Compatibility

• Arduino UNO, Nano, Mega
• ESP8266 and ESP32 boards
• Raspberry Pi with ADC module
• STM32 development boards
• AVR and PIC microcontrollers
• NodeMCU platforms
• Industrial monitoring circuits
• DIY electronics systems

Future Enhancement Options

• Add LCD or OLED temperature display
• Integrate with WiFi-based IoT dashboard
• Create automated cooling or heating systems
• Develop smart greenhouse controllers
• Build cloud-based environmental monitoring systems
• Add data logging with SD card modules

Benefits

• Simple and easy-to-use temperature sensing solution
• Affordable for educational and professional use
• Accurate and reliable analog output
• Low power operation for battery-powered devices
• Excellent for beginners learning electronics
• Suitable for advanced automation projects
• Widely available and supported in Bangladesh and BD electronics markets
• Ideal for robotics and smart monitoring systems from Biggan Project

Conclusion

The LM35DZ Temperature Sensor Module is a reliable and accurate analog sensor suitable for a wide range of electronics, automation, robotics, and IoT applications. Its linear analog output, simple interfacing, and low power consumption make it an excellent choice for students, makers, and engineers in Bangladesh. Whether you are creating a smart monitoring system or learning embedded electronics through Biggan Project, the LM35DZ offers dependable performance and easy integration.
