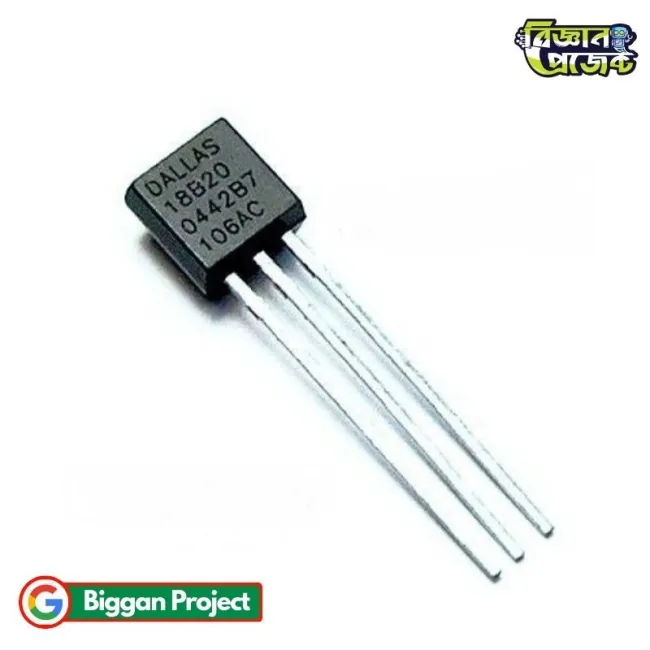

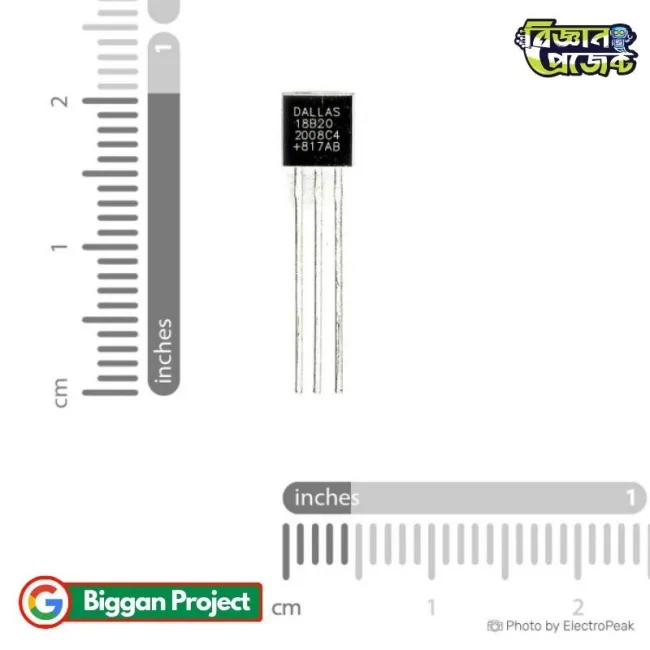

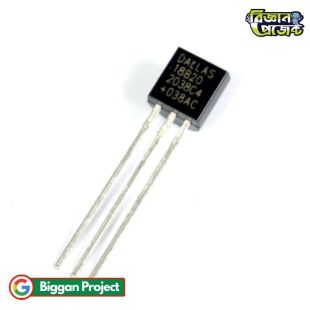

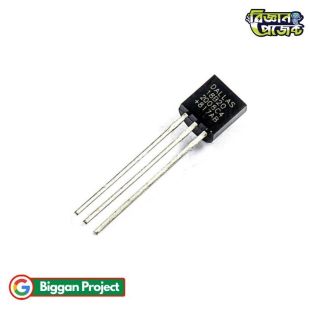

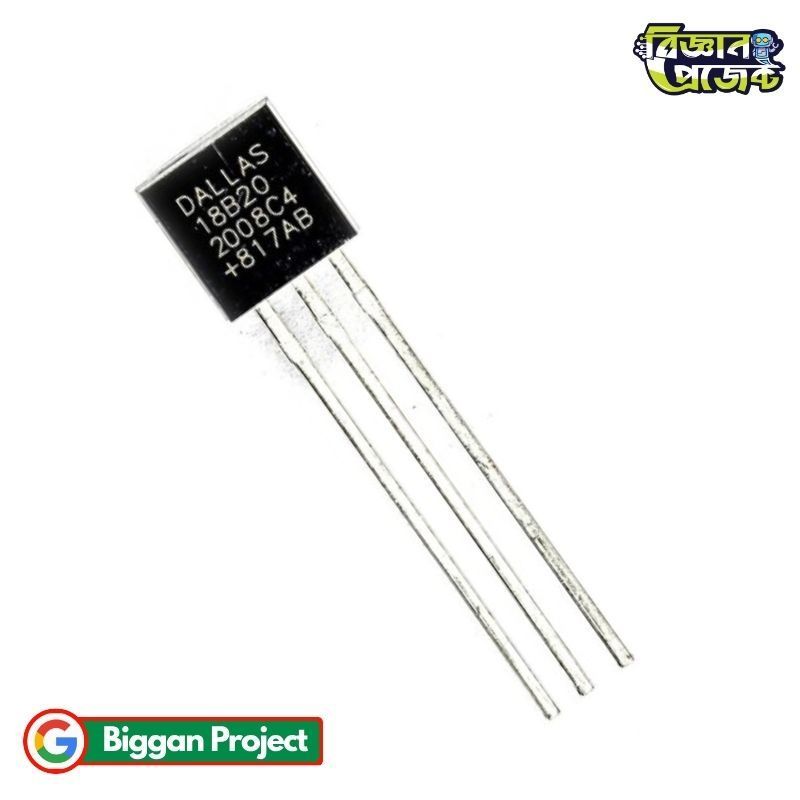

DS18B20 Digital Temperature Sensor

DS18B20 Waterproof 1-Wire Digital Temperature Sensor

The DS18B20 Digital Temperature Sensor is a highly accurate and reliable temperature sensing component widely used in electronics, automation, robotics, IoT, and industrial monitoring projects. This sensor uses a digital 1-Wire communication interface, allowing multiple DS18B20 sensors to operate using only a single data line. Its compact design, low power consumption, and high precision make it an excellent choice for hobbyists, students, engineers, and DIY electronics enthusiasts in Bangladesh.

The DS18B20 is compatible with popular development boards such as Arduino, ESP32, NodeMCU, Raspberry Pi, STM32, and other microcontrollers. It can measure temperatures from -55°C to +125°C with high accuracy, making it suitable for weather stations, HVAC systems, aquarium monitoring, industrial automation, smart agriculture, and home automation projects.

At Biggan Project, the DS18B20 sensor is one of the most popular digital temperature sensors for educational and professional applications in BD. Its simple wiring and stable digital output make it easier to use compared to analog temperature sensors. Whether you are building a smart temperature monitoring system or an IoT-based automation project in Bangladesh, the DS18B20 provides dependable performance and easy integration.

Product Specifications

Features

• High accuracy digital temperature measurement
• 1-Wire communication requires only one data pin
• Supports multiple sensors on a single bus
• Unique 64-bit serial identification code
• Low power consumption design
• Supports parasite power mode
• User-selectable 9-bit to 12-bit resolution
• Stable digital output without analog conversion noise
• Compact and lightweight design
• Suitable for indoor and outdoor monitoring systems

Applications / Use Cases

• Arduino temperature monitoring projects
• ESP32 and IoT automation systems
• Weather station development
• Smart home automation projects
• Industrial temperature monitoring
• Aquarium and water temperature sensing
• HVAC environmental control systems
• Server room temperature monitoring
• Smart agriculture systems in Bangladesh
• DIY robotics and automation projects

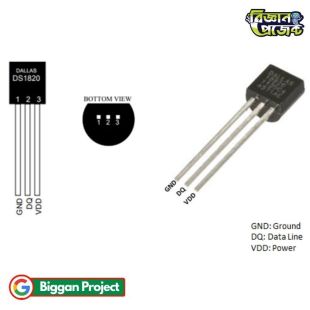

User Guide / How to Use

• Connect VCC pin to 3V or 5V power supply
• Connect GND pin to system ground
• Connect Data pin to a microcontroller digital pin
• Use a 4.7k pull-up resistor between VCC and Data line
• Install the DS18B20 library in Arduino IDE if required
• Upload sample code to read temperature values
• Select desired resolution according to project requirements
• Monitor live temperature data through serial monitor or display

Frequently Asked Questions (FAQs)

• Q: Can the DS18B20 work with Arduino?
  A: Yes, the DS18B20 is fully compatible with Arduino boards.
• Q: Does this sensor provide analog output?
  A: No, it provides digital output using the 1-Wire protocol.
• Q: Can multiple DS18B20 sensors work together?
  A: Yes, multiple sensors can operate on the same data line because each sensor has a unique serial code.
• Q: Is this sensor suitable for outdoor projects?
  A: Yes, especially the waterproof version is suitable for outdoor temperature monitoring.
• Q: What resistor is commonly used with DS18B20?
  A: A 4.7k pull-up resistor is commonly used on the data line.

Challenges and Considerations

• Incorrect wiring can prevent sensor communication
• Long cable lengths may require stable power and proper shielding
• A pull-up resistor is necessary for reliable communication
• Extreme temperatures beyond specifications may affect performance
• Improper parasite power setup can cause unstable readings

Compatibility

• Arduino UNO, Nano, Mega
• ESP8266 and ESP32 boards
• Raspberry Pi
• STM32 development boards
• NodeMCU
• PIC microcontrollers
• AVR development platforms
• Industrial automation systems

Future Enhancement Options

• Integrate with IoT cloud monitoring platforms
• Add LCD or OLED display for live monitoring
• Create wireless temperature monitoring systems
• Build smart agriculture automation systems
• Use with relays for automatic cooling or heating control
• Combine with data logging systems for analytics

Benefits

• Easy to interface with microcontrollers
• Provides precise digital temperature readings
• Supports long-distance sensor deployment
• Suitable for educational and industrial projects
• Reduces analog signal noise issues
• Cost-effective and reliable temperature sensing solution
• Popular and well-supported sensor in BD electronics projects

Conclusion

The DS18B20 Digital Temperature Sensor is an efficient and reliable solution for accurate temperature monitoring applications. Its 1-Wire digital interface, wide operating range, and easy compatibility with Arduino, ESP32, and Raspberry Pi make it an ideal choice for students, makers, engineers, and automation developers in Bangladesh. Whether for educational learning, industrial monitoring, or IoT systems, the DS18B20 offers stable performance and flexible integration for a wide range of projects available through Biggan Project.
