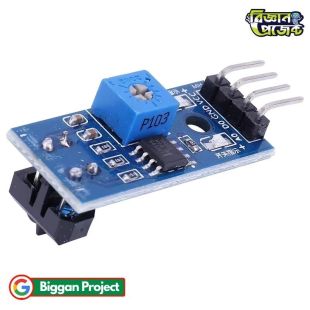

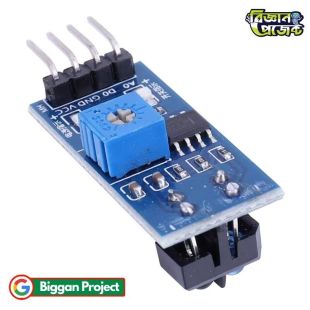

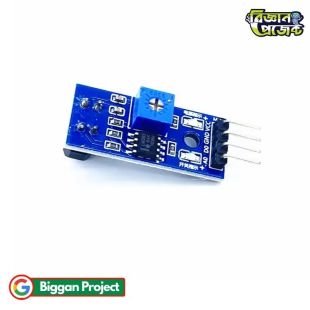

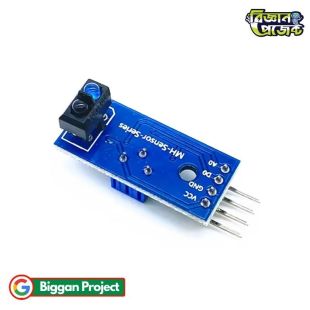

TCRT5000 IR Reflective Line Tracking Sensor Module

TCRT5000 Infrared Reflective IR Photoelectric Line Tracking Sensor Module with LM393

TCRT5000 Infrared Reflective IR Photoelectric Sensor Module is a compact and highly reliable reflective sensor designed for line tracking, object detection, proximity sensing, and automation projects. It combines an infrared LED transmitter and phototransistor receiver inside the TCRT5000 sensor, allowing it to detect reflected infrared light from nearby objects. The onboard LM393 comparator provides both stable digital output and analog output, making the module suitable for beginners as well as professional developers.

The module operates from 3.3V to 5V DC, making it compatible with most modern development boards including Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and many other microcontrollers. A built-in sensitivity adjustment potentiometer allows users to fine-tune the detection range based on the application and surrounding environment.

This sensor is widely used in line-following robots, obstacle detection systems, object counters, industrial automation, smart vehicles, conveyor systems, and educational electronics. It is also an excellent choice for robotics competitions, STEM education, and Biggan Project demonstrations. Students, hobbyists, and engineers throughout Bangladesh frequently use the TCRT5000 module in robotics and automation experiments because of its simplicity, accuracy, and ease of integration.

Whether you are building a DIY robot, designing an automation system, or preparing a Biggan Project for school, college, or university in BD, the TCRT5000 sensor module provides dependable performance with minimal circuit complexity.

Product Specifications

Features

• High-precision TCRT5000 infrared reflective sensor.
• Supports both analog and digital signal output.
• Stable LM393 comparator circuit.
• Adjustable detection sensitivity.
• Works directly with 3.3V and 5V systems.
• Fast response for real-time sensing.
• Compact PCB design for embedded applications.
• Low power consumption.
• Easy installation with M3 mounting hole.
• Suitable for educational and industrial projects.

Applications / Use Cases

• Line-following robots.
• Obstacle avoidance robots.
• DIY robotics projects.
• Smart vehicle navigation.
• Object counting systems.
• Conveyor belt detection.
• Industrial automation.
• Reflective position sensing.
• Educational laboratory experiments.
• School, college, and university Biggan Project demonstrations in Bangladesh.

User Guide / How to Use

• Connect VCC to a 3.3V or 5V power source.
• Connect GND to the common ground.
• Use the DO pin for digital detection.
• Use the AO pin when analog signal measurement is required.
• Adjust the onboard potentiometer to achieve the desired sensing distance.
• Position the sensor approximately 1–25mm from the target surface.
• Connect the output to a compatible microcontroller input pin.
• Test with different surface colors for optimal calibration.

Frequently Asked Questions (FAQs)

• Q: What voltage does the module require?
  A: It operates from 3.3V to 5V DC.
• Q: Can it detect black and white lines?
  A: Yes. It is commonly used for both black-line and white-line tracking.
• Q: Does it provide analog output?
  A: Yes. Both analog (AO) and digital (DO) outputs are available.
• Q: Is it compatible with Arduino?
  A: Yes. It works with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and many other controllers.
• Q: Can the sensing distance be adjusted?
  A: Yes. The onboard potentiometer allows sensitivity adjustment.
• Q: Is it suitable for educational robotics?
  A: Yes. It is widely used for robotics learning and Biggan Project activities.

Challenges and Considerations

• Detection distance depends on the object's reflectivity.
• Very bright ambient infrared light may influence performance.
• Proper sensitivity adjustment improves detection accuracy.
• Dust or dirt on the sensor surface can reduce performance.
• Highly reflective surfaces may require recalibration.

Compatibility

• Arduino UNO, Nano, Mega.
• ESP32 development boards.
• ESP8266 boards.
• STM32 microcontrollers.
• Raspberry Pi GPIO.
• PIC microcontrollers.
• AVR development boards.
• 8051-based systems.
• DIY robotics platforms.

Future Enhancement Options

• Integrate with PID-based line-following algorithms.
• Use multiple sensors for higher tracking accuracy.
• Combine with ultrasonic sensors for hybrid navigation.
• Implement automatic calibration software.
• Develop intelligent obstacle avoidance systems.
• Integrate into autonomous robotics projects.

Benefits

• Simple wiring and quick installation.
• Reliable infrared reflective sensing.
• Suitable for both beginners and professionals.
• Supports numerous microcontroller platforms.
• Compact and lightweight design.
• Low-cost solution for robotics and automation.
• Excellent for education, prototyping, and research.
• Widely used in Biggan Project and robotics projects across Bangladesh.

Conclusion

The TCRT5000 Infrared Reflective IR Photoelectric Sensor Module is a dependable and versatile sensing solution for robotics, automation, reflective detection, and educational electronics. With adjustable sensitivity, dual analog and digital outputs, and compatibility with popular microcontrollers, it is an excellent choice for beginners, makers, students, and engineers. Whether you are developing a DIY robot, an automation system, or a Biggan Project in Bangladesh or BD, this module delivers accurate and consistent performance for a wide variety of applications.
