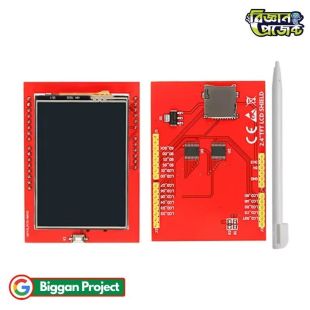

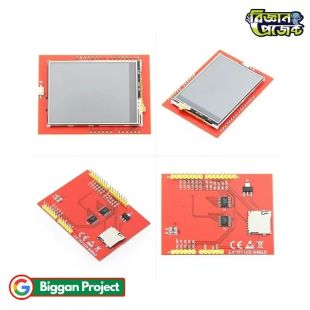

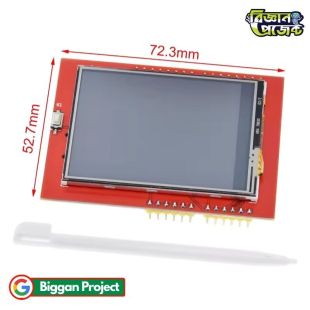

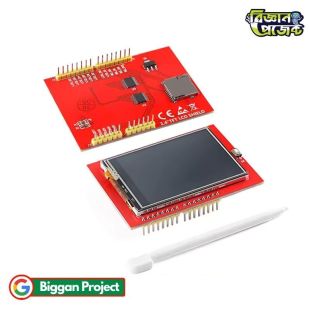

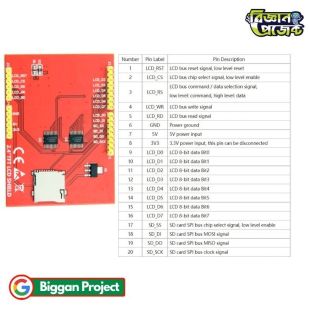

2.4 Inch TFT LCD Touch Display for Arduino UNO and Mega

2.4 Inch TFT LCD Touch Screen Module 240x320 SPFD5408 for Arduino UNO R3 Mega 2560

The 2.4 Inch TFT LCD Touch Display is a versatile and high-performance screen module designed for Arduino-based projects. Featuring a 240x320 pixel resolution and 18-bit color depth, it delivers clear and vibrant visuals suitable for interactive interfaces, monitoring systems, and embedded displays. Powered by the SPFD5408 controller, this module ensures stable performance with built-in video RAM for smooth rendering.

This display is widely used in Bangladesh by hobbyists, students, and engineers working on DIY electronics. At Biggan Project, this module is popular for building touchscreen control panels, sensor dashboards, and graphical user interfaces. The resistive touchscreen allows accurate input using a stylus, making it practical for user interaction in embedded systems.

Product Specifications

Features

• High-resolution 240x320 TFT display with vivid colors
• Built-in resistive touchscreen for user interaction
• SPFD5408 controller ensures stable and smooth performance
• Compatible with both Arduino UNO R3 and Mega 2560

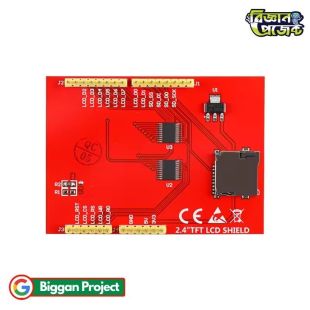

• Integrated microSD card slot for data storage
• Supports both 3.3V and 5V logic levels
• Plug-and-play shield design for easy installation

Applications / Use Cases

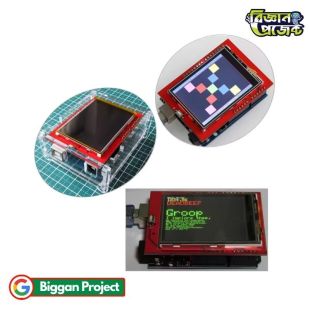

• Arduino-based touchscreen interfaces
• Sensor data monitoring systems
• DIY home automation displays
• Menu-driven control panels
• Educational electronics projects in BD
• Embedded system UI development

User Guide / How to Use

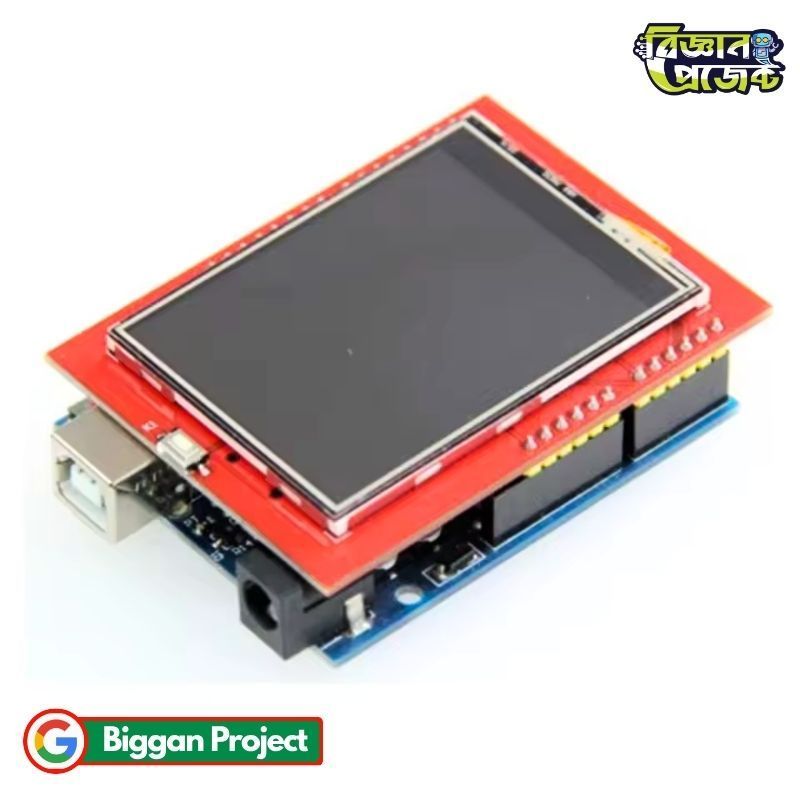

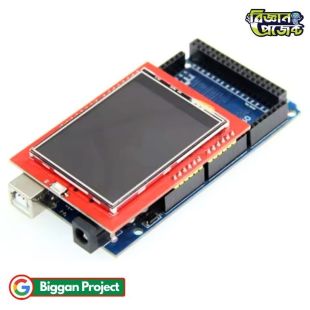

• Mount the TFT LCD shield directly onto the Arduino UNO R3 or Mega 2560 board
• Install required libraries such as TFT LCD and Touch libraries
• Upload sample code to test display and touchscreen functionality
• Calibrate the touchscreen for accurate input
• Start building your custom interface or display project

Frequently Asked Questions (FAQs)

• Q: Does this display work with Arduino UNO?
  A: Yes, it is fully compatible with Arduino UNO R3.
• Q: Is the touchscreen capacitive?
  A: No, it uses a resistive touchscreen.
• Q: Can I use it with 5V systems?
  A: Yes, it supports both 3.3V and 5V logic.
• Q: Does it support SD card usage?
  A: Yes, it includes a microSD card slot.

Challenges and Considerations

• Uses multiple digital pins, limiting availability for other components
• Requires proper library installation for full functionality
• Resistive touch is less sensitive compared to capacitive touch
• Display speed depends on code optimization

Compatibility

• Arduino UNO R3
• Arduino Mega 2560
• ATmega328-based boards
• Not compatible with Arduino Leonardo

Future Enhancement Options

• Integrate advanced GUI libraries for better interface design
• Use external storage via microSD for multimedia applications
• Combine with sensors for real-time monitoring systems
• Optimize code for faster refresh rates

Benefits

• Enhances visual output of Arduino projects
• Enables interactive touchscreen control
• Affordable and widely available in Bangladesh
• Ideal for beginners and advanced users
• Compact and easy to install design

Conclusion

The 2.4 Inch TFT LCD Touch Display is a powerful and flexible solution for adding graphical and interactive capabilities to Arduino projects. Whether you are a student, hobbyist, or developer in Bangladesh, this module from Biggan Project offers excellent value, functionality, and ease of use for a wide range of applications.
