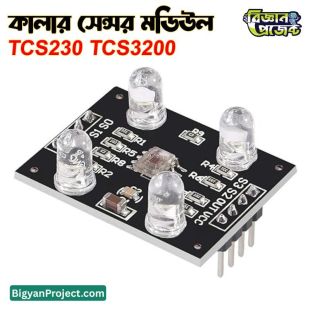

TCS230 TCS3200 RGB Color Sensor Module

TCS3200 High-Accuracy RGB Color Detection Sensor Module

The TCS3200 Color Recognition Sensor Module is a highly accurate and programmable color-to-frequency converter designed for embedded electronics projects, robotics, and automation systems. Fully compatible with the TCS230 architecture, this module uses 64 integrated photodiodes and a built-in current-to-frequency converter to deliver stable digital output that interfaces directly with microcontrollers. Whether you are building a color sorter, line-following robot, or object-detection system, this module provides excellent performance and reliability.

This sensor is widely used in DIY electronics projects and educational setups supplied by Bigyan Project (বিজ্ঞান প্রজেক্ট). Its wide voltage support (3–5V) and programmable filter options make it ideal for Arduino, ESP32, ESP8266, PIC, STM32, and Raspberry Pi platforms.

Product Specifications

Features

• High-precision RGB color detection using 64 programmable photodiodes
• Built-in current-to-frequency converter for reliable digital output
• Selectable red, green, blue, or clear filter modes
• Adjustable output frequency scaling for various MCU speeds
• Wide voltage range (3–5V) for compatibility with most controllers
• Anti-light interference design enhances stability
• Controllable white LED illumination for consistent readings
• Fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32

Applications / Use Cases

• Color sorting machines for industry or academic projects
• Line-following and color-detection robots
• Smart automation systems requiring light-intensity analysis
• Object classification and material identification
• DIY educational projects sold by Bigyan Project
• Color-based security and scanning systems

User Guide / How to Use

• Connect VCC and GND to a 3–5V power supply
• Connect S0–S3 pins to your MCU for filter and scaling control
• Read the OUT pin frequency using pulseIn or interrupt-based reading
• Use combinations of S2 and S3 to choose Red, Green, or Blue filters
• Normalize RGB readings for color consistency under different lighting
• Enable or disable the built-in LED depending on your application
• Test with known color samples to calibrate accuracy

Frequently Asked Questions (FAQs)

• Q: Are TCS230 and TCS3200 the same?
  A: Yes. The TCS3200 is an improved version of TCS230 but both are functionally compatible.
• Q: Can this connect directly to Arduino?
  A: Yes. The module outputs digital frequency signals readable by any 5V or 3.3V MCU.
• Q: Does ambient light affect readings?
  A: Minimal interference due to onboard LED and filter system, but calibration is recommended.
• Q: Is an ADC needed?
  A: No. The module outputs a digital frequency signal, so no ADC is required.

Challenges and Considerations

• Ambient lighting may affect readings without calibration
• Distance between sensor and object influences accuracy
• Non-reflective surfaces may produce lower frequency outputs
• Requires stable power for consistent color measurements

Compatibility

• Arduino (UNO, Nano, Mega)
• ESP32 / ESP8266
• Raspberry Pi (via GPIO)
• PIC, AVR, STM32, ARM-based MCUs
• DIY robotics kits from Bigyan Project

Future Enhancement Options

• Auto-calibration algorithms for improved accuracy
• Integration with machine learning for color classification
• Housing or casing for controlled lighting environments
• Multi-sensor array for advanced imaging applications

Benefits

• Accurate RGB color detection
• Direct digital output with no need for ADC
• Simple wiring and control logic
• Affordable solution for color-based sensing projects
• Reliable choice for robotics and DIY electronics learning

Conclusion

The TCS3200 Color Recognition Sensor Module provides robust, accurate, and versatile color detection suitable for both beginners and advanced developers. With its digital output and programmable filter system, it integrates seamlessly with Arduino, ESP, and Raspberry Pi projects offered by Bigyan Project (বিজ্ঞান প্রজেক্ট). This sensor remains one of the most reliable modules for RGB recognition tasks.
