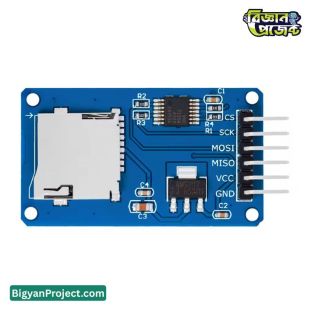

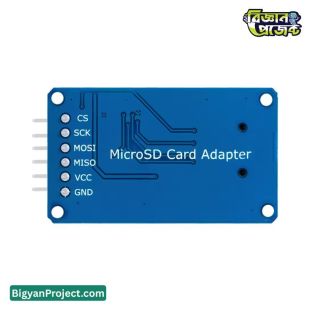

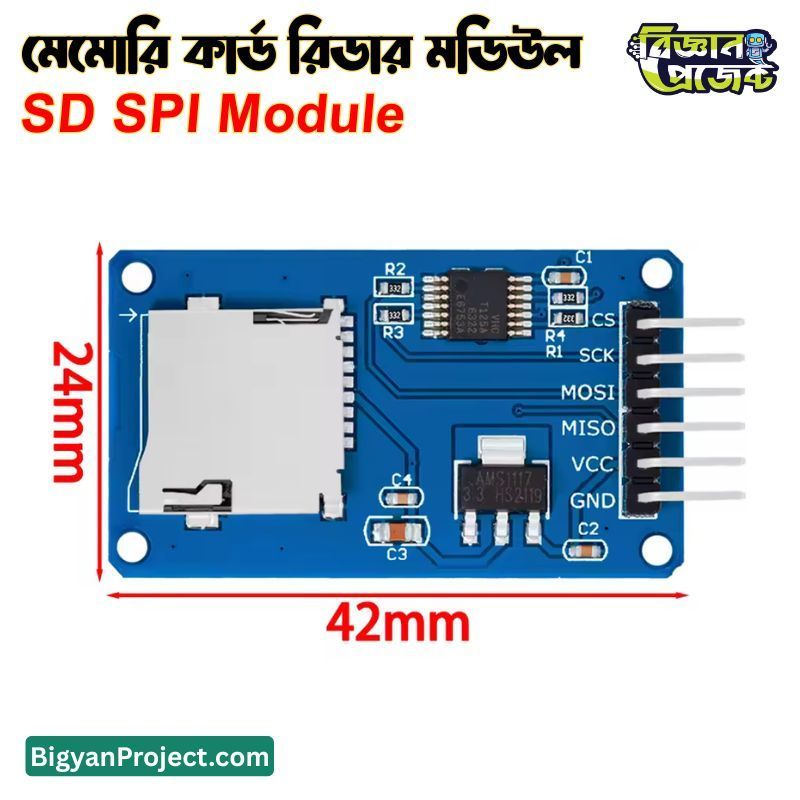

Micro SD Card Reader Module SPI Interface for Arduino

Micro SD TF Card SPI Storage Module with 3.3V Regulator and Level Conversion

The Micro SD TF Card SPI Storage Module is a compact, reliable, and high-performance solution designed for adding removable storage to Arduino, AVR, ARM, ESP32, ESP8266, and other microcontroller systems. Featuring a built-in 3.3V LDO regulator and full signal level shifting, the module ensures safe operation with both 5V and 3.3V logic. This makes it an ideal choice for beginners, students, engineers, hobbyists, and DIY project builders seeking stable data logging, configuration storage, or embedded file system support.

This module integrates seamlessly with the Arduino IDE’s SD library, allowing quick initialization and read/write operations using standard SPI protocols. Whether you're working on IoT projects, sensor loggers, automation systems, or robotics, this Micro SD storage module—available through Bigyan Project (বিজ্ঞান প্রজেক্ট)—offers a dependable and easy-to-use memory expansion solution.

Product Specifications

Features

• Supports both Micro SD and Micro SDHC high-speed cards
• Standard SPI interface for universal microcontroller compatibility
• Onboard 3.3V regulator powers the card safely
• Bidirectional level shifting ensures safe operation with 5V logic
• Compact, lightweight module ideal for embedded systems
• Stable and reliable data read/write performance
• Compatible with Arduino SD library for quick integration
• Easy mounting using four M2 positioning holes
• Available in Bangladesh through Bigyan Project for educational and hobby use

Applications / Use Cases

• Data logging systems (temperature, humidity, voltage, GPS)
• IoT devices requiring removable storage
• Arduino-based robotics and automation projects
• Configuration or calibration data storage
• Audio/TTS playback storage systems
• Simple file-based communication between devices
• Home automation and sensor monitoring
• Prototyping and DIY electronics projects from Bigyan Project

User Guide / How to Use

• Connect GND to system ground and VCC to 5V supply
• Wire SPI pins: MISO, MOSI, SCK, CS to Arduino/MCU SPI pins
• Insert a formatted Micro SD or SDHC card into the slot
• Use Arduino IDE → File → Examples → SD → CardInfo to test card detection
• Initialize the card using SD.begin(CS_PIN)
• Use SD.open(), SD.read(), SD.write(), and SD.close() for file operations
• Always close files after writing to prevent data corruption
• Remove the SD card only after safely shutting down the system

Frequently Asked Questions (FAQs)

• Q: Does the module support 5V Arduino boards?
  A: Yes, thanks to the onboard level converter, it works safely with 5V logic.
• Q: Can I use SDHC cards such as 8GB or 16GB?
  A: Yes, the module supports standard Micro SDHC cards.
• Q: Which Arduino library should I use?
  A: Use the built-in SD library included with the Arduino IDE.
• Q: Can this module be used with ESP32 or ESP8266?
  A: Yes, both 3.3V platforms work smoothly with CS pin assignment.
• Q: Do I need an additional voltage regulator?
  A: No, the board includes a 3.3V LDO regulator for the SD card.

Challenges and Considerations

• Use short, shielded wires for SPI to prevent signal noise
• Ensure the SD card is formatted as FAT16 or FAT32
• Incorrect CS pin selection can prevent initialization
• Large-capacity SDHC cards may require optimized libraries
• Avoid powering the module from unstable USB sources

Compatibility

• Arduino UNO R3, Nano, Mega2560, Pro Mini
• ESP8266, ESP32 Dev Boards
• AVR ATmega series
• PIC and ARM Cortex development boards
• Raspberry Pi (SPI mode)
• Most 3.3V/5V microcontrollers used in DIY and educational projects

Future Enhancement Options

• Add external EEPROM or FRAM for hybrid memory systems
• Combine with RTC modules for timestamped data logging
• Integrate with wireless modules for remote SD access
• Create SD-based firmware update systems for embedded devices
• Use with Bigyan Project’s upcoming IoT boards for expanded storage

Benefits

• Reliable and stable SD card interface for embedded systems
• Safe voltage levels with onboard regulator and level shifter
• Wide microcontroller compatibility
• Compact and easy to mount in enclosures
• Perfect for educational kits and DIY projects from বিজ্ঞান প্রজেক্ট
• Affordable, versatile, and easy to integrate

Conclusion

The Micro SD TF Card SPI Module is a powerful and affordable way to add scalable storage to your embedded projects. With high compatibility, robust level shifting, onboard regulation, and easy integration, it is an excellent memory expansion tool for robotics, IoT, and data-driven applications. Ideal for makers, students, and engineers who want dependable performance from a trusted platform like Bigyan Project.
