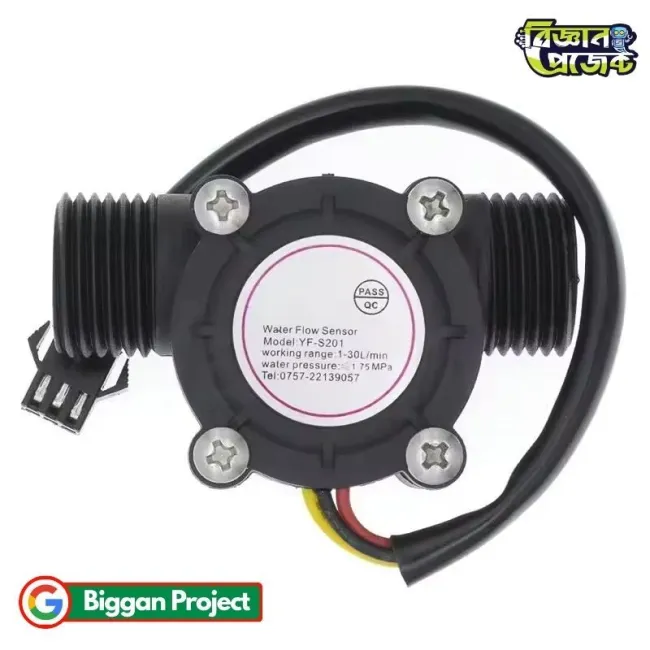

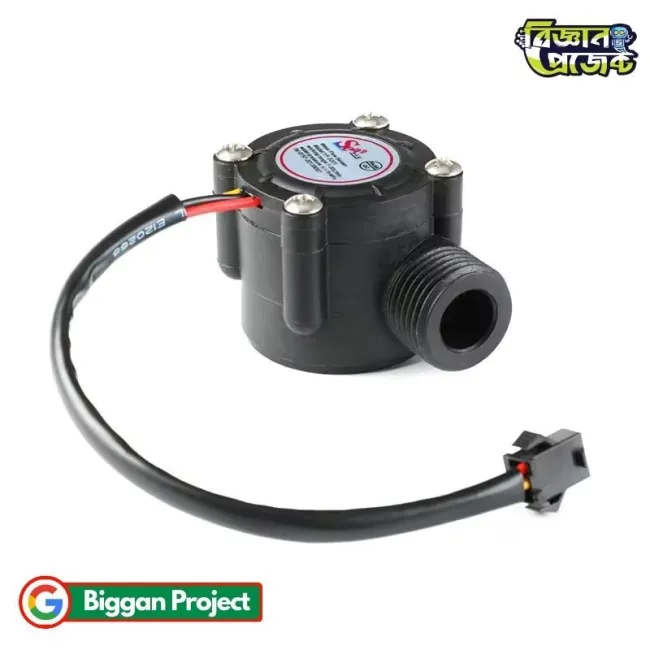

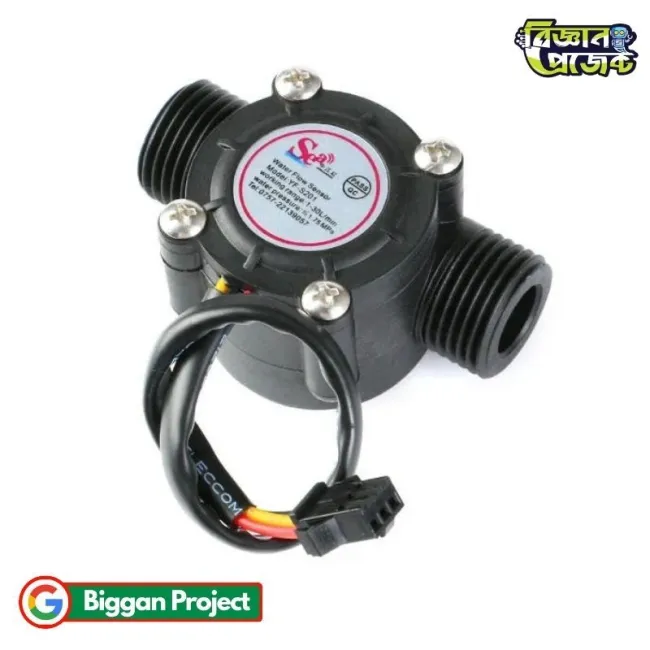

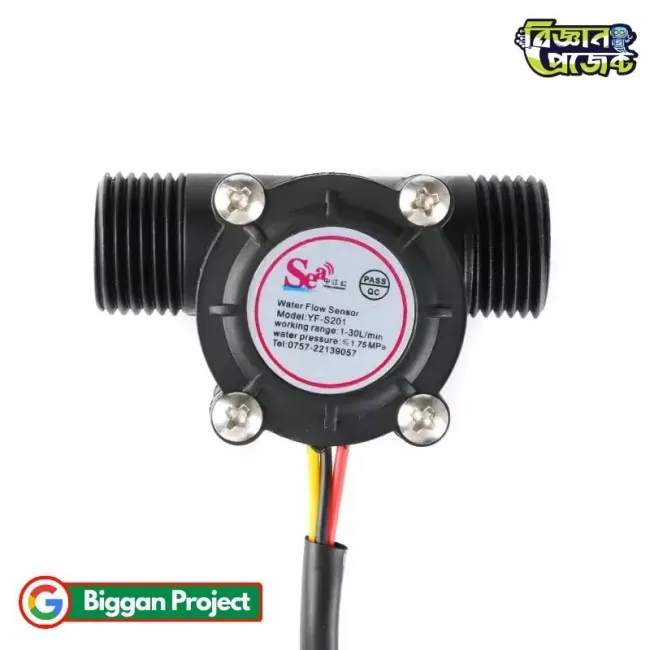

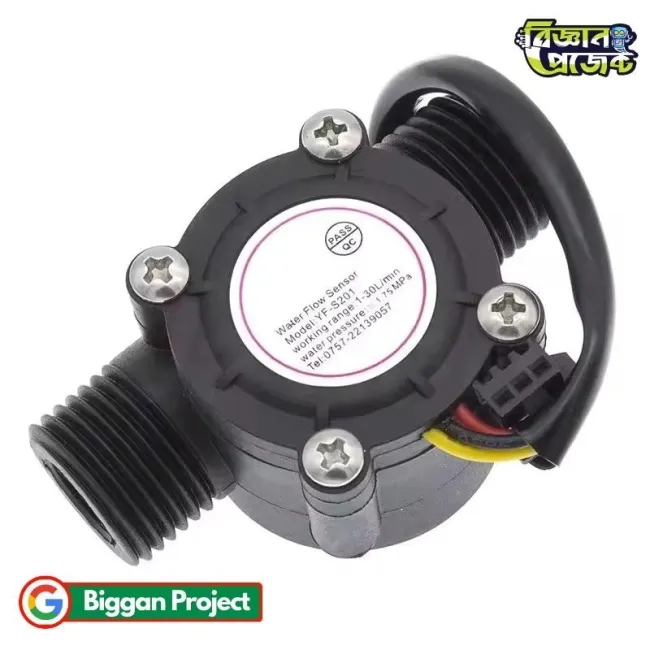

YF-S201 Water Flow Sensor Hall Effect 1-30L/min

YF-S201 G1/2 Hall Effect Water Flow Meter Sensor 5-18V DC

YF-S201 Water Flow Sensor is a highly efficient Hall effect-based flowmeter designed to accurately measure water flow in real-time. This sensor works by detecting the rotation of an internal rotor fitted with a magnet, generating pulse signals proportional to the flow rate. These pulses can be easily read by microcontrollers like Arduino, ESP32, or other embedded systems.

In Bangladesh and BD-based DIY or industrial projects, this sensor is widely used due to its affordability and reliability. Whether you are building a smart water monitoring system, automated water dispenser, or industrial flow control unit, the YF-S201 provides stable and consistent performance. At Biggan Project, this sensor is popular among students, engineers, and hobbyists for water-related automation systems.

Product Specifications

Features

• High precision Hall effect sensing technology
• Stable and reliable pulse output for accurate measurement
• Wide operating voltage range (5V–18V)
• Durable construction with corrosion resistance

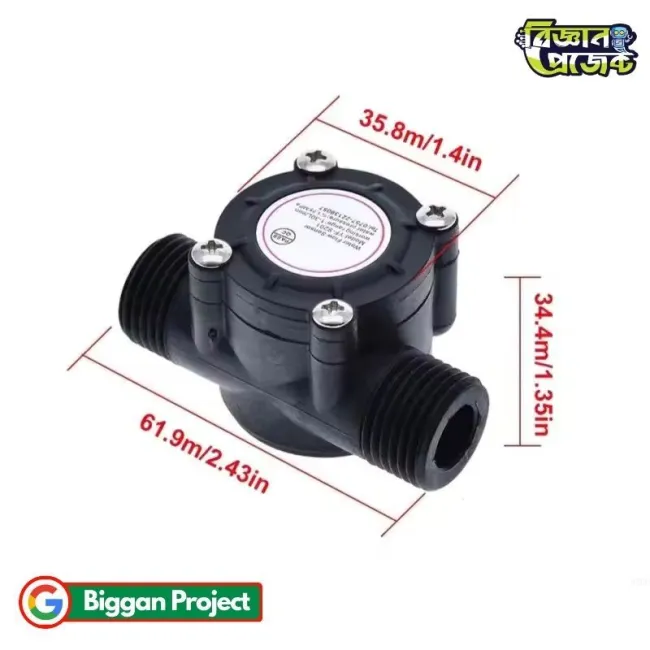

• Compact size with standard G1/2 threaded connection
• Low power consumption suitable for embedded systems
• Fast response to changes in water flow

Applications / Use Cases

• Smart water monitoring systems
• Automatic water dispensers and vending machines
• Water heaters and cooling systems
• Industrial liquid flow measurement
• DIY Arduino and ESP32 projects
• Water purification and filtration systems

User Guide / How to Use

• Install the sensor inline with the water pipe using G1/2 thread

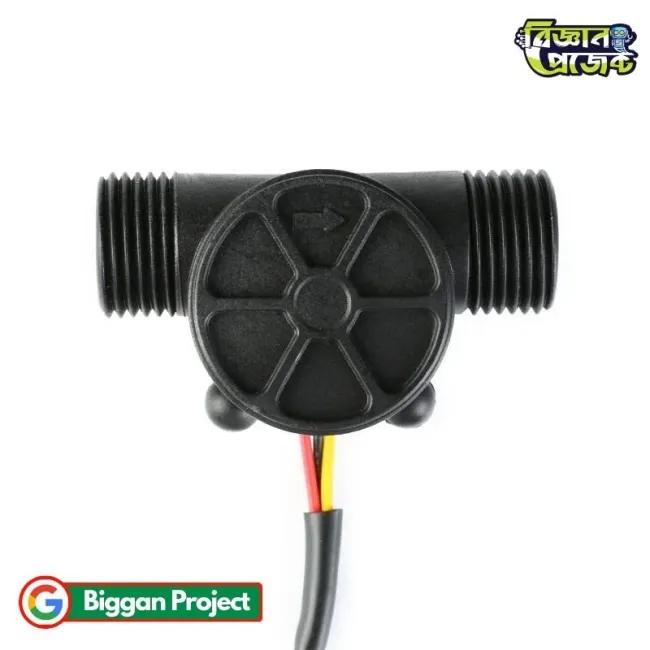

• Ensure correct flow direction based on arrow marking
• Connect VCC (5V–18V), GND, and signal pin to microcontroller
• Read pulse output using interrupt pin for accurate measurement
• Calculate flow rate using frequency formula
• Use a filter if water contains debris to prevent blockage

Frequently Asked Questions (FAQs)

• Q: Can this sensor measure liquids other than water?
  A: It is mainly designed for clean water; other liquids may affect accuracy.
• Q: Is it compatible with Arduino or ESP32?
  A: Yes, it works perfectly with Arduino, ESP32, and similar controllers.
• Q: Does it require calibration?
  A: Basic calibration may improve accuracy depending on your setup.
• Q: Can it handle high pressure?
  A: Yes, it supports up to 2.0 MPa water pressure.

Challenges and Considerations

• Accuracy may vary depending on water quality and pressure
• Not suitable for dirty or highly viscous liquids
• Requires proper filtering for long-term durability
• Needs stable voltage supply for consistent output

Compatibility

• Arduino UNO, Nano, Mega
• ESP8266 and ESP32
• Raspberry Pi (with GPIO interrupt handling)
• PLC systems with pulse input support

Future Enhancement Options

• Integration with IoT platforms for remote monitoring
• Adding LCD/OLED display for real-time flow data
• Cloud data logging for water usage tracking
• Automation with relay control for smart water systems

Benefits

• Affordable and widely available in Bangladesh
• Easy to integrate with electronics projects
• Provides real-time and accurate flow measurement
• Enhances automation and monitoring capabilities
• Ideal for both educational and industrial applications

Conclusion

The YF-S201 Water Flow Sensor is a reliable and efficient solution for measuring water flow in various applications. Whether you are working on a DIY automation project or an industrial system in BD, this sensor offers excellent performance and ease of use. Available at Biggan Project, it is a valuable component for anyone looking to build smart water management systems.
