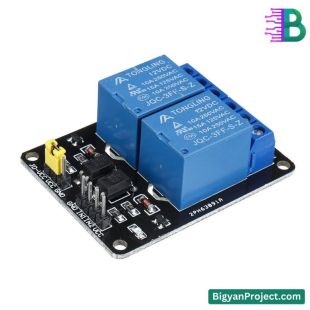

2 Channel 5V Relay Module with Optocoupler for Arduino

Dual Channel 5V Relay Module with Optocoupler for Smart Projects

The Dual Channel 5V Relay Module is a reliable and efficient component designed for switching high-voltage loads using low-voltage digital signals. It is especially suitable for microcontroller-based systems such as Arduino, Raspberry Pi, and ESP32. With optocoupler isolation, this module offers superior protection for your circuits, ensuring stable and secure operation. Whether you're building a home automation system or an industrial control unit, this relay board offers the flexibility and safety needed for modern electronic applications. Available now at Bigyan Project, your trusted source for DIY electronics and robotics in Bangladesh.

Product Specifications

Features

• Electromechanical relay module with optocoupler protection
• Supports low level trigger for better stability
• Can handle high voltage loads safely
• Designed for direct interfacing with microcontrollers
• Clear pin markings and screw terminals for easy wiring
• Separate power supply input for relay (JD-VCC)
• Compact size ideal for embedded systems

Applications / Use Cases

• Home automation projects
• Smart fan and lighting control
• Industrial automation and machinery control
• Microcontroller-based appliances switching
• School and college electronics or robotics projects
• IoT-based smart control systems

User Guide / How to Use

• Connect the module’s VCC and GND to your 5V microcontroller
• Connect the IN1 and IN2 pins to two digital output pins of your microcontroller
• Connect the high voltage AC/DC load to the COM and NO/NC terminals
• Program your microcontroller to send HIGH or LOW signals to control the relay state
• Use the jumper cap to set the trigger logic as required

Frequently Asked Questions (FAQs)

• Can I use this with Raspberry Pi? Yes, this module works well with Raspberry Pi, provided the 5V and ground connections are properly handled.
• Does it support AC loads? Yes, it can control up to 250V AC loads at 10A.
• Is the relay module isolated? Yes, it has optocoupler isolation to protect the low voltage side.
• How can I power the relay separately? Use JD-VCC to supply separate power to the relay part if needed.

Challenges and Considerations

• Ensure correct polarity when connecting power to avoid damage
• Use proper insulation when working with AC loads
• Always test your connections with a multimeter before turning on high voltage
• Overloading the relay beyond its rated current may cause overheating or failure

Compatibility

• Compatible with Arduino Uno, Mega, Nano, and other 5V logic boards
• Works with Raspberry Pi via logic level converter or direct connection
• Also supports ESP32 and other microcontrollers

Future Enhancement Options

• Integrate with WiFi modules for remote switching
• Use in voice-controlled smart home systems
• Combine with sensors for automation (temperature, motion, etc.)
• Add mobile app interface using Bluetooth or WiFi

Benefits

• Affordable and compact relay module for a wide range of projects
• Safe switching between high and low voltage circuits
• Improves the reliability of control systems
• Trusted component used by students and professionals alike
• Available at Bigyan Project with fast delivery in Bangladesh

Conclusion

The 2 Channel 5V Relay Module with optocoupler is an essential tool for anyone working with microcontroller-based automation and control systems. It offers safety, flexibility, and ease of use, making it suitable for beginners, hobbyists, and professionals. Whether you're building a smart home system or developing an industrial project, this relay module will meet your switching needs. Purchase now from Bigyan Project, the reliable platform for science and electronics projects in Bangladesh.
