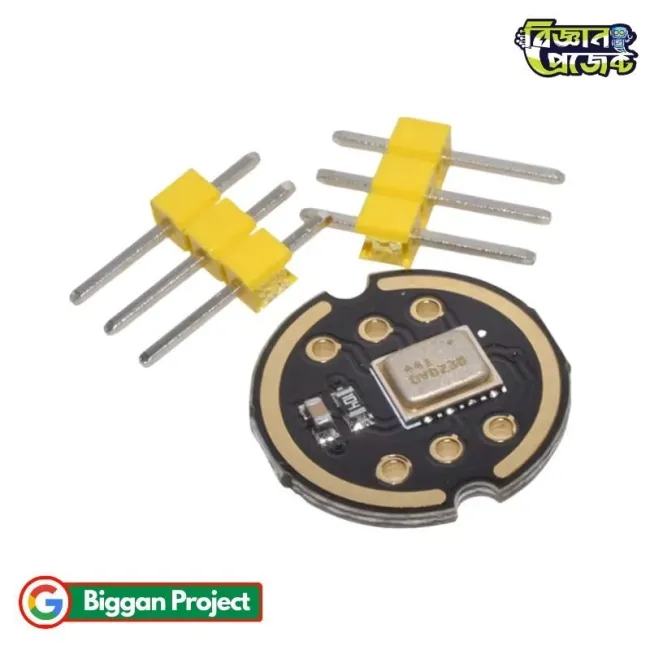

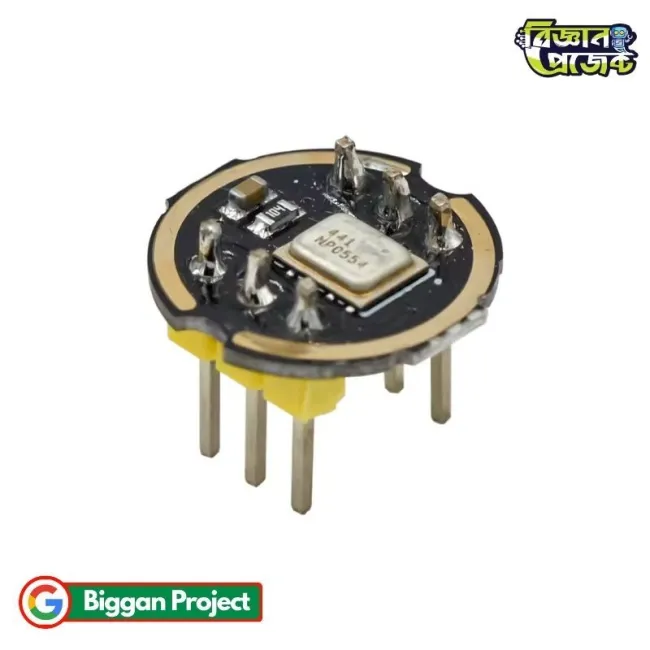

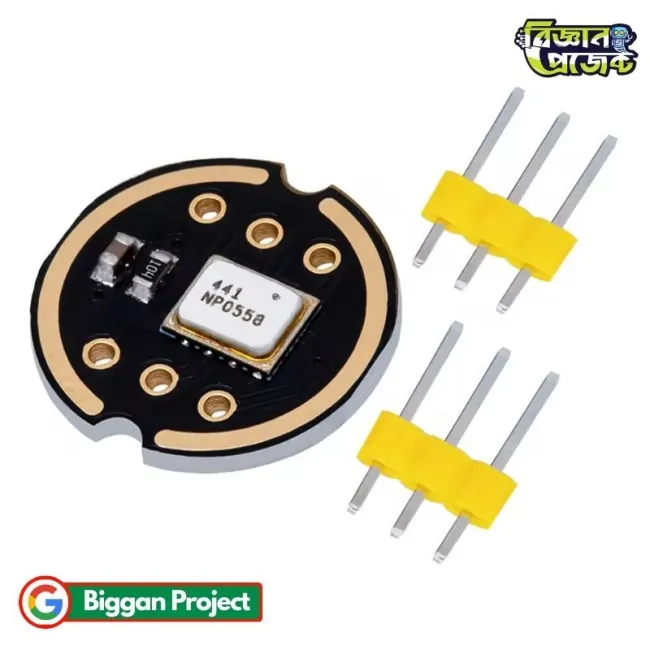

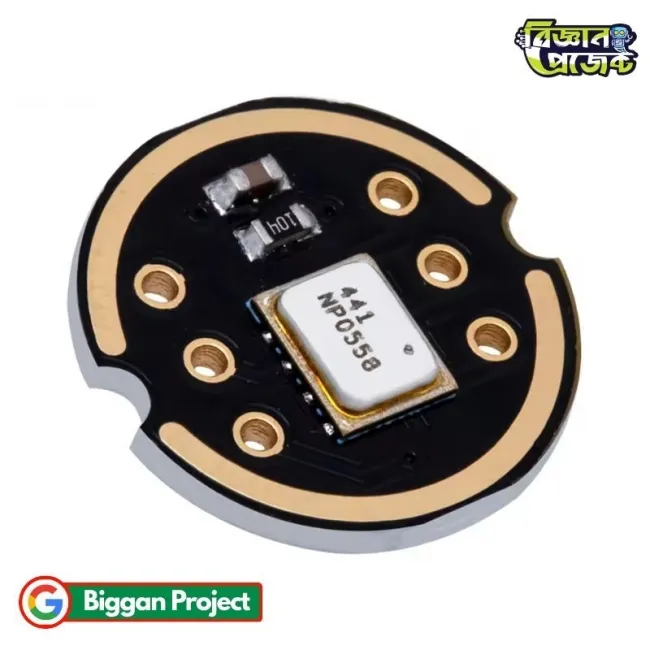

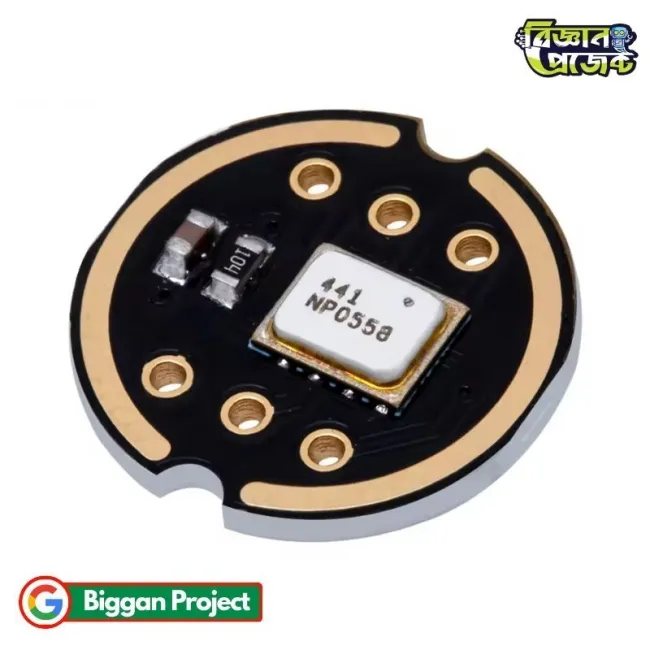

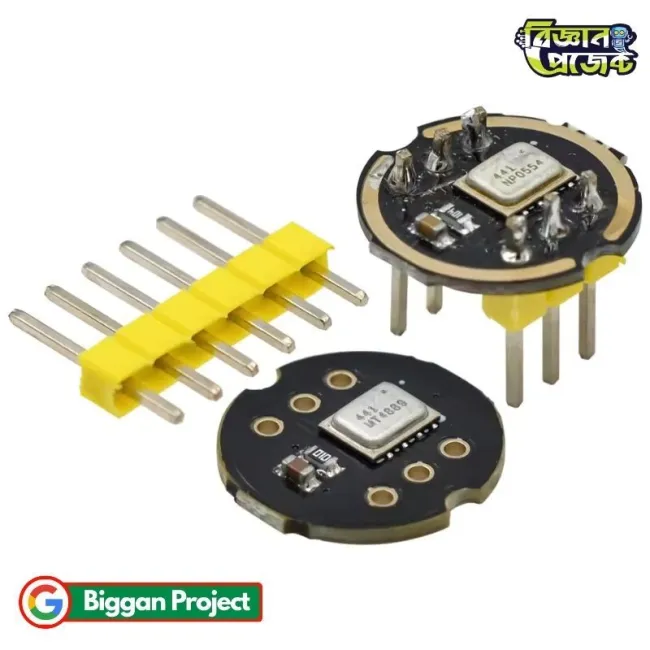

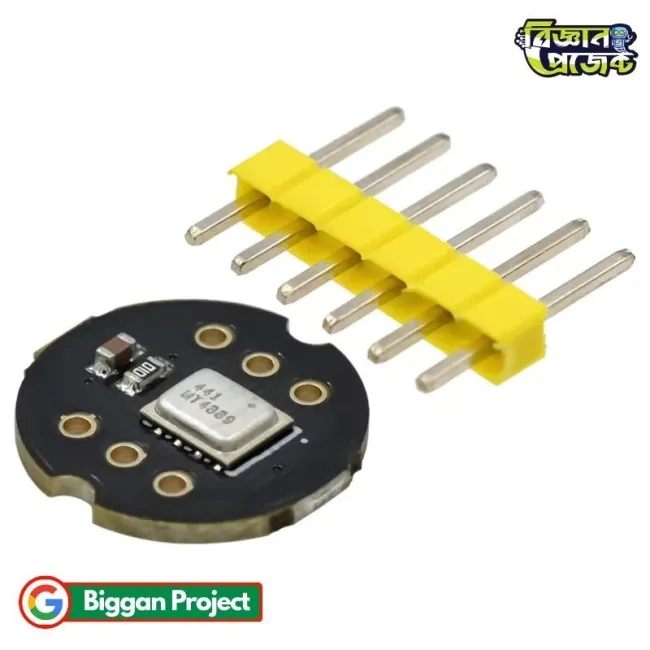

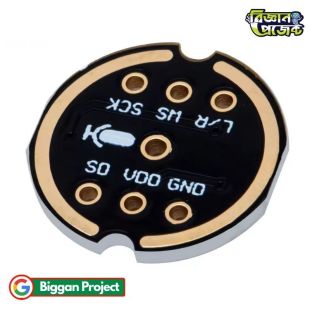

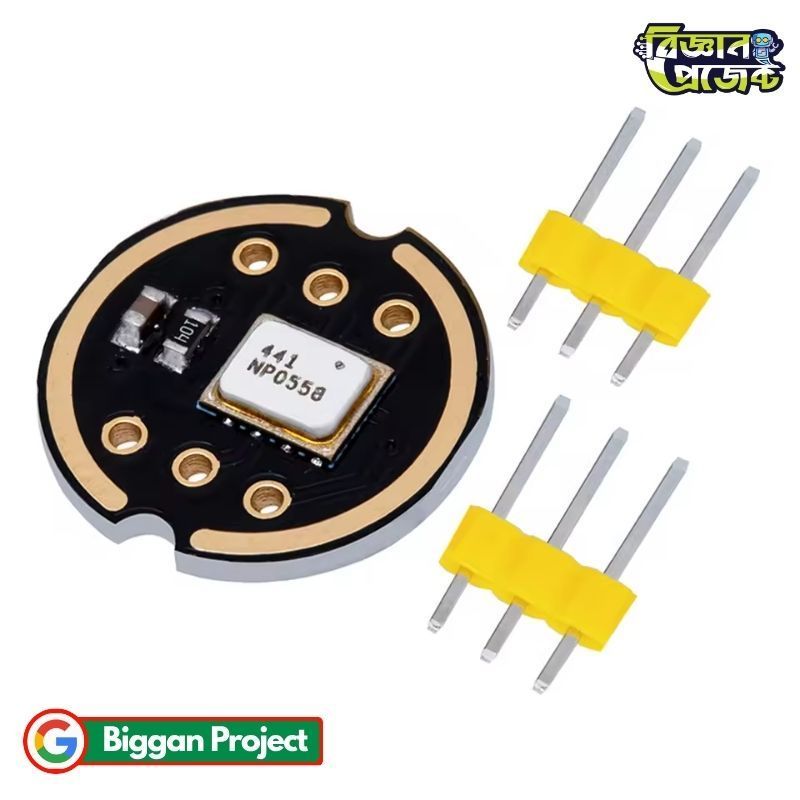

INMP441 I2S MEMS Omnidirectional Microphone Module

INMP441 24-bit Digital I2S MEMS Microphone Module for ESP32 and IoT Projects

The INMP441 I2S MEMS Microphone Module is a high-performance digital omnidirectional microphone designed for modern embedded systems, IoT applications, and voice-enabled electronics projects. Built around the reliable INMP441 MEMS sensor, this module integrates a MEMS microphone element, signal conditioning circuit, analog-to-digital converter, anti-aliasing filter, power management system, and an industry-standard 24-bit I2S digital output interface.

Unlike traditional analog microphones, the INMP441 outputs digital audio data directly through the I2S interface, eliminating the need for an external audio codec. This makes it an excellent choice for developers working with ESP32, DSP processors, and other microcontrollers that support I2S communication.

With its high signal-to-noise ratio of 61 dBA, low power consumption, and wide frequency response range, the INMP441 module captures clear and natural audio for voice recognition, sound monitoring, smart home systems, and AI-based audio applications. Its compact size allows easy integration into portable and space-constrained projects.

Students, makers, and robotics enthusiasts in Bangladesh frequently use this module for science projects, IoT development, and smart automation systems. Biggan Project offers this INMP441 microphone module for educational, research, and professional electronics applications in BD.

Product Specifications

Features

• High-performance digital MEMS microphone sensor.
• 24-bit high-precision digital audio output.
• Industry-standard I2S communication interface.
• High signal-to-noise ratio for clear sound capture.
• Wide frequency response for natural audio reproduction.
• Ultra-low current consumption of only 1.4 mA.

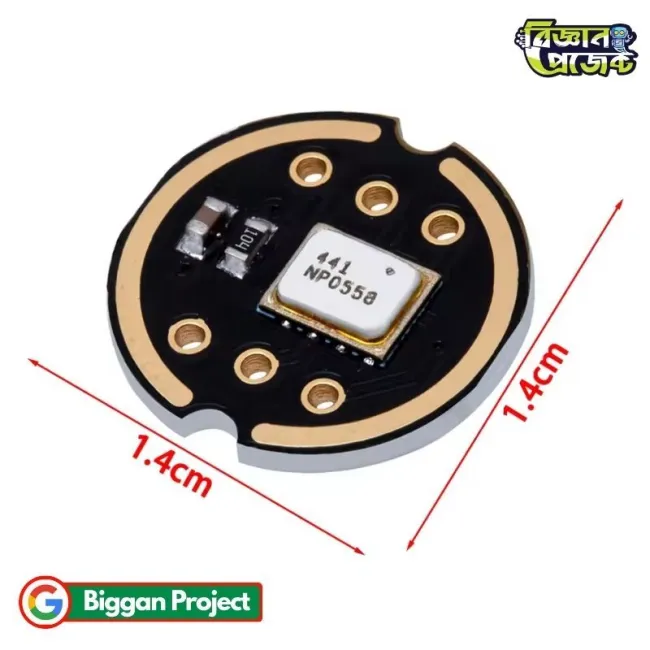

• Compact and lightweight module suitable for embedded systems.
• Selectable left or right audio channel output.
• Direct connection to ESP32 without additional audio codec.
• Excellent noise immunity and power supply rejection.

Applications / Use Cases

• ESP32 voice recognition projects.
• Smart home voice control systems.
• IoT sound monitoring applications.
• Audio recording systems.
• Speech processing and AI projects.
• Robotics and automation projects.
• Noise detection and environmental monitoring.
• Science fair and educational projects.
• Smart assistants and voice-activated devices.
• DIY electronics and embedded development.

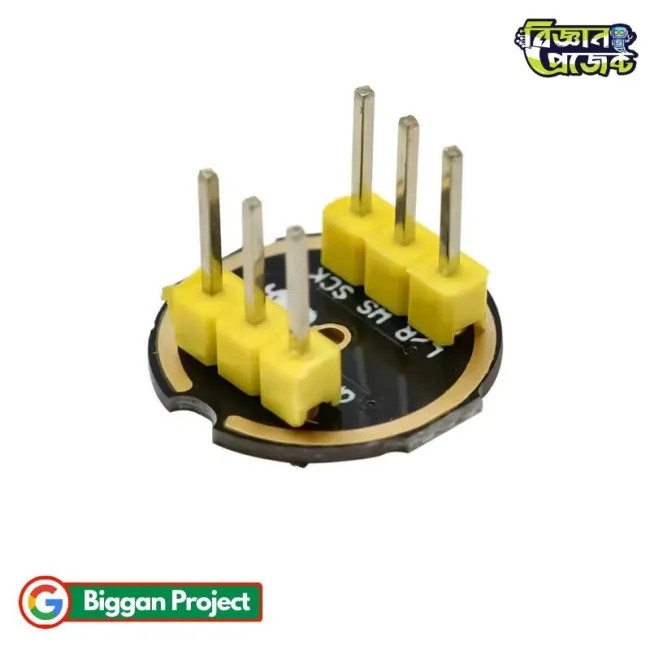

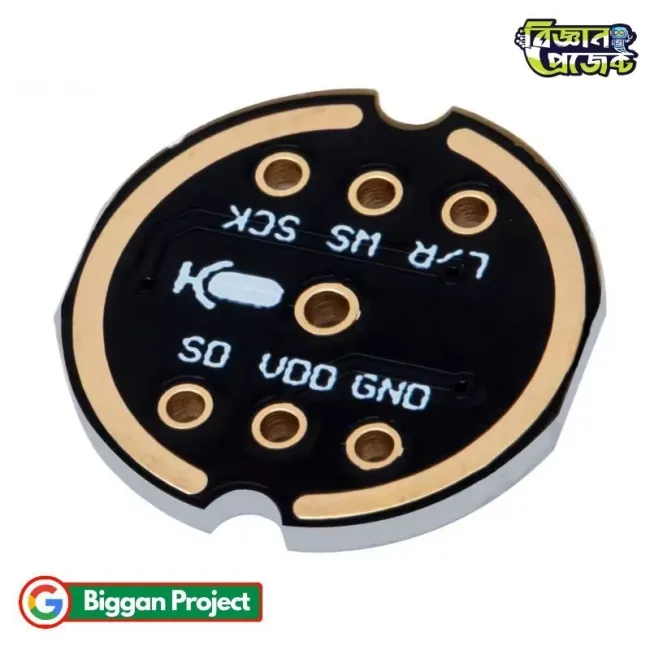

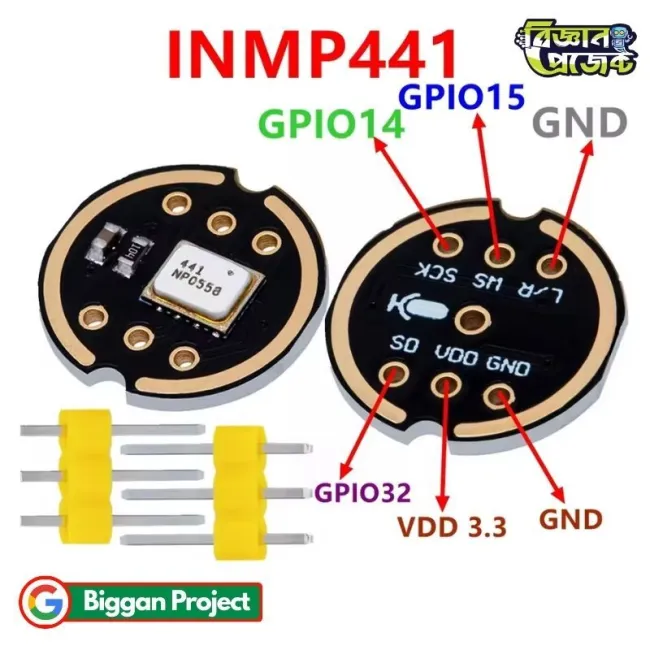

User Guide / How to Use

• Supply the module with 1.8V to 3.3V DC.
• Connect the VCC pin to the microcontroller power output.
• Connect GND to the system ground.
• Connect SCK to the microcontroller I2S clock pin.
• Connect WS to the I2S word select pin.
• Connect SD to the I2S data input pin of the microcontroller.
• Select left or right audio channel using the L/R pin.
• Configure the I2S peripheral in software.
• Upload the program and start receiving digital audio samples.
• Process or store the captured audio as required.

Frequently Asked Questions (FAQs)

• Q: Is this microphone compatible with ESP32?
  A: Yes, the INMP441 is widely used with ESP32 boards through the I2S interface.
• Q: Does this module require an external audio codec?
  A: No, the module provides direct digital audio output through I2S.
• Q: What voltage should be supplied to the module?
  A: The recommended operating voltage is between 1.8V and 3.3V DC.
• Q: Can this microphone capture sound from all directions?
  A: Yes, it is an omnidirectional microphone capable of capturing sound from all directions.
• Q: Is this suitable for voice recognition projects?
  A: Yes, its high sensitivity and digital output make it ideal for voice recognition applications.

Challenges and Considerations

• The host microcontroller must support I2S communication.
• Proper software configuration is required for stable audio acquisition.
• Use clean and stable power to minimize noise.
• Long signal wires may introduce interference.
• The module operates only up to 3.3V and should not be connected directly to 5V systems.

Compatibility

• ESP32 Development Boards
• ESP32-S2 and ESP32-S3 Boards
• STM32 Microcontrollers with I2S
• Arduino-compatible boards with I2S support
• DSP Processors
• Raspberry Pi with I2S interface
• Custom embedded systems supporting I2S communication

Future Enhancement Options

• Add advanced noise reduction algorithms.
• Integrate with AI voice assistants.
• Implement speech-to-text functionality.
• Use multiple microphones for beamforming applications.
• Develop smart sound detection systems.
• Create cloud-connected audio monitoring solutions.

Benefits

• Provides high-quality digital audio capture.
• Reduces external circuitry requirements.
• Saves PCB space due to compact size.
• Consumes very little power.
• Easy integration with ESP32 and IoT systems.
• Ideal for educational and professional development projects.
• Supports advanced audio processing applications.

Conclusion

The INMP441 I2S MEMS Microphone Module is an excellent solution for developers, students, and makers seeking reliable digital audio capture. Its high audio quality, low power consumption, compact design, and seamless compatibility with ESP32 and other I2S-enabled platforms make it a valuable component for modern IoT, robotics, AI, and embedded projects. Available from Biggan Project for electronics enthusiasts across Bangladesh and BD.
