5mm 4-Pin RGB LED Tricolor Common Cathode/Anode

5mm 4-Pin RGB LED Tricolor Through Hole Common Cathode Anode

The 5mm 4-pin RGB LED is a compact and highly versatile electronic component designed for modern lighting, signaling, and DIY electronics applications. This tricolor LED integrates three primary colors—red, green, and blue—into a single 5mm package, allowing users to generate a wide spectrum of colors through simple control techniques. Whether you are building Arduino-based systems, robotics, or embedded control panels, this component is an essential addition to your toolkit.

In Bangladesh and BD-based electronics projects, this RGB LED is widely used due to its simplicity, reliability, and flexibility. At Biggan Project, this LED is a popular choice among students, hobbyists, and engineers for creating interactive lighting systems, indicators, and visual feedback mechanisms. The availability of both common cathode and common anode configurations ensures compatibility with a wide range of circuit designs.

The working principle is straightforward: each internal LED (R, G, B) can be controlled independently. By adjusting the intensity of each color using PWM (Pulse Width Modulation), you can create smooth color transitions and millions of color combinations. This makes it ideal for applications ranging from simple indicators to advanced lighting effects.

Product Specifications

Features

• Integrated red, green, and blue LEDs in one compact package
• Supports full color mixing with PWM control

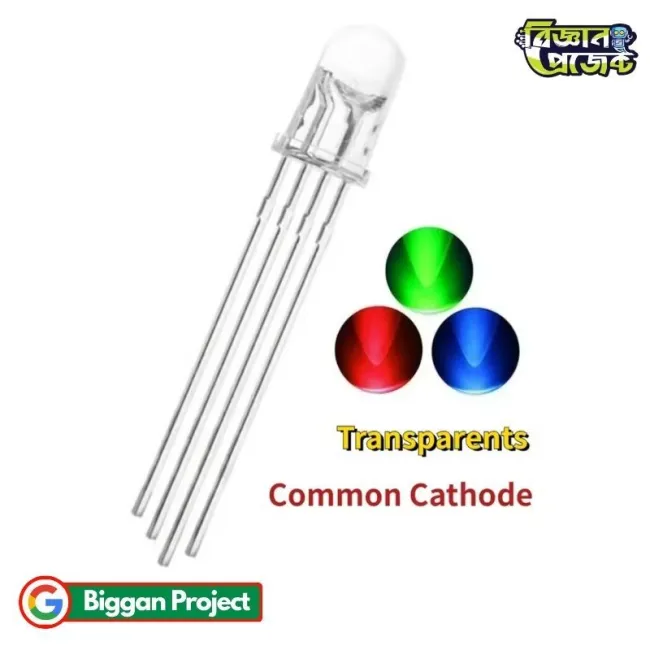

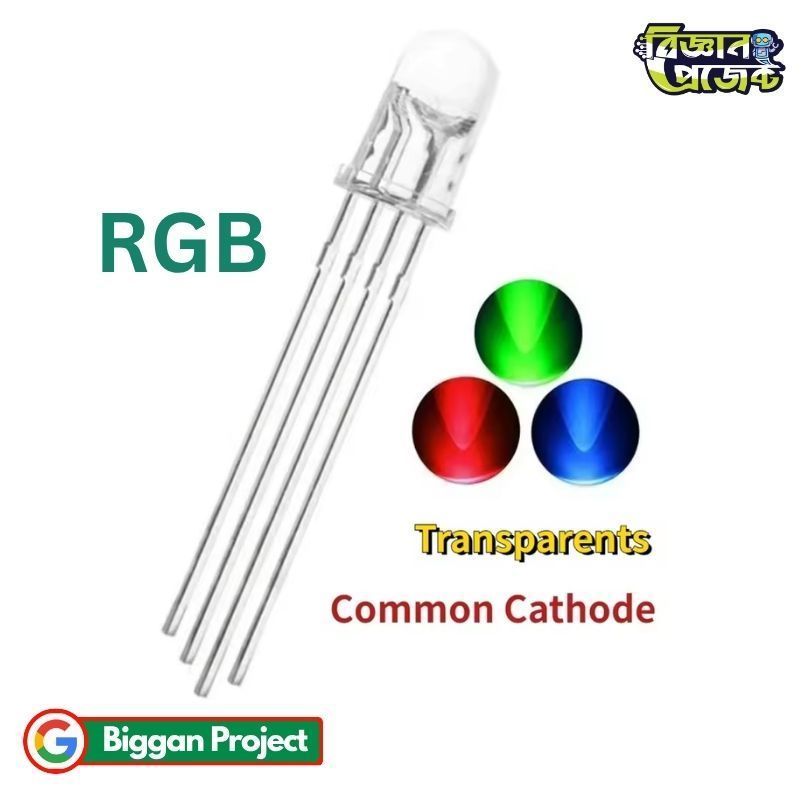

• Available in both common cathode and common anode types

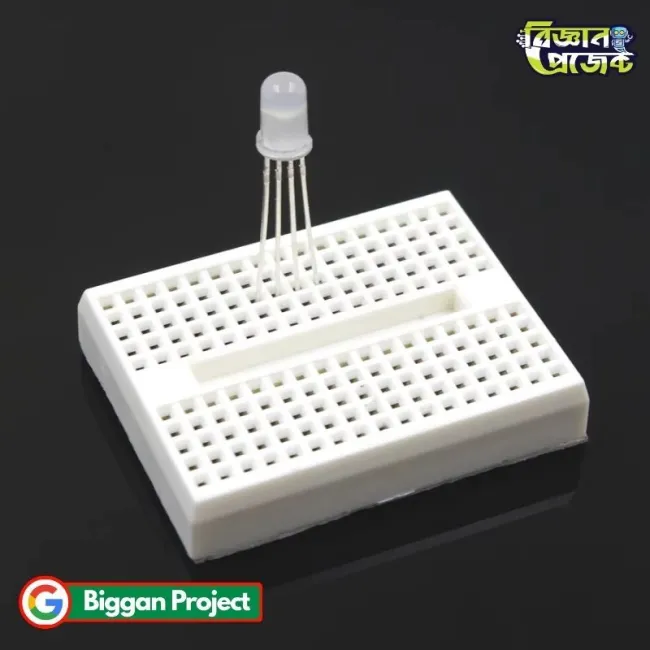

• Standard 5mm size compatible with breadboards and PCBs
• Low power consumption with stable brightness
• Easy to use in Arduino and microcontroller projects

Applications / Use Cases

• Arduino and microcontroller-based projects
• Robotics and automation systems
• Status indicators in electronic devices

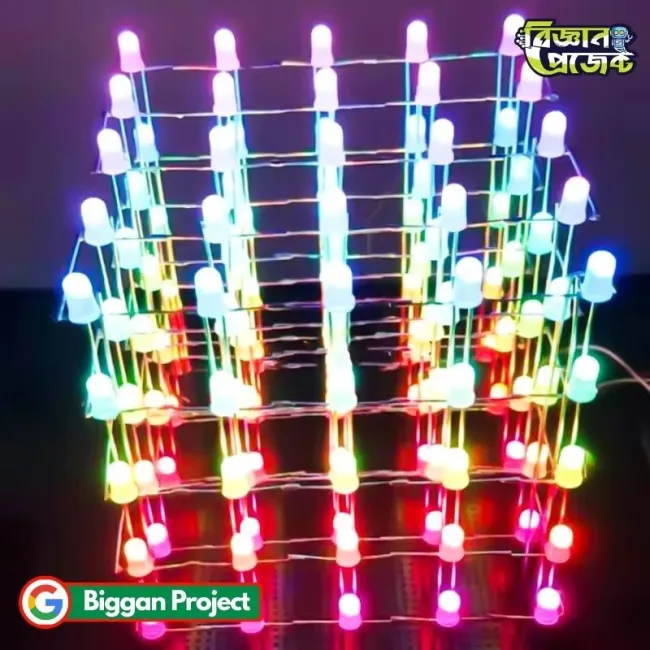

• DIY lighting and decorative projects
• Educational electronics experiments
• Control panels and signal indicators

User Guide / How to Use

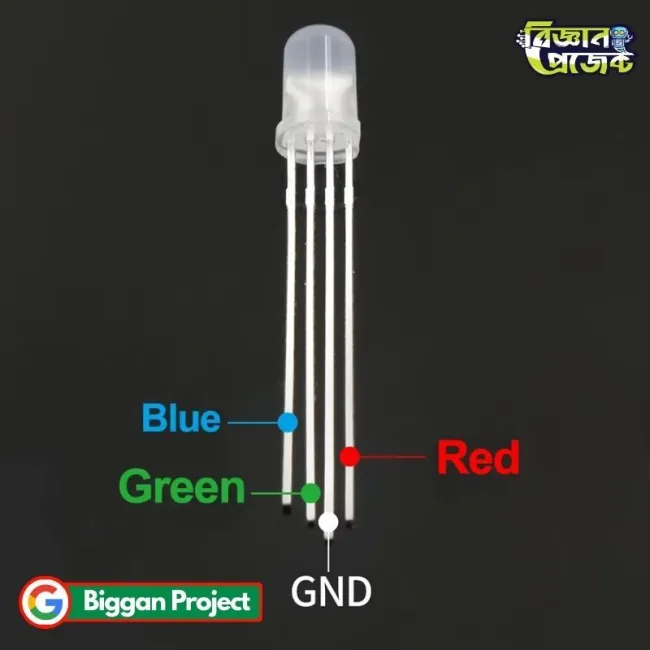

• Identify whether the LED is common cathode or common anode
• Connect the common pin to GND (cathode) or VCC (anode)
• Use a resistor (220Ω–330Ω) for each color pin
• Connect R, G, B pins to PWM-capable microcontroller pins
• Control brightness using PWM signals to create colors

Frequently Asked Questions (FAQs)

• Q: What is the difference between common cathode and common anode?
  A: In common cathode, all negatives are connected together; in common anode, all positives are connected together.
• Q: Can I use this LED with Arduino?
  A: Yes, it is fully compatible with Arduino and other microcontrollers.
• Q: Do I need resistors?
  A: Yes, current-limiting resistors are required to protect the LED.
• Q: How many colors can it produce?
  A: By mixing RGB, it can produce millions of color combinations.

Challenges and Considerations

• Requires proper resistor selection to prevent damage
• Incorrect wiring can lead to malfunction
• Brightness may vary slightly between colors
• Needs PWM control for smooth color mixing

Compatibility

• Arduino Uno, Nano, Mega
• Raspberry Pi GPIO control
• ESP32 and ESP8266 boards
• Standard breadboards and PCBs
• General embedded systems

Future Enhancement Options

• Combine with sensors for reactive lighting systems
• Integrate with IoT platforms for remote control
• Use with LED drivers for higher brightness control
• Create animations using advanced libraries

Benefits

• Compact design saves space in circuits
• Multi-color output reduces component count
• Flexible configuration for different projects
• Cost-effective solution for lighting and indicators
• Widely available and easy to integrate

Conclusion

The 5mm 4-pin RGB LED is a reliable and essential component for anyone working in electronics, whether beginner or advanced. Its ability to produce multiple colors from a single device makes it highly efficient for both functional and decorative applications. Available through Biggan Project in Bangladesh, it is a practical choice for building innovative and interactive electronic systems.
