Car Battery Charge Level Indicator LED Voltmeter 12V-72V

Universal LED Battery Capacity Meter & Charge Level Indicator for 12V-72V Lithium Batteries

The 12V-72V LED Battery Charge Level Indicator is a practical battery monitoring device designed to display the remaining battery capacity and voltage status in real time. It supports multiple lithium battery voltage systems including 12V, 24V, 36V, 48V, 60V, and 72V, making it suitable for a wide range of battery-powered applications.

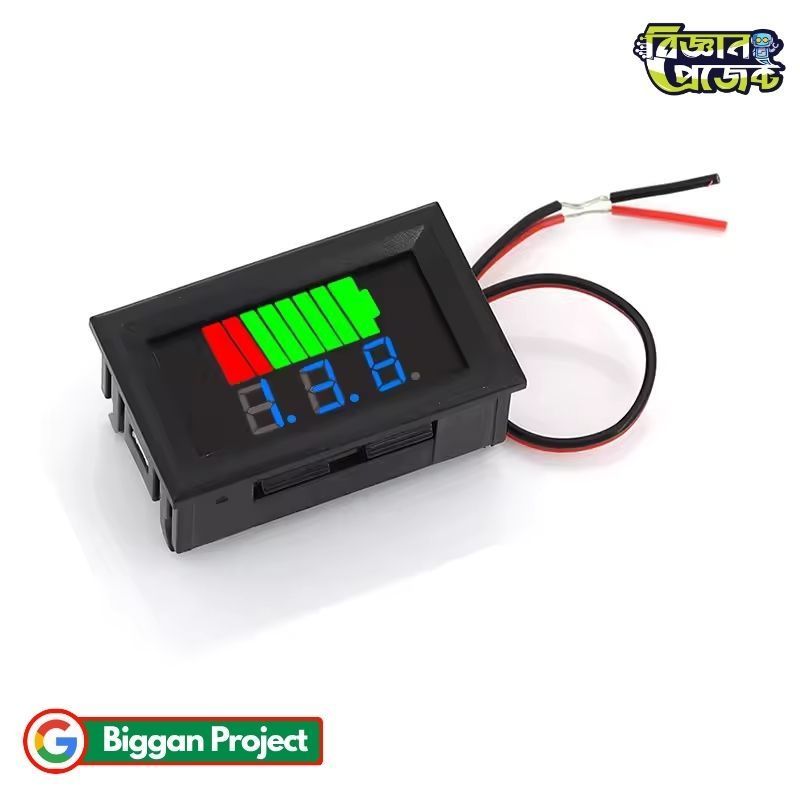

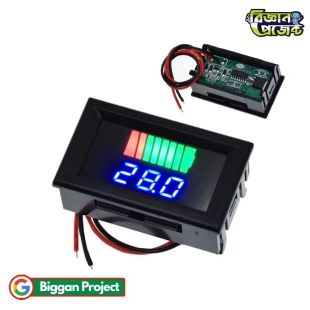

Featuring a bright LED display, this battery capacity meter allows users to quickly determine whether a battery requires charging or is ready for use. The compact and lightweight design makes installation simple, while the clear visual indicators help improve battery management and reduce unexpected power loss.

Whether you are building DIY electronics, maintaining electric vehicles, solar battery systems, portable power stations, or backup battery packs, this battery tester provides an easy and reliable way to monitor battery condition. It is an excellent choice for hobbyists, technicians, students, and professionals. At Biggan Project, many DIY enthusiasts and engineers in Bangladesh and BD choose battery monitoring modules like this for electronics development, repair projects, and educational experiments. The compact design also makes it suitable for science projects, robotics, and embedded system applications available through Biggan Project.

Product Specifications

Features

• Supports multiple battery voltage systems from 12V to 72V.
• Bright LED display for easy reading.
• Real-time battery capacity indication.

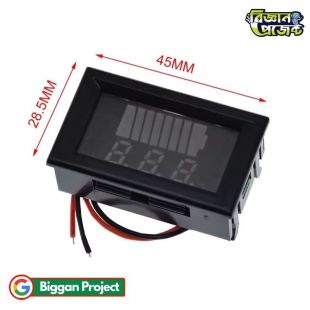

• Compact and lightweight construction.
• Suitable for lithium battery systems.
• Easy installation with simple wiring.
• Low power consumption during operation.

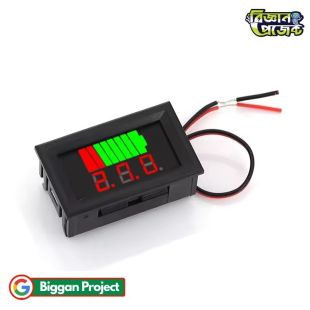

• Available with Blue or Red LED display.
• Ideal for permanent battery monitoring.
• Reliable for DIY and professional applications.

Applications / Use Cases

• Electric bicycles (E-Bikes)
• Electric scooters
• Electric motorcycles
• Solar energy storage systems
• Portable battery packs
• DIY electronics projects
• Robotics projects
• Battery maintenance workshops
• Educational laboratories
• Industrial DC battery systems

User Guide / How to Use

• Verify your battery voltage before installation.
• Connect the indicator to the battery terminals using correct polarity.
• Secure all wiring connections.
• Power on the battery system.
• Observe the LED display to check battery capacity.
• Recharge the battery when the indicator shows a low charge level.
• Periodically inspect wiring for reliable operation.

Frequently Asked Questions (FAQs)

• Q: Which batteries are supported?
  A: It supports lithium battery systems operating at 12V, 24V, 36V, 48V, 60V, and 72V.
• Q: Can it display battery voltage continuously?
  A: It provides continuous battery status monitoring while connected.
• Q: Is it suitable for DIY projects?
  A: Yes. It is widely used in DIY electronics, robotics, and battery-powered systems.
• Q: Does it require a separate battery?
  A: No. It operates directly from the connected battery system.
• Q: Is installation complicated?
  A: No. Installation is simple with standard DC wiring connections.

Challenges and Considerations

• Always match the indicator with the correct battery voltage.
• Ensure correct polarity during installation.
• Protect the module from excessive moisture.
• Avoid short circuits while wiring.
• Install securely to prevent vibration damage.
• Use quality connectors for stable readings.

Compatibility

• 12V Lithium Battery Systems
• 24V Lithium Battery Systems
• 36V Lithium Battery Systems
• 48V Lithium Battery Systems
• 60V Lithium Battery Systems
• 72V Lithium Battery Systems
• Electric Vehicles
• Battery Packs
• Solar Power Systems
• DIY Electronic Projects

Future Enhancement Options

• Add waterproof enclosure.
• Integrate Bluetooth monitoring.
• Include programmable battery calibration.
• Add OLED or LCD display version.
• Support additional battery chemistries.
• Enable mobile app monitoring.

Benefits

• Instant battery status monitoring.
• Helps prevent unexpected battery discharge.
• Easy to install and operate.
• Suitable for numerous battery-powered devices.
• Compact size saves installation space.
• Improves battery maintenance efficiency.
• Useful for both beginners and professionals.
• Excellent for electronics projects available through Biggan Project in Bangladesh.

Conclusion

The 12V-72V LED Battery Charge Level Indicator is an effective battery monitoring solution for lithium battery systems. Its wide voltage compatibility, bright LED display, compact design, and simple installation make it an excellent choice for electric vehicles, battery packs, solar systems, DIY electronics, and educational projects. Whether you are working on professional maintenance or building innovative projects through Biggan Project in Bangladesh (BD), this battery capacity meter provides dependable real-time battery monitoring.
