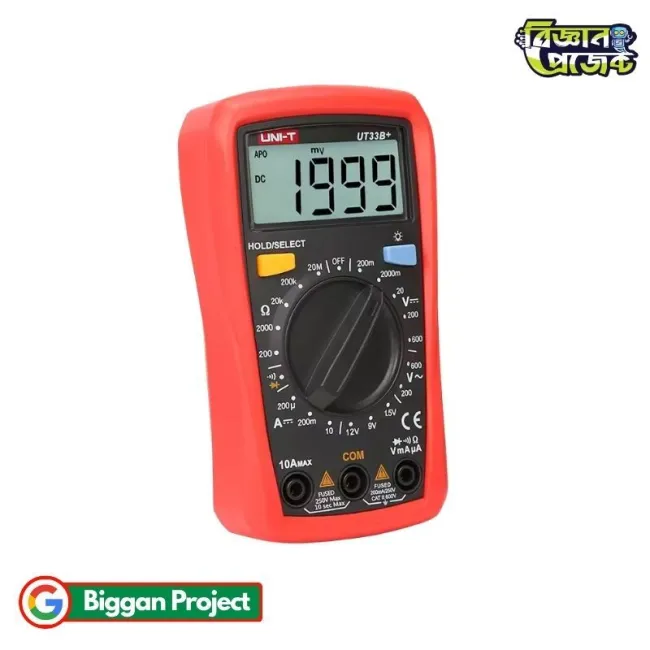

UNI-T UT33B+ Manual Range Digital Multimeter

UNI-T UT33B+ Digital Multimeter Manual Range AC DC Voltage Current Resistance Tester

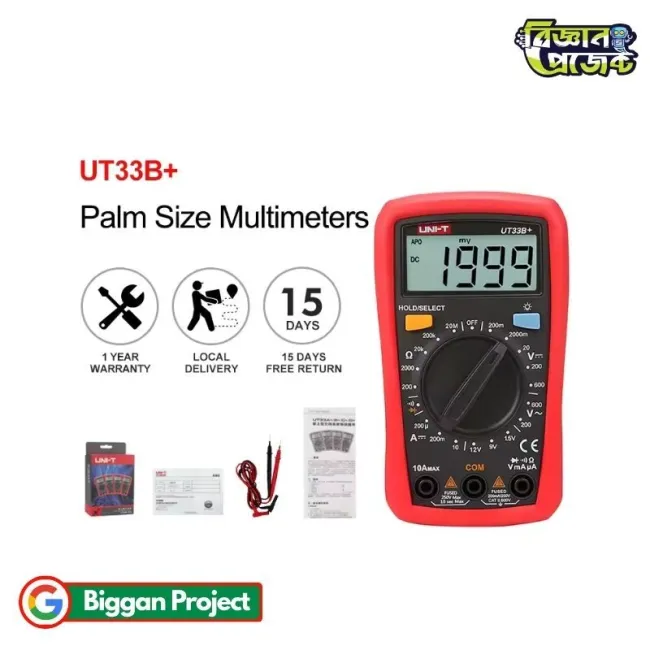

The UNI-T UT33B+ Digital Multimeter is a palm-sized, manual-ranging electrical measuring instrument designed to provide precise measurements for everyday electronic, electrical, and battery testing applications. Built with an ergonomic and highly durable shell capable of withstanding drops up to 2 meters, this versatile tool is suitable for students, hobbyists, circuit designers, and maintenance technicians in Bangladesh. The instrument functions by taking continuous analog signals, converting them via an integrated A/D converter, and displaying clear digital readings on its large 66mm x 51mm backlit LCD screen. Whether you are troubleshooting circuit boards, checking power supplies, or assembling a Biggan Project in BD, the UT33B+ delivers dependable diagnostic capability. A key feature of the UT33B+ variant is its dedicated battery testing function, which allows users to quickly evaluate the load condition of 1.5V, 9V, and 12V batteries under realistic testing states. With built-in overload protection, CAT II 600V safety rating, integrated probe holders, and automatic power management, this meter serves as a foundational instrument for any electronics lab, workbench, or educational project in Bangladesh.

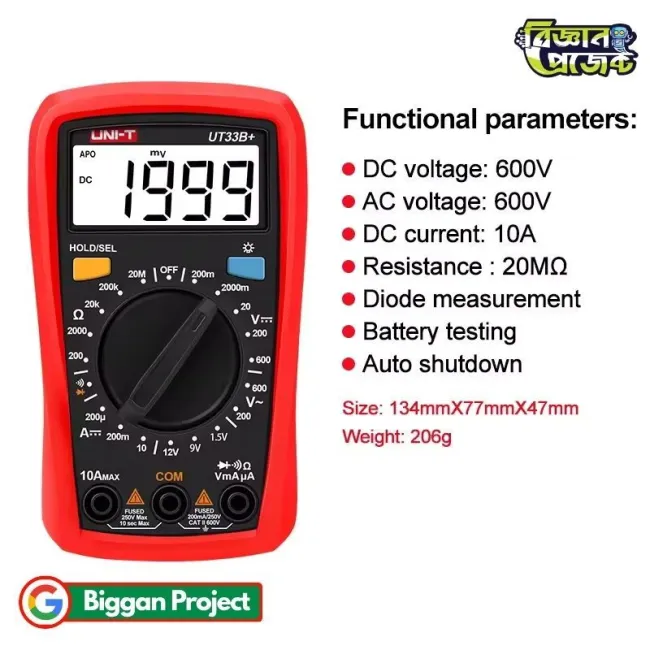

Product Specifications

Features

• Manual range selection dial for precise measurement threshold control.
• Dedicated 1.5V, 9V, and 12V battery status testing with quick LCD feedback.
• Rugged protective casing designed to withstand accidental drops up to 2 meters.

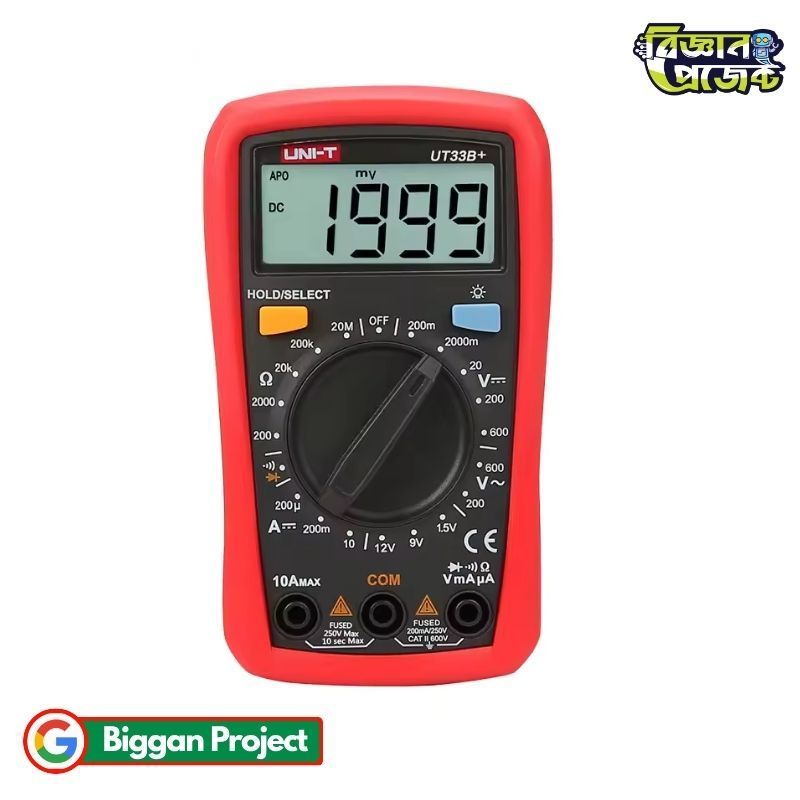

• Large backlit LCD display for high visibility in dimly lit environments.
• CAT II 600V safety standard certification for user safety during electrical testing.

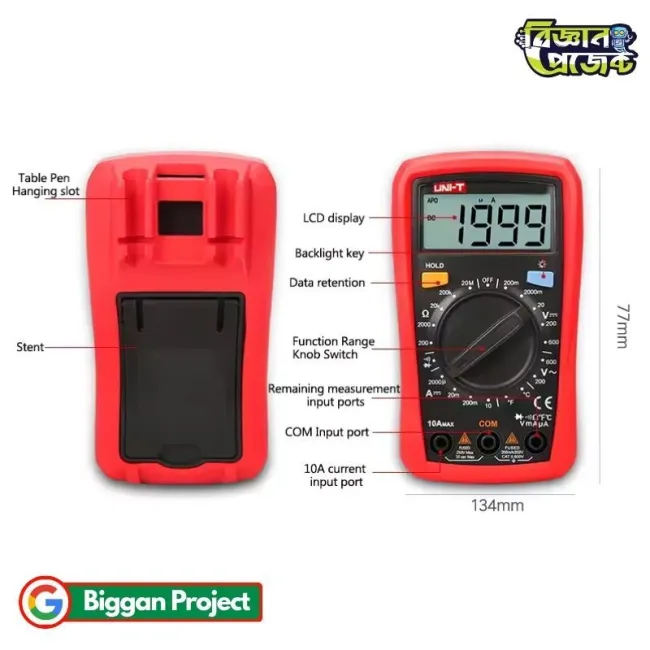

• Built-in test lead holder slots on the rear body for neat storage and single-handed probing.
• Auto power-off and auto backlight shut-off to extend battery operational lifespan.

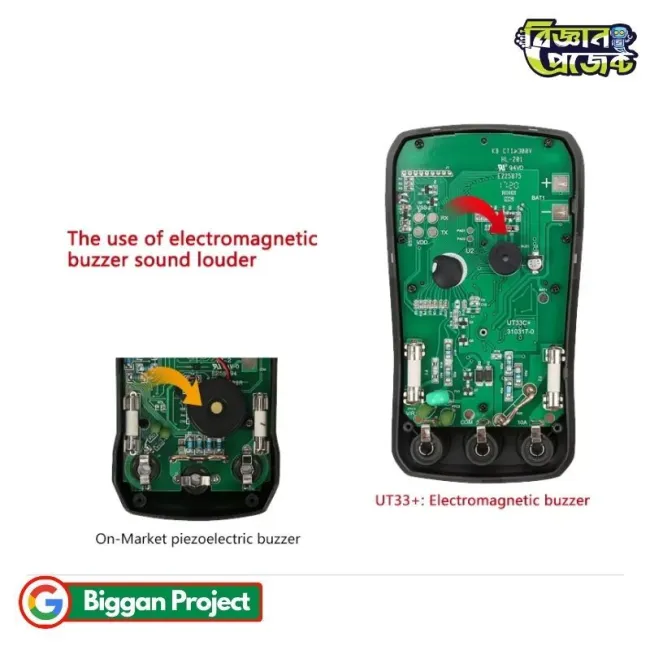

• Integrated diode test function and continuity buzzer for basic component checking.

Applications / Use Cases

• Testing charge levels of dry cell, alkaline, and rechargeable batteries (1.5V, 9V, 12V).
• Troubleshooting microcontrollers, sensor modules, and power rails in a Biggan Project in BD.
• Checking DC supply rails and transformer output voltages on DIY electronic boards.
• Verifying resistor values and trace continuity during PCB assembly and repair work.
• Measuring load currents in low-voltage DC electronics and basic automotive circuits.
• Practical educational experiments in physics labs, technical institutes, and engineering colleges.

User Guide / How to Use

• Insert the black test lead into the COM jack and the red test lead into the main V/Ω/mA jack (or 10A jack for currents above 200mA).
• Rotate the central selection dial to the desired parameter (DCV, ACV, DCA, Resistance, or Battery Test) and choose the appropriate range value.
• For DC/AC Voltage measurements, connect the probe tips in parallel across the circuit component or supply terminals under test.
• For DC Current measurements, connect the meter in series with the circuit path, ensuring total current does not exceed the selected range.
• For Resistance or Continuity tests, disconnect all power sources from the target circuit before touching probes to the test points.
• For Battery Testing, set the dial to 1.5V, 9V, or 12V, touch probes to battery terminals, and observe the Good/Low/Bad reading on the LCD.
• Turn the dial to OFF after completing measurements to conserve internal battery charge.

Frequently Asked Questions (FAQs)

• Q: Can the UT33B+ measure AC current?
  A: No, the UT33B+ model measures AC Voltage and DC Current, but does not support AC Current measurement.
• Q: How does the battery testing feature work on this multimeter?
  A: When selected, it applies a light internal load to the tested 1.5V, 9V, or 12V battery and displays Good, Low, or Bad based on voltage under load.
• Q: What type of batteries does the UT33B+ multimeter require?
  A: It operates on two standard 1.5V AAA batteries, which are easily available across Bangladesh.
• Q: What should I do if the reading shows a negative sign on DC measurements?
  A: A negative sign indicates that the polarity of the test probes is reversed relative to the voltage or current flow. Simply swap the probe positions.

Challenges and Considerations

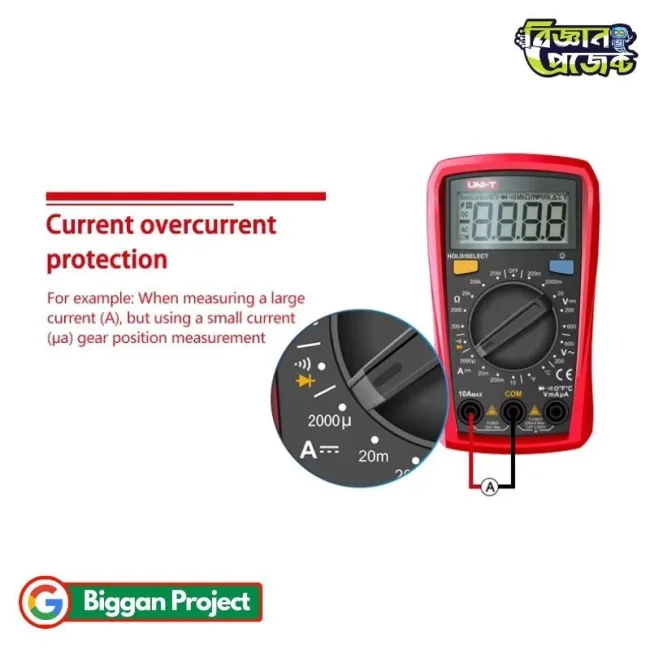

• Ensure the red lead is plugged into the 10A terminal before selecting the 10A current range to prevent blown internal protection fuses.

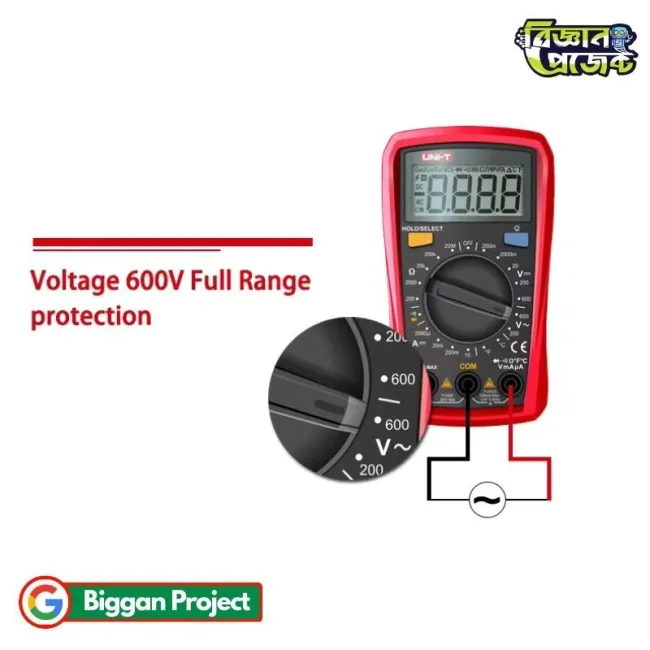

• Never apply voltages exceeding 600V DC or AC to avoid electrical damage and safety hazards.
• Always verify that power is fully disconnected from a circuit before measuring resistance or continuity.
• Manual range meters require manually choosing a range higher than the expected value to prevent over-range errors (indicated by "1" or "OL").

Compatibility

• Standard 4mm banana jack test leads and alligator clip adapter sets.
• 1.5V, 9V, and 12V dry cells, lead-acid batteries, and rechargeable lithium battery modules.
• Breadboards, electronic components, resistors, diodes, and low-voltage DC power supplies.
• Educational science kits, robotics platforms, and school project supplies in BD.

Future Enhancement Options

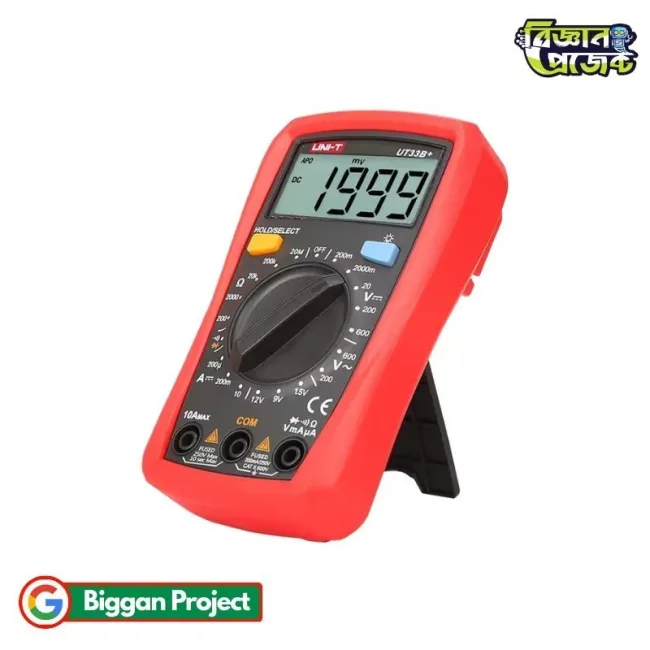

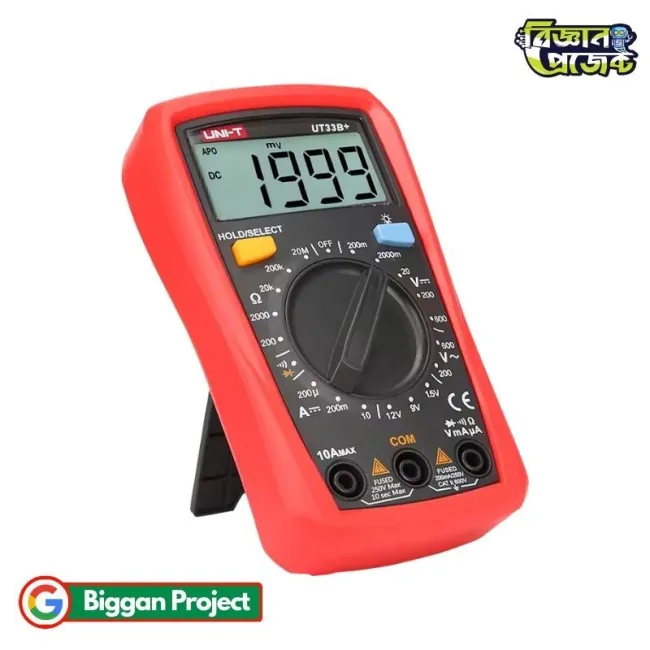

• Hands-free bench work using the integrated rear tilt-stand accessory.
• Upgrading to high-flex silicone insulated test leads for heavy-duty testing applications.
• Pairing with external clip-on probe adapters for easier connection to fine circuit board pins.

Benefits

• Provides essential electrical measurements in an economical, compact form factor.
• Battery health checking function simplifies diagnostic troubleshooting for household and hobby batteries.
• Durable, impact-resistant design reduces accidental damage during lab or field use.
• Easy-to-read backlit screen guarantees clear parameter visibility in any lighting condition.
• Ideal entry-level multimeter for students, technicians, and DIY builders across Bangladesh.

Conclusion

The UNI-T UT33B+ Digital Multimeter delivers a practical combination of accuracy, safety, and durability for everyday electronic testing. With its dedicated battery analysis feature, manual range control, and rugged drop-resistant design, it offers reliable performance for educational, home, and lab applications across BD.
