35mm Prewired Piezo Disc Buzzer Sensor Element

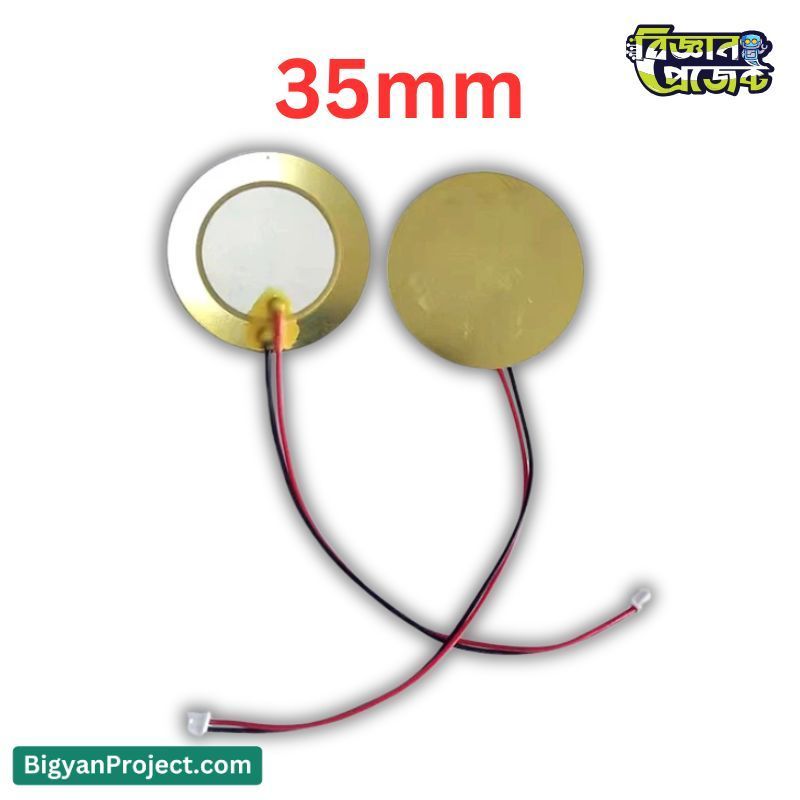

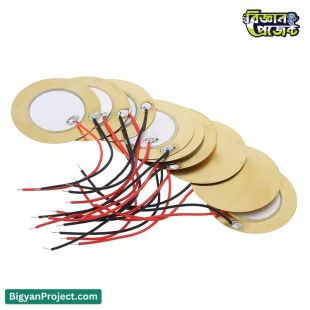

35mm Prewired Brass Piezoelectric Disc Sound Sensor

The 35mm Prewired Brass Piezoelectric Disc Sound Sensor is a versatile and highly sensitive audio and vibration detection component. Designed for projects ranging from simple sound-triggered devices to advanced audio sensing systems, this sensor offers reliable performance, wide frequency response, and easy integration into electronics projects. With pre-soldered wires, installation is simple, and its uncased brass disc design provides excellent sensitivity for detecting vibrations, knocks, or sound waves. At Bigyan Project, we ensure that every piezoelectric sensor meets quality standards, making it an ideal choice for both students and professionals working on science projects, prototyping, and hobby electronics.

Specifications

Features

• High sensitivity to sound and vibration
• Pre-soldered wires for quick installation
• Uncased design for maximum tonal response
• Wide frequency response suitable for sound detection
• Durable brass construction for long lifespan
• Lightweight and compact design
• Compatible with microcontroller-based projects such as Arduino
• Ideal for both educational and commercial applications

Applications / Use Cases

• Electronic drum triggers and percussion instruments
• Contact microphones for acoustic instruments
• Security alarms and vibration detection systems
• Sound-activated switches and lighting effects
• Speech and music recognition projects
• DIY science experiments and robotics
• Educational demonstrations in electronics

User Guide / How to Use

To use the 35mm Piezoelectric Disc Sound Sensor, connect the pre-soldered wires to your electronic circuit or microcontroller. The sensor generates a small voltage when subjected to vibrations or sound waves. This signal can be amplified and processed to trigger various functions such as activating an alarm, recording sound, or detecting a knock. For Arduino or similar microcontrollers, connect the signal wire to an analog or digital input pin, and use appropriate code to interpret the sensor readings.

Frequently Asked Questions (FAQs)

• Q: Can this sensor be used as a microphone?
  A: Yes, it can function as a contact microphone, ideal for picking up vibrations directly from surfaces or instruments.
• Q: Does it require an amplifier?
  A: For most applications, an amplifier improves signal strength and accuracy, especially for sound detection.
• Q: Is it waterproof?
  A: No, the sensor is not waterproof and should be used in dry environments.
• Q: Can I use it with Raspberry Pi?
  A: Yes, with the right interfacing circuitry, it works well with Raspberry Pi and similar boards.

Challenges and Considerations

• Piezo sensors can be sensitive to unwanted vibrations, requiring proper mounting for accuracy
• They produce a very low voltage signal that may need amplification
• Performance may vary depending on environmental noise levels
• Physical damage to the brass disc can reduce sensitivity

Compatibility

• Arduino Uno, Nano, Mega, and similar boards
• ESP32, ESP8266, and other IoT development boards
• Raspberry Pi with ADC module
• General-purpose audio amplifiers and detection circuits
• DIY and professional electronic kits

Future Enhancement Options

• Adding signal conditioning circuits for improved accuracy
• Integrating with wireless modules for remote vibration monitoring
• Embedding in smart home devices for automated responses
• Using multiple sensors for directional sound detection

Benefits

• Low-cost yet highly effective vibration and sound detection
• Easy to install with prewired connections
• Suitable for a wide range of projects
• Reliable performance for both hobby and professional use
• Available at Bigyan Project with assured quality

Conclusion

The 35mm Prewired Brass Piezoelectric Disc Sound Sensor is an essential component for electronics enthusiasts, students, and engineers who require a dependable sound or vibration detection solution. With excellent sensitivity, durability, and versatility, it is a valuable addition to any project. Whether you are building a musical instrument trigger, a security system, or an experimental prototype, this sensor offers performance you can trust. Bigyan Project proudly supplies this sensor to help innovators turn their ideas into reality.
