Arduino Object Following Robot Car Complete Project

Arduino 4WD Object Following Robot Car Fully Assembled Science Project

The Arduino 4WD Object Following Robot Car is a fully assembled, ready-to-run robotics solution engineered specifically for school, college, and university science exhibitions in Bangladesh. Building an autonomous robotics project from scratch can be challenging for students preparing for a Biggan Project presentation. This pre-assembled Object Following Robot eliminates hardware integration headaches by offering a completely wired, tested, and programmed smart car that detects, tracks, and follows target objects in real time.

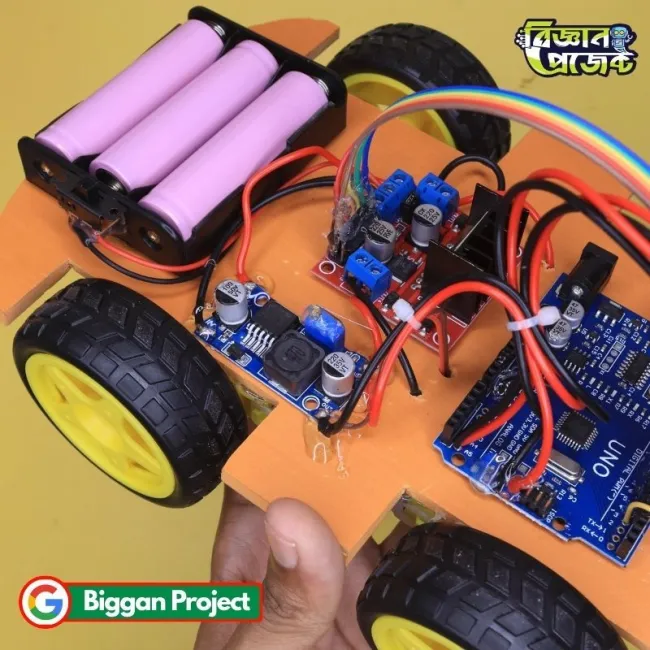

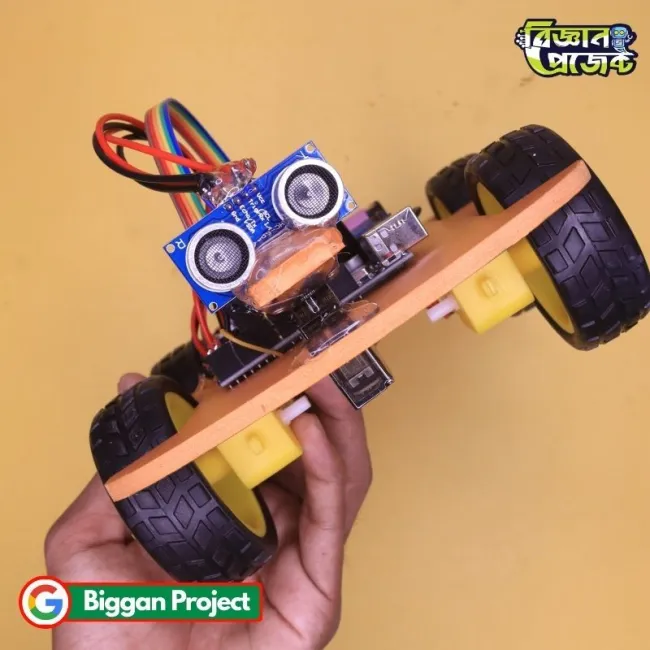

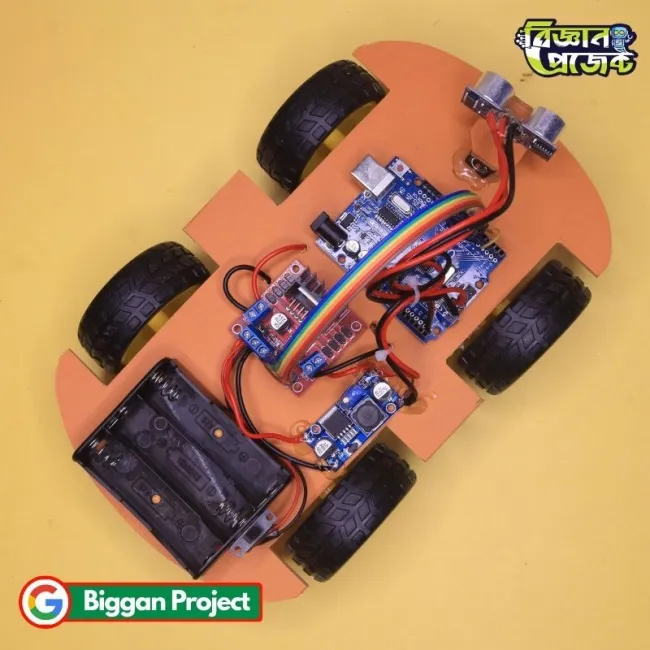

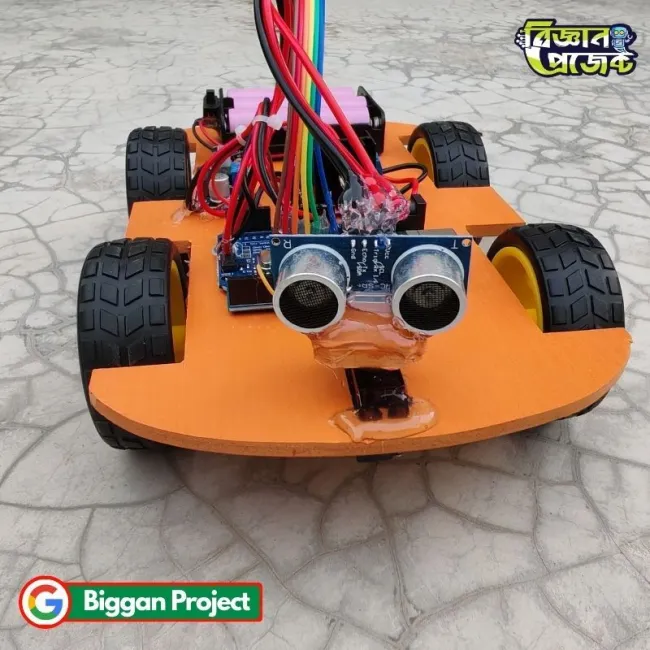

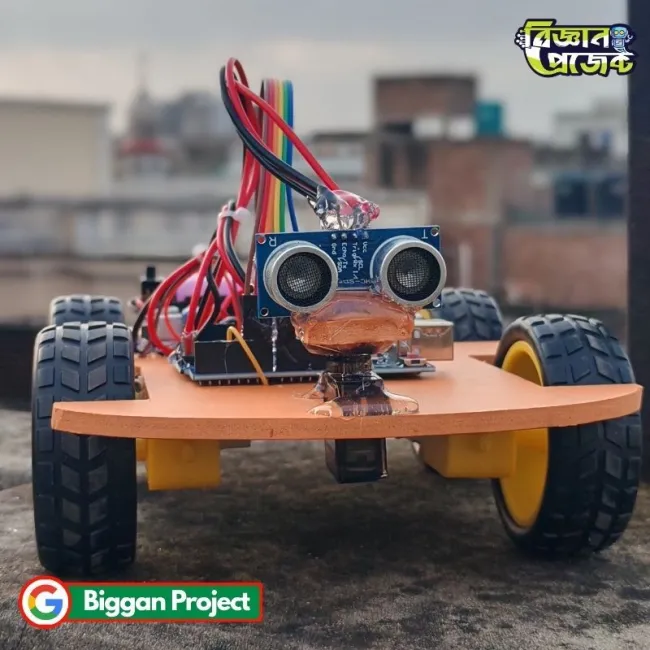

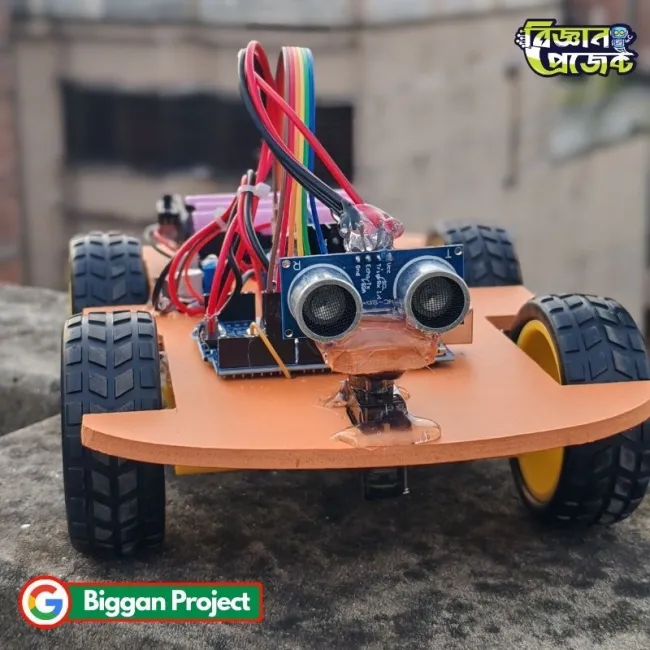

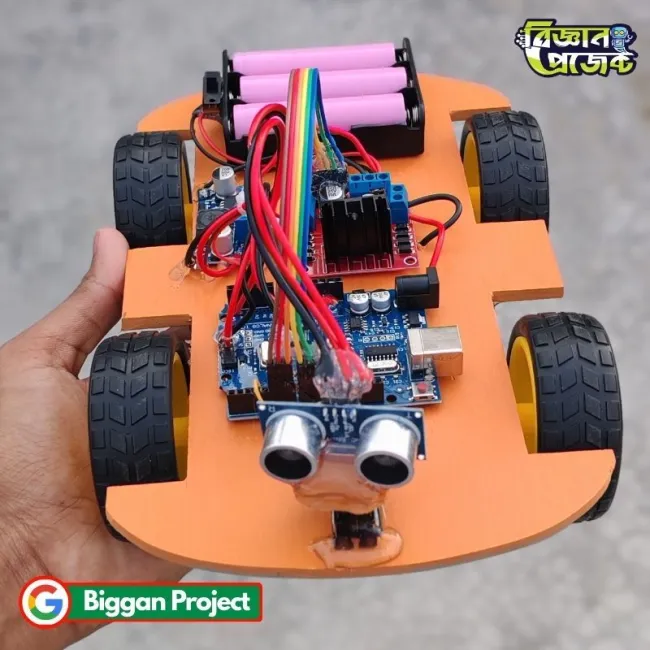

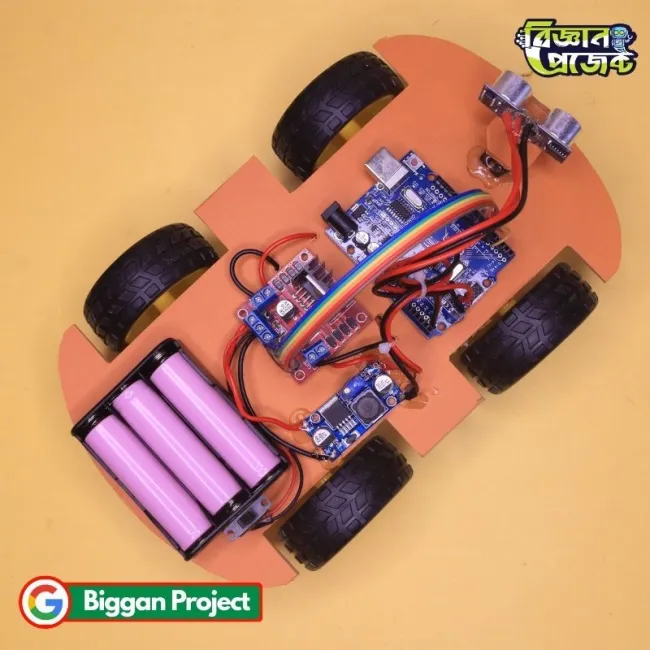

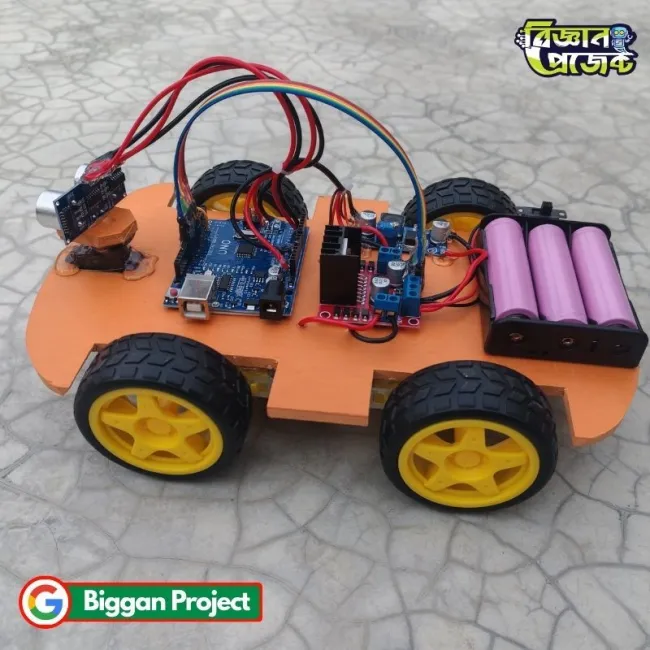

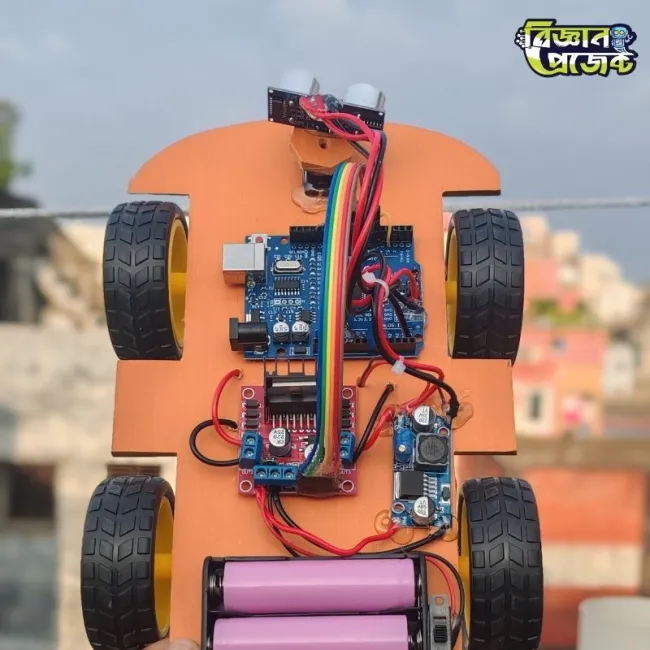

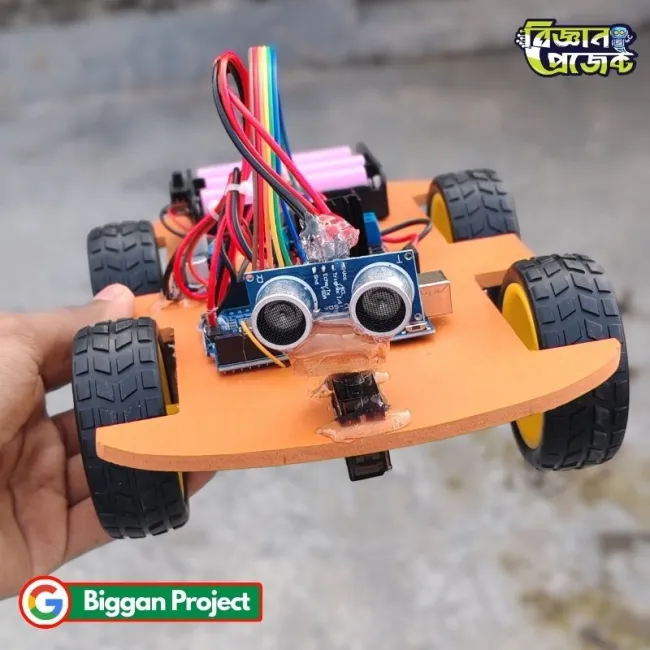

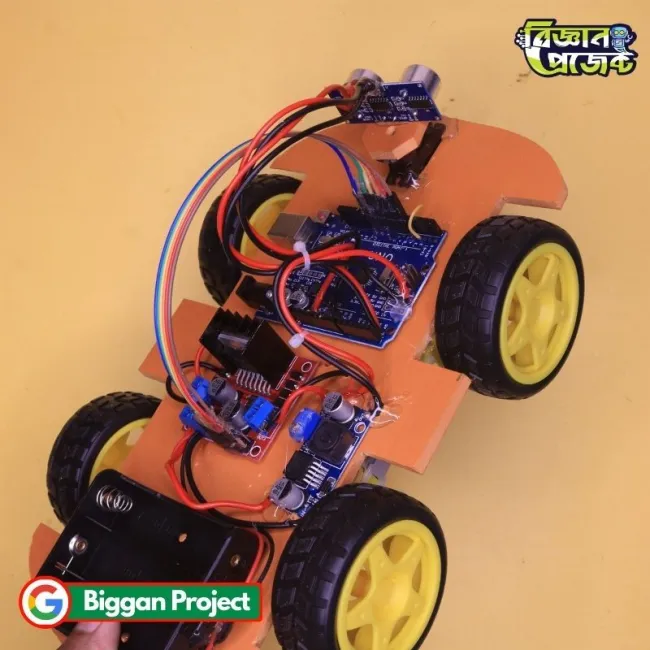

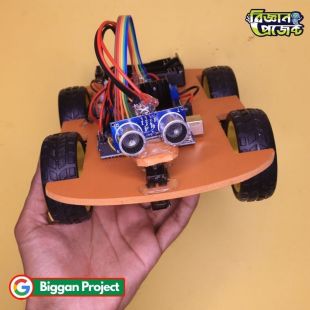

At the core of this system is the Arduino Uno R3 SMD Development Board paired with an HC-SR04 Ultrasonic Distance Sensor mounted on an MG90S metal-gear 180-degree servo motor. The servo continuously rotates the ultrasonic sensor from side to side, actively scanning the surroundings for objects within a 10cm to 25cm operational window. When an object enters this zone, the onboard algorithm calculates distance and orientation, directing the L298N dual H-bridge motor driver to activate four 100 RPM 3-6V TT gear motors. For enhanced safety during live demonstrations, the car includes an automated safety stop mechanism that prevents forward movement when an object is closer than 10cm, protecting the chassis and sensor array from collisions. Powered by three high-capacity 18650 Li-Ion rechargeable batteries regulated via an LM2596 DC-DC buck converter, this robot car provides reliable performance for electronics stores and robotics enthusiasts across BD.

Specifications

Features

• Pre-assembled and pre-programmed full project kit ready for instant science fair presentation in Bangladesh.

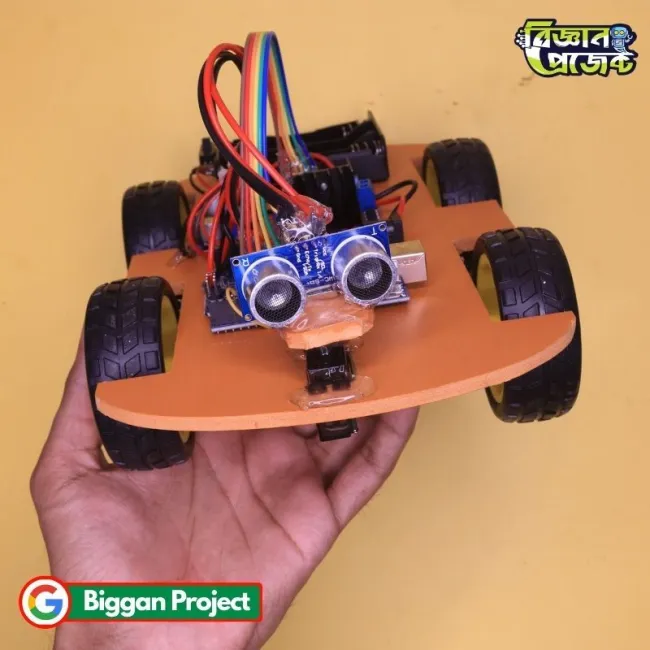

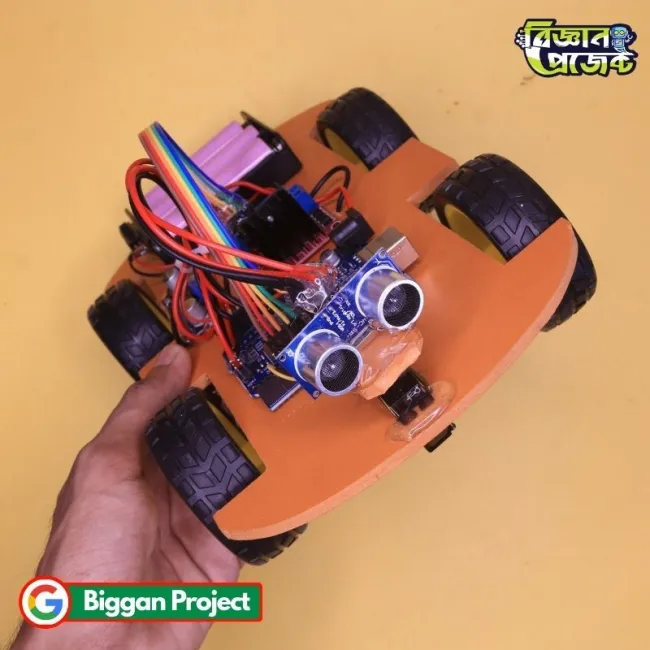

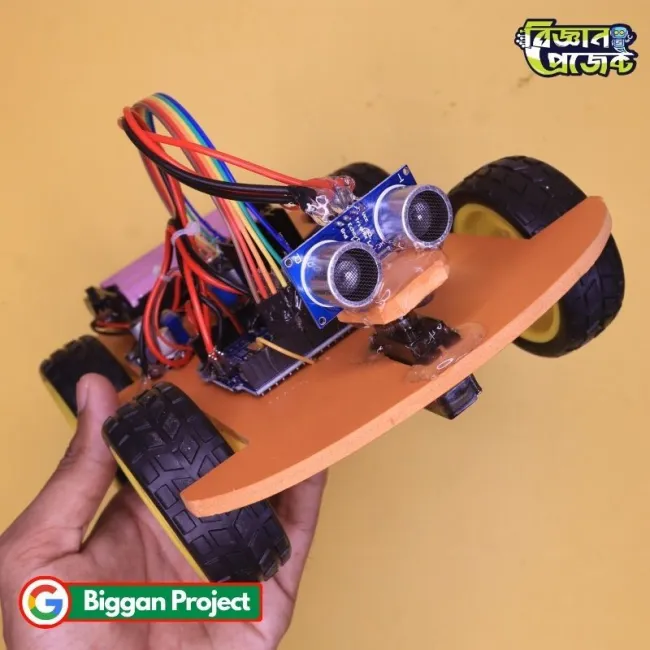

• Dynamic 180-degree environment scanning using an MG90S metal gear servo paired with an HC-SR04 ultrasonic sensor.
• Active target tracking maintaining a smooth follow distance between 10cm and 25cm.
• Automated safety logic halting forward motion when an obstacle is closer than 10cm to prevent accidental crashes.

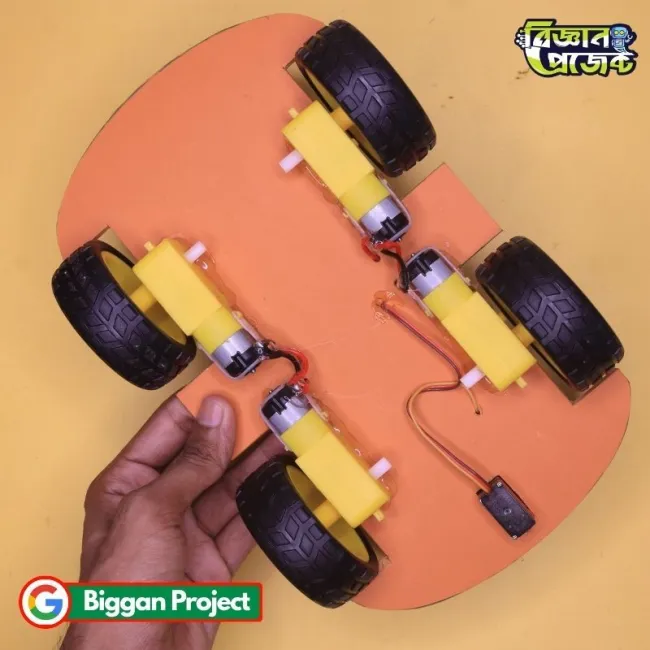

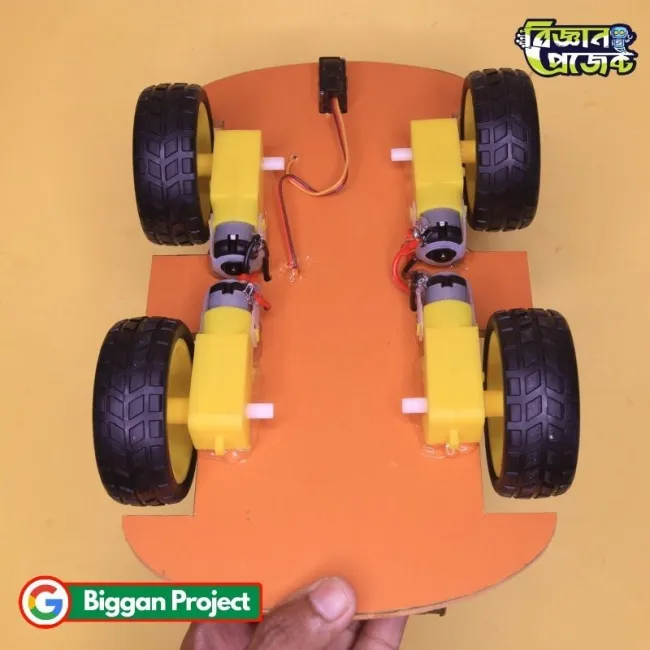

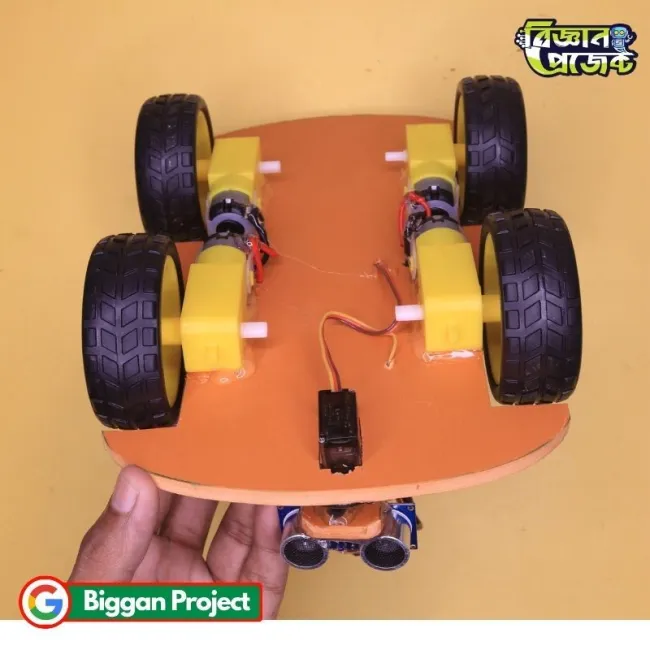

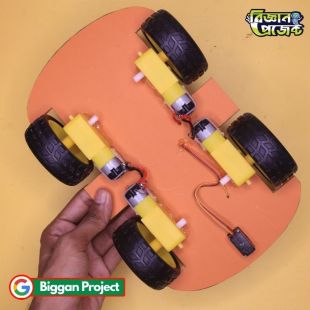

• Robust 4-wheel drive system powered by four 100 RPM TT BO gear motors for stable indoor navigation.
• Dedicated LM2596 buck converter supplying steady, noise-filtered voltage to the Arduino microcontroller and servo motor.
• High-capacity 3-cell 18650 Li-Ion battery power bank delivering extended runtime during project demonstrations.
• Solid 5mm PVC chassis offering structural durability and neat wire management using zip ties and flexible leads.

Applications / Use Cases

• National and district-level school and college Biggan Mela (Science Fair) project demonstrations.
• Practical learning model for university students studying embedded systems, robotics, and mechatronics in BD.
• Hands-on laboratory demonstration tool for teaching pulse-width modulation (PWM), sensor interfacing, and motor control.
• Base platform for autonomous vehicle navigation research and adaptive cruise control prototypes.
• STEM robotics workshops and hardware exhibition showcases.

User Guide / How to Use

• Unpack the Object Following Robot Car carefully, ensuring all wheels, sensors, and structural components are secure.
• Insert three fully charged 3.7V 18650 Li-Ion batteries into the 3-chamber battery holder observing correct polarity.
• Place the robot car on a smooth, flat indoor surface free of steep inclines or high-pile carpeting.
• Slide the main 6-pin switch to the ON position to supply power to the LM2596 buck converter, Arduino, and motor driver.
• Observe the MG90S servo motor as it sweeps the HC-SR04 sensor left and right to scan the forward area.
• Place your hand or a flat surface object 15cm to 20cm in front of the sensor; the car will begin moving forward to follow the target.
• Move the object closer than 10cm to verify that the automated safety stop engages to prevent collision.
• Turn off the main power switch immediately after use to conserve battery life.

Frequently Asked Questions (FAQs)

• Q: Is this robot car fully built or do I need to assemble it myself?
  A: It is a completely built, wired, and programmed project ready for immediate use and exhibition in BD.
• Q: How does the robot car detect and follow objects?
  A: The HC-SR04 ultrasonic sensor sweeps side to side on an MG90S servo, measuring distances to pinpoint target positions and signal the Arduino to adjust motor speeds.
• Q: What safety measures prevent the robot car from crashing into objects?
  A: The embedded software code sets a strict 10cm minimum safety threshold that stops the motors if an object gets too close.
• Q: How long do the 18650 batteries power the robot continuously?
  A: A fully charged set of 3pcs 18650 Li-Ion batteries typically provides 1.5 to 2.5 hours of active demonstration time depending on battery capacity.
• Q: Can I reprogram the Arduino Uno on this robot car?
  A: Yes, the Arduino Uno R3 SMD board can be connected directly to a computer via USB to modify or upgrade the C++ control code using the Arduino IDE.

Challenges and Considerations

• Requires a flat, relatively smooth operating surface for optimal tire traction and accurate motor tracking.
• Soft, sound-absorbing surfaces like curtains or thick plush fabrics may alter ultrasonic wave reflections and sensor accuracy.
• Batteries must be maintained at adequate charge levels, as depleted power can cause irregular servo sweeps or brownouts on the Arduino.
• Avoid manual force on the MG90S servo motor arm while powered to protect the internal gear train from mechanical stress.

Compatibility

• Fully compatible with standard Arduino IDE software (Windows, macOS, Linux) via USB Type-B cable interface.
• Compatible with standard 3.7V 18650 Li-Ion rechargeable cells and universal 18650 external chargers.
• Expandable hardware design compatible with additional Arduino sensor modules like IR line tracking, Bluetooth HC-05, or buzzer indicators.

Future Enhancement Options

• Integration of an HC-05 or HC-06 Bluetooth module to switch between automatic object following and smartphone manual control.
• Addition of an OLED display screen to output real-time distance measurements and operational status.
• Mounting IR line sensors underneath the chassis to create a hybrid Line Follower and Object Tracking dual-mode robot.
• Upgrading to an adjustable speed controller interface with dynamic PID speed regulation for smoother movement.

Benefits

• Saves valuable preparation time for Bangladeshi students needing a working, error-free science project on short notice.
• Built with industry-standard hobby robotics hardware (L298N, Arduino Uno, HC-SR04, MG90S) that enhances learning value.
• Reliable power management through an LM2596 step-down converter prevents system resets during high motor current draws.
• Interactive demonstration appeal with dynamic servo sweeping and responsive physical movement that captures attention at science fairs.

Conclusion

The Arduino 4WD Object Following Robot Car is an ideal, high-value robotics solution for students, educators, and makers in Bangladesh. Combining intelligent obstacle sensing, metal-gear servo rotation, dedicated power regulation, and robust 4-wheel drive mechanics, this completed project provides an impressive, reliable demonstration of modern autonomous robotics at any Biggan Project exhibition.
