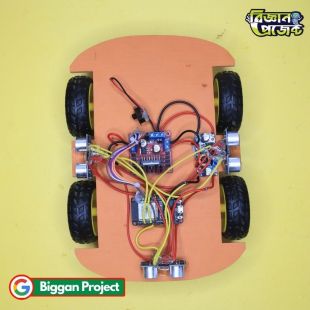

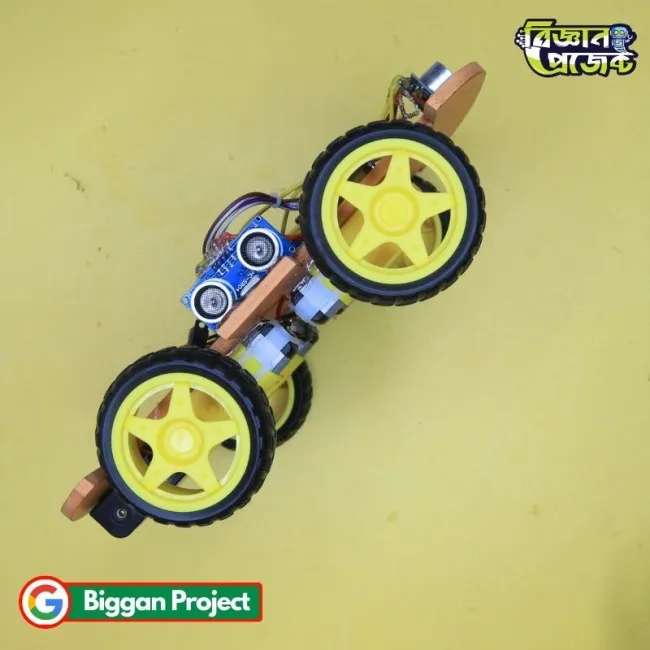

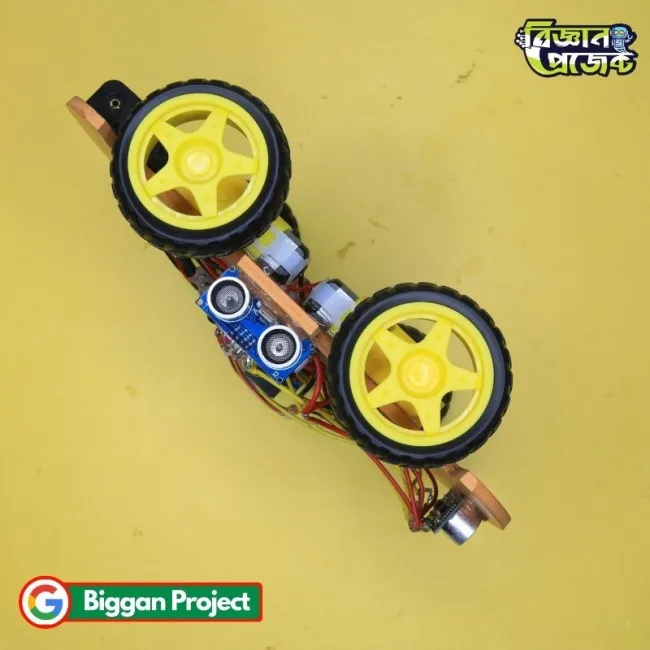

Bluetooth Obstacle Avoidance Robot Car

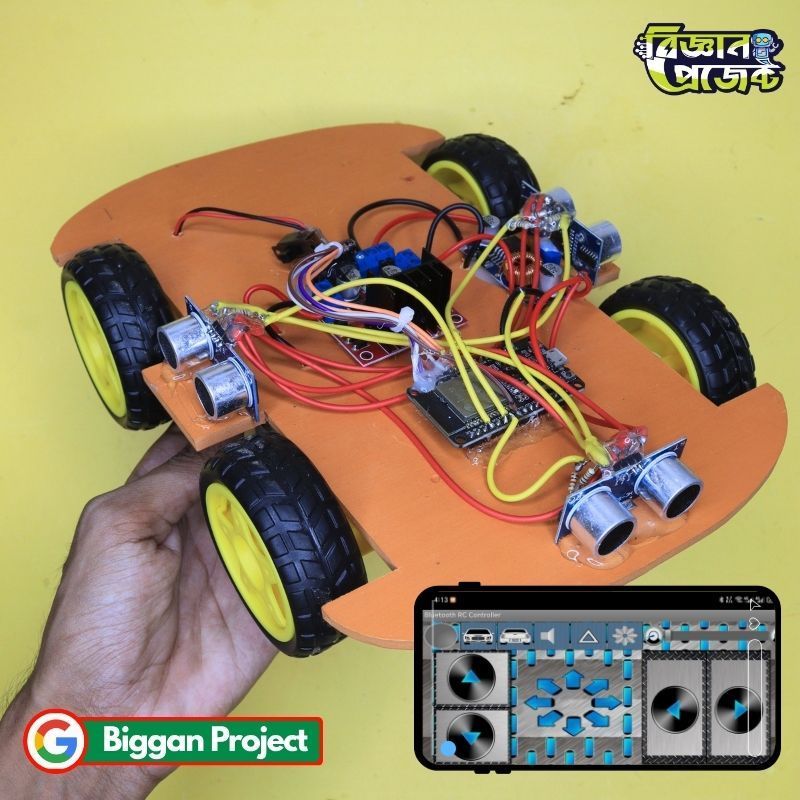

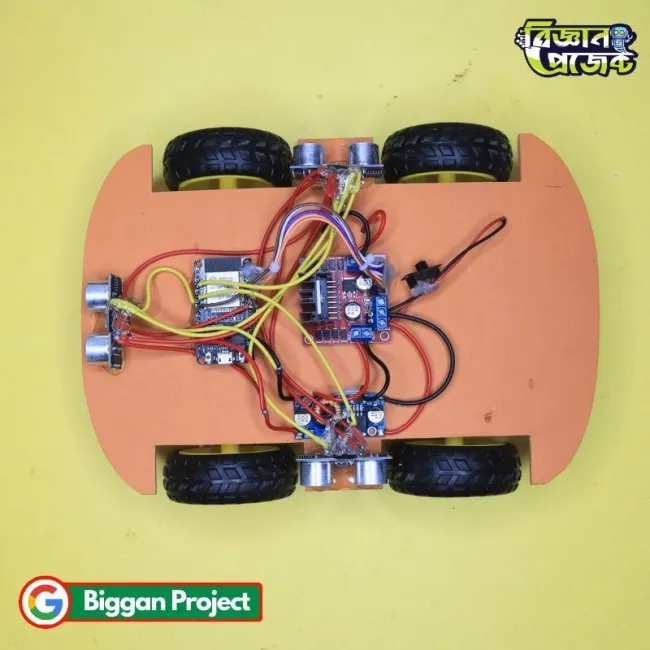

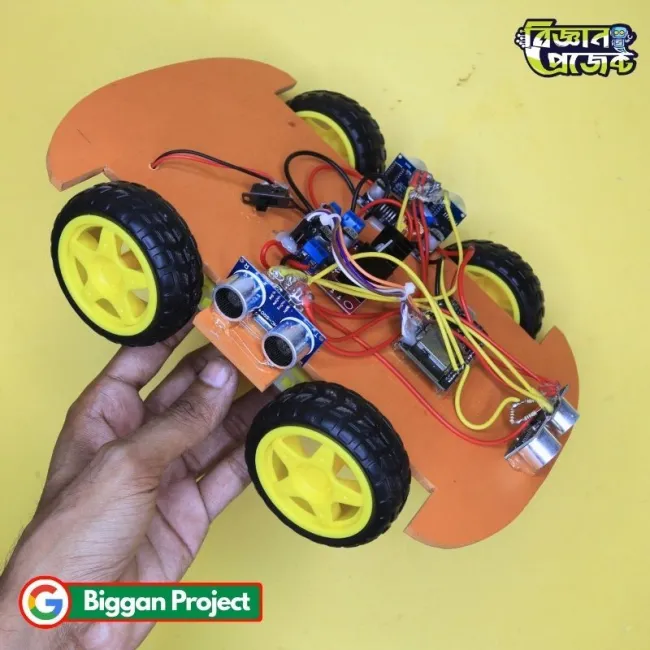

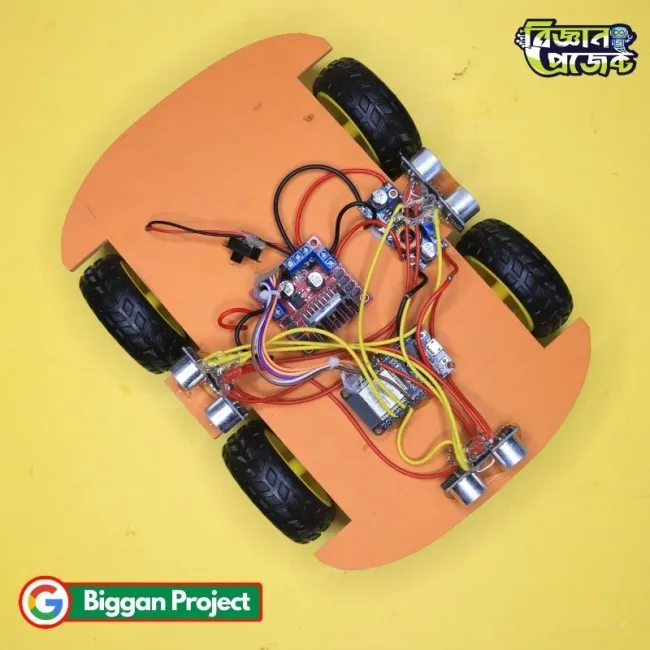

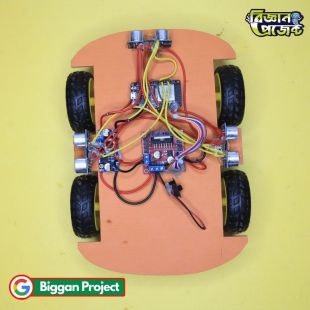

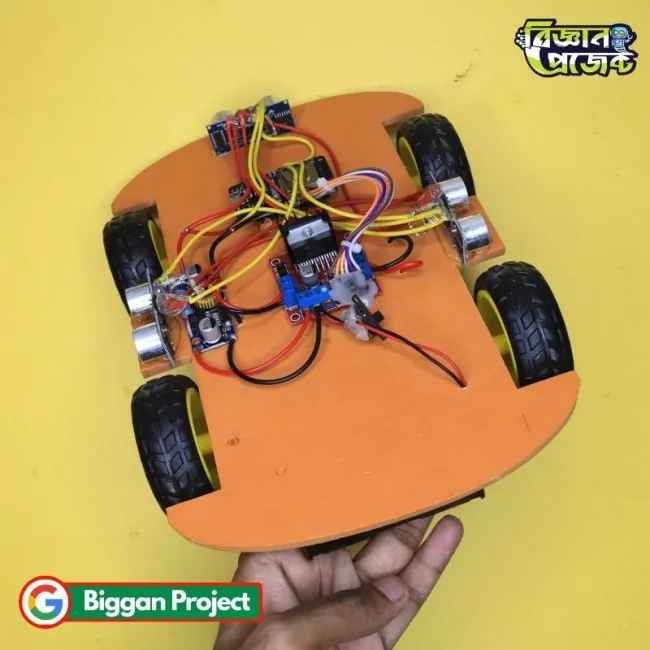

Wireless ESP32 Bluetooth & Ultrasonic Smart Robot Car Science Project

The Wireless ESP32 Bluetooth & Ultrasonic Smart Robot Car Science Project available at Biggan Project is a cutting-edge educational toolkit designed for students and hobbyists across Bangladesh. This complete science project combines modern wireless communication with automated obstacle avoidance, providing hands-on experience in robotics engineering, embedded systems, and microcontroller programming. Whether you are showcasing your innovation at a school science fair or building your foundational engineering skills, this ready-to-deploy robot car offers a robust platform for real-world learning.

Features

• Dual-mode operation featuring manual smartphone control via Bluetooth and automated obstacle avoidance.

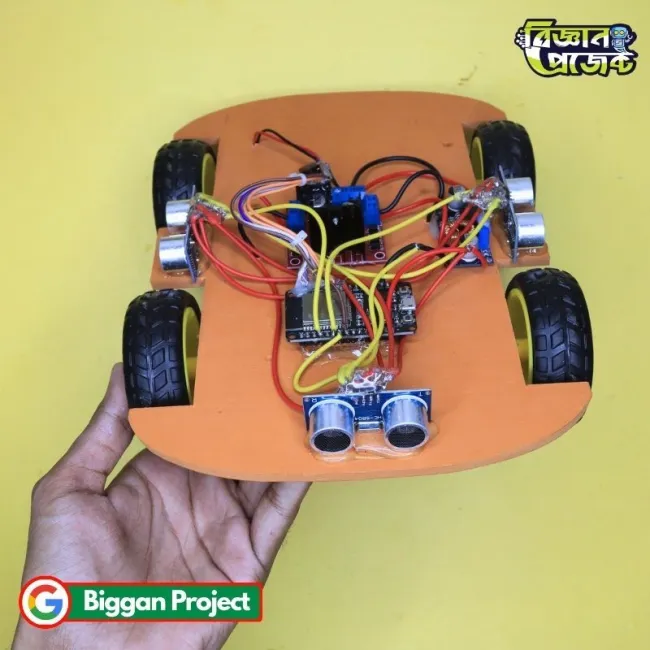

• Tri-directional sensor setup utilizing three HC-SR04 ultrasonic modules for comprehensive left, center, and right spatial awareness.
• Powered by a high-performance ESP32 development board equipped with integrated wireless connectivity.

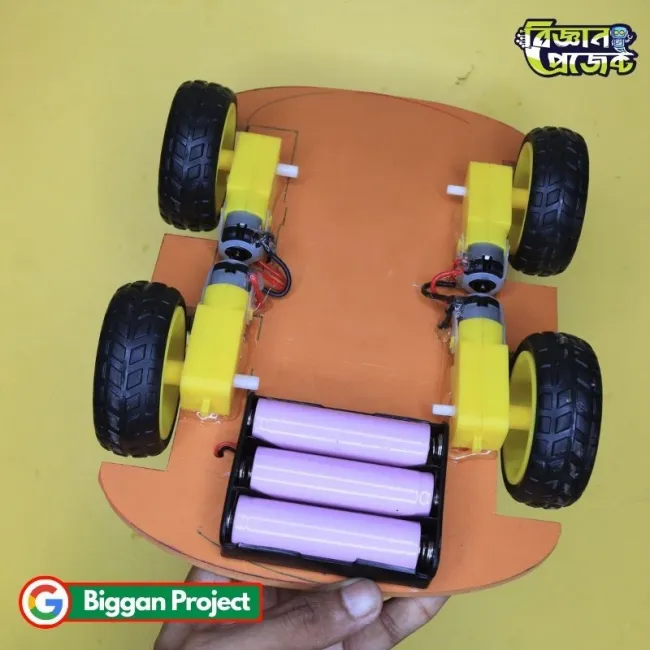

• Robust 4-wheel drive system driven by four 100 RPM TT BO motors and high-traction 65mm wheels.
• Sturdy and lightweight 5mm PVC chassis engineered to endure regular handling during project demonstrations.
• Integrated safety and power management using an on-off slide switch and secure 18650 battery casing.
• Precise logic-level voltage translation implemented via 1k resistors to protect the 3.3V ESP32 from 5V sensor signals.

Applications / Use Cases

• Exhibiting at school, college, and university science fairs throughout BD.
• Educational demonstrations for teaching basic robotics, sensor integration, and C++ programming.
• Prototyping automated mobile platforms for academic research and engineering competitions.
• Introduction to Internet of Things (IoT) concepts using microcontroller development boards.

User Guide / How to Use

• Charge the 18650 lithium-ion batteries completely using the provided dual slot charger before initial operation.
• Insert the charged batteries into the 3-chamber holder case, ensuring correct polarity alignment.
• Switch on the main power using the 6-pin slide switch mounted on the chassis.
• Pair your mobile device with the ESP32 module using a compatible Bluetooth robot control application.
• Command the robot manually or observe its autonomous obstacle-avoidance behavior as the ultrasonic sensors detect barriers.

Frequently Asked Questions (FAQs)

• Q: What mobile app is required to control this robot car?
  A: Any standard Bluetooth RC controller app available on mobile app stores that transmits serial commands can be paired with the ESP32.
• Q: Are the batteries included with the package?
  A: Yes, the project comes complete with three 18650 rechargeable Li-Ion batteries and a dedicated charger.
• Q: Can the code on the ESP32 be modified?
  A: Yes, the board can be reprogrammed using the Arduino IDE via USB to customize movement logic and sensor thresholds.

Challenges and Considerations

• Ensure correct wiring connections between the L298N driver and ESP32 to prevent motor power fluctuations.
• Verify that the 1k resistor voltage divider setup is secure to protect the ESP32 logic pins from 5V components.
• Recharge batteries promptly when motor responsiveness decreases to maintain optimal torque performance.

Compatibility

• Compatible with standard Android and iOS Bluetooth serial terminal and remote control applications.
• Compatible with the Arduino IDE programming environment for custom firmware flashing.
• Interoperable with various standard electronic sensors and expansion modules for future upgrades.

Future Enhancement Options

• Integrate an ESP32-CAM module for live video streaming and FPV navigation.
• Add line-tracking sensors to enable dual-mode line-following and obstacle-avoidance capabilities.
• Incorporate an OLED display to show real-time sensor distance metrics and operational status.

Benefits

• Provides immediate hands-on learning value without requiring complicated assembly from scratch.
• Promotes logical thinking, problem-solving, and practical engineering skills for students in Bangladesh.
• Offers exceptional durability and reusability for multiple project exhibitions and academic semesters.

The Wireless ESP32 Bluetooth & Ultrasonic Smart Robot Car Science Project is an essential educational tool for students seeking a reliable, high-performance robotics project. Backed by the quality standards of Bigyan Project, it delivers an engaging platform for mastering modern electronics and wireless automation.
