IoT Footstep Power Generator Science Project

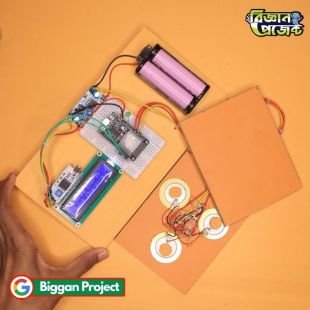

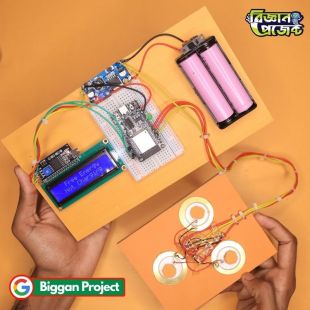

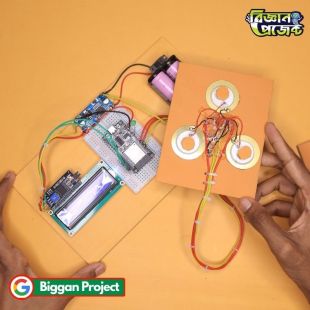

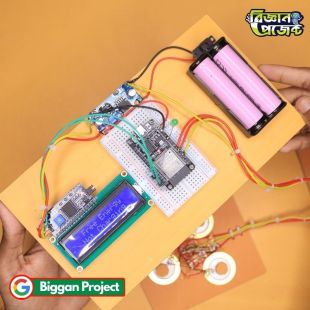

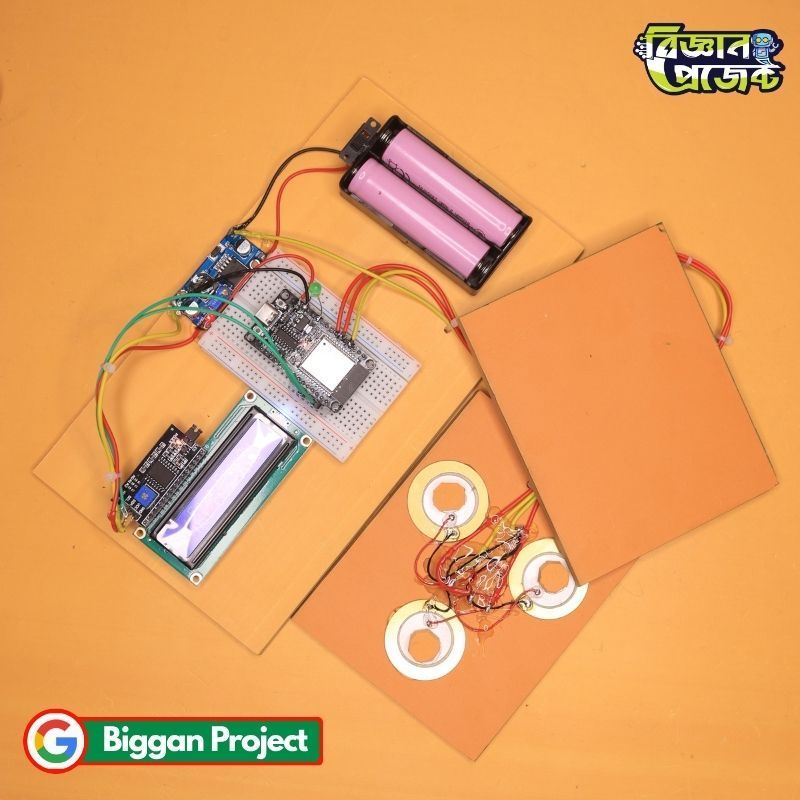

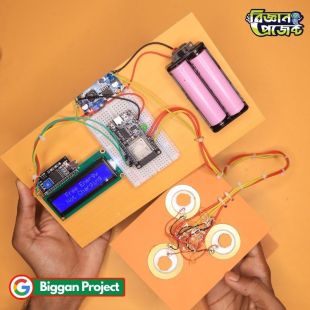

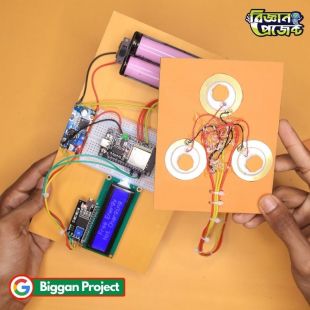

ESP32 Smart Piezo Footstep Power Generator Project Kit

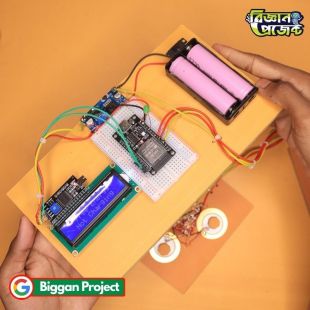

The ESP32 Smart Piezo Footstep Power Generator Project Kit is an innovative renewable energy science project designed to demonstrate how electrical energy can be generated from mechanical force such as footsteps or vehicle pressure. This educational project uses piezoelectric technology to convert pressure into electrical energy, making it an excellent demonstration model for science fairs, STEM education, and engineering exhibitions.

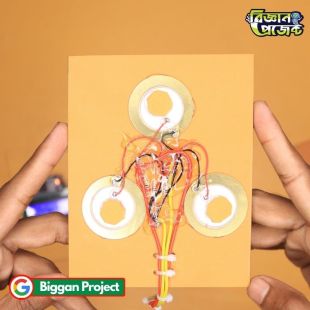

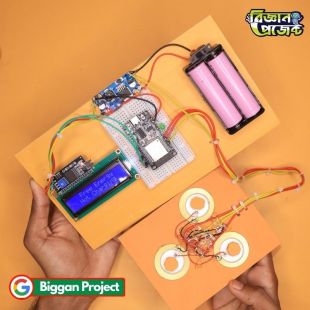

This IoT-enabled project is built around the powerful ESP32 microcontroller, allowing users to monitor generated energy data remotely through cloud-based mobile applications. The project utilizes three 35mm prewired piezo disc sensors that generate small amounts of electricity whenever force is applied. The generated energy level is displayed locally on a 16x2 LCD display with an I2C interface and can also be viewed remotely using internet connectivity.

The Footstep Power Generator Science Project available from Biggan Project is specially designed for students, teachers, and hobbyists in Bangladesh who want to explore renewable energy concepts practically. This project is widely used in science fairs across BD to demonstrate sustainable energy generation methods and IoT-based monitoring systems. Students can easily understand the principles of energy harvesting, piezoelectricity, cloud connectivity, and embedded system design through this project.

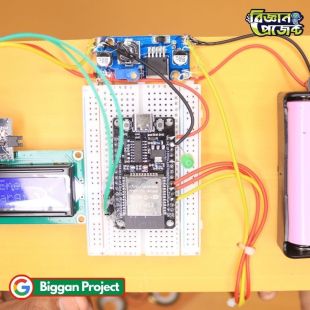

The project operates using two 18650 rechargeable batteries connected through a dual battery holder. Since the battery output voltage is approximately 7.4V, an LM2596 buck converter is used to safely step down the voltage to 5V for powering the ESP32 and LCD display. Users should ensure correct polarity while connecting the LM2596 module because reverse polarity may damage the converter.

Product Specifications

Features

• Demonstrates practical renewable energy generation.
• Generates electricity from footsteps and applied pressure.
• ESP32-based IoT monitoring capability.
• Displays generated energy on 16x2 LCD.
• Supports cloud-based mobile application monitoring.
• Compact and attractive PVC frame design.
• Uses piezoelectric sensors for energy harvesting.
• Suitable for STEM education and science exhibitions.
• Built-in LED indication for visual demonstration.
• Portable and reusable project setup.

Applications / Use Cases

• Science fair demonstrations.
• School and college exhibition projects.
• STEM laboratory experiments.
• Renewable energy education.
• Engineering project demonstrations.
• IoT learning and experimentation.
• Educational workshops and training sessions.
• Embedded systems practical learning.

User Guide / How to Use

• Ensure all circuit connections are properly secured.
• Insert two charged 18650 batteries into the battery holder.
• Verify correct polarity before powering the LM2596 module.
• Turn on the system using the mini slide switch.
• Connect the ESP32 to the configured cloud platform.
• Apply pressure on the piezo plates by stepping on them.
• Observe generated energy values on the LCD display.
• Monitor real-time data through the mobile application.

Frequently Asked Questions (FAQs)

• Q: Can this project power household appliances?
  A: No. This project is designed for educational demonstration purposes only.
• Q: How many piezo sensors are used in this project?
  A: The project uses three 35mm prewired piezo disc sensors.
• Q: Can students use this project for science fairs?
  A: Yes. It is highly suitable for school, college, and university science exhibitions.
• Q: Does the project support IoT monitoring?
  A: Yes. The ESP32 enables cloud-based monitoring through mobile applications.
• Q: Why is an LM2596 module used?
  A: The LM2596 safely reduces battery voltage from approximately 7.4V to 5V.

Challenges and Considerations

• Piezo sensors generate relatively small amounts of energy.
• Proper pressure application is required for measurable output.
• Reverse polarity connection may damage the LM2596 module.
• Stable internet connectivity is required for IoT monitoring.
• Secure wiring is essential for accurate readings.
• Energy output varies depending on applied force.

Compatibility

• Compatible with ESP32 development boards.
• Compatible with standard 16x2 I2C LCD modules.
• Compatible with common cloud IoT platforms.
• Compatible with rechargeable 18650 batteries.
• Compatible with Arduino IDE for programming and customization.

Future Enhancement Options

• Add more piezo sensors to increase energy generation.
• Integrate Wi-Fi dashboards for advanced analytics.
• Add battery charging and storage circuits.
• Include SD card logging for historical data storage.
• Add wireless notification systems.
• Implement web dashboard monitoring.

Benefits

• Provides hands-on renewable energy learning.
• Enhances understanding of IoT technology.
• Promotes STEM education.
• Demonstrates sustainable energy concepts.
• Encourages innovation and scientific thinking.
• Ideal for practical science education in Bangladesh.

Conclusion

The ESP32 Smart Piezo Footstep Power Generator Project Kit is an excellent educational platform for learning renewable energy, piezoelectric technology, and IoT systems. Whether for science fairs, classroom demonstrations, or engineering projects, this project from Biggan Project offers students in Bangladesh a practical way to explore sustainable energy generation and modern IoT applications.
