Automatic Tree Watering Project with Pump & Sensor

Smart Soil Moisture Controlled Irrigation Kit with 3–6V Pump

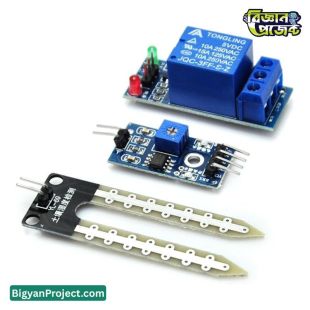

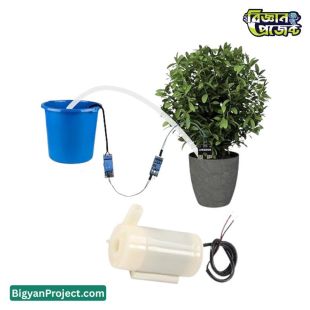

The Smart Soil Moisture Controlled Irrigation Kit is a complete DIY solution designed to automate tree and plant watering with accuracy and efficiency. Using a combination of a Soil Moisture Sensor, Mini Submersible Water Pump (DC 3–6V 100L/H), a 5V Single Channel Relay for pump switching, and TP4056 for powering the system through a powerbank or USB charger, this project delivers reliable performance for hobbyists, students, and smart garden developers.

This kit is ideal for Smart Irrigation Projects, Home Gardening Automation, Agricultural Demonstrations, and STEM/Robotics learning under platforms like Bigyan Project. With accurate sensing, low power consumption, and easy installation, users can maintain plant hydration automatically without constant manual monitoring.

Product Specifications

Features

• Automatic watering based on real-time soil moisture levels
• Low-power Mini Submersible Pump suitable for continuous small-scale irrigation
• Relay-based switching for safe pump operation
• Easy power input using TP4056 for powerbank and USB chargers
• DIY-friendly wiring using slim project cable
• Perfect for smart garden setups, school projects, and Bigyan Project experiments
• Scalable design for multiple plants or larger gardens

Applications / Use Cases

• Smart irrigation systems for small gardens
• Automatic tree watering for rooftops and home gardens
• STEM and school science fair projects
• IoT-based home automation demonstrations
• Research and prototyping for agriculture automation

User Guide / How to Use

• Place the Soil Moisture Sensor into the soil near the plant root zone
• Connect the sensor output to your microcontroller or direct logic circuit
• Wire the pump through the 5V Relay Module for safe switching control
• Attach the 6mm PVC pipe to the pump outlet for water delivery
• Power the system using TP4056 connected to a powerbank or USB charger
• Set your moisture threshold in the controller logic to start/stop the pump automatically
• Test the system by moistening and drying the soil to verify switching behavior

Frequently Asked Questions (FAQs)

• Q: Does the system work without a microcontroller?
  A: Yes, it can be implemented using basic analog threshold circuits, but using Arduino/ESP32 provides better control.
• Q: Can I power the pump directly from a mobile charger?
  A: Yes, when used through the TP4056 module, the pump can be powered via USB sources.
• Q: What type of soil works best with the sensor?
  A: The sensor works with most soil types, though calibration improves accuracy.
• Q: Is the pump waterproof?
  A: The Mini Submersible Pump is designed for underwater use.
• Q: Can I extend the pipe length?
  A: Yes, but longer pipes reduce water pressure; keep under recommended length.

Challenges and Considerations

• Soil moisture sensors may require periodic calibration
• Pump performance decreases if the water source is placed too high
• Direct sunlight may cause soil sensors to degrade over time
• Relay modules should be kept dry and insulated
• Ensure correct polarity when wiring TP4056 for safety

Compatibility

• Works with Arduino, ESP32, NodeMCU, Raspberry Pi
• Supports USB powerbanks and 5V mobile chargers
• Compatible with most small-scale drip irrigation setups
• Can integrate with IoT platforms such as Blynk or ThingsBoard

Future Enhancement Options

• Add Wi-Fi control using ESP32 for remote monitoring
• Include a water level sensor for reservoir tracking
• Upgrade to a peristaltic pump for controlled dosing
• Use solar charging for off-grid applications
• Integrate temperature and humidity sensors for climate analytics

Benefits

• Reduces manual watering and plant maintenance time
• Improves plant health through consistent hydration
• Saves water by watering only when needed
• Simple, low-cost, and effective DIY automation solution
• Ideal for learning robotics, IoT, and automation with Bigyan Project

Conclusion

The Smart Soil Moisture Controlled Irrigation Kit is a practical and powerful solution for anyone looking to automate plant and tree watering. With easy wiring, low power requirements, and reliable sensing, this project is perfect for educational use, hobby gardens, and smart home experiments under Bigyan Project’s DIY ecosystem.
