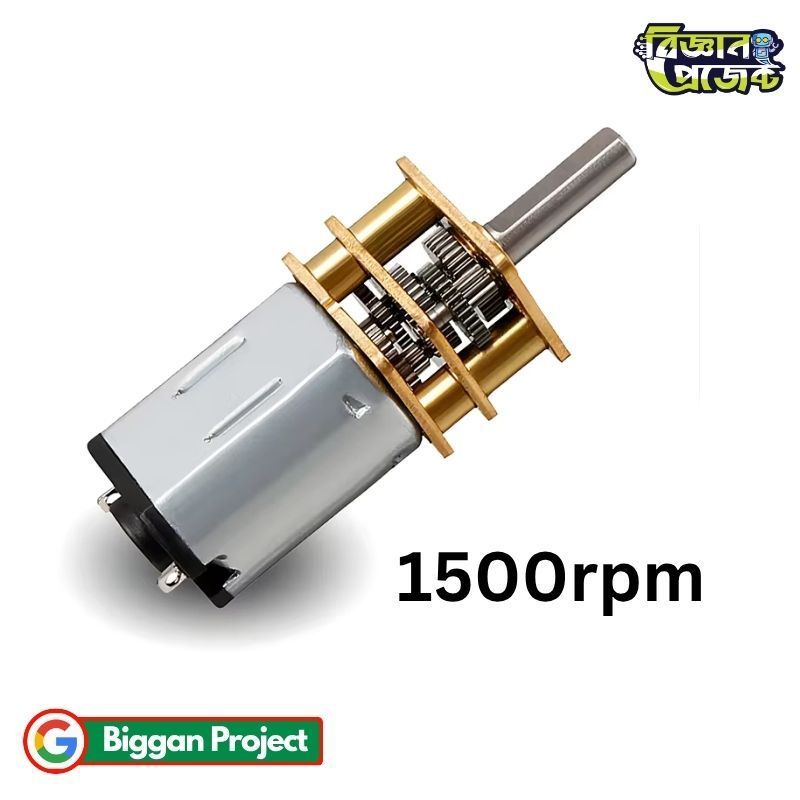

N20 12V 1500RPM Mini Metal Gear Motor

JGA12-N20 12V 1500RPM Micro Metal Gear DC Motor for Robotics in Bangladesh

The JGA12-N20 12V 1500RPM micro metal gear DC motor is a high-speed, compact actuator engineered for precision robotics and custom DIY electronics. Operating at a high speed of 1500 RPM at 12V DC, this micro motor delivers rapid rotational output while maintaining mechanical strength through its rugged, all-metal gear reduction system. Its compact 12mm profile allows it to fit into tight spaces, making it an ideal choice for advanced electronic setups, automated systems, and school or university Biggan Project builds across BD.

How it works: when an electric current passes through the DC motor coils, magnetic interaction creates rapid armature rotation. The integrated precision gearhead utilizes a train of durable metal gearwheels to convert motor speed into usable mechanical torque. This mechanism provides consistent rotational performance for high-speed mini RC vehicles, small actuators, and automated mechanisms. Whether you are assembling a competitive robot or working on a science fair science project in Bangladesh, this versatile motor provides the high-speed drive required for modern mechatronics.

Specifications

Features

• High rotational speed output reaching 1500 RPM at rated 12V supply.
• Compact 12mm miniature form factor for space-constrained electronic designs.
• All-metal internal gearwheel construction ensuring enhanced durability against gear striping.
• Proportional speed adjustment across a flexible 3V to 12V operating range.
• Standardized 3mm D-shaft design for easy wheel, coupler, and gear installation.
• Low vibration operation with smooth gear engagement for delicate mechanical builds.

Applications / Use Cases

• High-speed mini RC cars and automated mobile robot platforms for BD robotics competitions.
• Custom Biggan Project models, STEM learning kits, and university engineering prototypes.
• Automated door locks, motorized curtain openers, and small smart home devices.
• Precision optical pan-tilt mechanisms and automated camera sliders.
• Micro conveyor belts, automated sorting devices, and small industrial automation rigs.

User Guide / How to Use

• Solder power leads directly to the two rear motor terminals carefully to avoid overheating the contacts.
• Connect the motor terminals to an appropriate H-bridge DC motor driver (such as L298N, L293D, or TB6612FNG) for directional and speed control via microcontroller PWM.
• Ensure the power supply provides a steady 12V DC voltage for maximum rated speed performance.
• Mount the motor securely using a dedicated N20 aluminum or plastic mounting bracket.
• Avoid applying direct lateral force to the 3mm shaft during press-fitting accessories to prevent internal gear misalignment.

Frequently Asked Questions (FAQs)

• Q: Can I run this N20 motor at 6V DC instead of 12V?
  A: Yes, running the motor at 6V DC is safe and will yield a proportional speed output of approximately 750 RPM.
• Q: Is the shaft a round shaft or a D-shaft?
  A: It features a standard 3mm D-shaped shaft designed to prevent wheels and couplers from slipping during operation.
• Q: What motor driver is suitable for controlling this motor with Arduino?
  A: Any standard low-voltage motor driver such as L298N, L293D, or TB6612FNG works efficiently with this N20 motor.
• Q: Are the internal gears made of plastic or metal?
  A: The gearhead utilizes a 100% metal gearwheel structure for higher wear resistance.

Challenges and Considerations

• High RPM output trades off higher torque compared to low-speed gearmotor variants.
• Stalling the motor under heavy mechanical loads at 12V can lead to high current draw and heat accumulation.
• Requires a dedicated motor driver module when connecting to microcontrollers like Arduino or ESP32 due to current limits on I/O pins.

Compatibility

• Fully compatible with Arduino, ESP32, Raspberry Pi, and PIC microcontrollers via motor drivers.
• Standard 3mm D-shaft fits widely available N20 rubber wheels, brass couplers, and pulley hubs.
• Fits standard N20 motor mounting brackets and 12mm motor slots.

Future Enhancement Options

• Add a magnetic or optical rotary encoder module to the rear shaft for closed-loop position and speed feedback.
• Integrate a PWM speed controller circuit for smooth manual speed adjustment in custom control panels.
• Attach a flexible shaft coupler to connect to lead screws for micro linear actuator builds.

Benefits

• Delivers fast motion in miniature robotic projects without requiring heavy industrial motors.
• Durable metal gearhead reduces maintenance requirements in educational and hobbyist settings across Bangladesh.
• Lightweight construction reduces overall mass in competitive high-speed mini robots.
• Wide operational voltage range provides versatility across various battery setups like 1S-3S LiPo packs.

Conclusion

The JGA12-N20 12V 1500RPM micro metal gear DC motor provides an exceptional balance of rapid speed, compact size, and structural durability. Ideal for student projects, STEM kits, and hobby robotics in BD, this micro gearmotor offers a reliable driving solution for any custom electronic setup demanding fast rotational motion in a tiny footprint.
